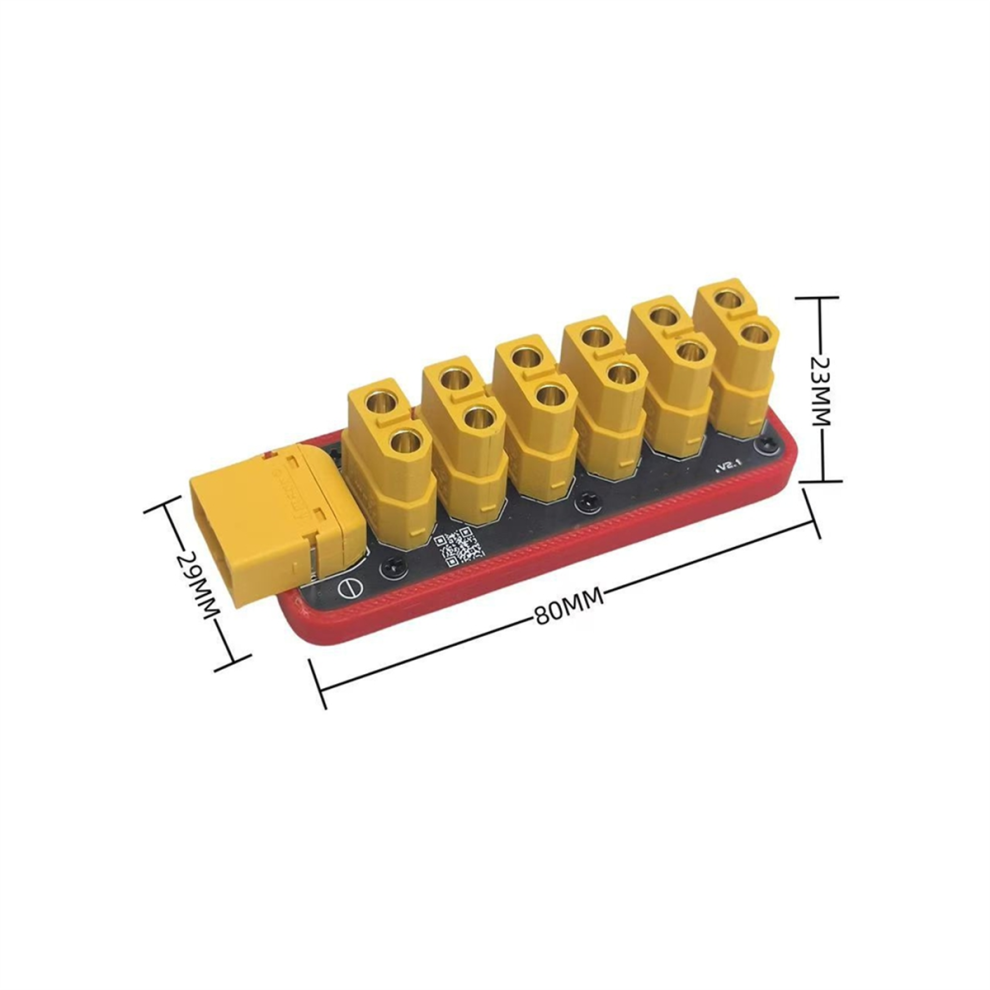

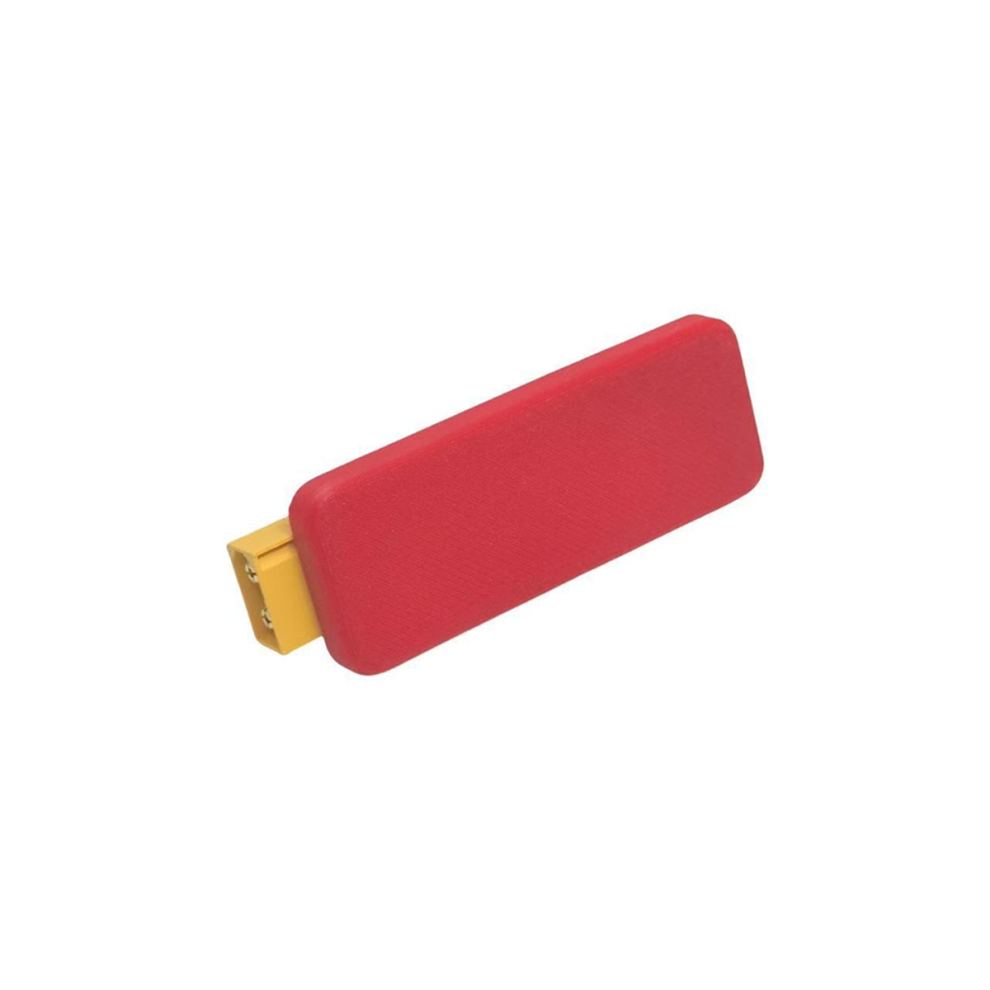

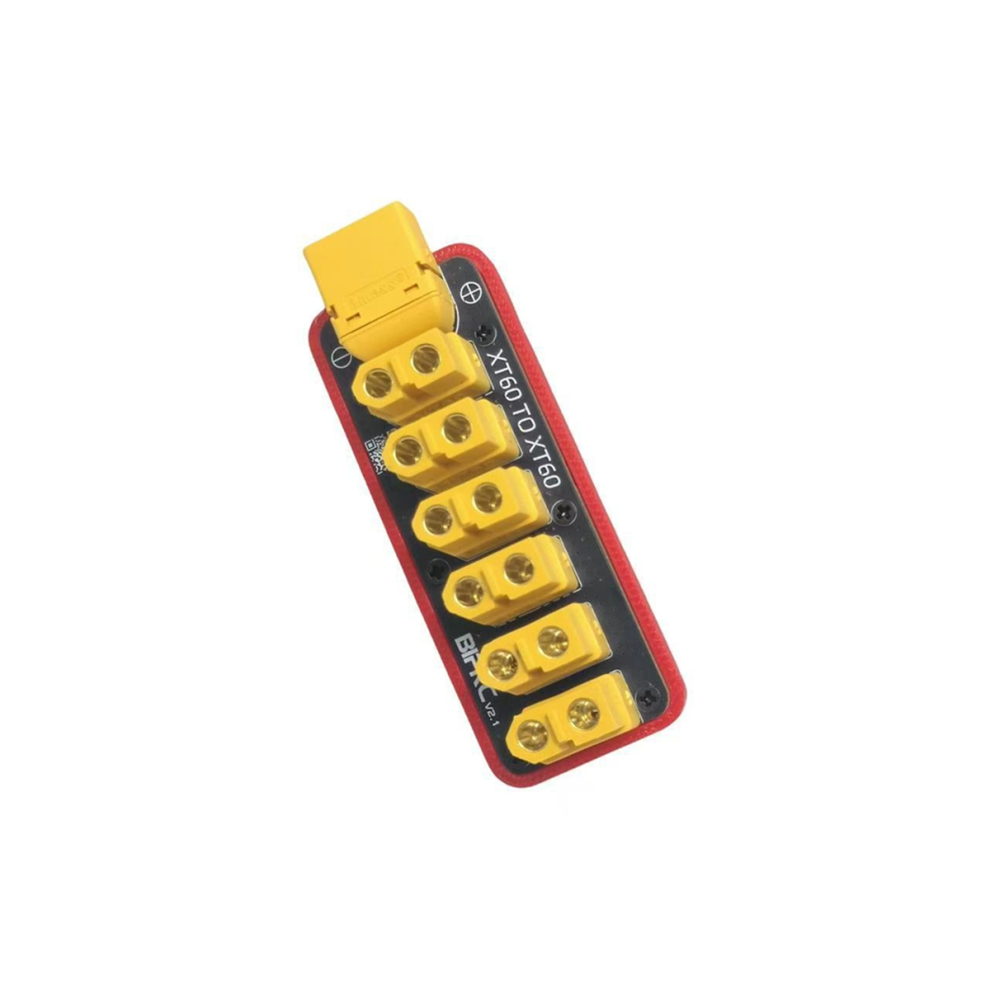

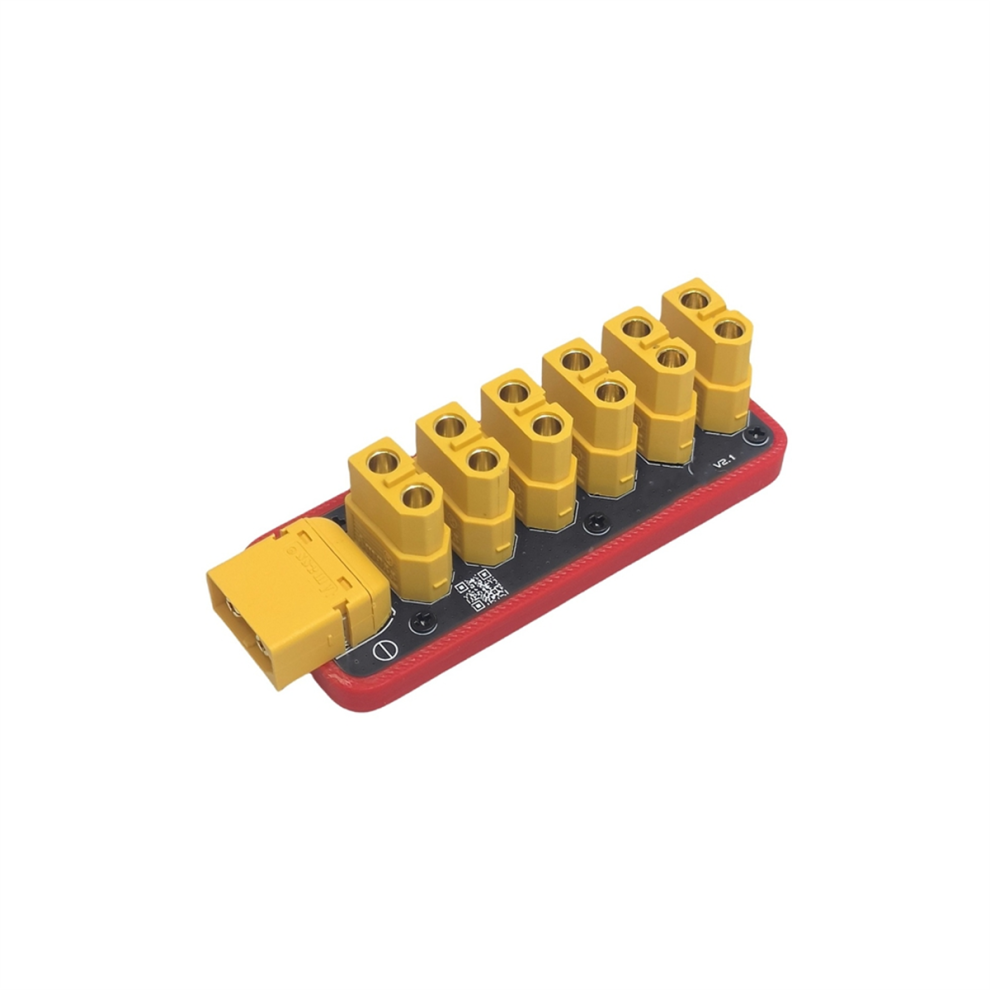

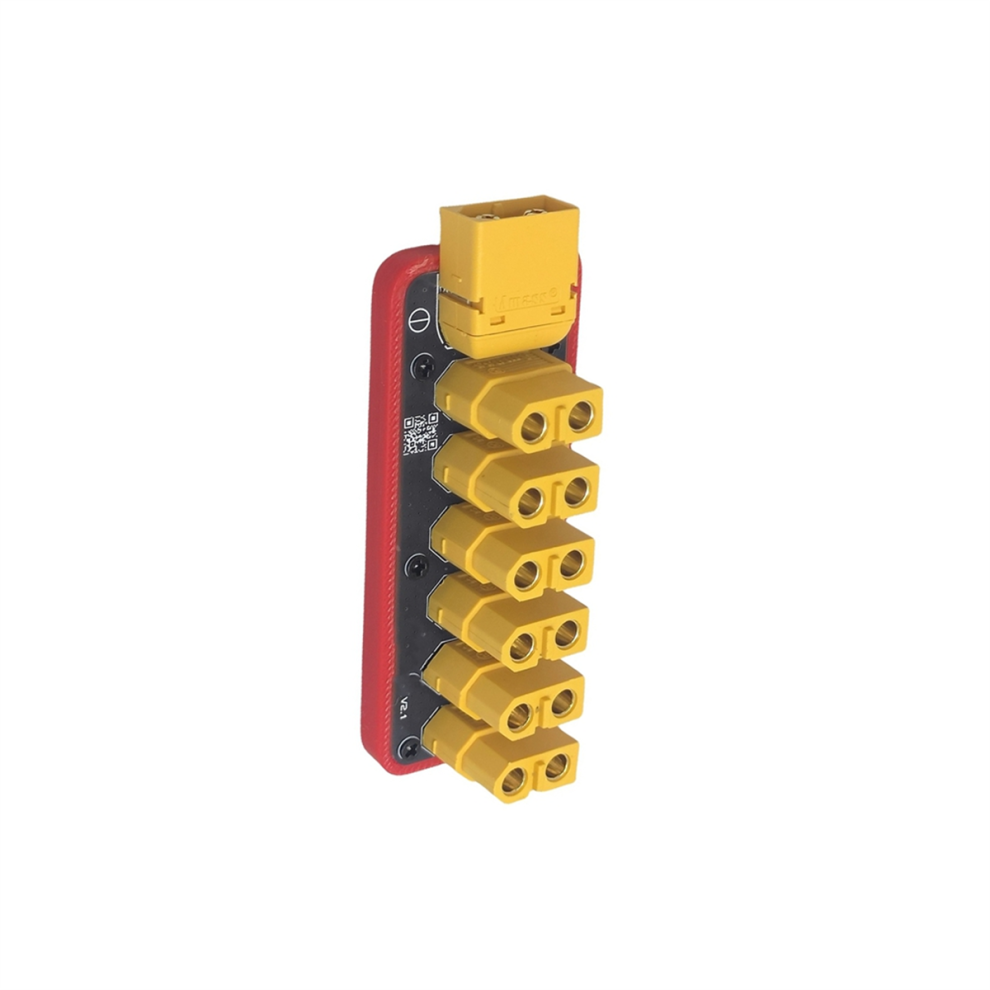

6-Bit Model Aircraft Robot Electric Vehicle Distribution Board

6-Bit Model Aircraft Robot Electric Vehicle Distribution Board Description

1. Input is for the device, and output is for six battery ports, providing clear and intuitive connections.
2. A large 2.5mm thick tin-stacked on the back significantly enhances current carrying capacity.
3. Supports continuous high-current transmission, with a single channel capable of carrying 30A and a total current of up to 180A.
4. Supports DC 11-25V (3s-6s), suitable for image transmission, model aircraft, and ESC power supplies.
5. Double-sided PCB for stable conduction, and treatment for enhanced durability.

Technical Parameters:
Input Port: 1 x XT-60 (device)
Output Port: 6 x XT-60 (battery)
Supported Voltage: DC 11V-25V (3s-6s)
Continuous Current: Recommended 30A per channel
Total Current: Maximum 180A (under favorable conditions)
PCB Thickness: 1.6mm (double-sided)
Tin Thickness: Approximately 2.5mm
Applications
1. FPV Drone power supply system
2. Multi-channel image transmission/servo parallel connection
3. Model aircraft ESC, RC car light hub
4. Multi-channel high-current power supply/hub solution
Color:As Shown
Material:plastic

Package Contents:
1 * XT-60 Distribution Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
