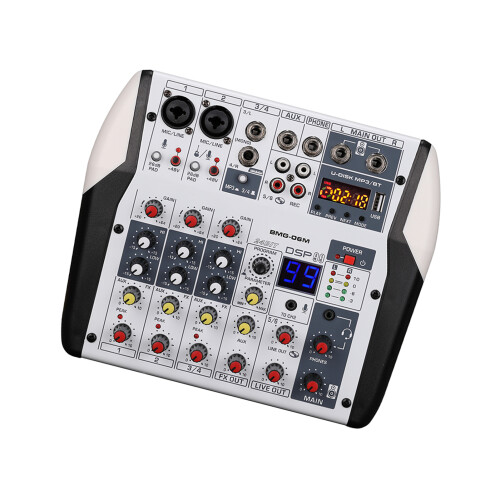

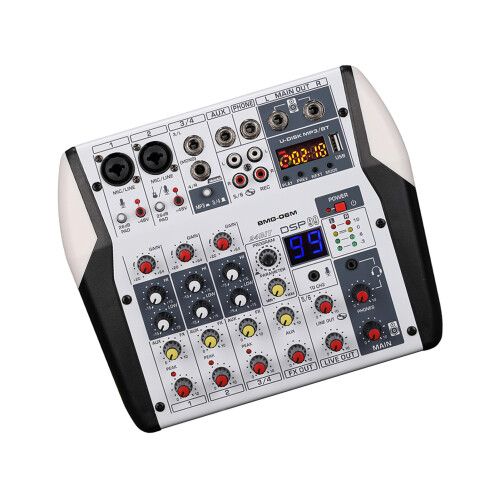

6 Channel DJ Mixer Stereo MP3 USB BT 48V Phantom DSP Large Screen

6 Channel DJ Mixer Stereo MP3 USB BT 48V Phantom DSP Large Screen Description

1、【 Versatile 6-channel Audio Mixer】: Our 6-channel soundboard is a multi-functional device designed for home music production, livestreaming, karaoke, voice recording, and small band performances. Equipped with built-in sound card and BMG design effect chip, it delivers high-quality sound for all your audio needs. 2、【Seamless Connectivity Options】: The audio mixer can be easily connected to your computer via USB power supply, allowing you to use a USB AC/DC XLR plug or a phone-type plug. It also features microphone and instrument stereo input jacks for connecting electronic keyboards and other audio devices. With both phone-type and RCA pin-style connectors, you have versatile connection possibilities.(This product does not include a power cord) 3、【Precise Control Over Sound Parameters】: Enjoy low-noise adjustable input signals on all microphone inputs, individual gain control on each channel, as well as independent control over high/low tone signals, main output level, headphone volume, echo repeat frequency, and effect echo time interval. The built-in dedicated volume control and +48V phantom power are perfect for condenser microphones. 4、【Convenience At Its Best】: This compact audio mixer comes with a large screen MP3 player and a switch indicator. You can power it up through USB ports on your computer or use a mobile power supply. The 99 built-in DSP presets cater to various applications, making it suitable for DJs, musicians, podcasters, and more. It also features a group of recording terminal ports for stereo input and output to recording interfaces. 5、【Professional-grade Features】: Our DJ mixer board offers 2 mono channels and 2 stereo tape channels, along with an AUX bus main channel output. Each input channel has an AUX output and return, 4-band EQ, and built-in professional reverb. The electronic balance display provides clear input gain and bass/treble adjustment. Additionally, it features a high-definition headphone output port and functions as an MP3 broadcaster and computer sound card.
Features:
【 Versatile 6-channel Audio Mixer】: Our 6-channel soundboard is a multi-functional device designed for home music production, livestreaming, karaoke, voice recording, and small band performances. Equipped with built-in sound card and BMG design effect chip, it delivers high-quality sound for all your audio needs.
【Seamless Connectivity Options】: The audio mixer can be easily connected to your computer via USB power supply, allowing you to use a USB AC/DC XLR plug or a phone-type plug. It also features microphone and instrument stereo input jacks for connecting electronic keyboards and other audio devices. With both phone-type and RCA pin-style connectors, you have versatile connection possibilities.(This product does not include a power cord)
【Precise Control Over Sound Parameters】: Enjoy low-noise adjustable input signals on all microphone inputs, individual gain control on each channel, as well as independent control over high/low tone signals, main output level, headphone volume, echo repeat frequency, and effect echo time interval. The built-in dedicated volume control and +48V phantom power are perfect for condenser microphones.
【Convenience At Its Best】: This compact audio mixer comes with a large screen MP3 player and a switch indicator. You can power it up through USB ports on your computer or use a mobile power supply. The 99 built-in DSP presets cater to various applications, making it suitable for DJs, musicians, podcasters, and more. It also features a group of recording terminal ports for stereo input and output to recording interfaces.
【Professional-grade Features】: Our DJ mixer board offers 2 mono channels and 2 stereo tape channels, along with an AUX bus main channel output. Each input channel has an AUX output and return, 4-band EQ, and built-in professional reverb. The electronic balance display provides clear input gain and bass/treble adjustment. Additionally, it features a high-definition headphone output port and functions as an MP3 broadcaster and computer sound card.
Specifications:
Brand: BOMGE
Voltage: 5V
Console Type: Digital
Power Supply: USB (This product does not include a power cord)
With Phantom Power: Yes
With Effects: Yes
Main Effects Included: 99 DSP
Connectors: USB, BT, XLR
Number of Channels: 6
Connectivity: 6.35mm, XLR, RCA, USB, BT
Noise: 20Hz~20kHz
Source Impedance: 150Ω
Equivalent Input Noise: (Mic in to Insert Send out, max gain) -125dBu
Residual Output Noise: (All outputs, master levels off, all channel levels off) -95dBu
(All outputs, master levels unity, all channel levels off) -80dBu
(All outputs, master levels unity, one channel level unity) -80dBu
Distortion: 20Hz~20kHz THD+N, SMPTEIMD (Mic input to Main output) < 0.03% @ +4 dBu output
Common Mode Rejection Ratio: 1kHz (Mic input to Insert Send output) 60dB gain at unity
Frequency Response: 20Hz - 30kHz
Crosstalk: 20Hz - 20kHz
Adjacent Inputs: -90dB @ 1kHz
Inputs to Outputs: -90dB @ 1kHz
Fader Off: -75dB @ 1kHz
Mute Switch/Break Switch Mute: -90dB @ 1kHz
Maximum levels:
All Inputs: +22dBu
Main Mix XLR: +28dBu
All other outputs: +22dBu
Impedances:
Mic in: 3kΩ
Channel Insert return: 10 k Ω
Ch 1 Instrument Input: 1M Ω
All other inputs: 20 k Ω
REC out: 10 k Ω
Phones out: 25 Ω
All other outputs: 120 Ω
Maximum Voltage Gain (EQ Flat):
Mic Input Channel to:
Insert Output: 50dB
Tape Output: 60dB
1/4 Inch Main Output: 70 dB
XLR Main output: 76dB
Monitor Send: 75dB
FX Send: 90dB
Mono Line Channel to:
Insert Output: 30dB
Tape Output: 40dB
XLR Main output: 56dB
Monitor Send: 55dB
FX Send: 70dB
Tape Input to:
Tape Output: 20dB
XLR Main output: 36dB
Return to:
Tape Output: 10dB
XLR Main output: 26dB
Effects Return to:
Tape Output: 10dB
XLR Main output: 26dB
Channel EQ:
High Shelving: 15Db @ 12kHz
Low Shelving: 15Db @ 80Hz
Digital Effects:
I/O: Mono Input/Stereo Output
Number of Pressers: 99
Phantom Power: 48V DC to all Mic channels at once
Voltage Range: 100-240 VAC, 50-60Hz
Power Consumption: 20W
Note:
Due to the different display screen and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
Packing List:
1 x Mixing Console
1 x Mixing Console
