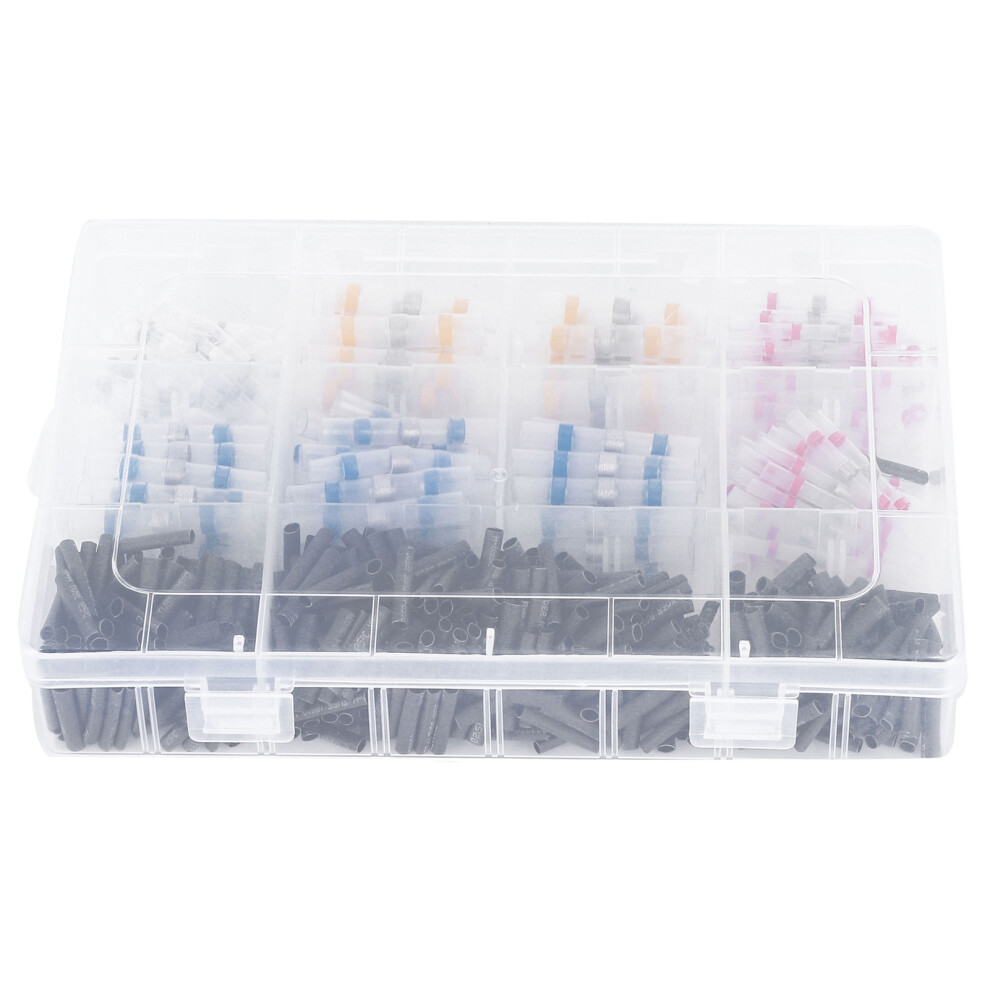

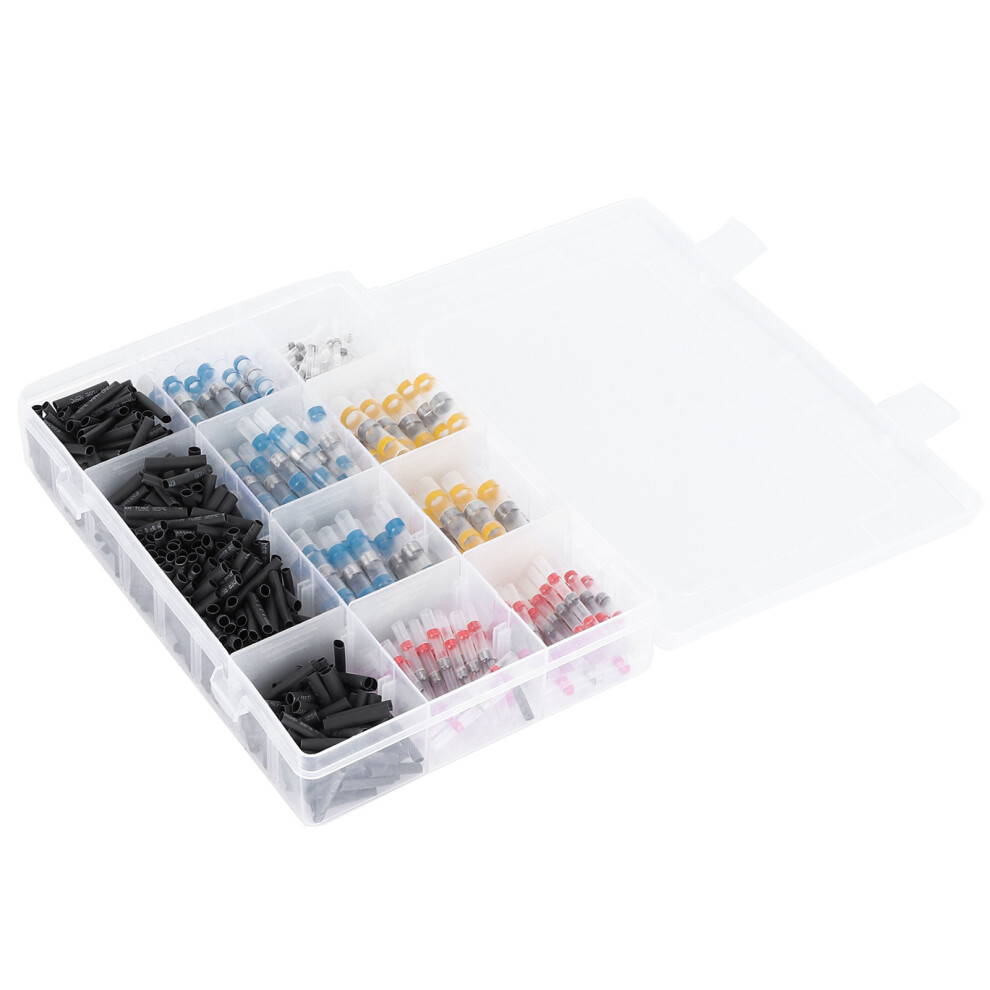

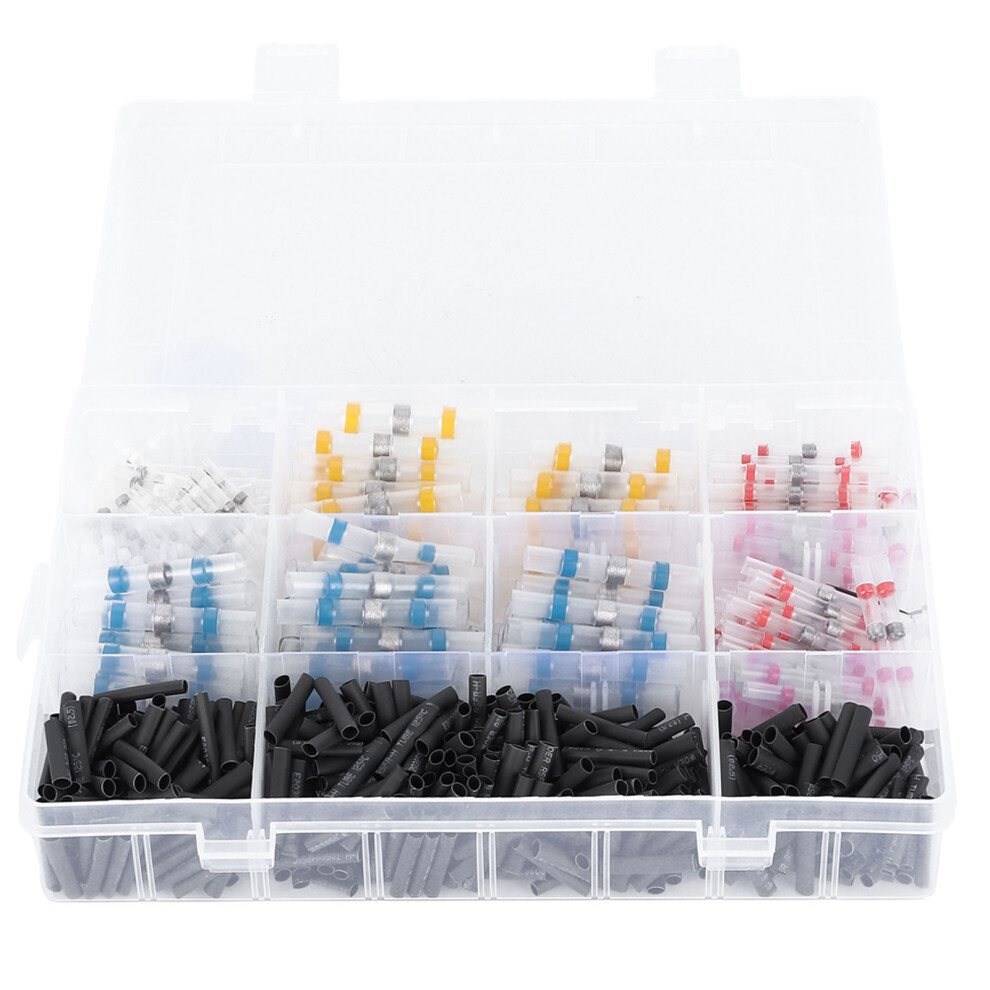

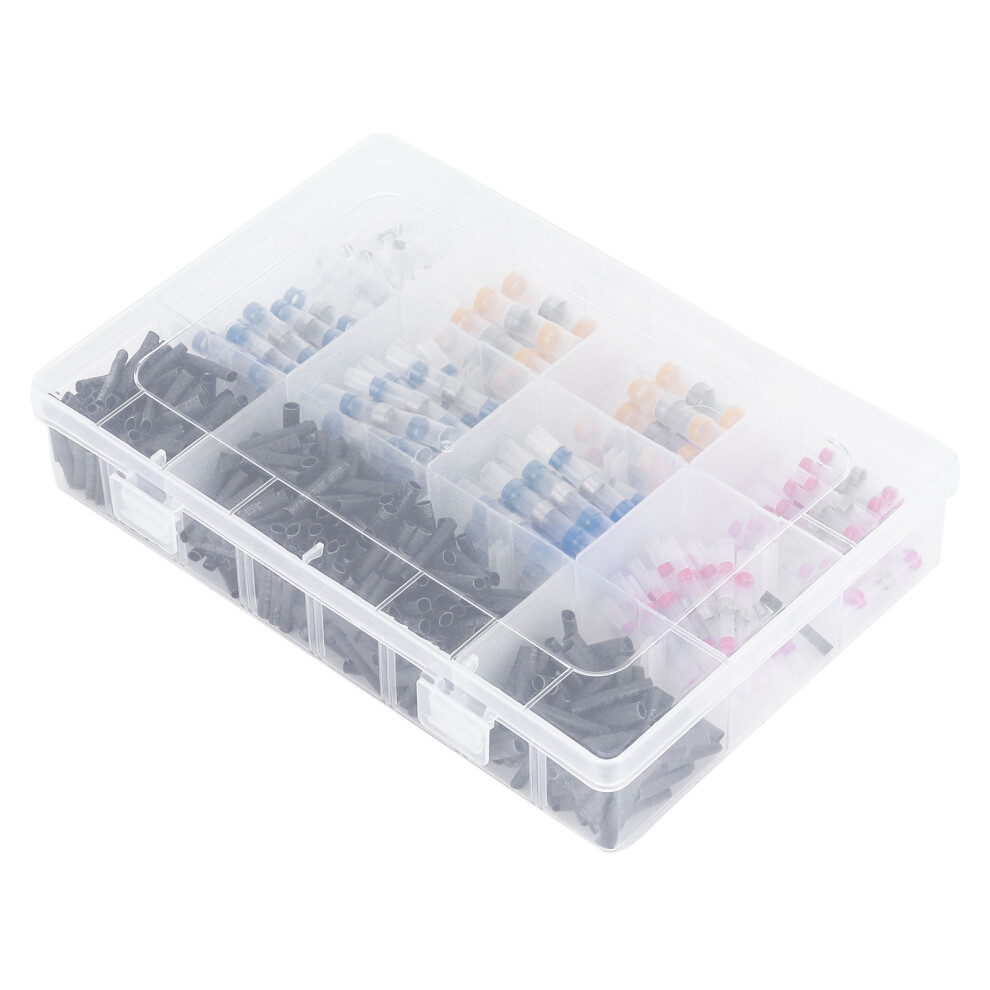

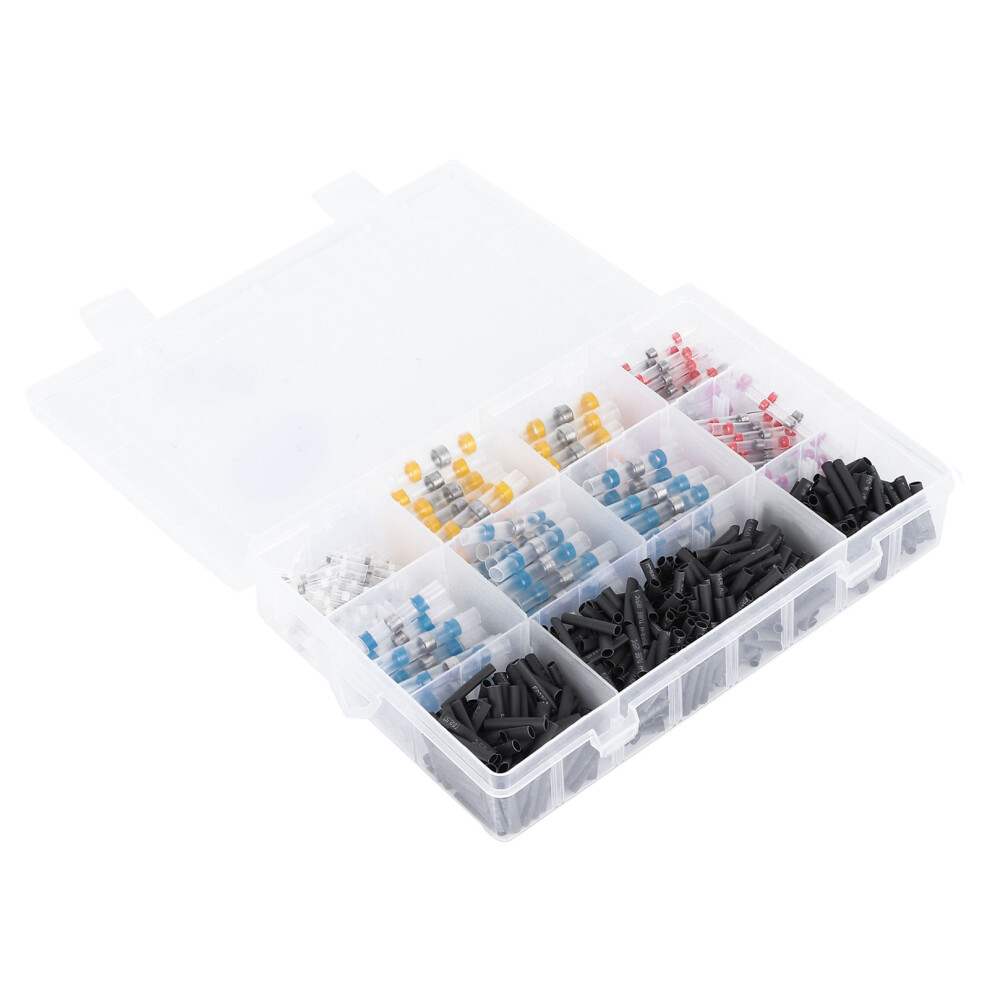

600Pcs Waterproof Heat Shrinkable Polyolefin Wire Connector

600Pcs Waterproof Heat Shrinkable Polyolefin Wire Connector Description

1、This set contains many size of terminals in different colors and types that you can use for a long time. 2、The terminal is transparent, allowing precise visual inspection, and the colored part in the middle is easy for you to identify. 3、These butt terminals have the characteristics of sealing, strain relief, cable inspection and insulation. 4、Polyolefin material has good corrosion resistance, low water absorption, and excellent electrical insulation performance. 5、Commonly used in electronics, ships, automobiles, aerospace and other working fields, which is good wire connection accessory.
Item Type: Wire Butt Terminal
Material: Polyolefin
Minimum Shrink Temperature: 80
Red Terminal Diameter: Approx. 3mm / 0.12in, Applicable Wire: 22-16 AWG 0.5-1.5mm²
Blue Terminal Diameter: Approx. 5mm / 0.2in, Applicable Wire: 16-12 AWG 1.5-2.5mm²
Yellow Terminal Diameter: Approx. 6mm / 0.24in, Applicable Wire: 12-10 AWG 4.0-6.0mm²
White Terminal Diameter: Approx. 1.5mm / 0.06in, Applicable Wire: 26-24 AWG 0.25-0.34mm²
Black Heat Shrink Tube Size: Approx. 20 x 3.5mm / 0.8 x 0.1in
50 x White Terminal
70 x Red Terminal
60 x Blue Terminal
20 x Yellow Terminal
400 x Black Heat Shrink Tube
