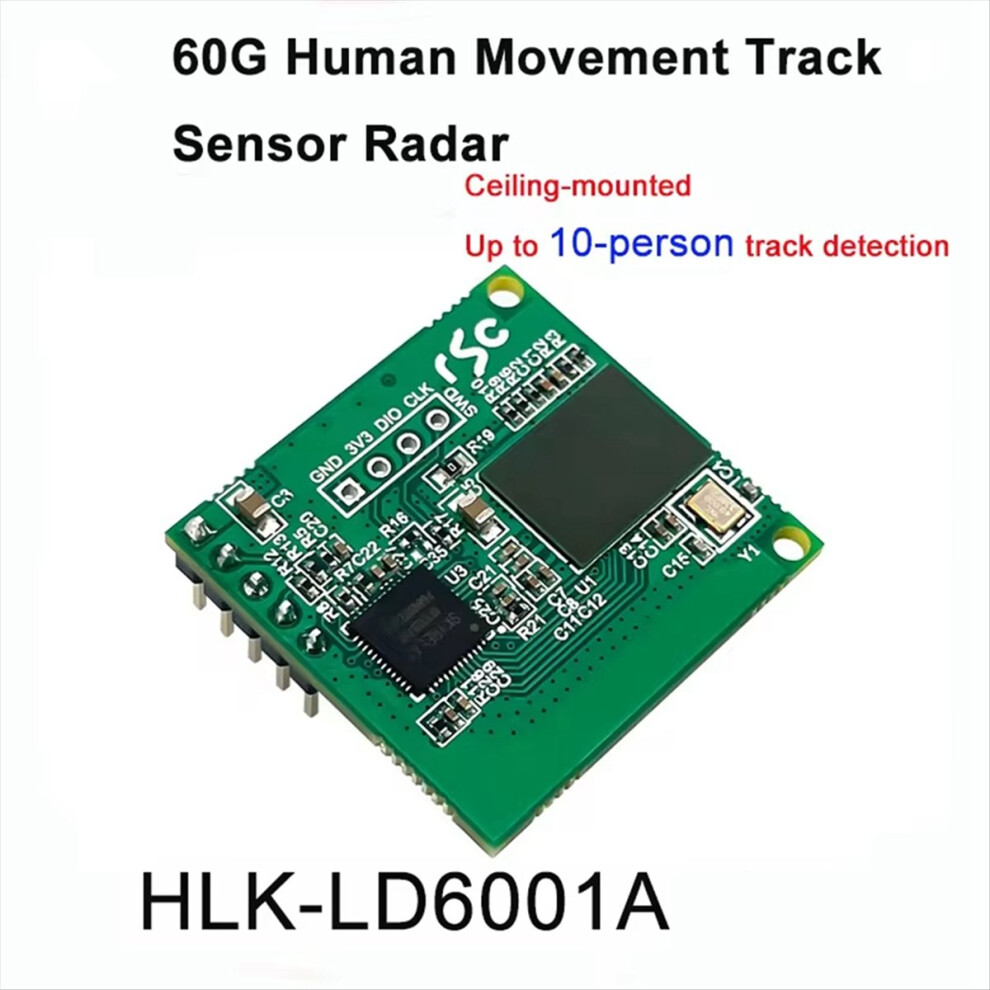

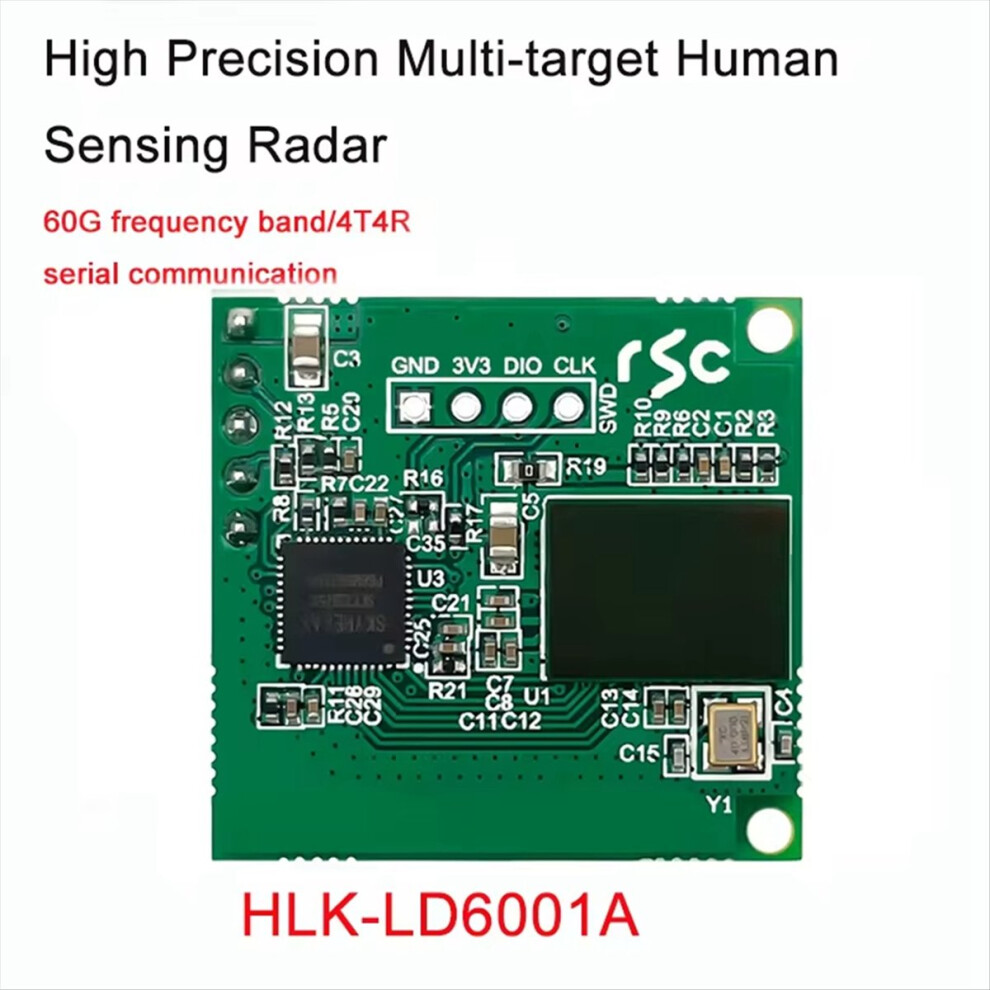

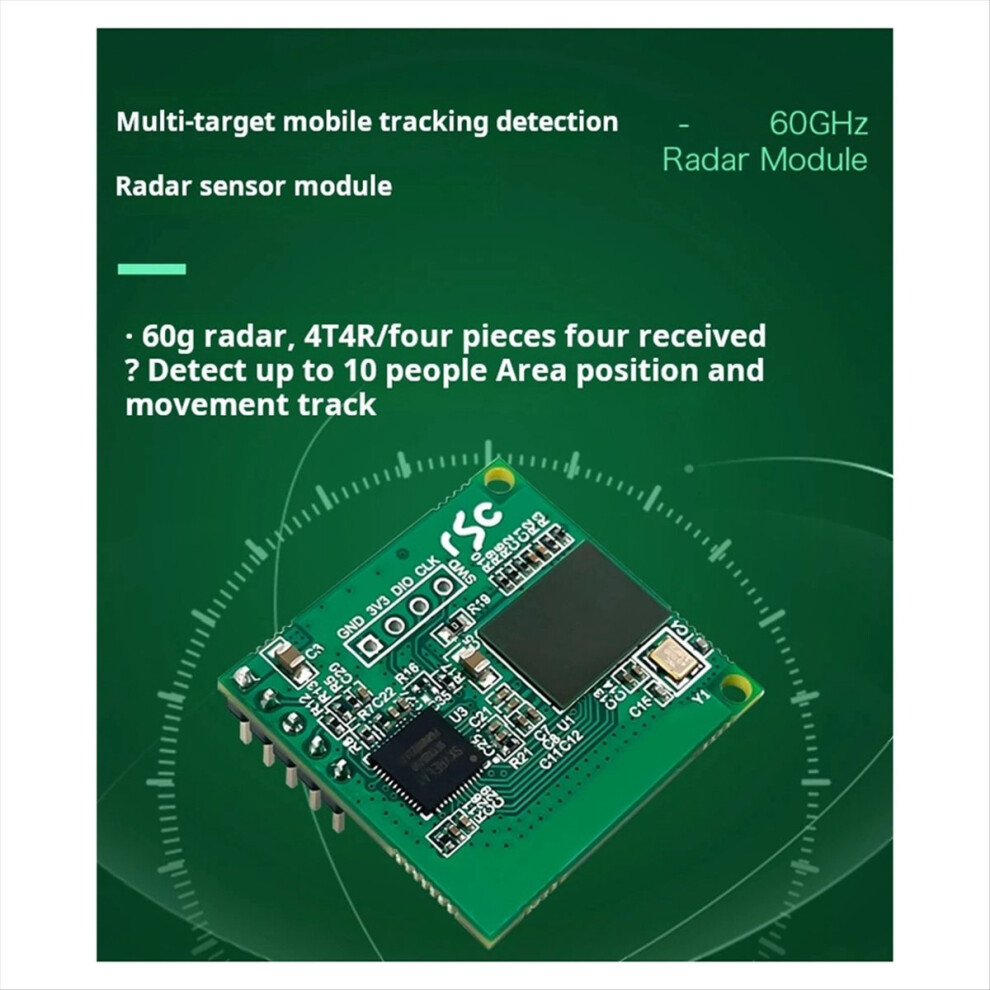

60G 4 Transmitter Receiver High- Multi-Target Human Movement Track Sensing LD6001A Radar Module

60G 4 Transmitter Receiver High- Multi-Target Human Movement Track Sensing LD6001A Radar Module Description

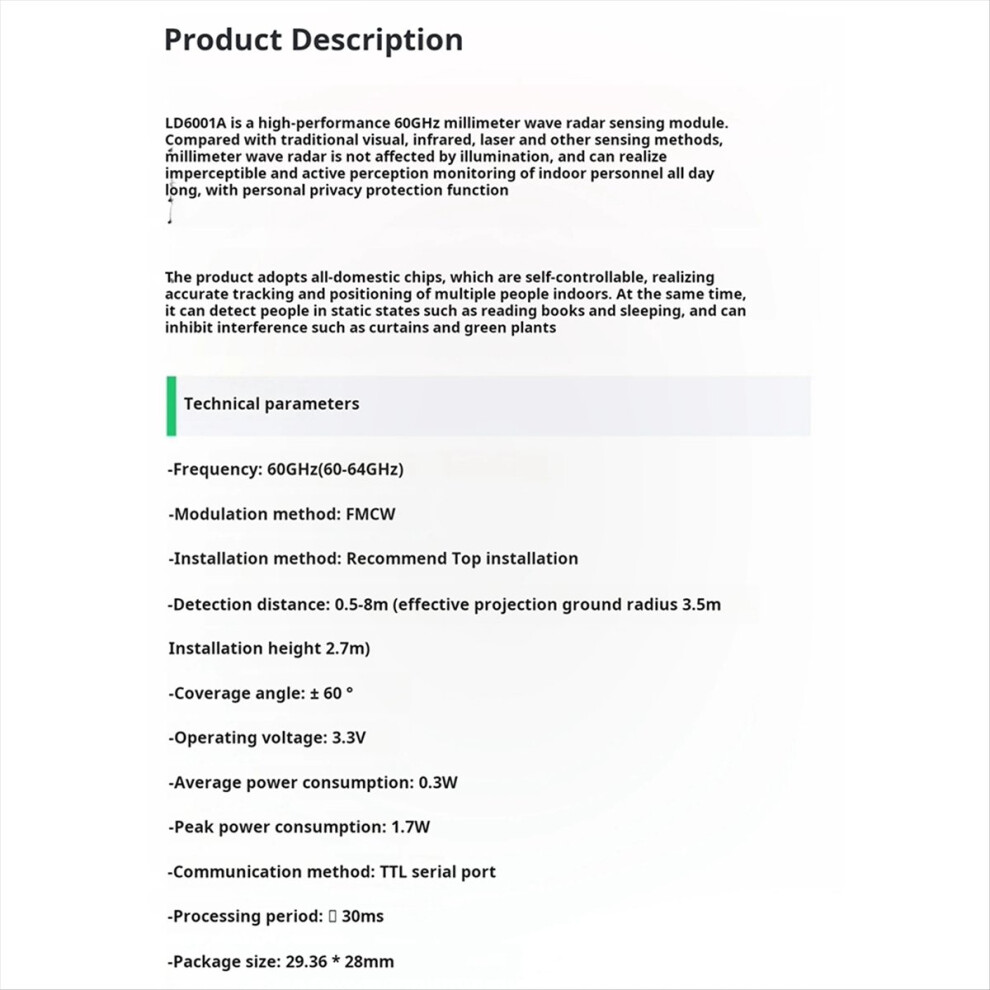

LD6001A is a high performance 60GHz millimeter wave radar sensor module. Compared with traditional visual, infrared, laser and other sensing means, millimeter wave radar is not affected by light, and can realize non-sensory active monitoring of indoor people all day long, with personal privacy protection function.
The product adopts chip, and controllable, to realize the accurate tracking and positioning of indoor multi-person, and at the same time can detect reading, sleeping and other people in a stationary state, and can suppress curtains, green plants and other interference.

Frequency:60GHz(60-64GHz)
Modulation mode:FMCW

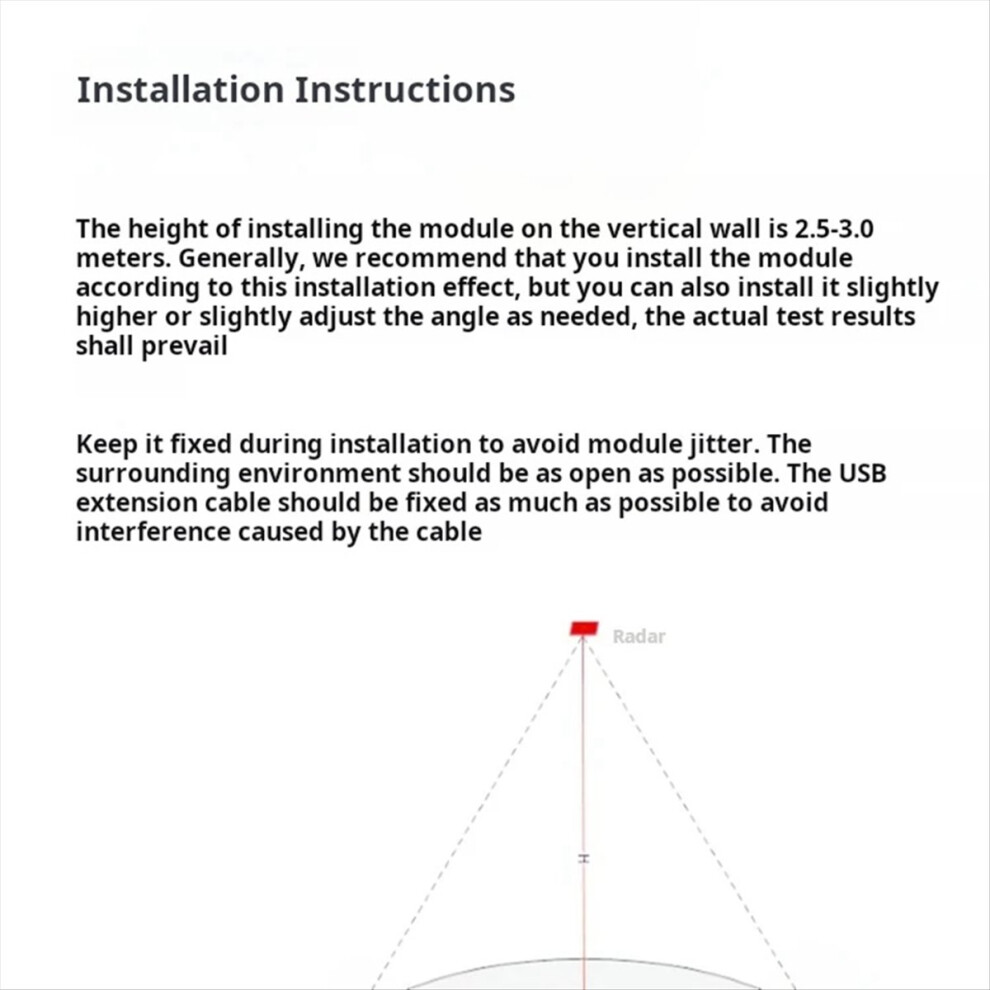

Installation:Recommended top-mounted
Detection distance: 0.5-8m (effective projection ground radius 3.5m installation height 2.7m)
Coverage angle:60
Operating voltage:3.3V
Average power consumption:0.3W
power consumption:1.7W

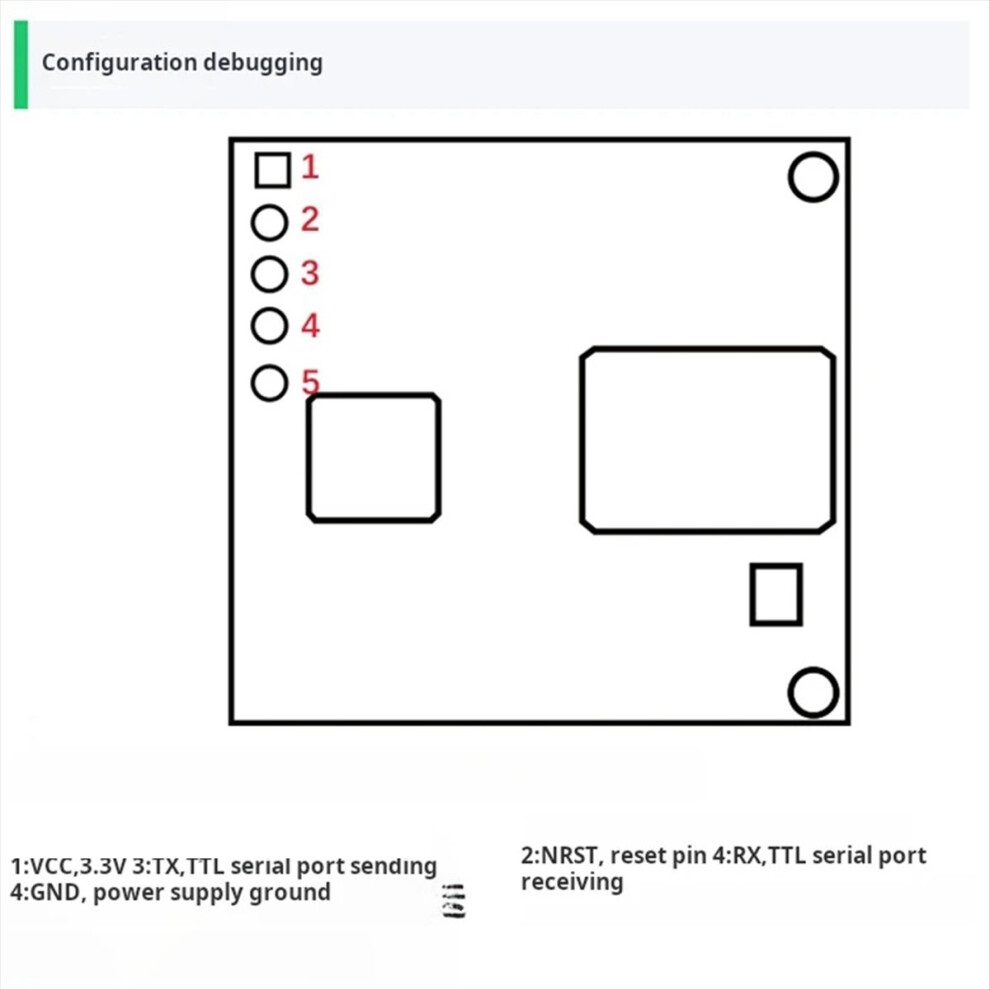

Communication mode:TTL serial port
Processing cycle:Less than 30ms
Colour:Green
Material:ABS

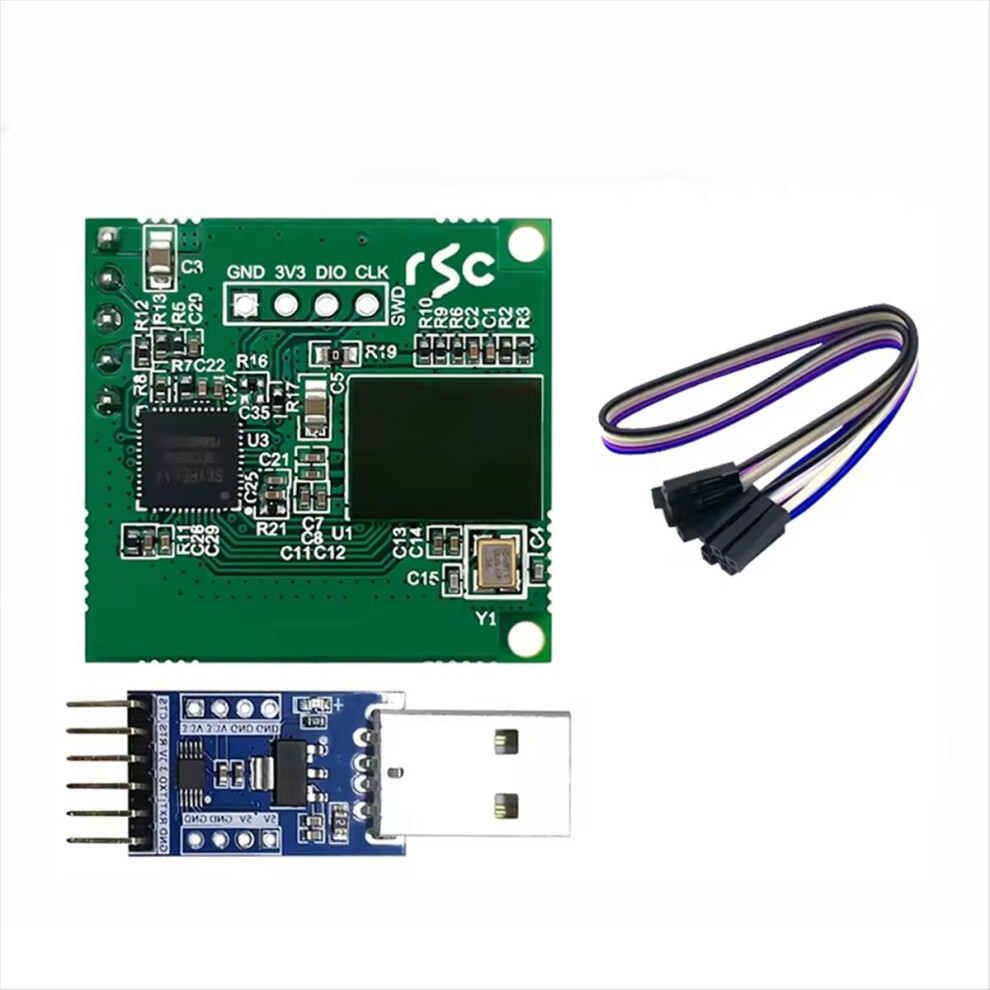

Package Contents:
1 set * 60G human movement Track Sensor Radar

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
