60GHz Millimeter Wave Module Gesture Recognition 3D Human Presence Detection Static Breathing Detection

60GHz Millimeter Wave Module Gesture Recognition 3D Human Presence Detection Static Breathing Detection Description

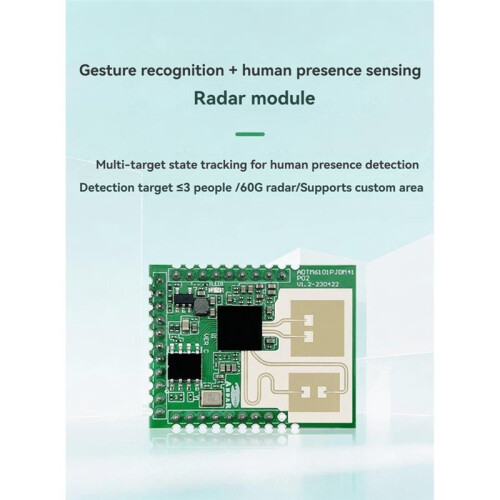

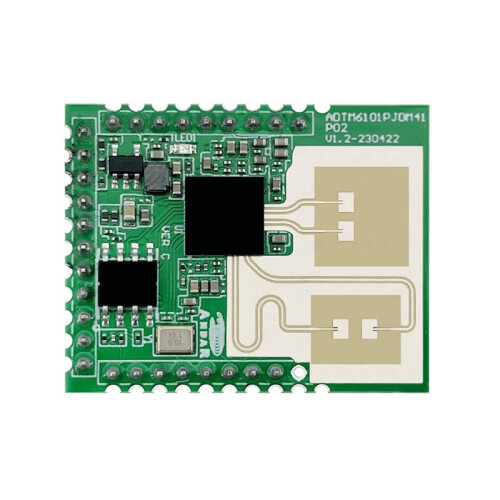

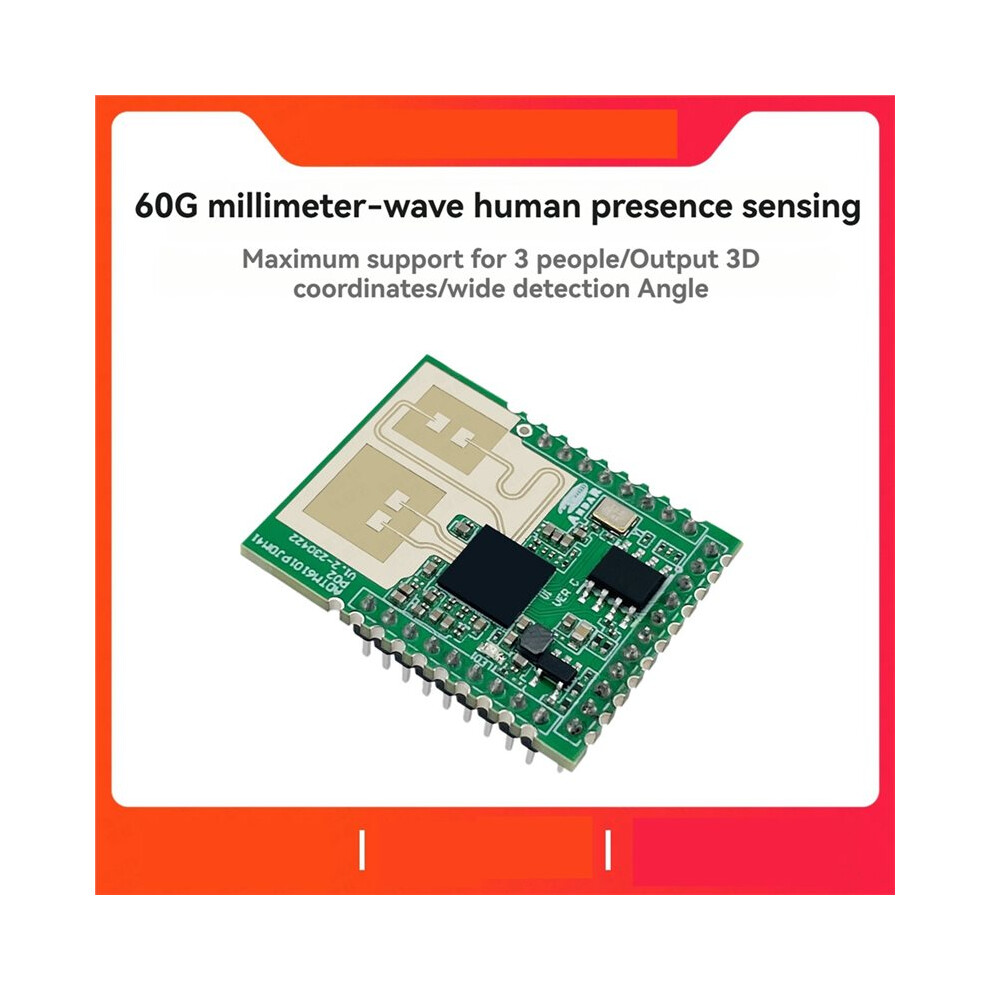

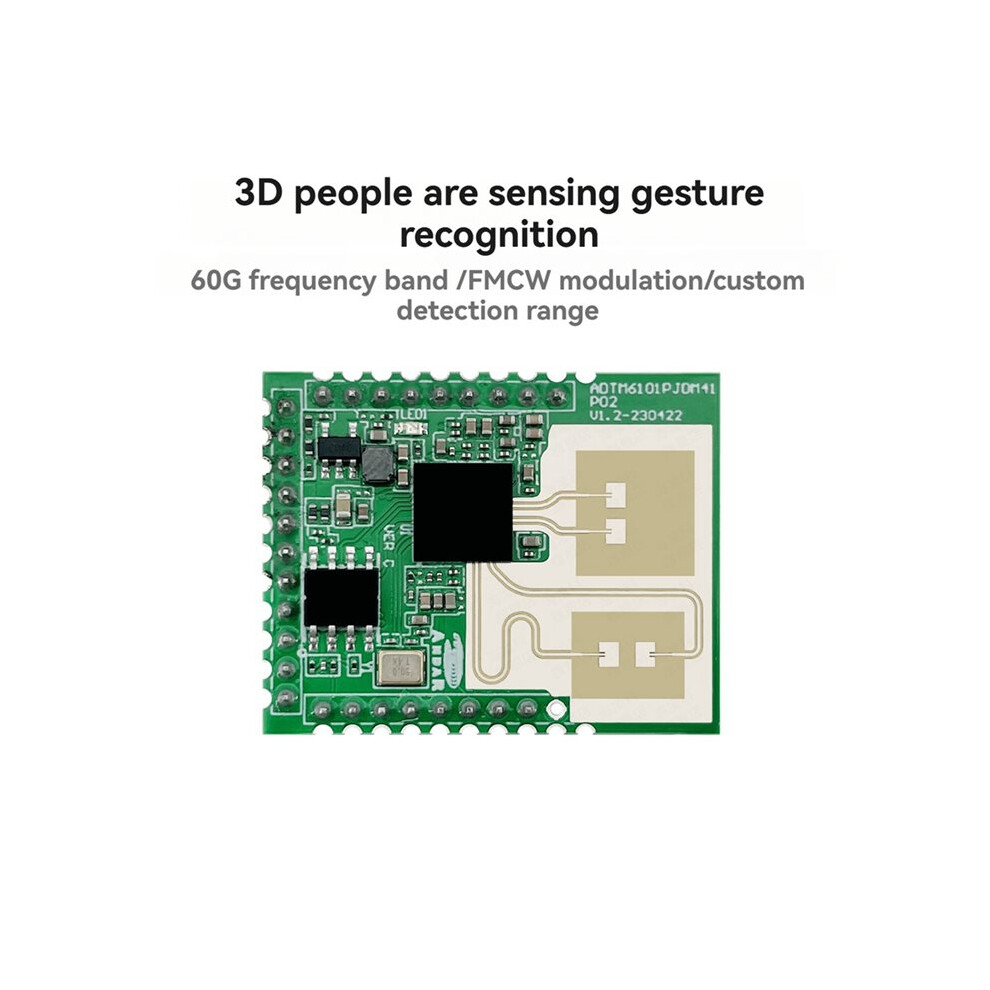

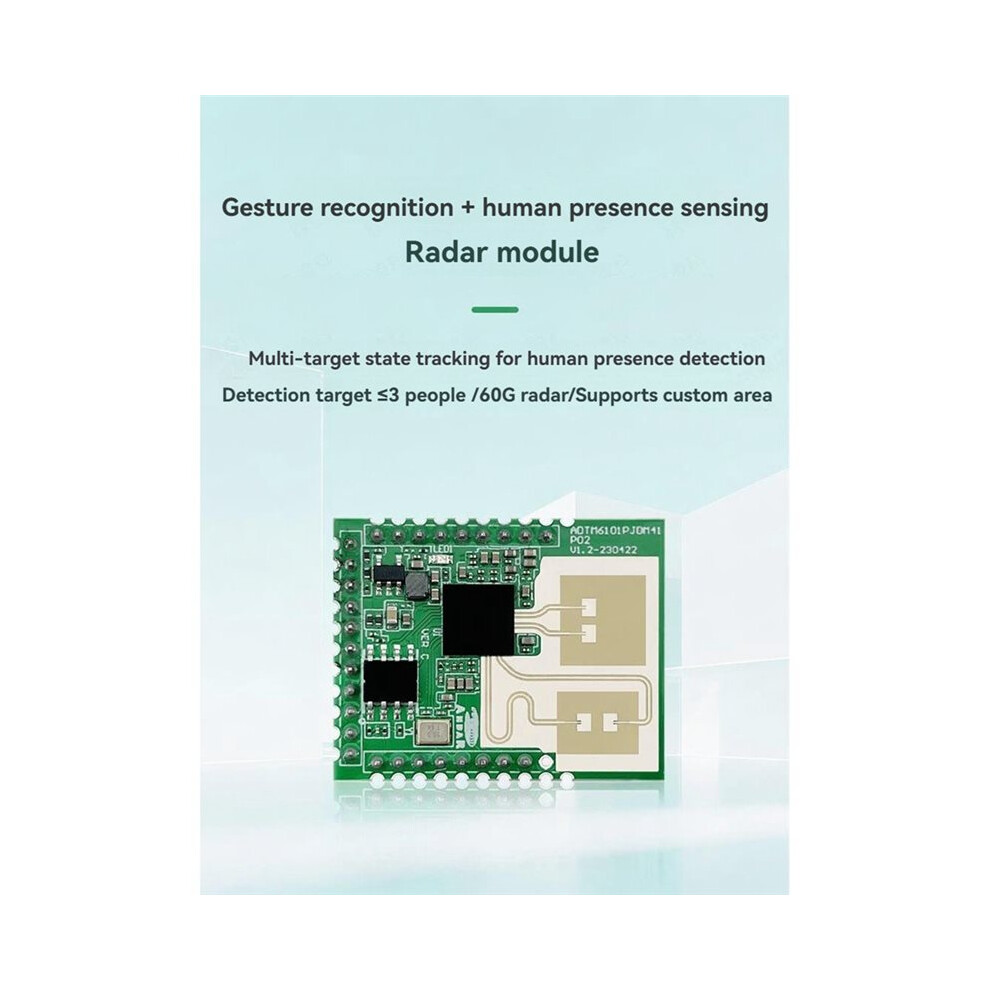

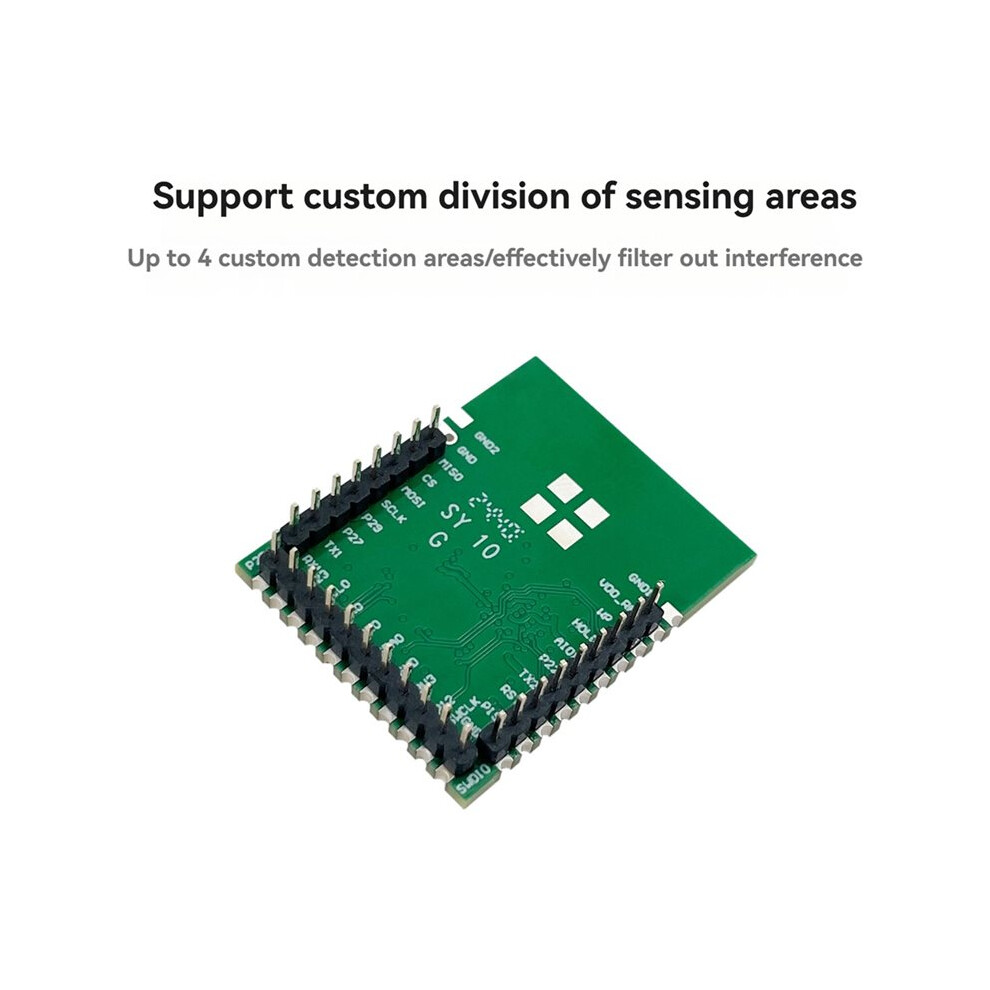

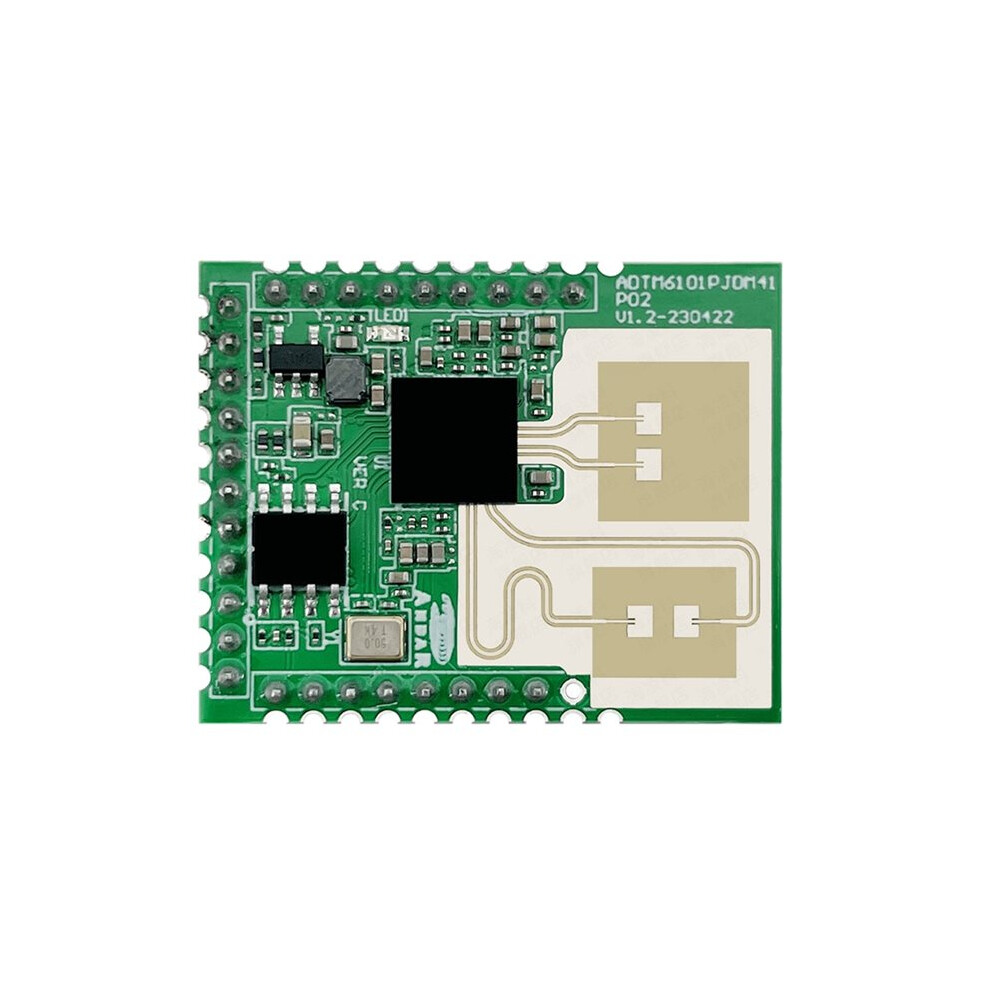

The HLK-LD6003G is a 60GHz module that utilizes an FMCW signal processing mechanism, combined with advanced signal processing algorithms, to achieve highly sensitive human presence detection.
It is capable of identifying humans in motion, in micro-motion, or at rest, and can calculate auxiliary information such as target distance, angle, and velocity.

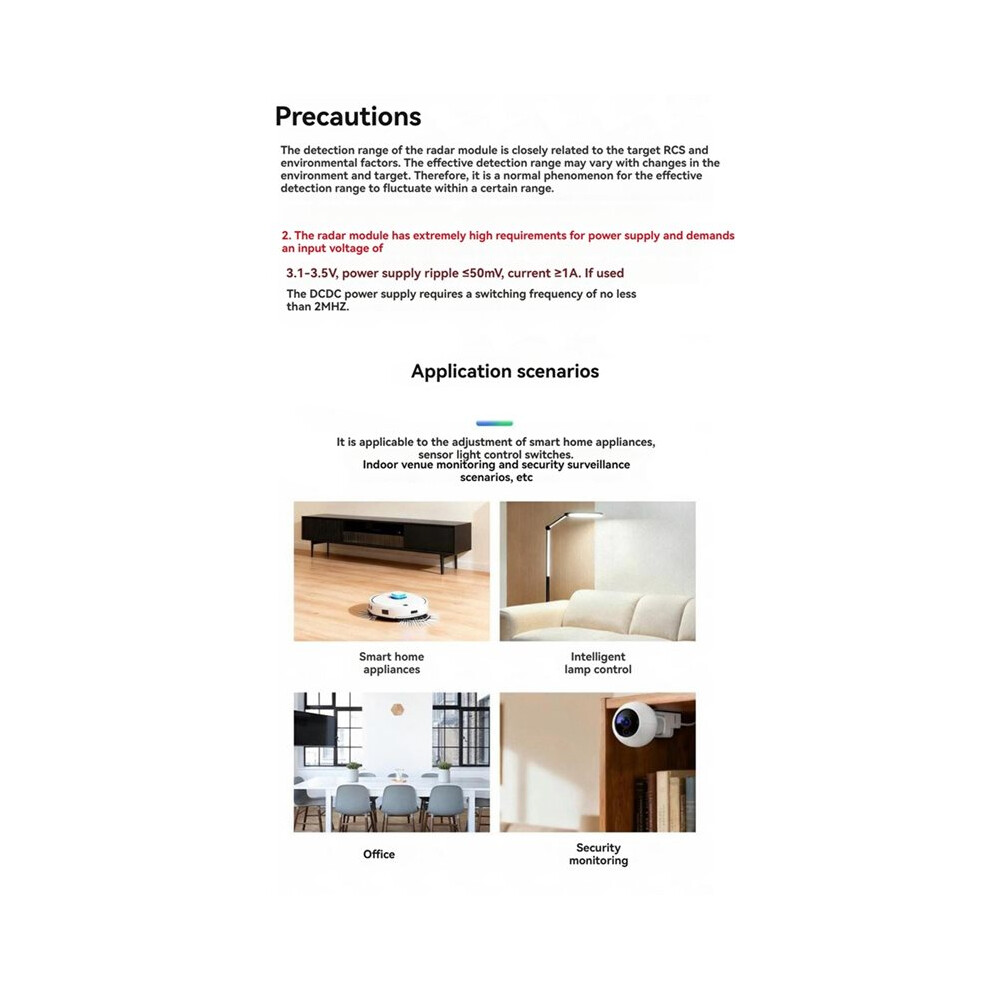

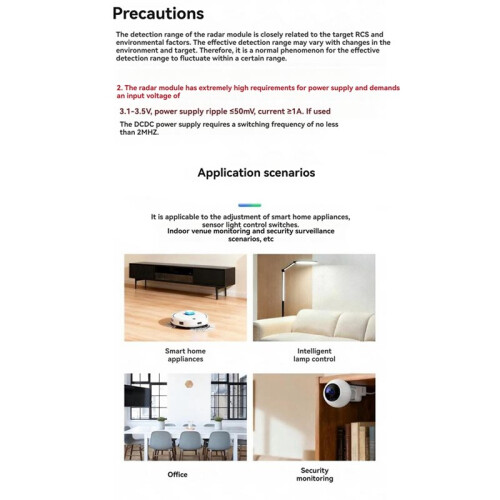

This module is suitable for applications in appliances, human-sensing lighting, and home systems, enabling the detection of human presence within a designated space as well as the multi-target tracking of human trajectories.

Operating Frequency: 60 GHz (58-64 GHz)
Transmit Power: 12 dBm
Modulation Scheme: FMCW
Antenna Gain: 4 dBi
Detection Angle: Azimuth 60 / Elevation 60
Side-Mount Sensing Distance: < 6 m (for side-mount installation at 1.5-2 m height)
Recognition Accuracy: 95% (Typ.)
Power Supply Requirements: 3.3 V (Typ.) / > 1
Color: As Shown
Material: PCB

Package Contents:
1*Module
