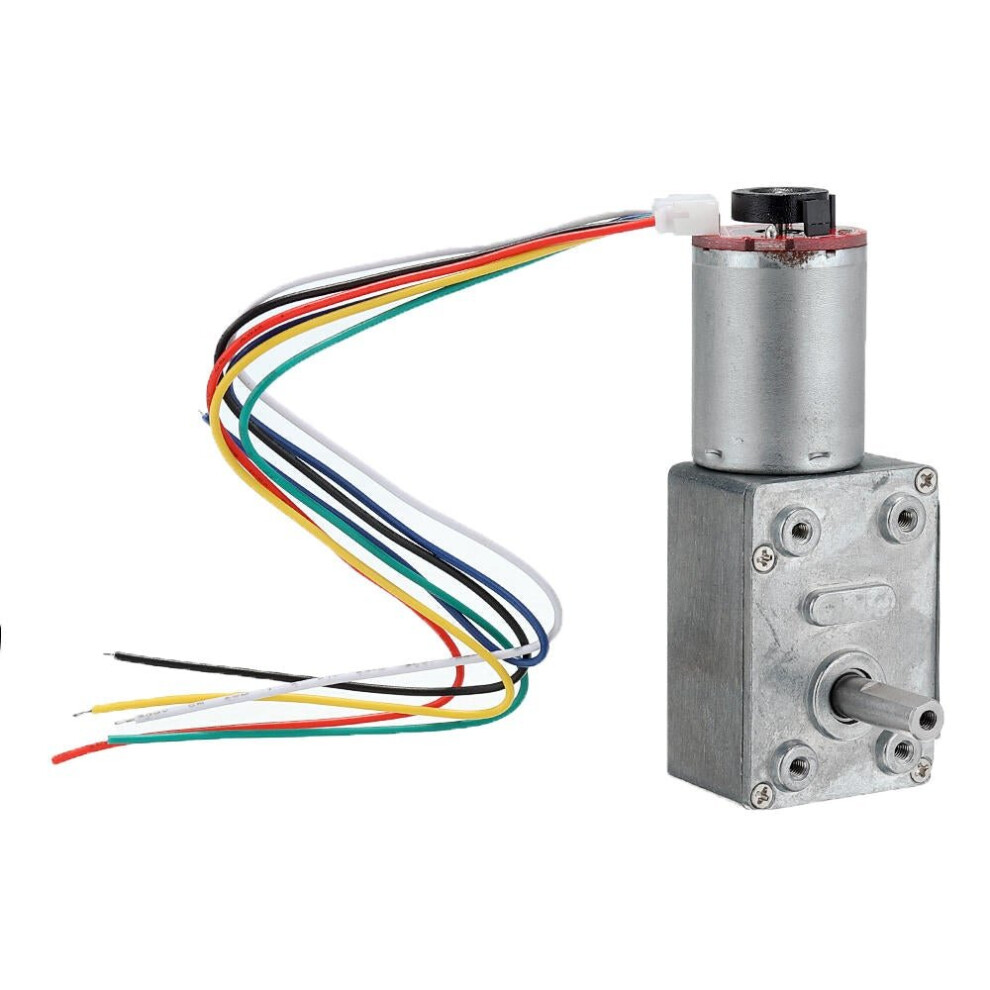

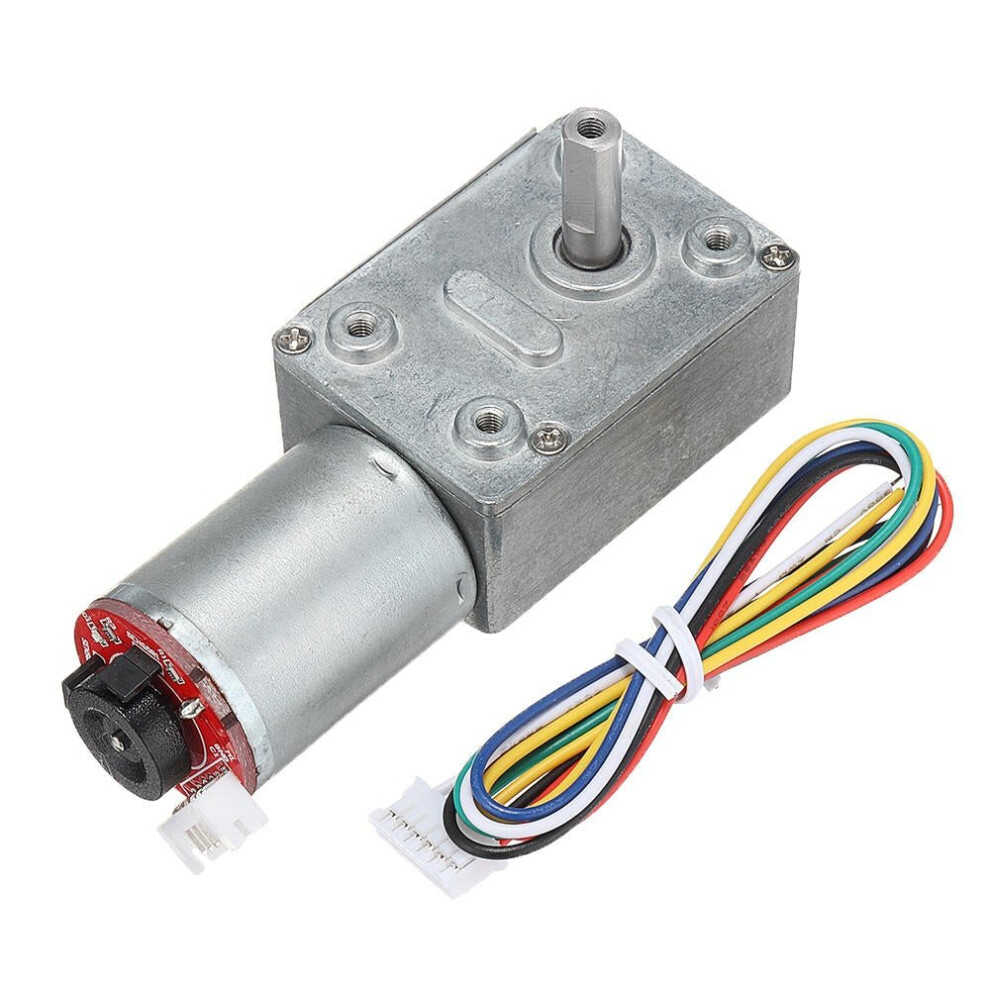

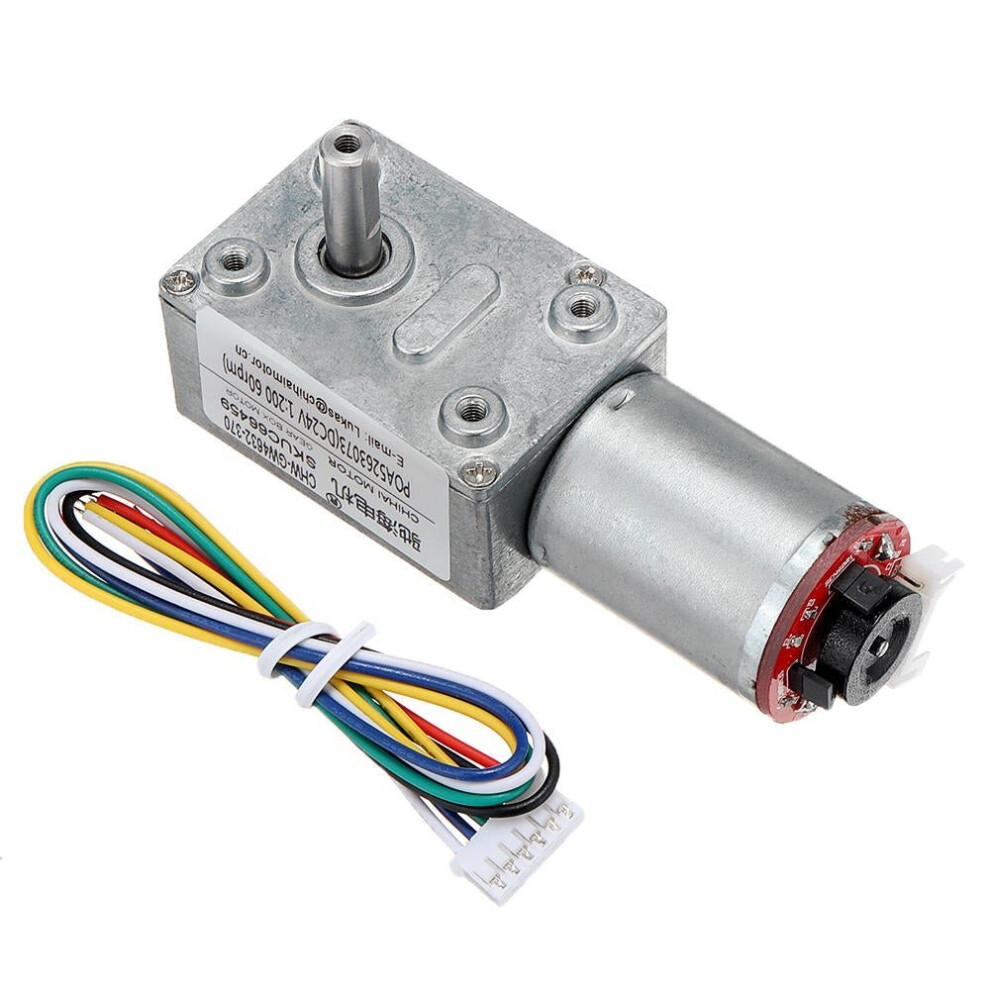

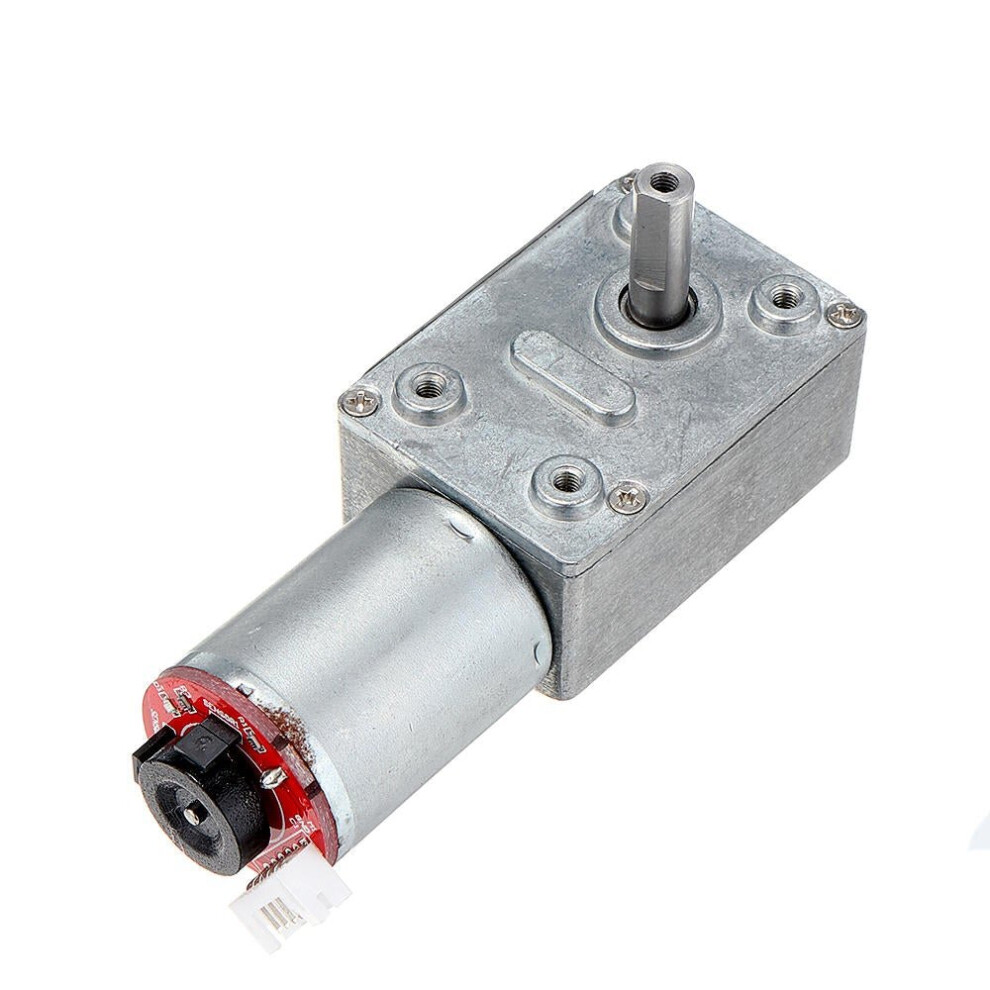

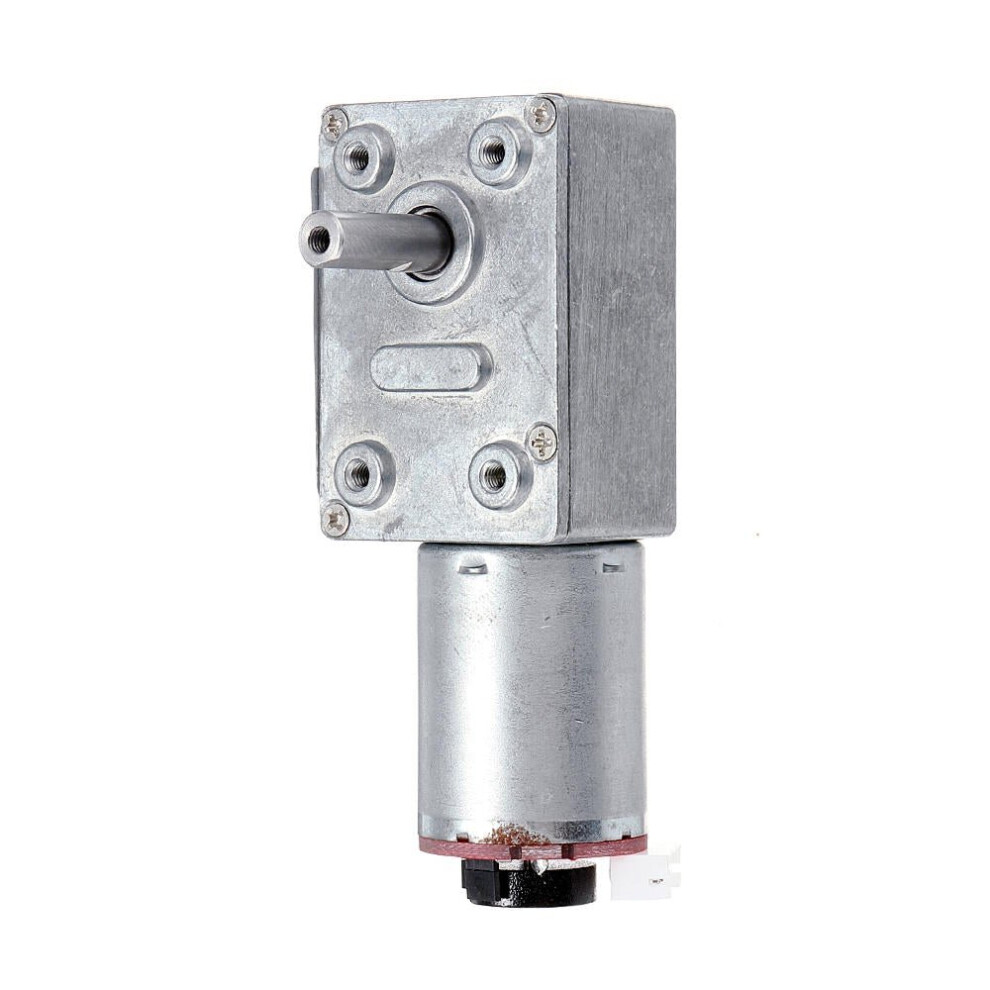

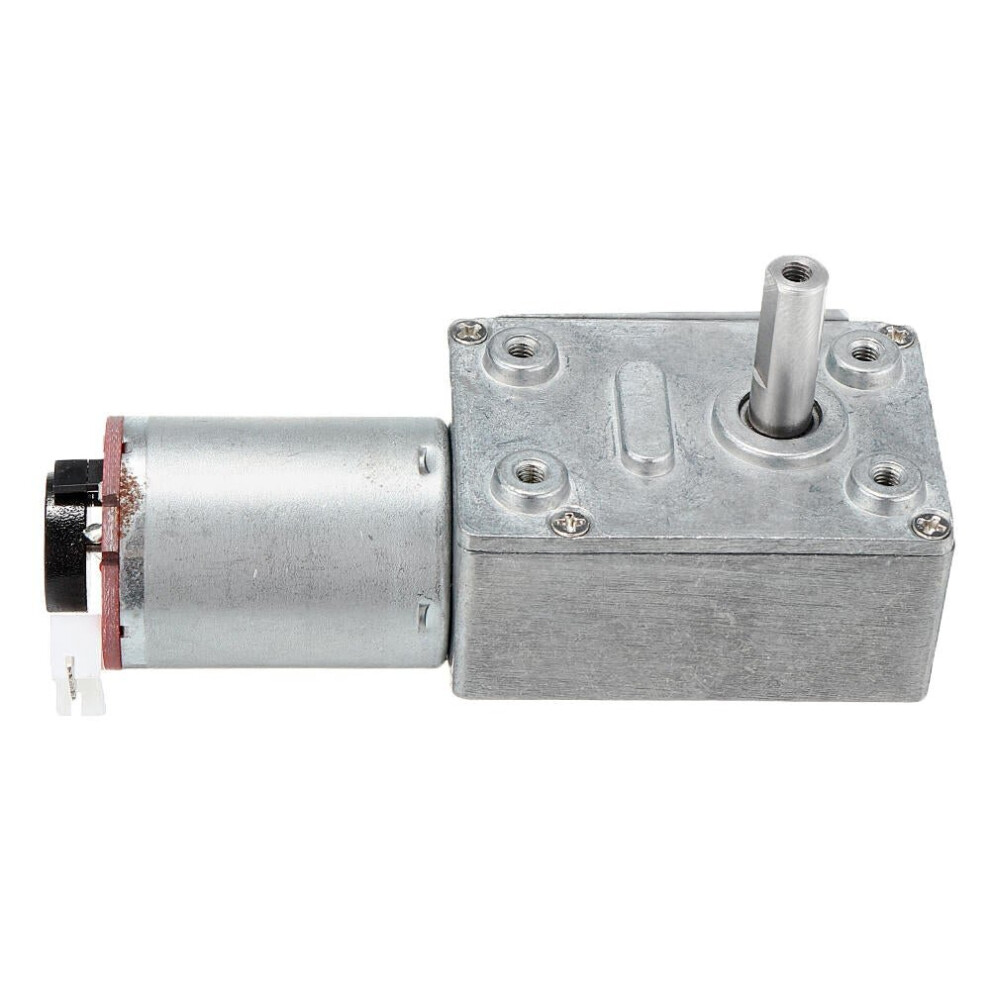

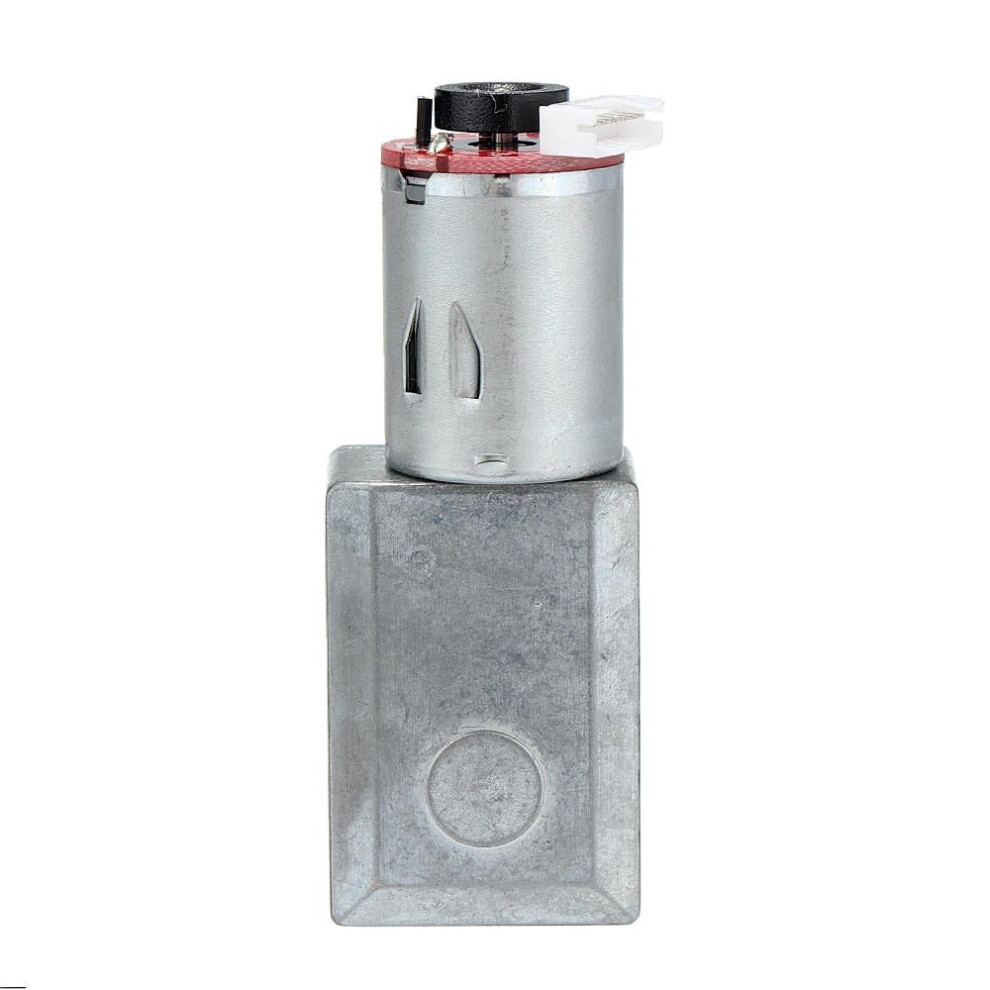

(60RPM) Reduction Gear Encoder Motor Permanent Magnet DC Hall Coding Motor with Code

(60RPM) Reduction Gear Encoder Motor Permanent Magnet DC Hall Coding Motor with Code Description

Descriptions:
Reduction gear motor permanent magnet dc hall coding motor with code.

Specifications:
Shaft Length:55mm full threaded shaft;
Shaft Diameter:M6 x 1.0 threaded shaft;
Voltage:12V/24V;
Weight:about 200g;
Machine Size:diameter 25mm, total length 45mm.

Voltage (V):12.0/24.0;
Out Power (W):3.3/12.0;
Reduction Ratio:1:200;
No load Speed(rpm):30/60;
No load Current (mA):150/200;
Nominal Torque (Kg.cm):10.0/7.5;
Nominal Speed (rpm):21/42;
Nominal Current (A):0.5/0.7;
Stall Torque (kg.cm):can't exceed 30.0kg.cm;
Stall Current (A):1.2/2.3;
Hall Signal (11 x RATIO):2200.

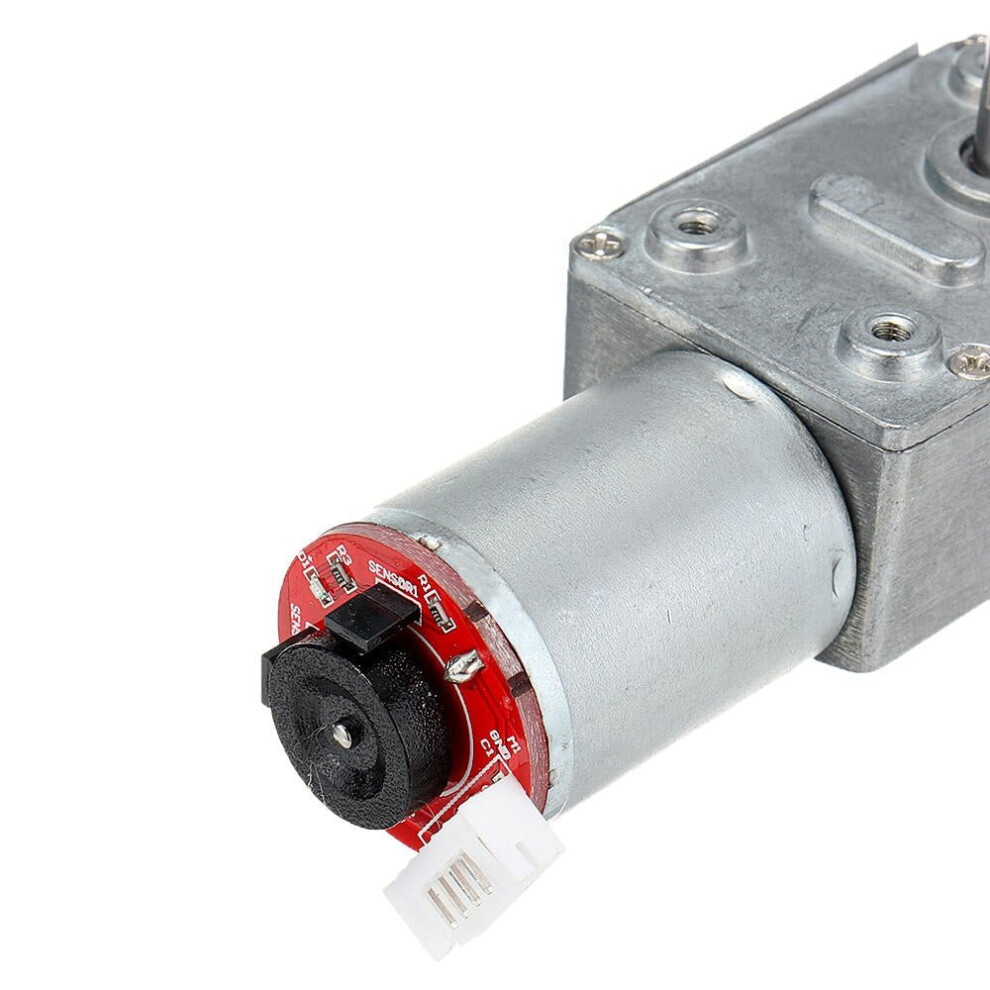

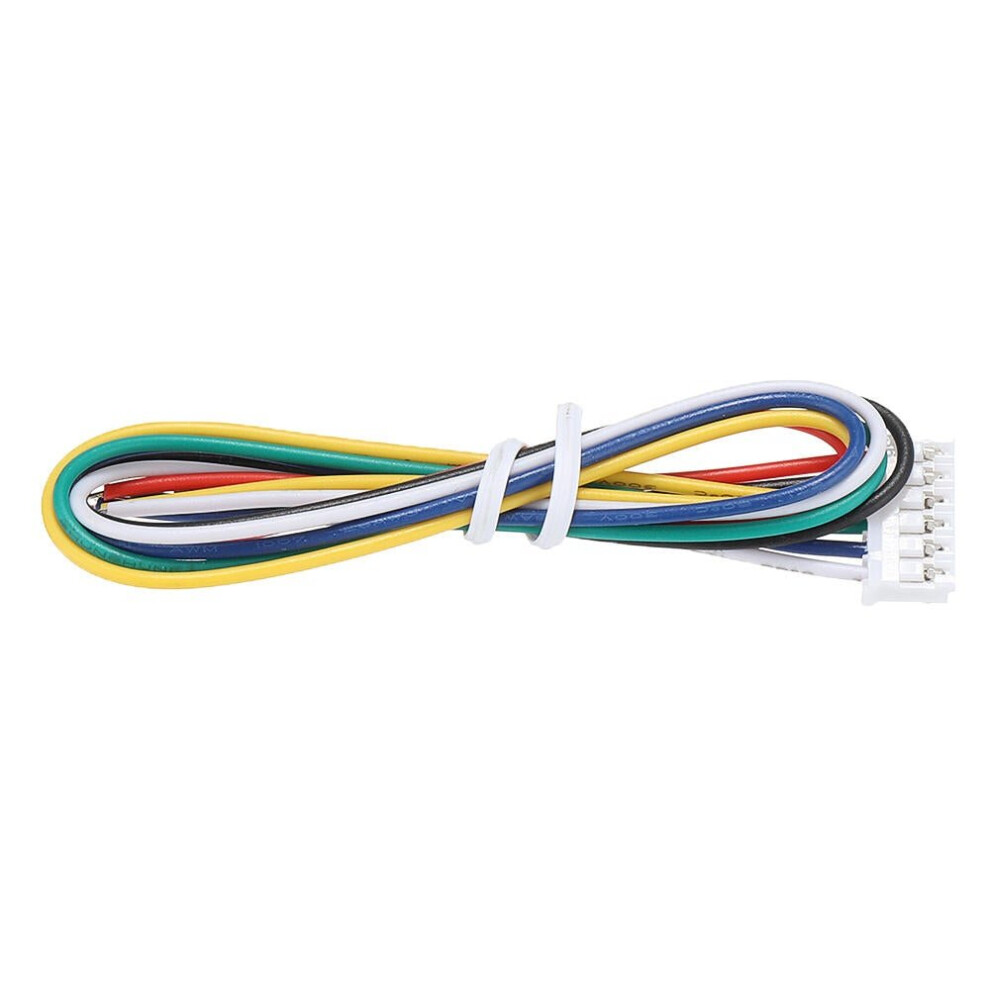

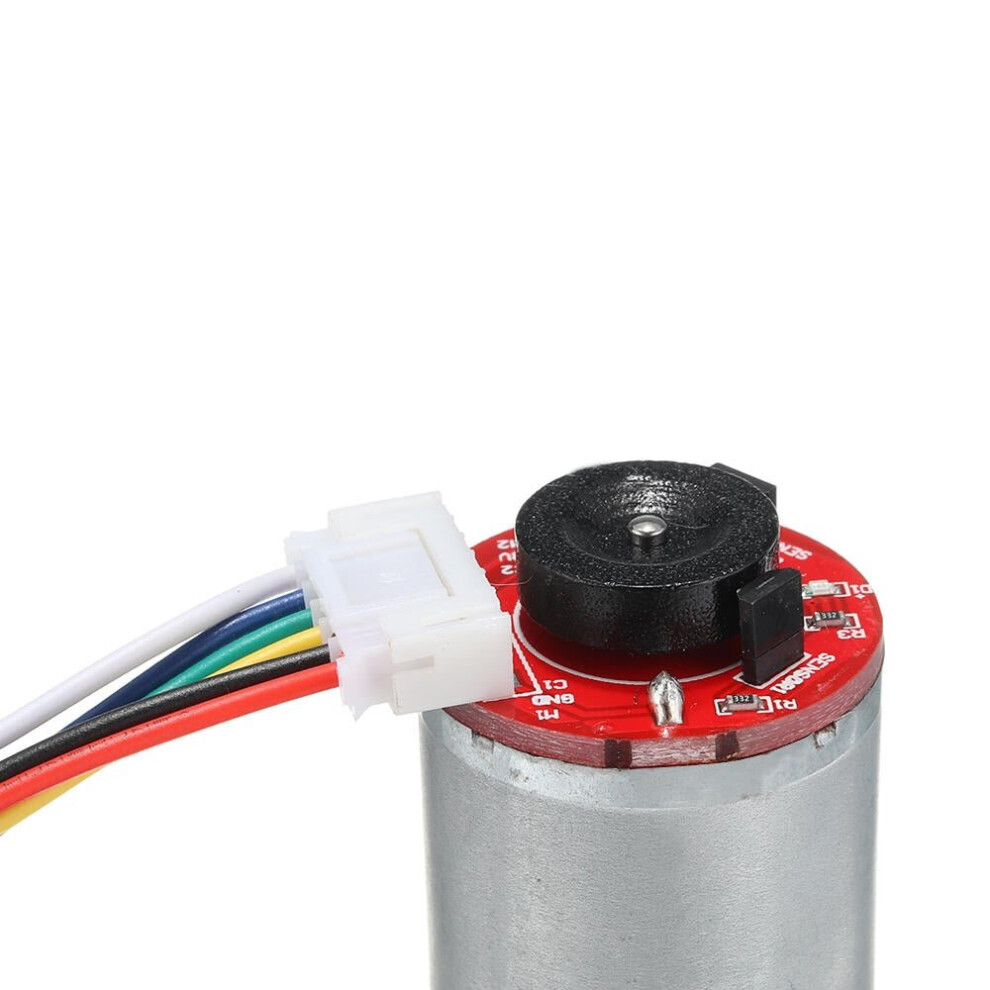

Coder Wiring Instruction:
- M2 motor power input +;
- VCC hall power input + (DC 5.0V or DC 3.3V);
- Hall signal output phase B;
- Hall signal output phase A;
- GND hall power input +;
- M1 motor power input -.

Features:
- Large torque, adjustable, positive and negative;
- Low energy consumption and low noise;
- Worm gear reduction drive, strong self-locking power off;
- The rotor part is made of pure copper, the resistance is small, and the conductivity is strong, which makes the motor torque increase;
- M6 international threaded shaft.

Package Included:
1 Pc x reduction gear motor
