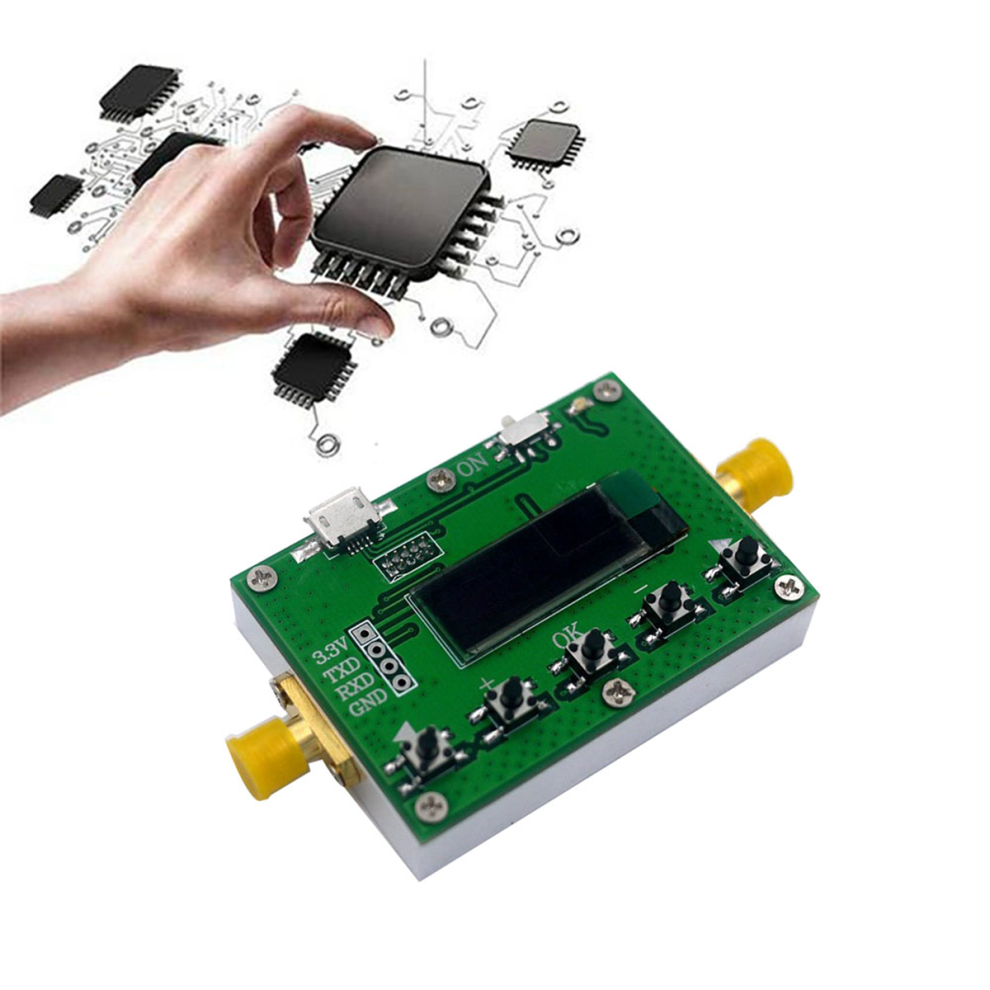

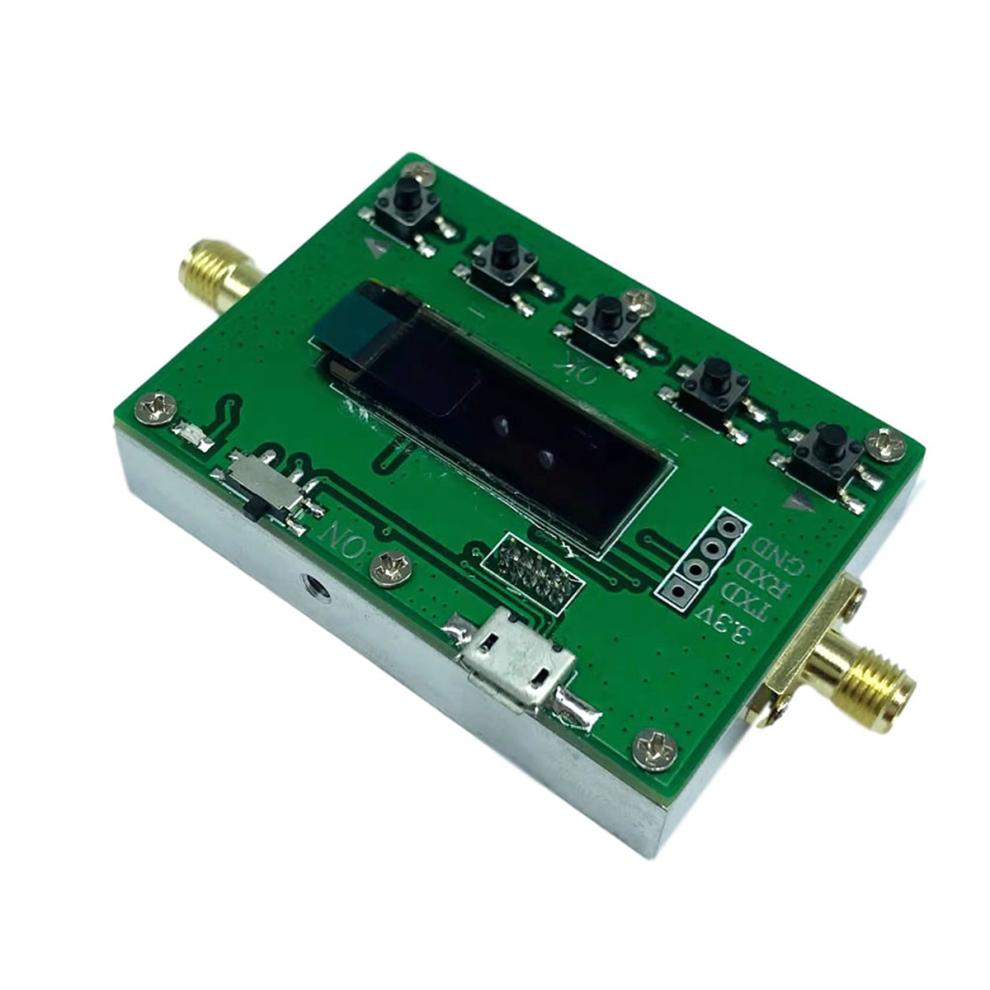

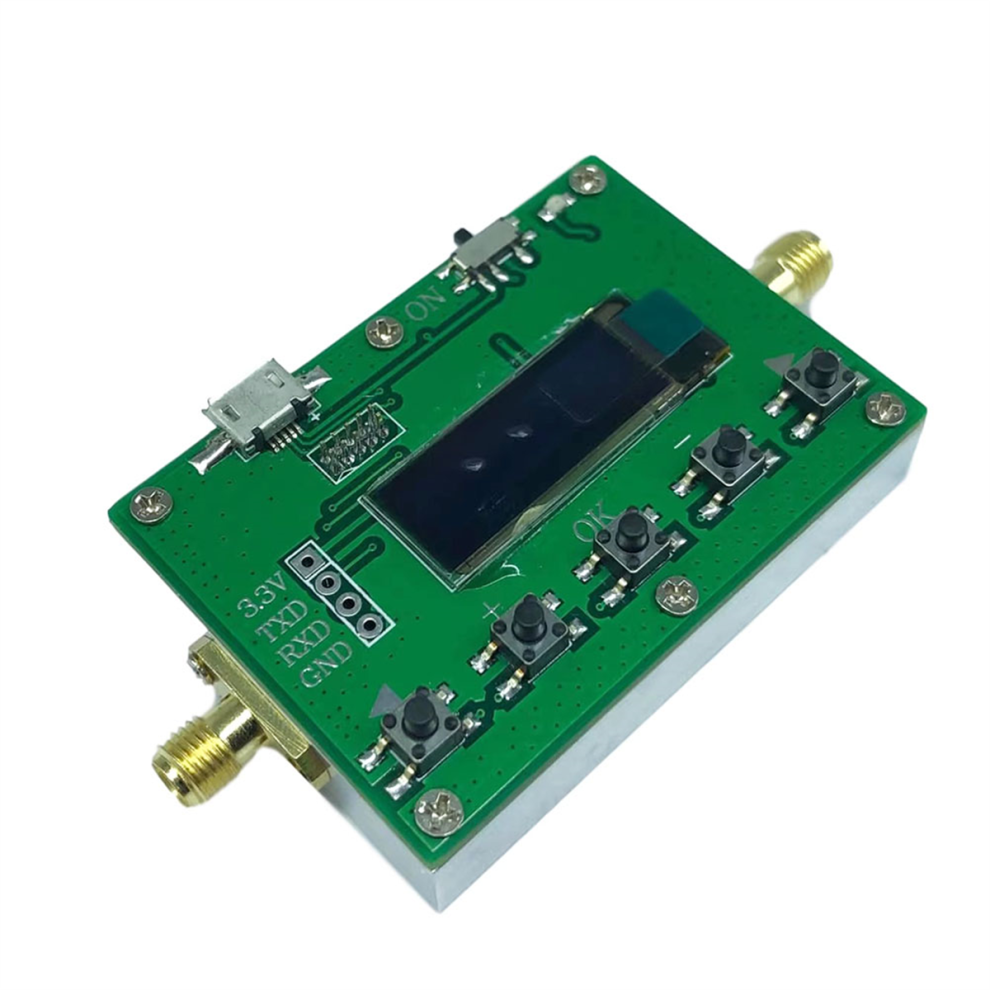

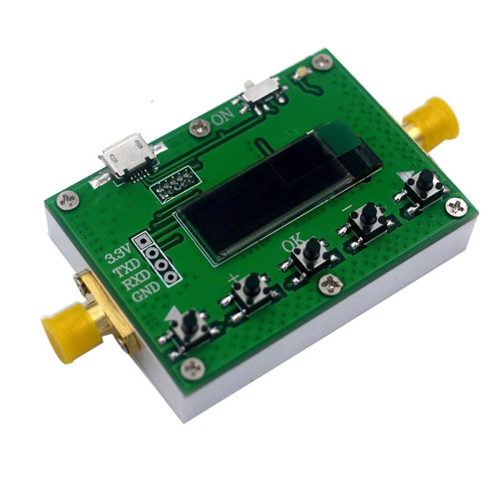

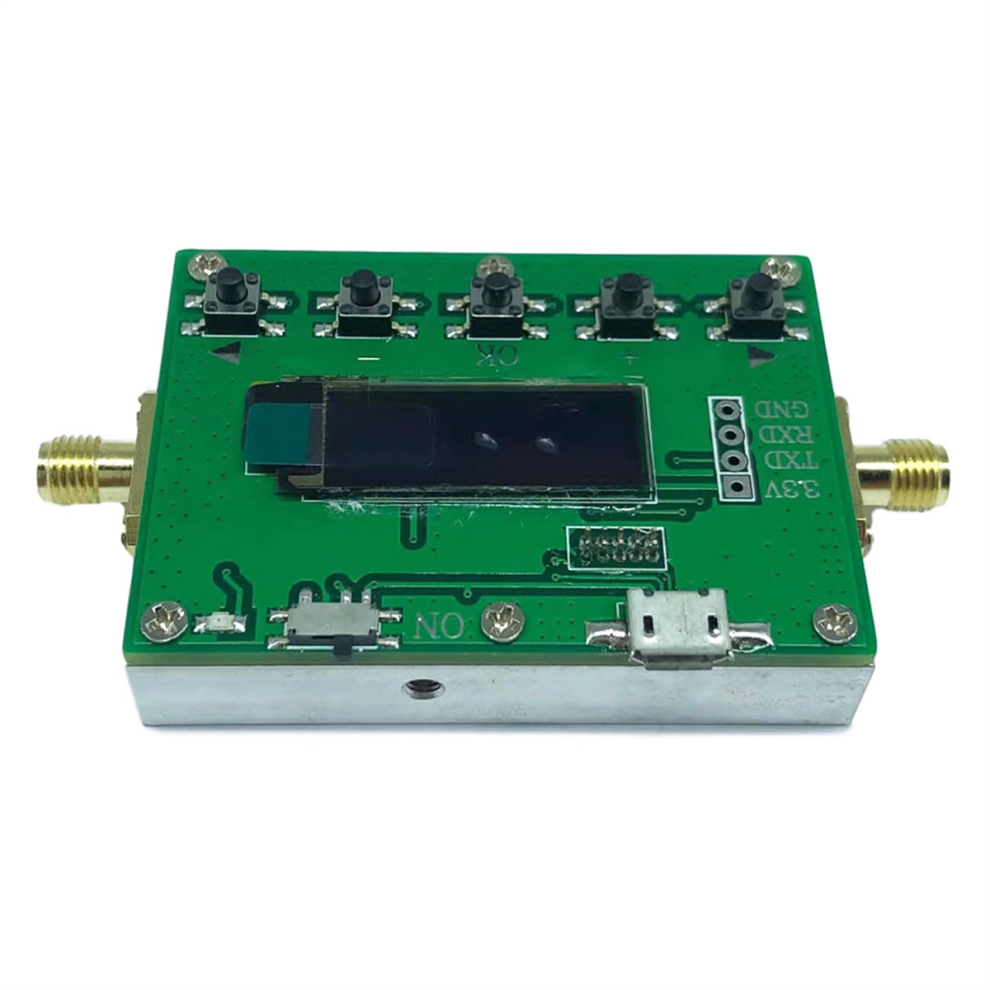

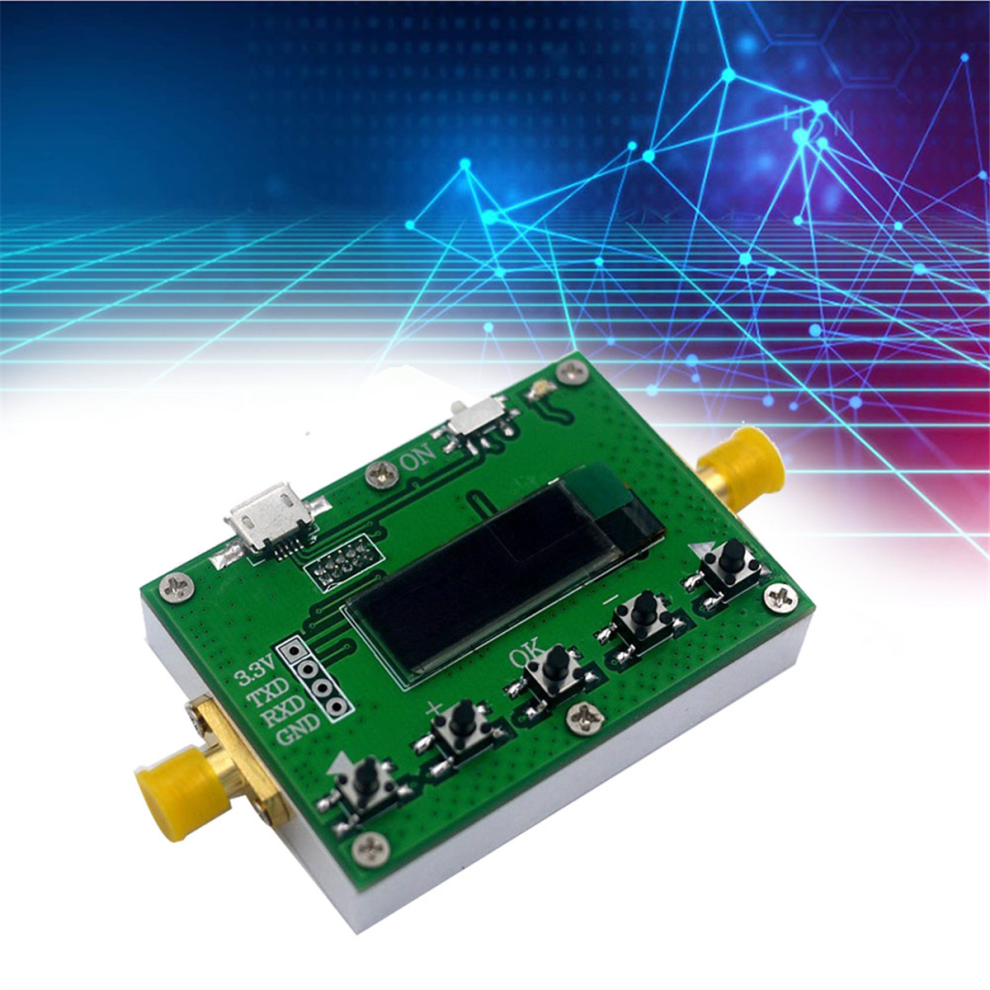

6Ghz Digital Attenuator 30DB 0.25DB Step OLED Display Module

6Ghz Digital Attenuator 30DB 0.25DB Step OLED Display Module Description

The digital attenuator can adjust the signal level of the circuit in 0.25dB steps without interrupting the circuit.
It can also be used as an in-machine attenuator for instruments and equipment to adjust the power level in the test system.
It has a small size. , high precision, stability and reliability.
It uses OLED to display the attenuation, and the attenuation can be controlled by the host computer.

Technical indicators:
1. Working frequency: LF-6GHz
2. Attenuation adjustment range: 0-31.75dB
3. Attenuation step: 0.25 (dB)
4. Insertion loss: 1.5dB (the insertion loss at the high-frequency end be larger)
5. Standing wave ratio: 1.4
6. Attenuation accuracy: 0.25dB Max
7. Rated power: 1W
8. Connector form: SMA (female, external thread, internal hole)
9. Temperature range: -10~+50 (operation)
-40~+70(not operating)
10. Overall dimensions: 55 x 40 x 16.5mm (excluding the protruding part of the SMA interface, the protruding part of the SMA is 9mm)
11. Weight: 57g
12. Input and output impedance: 50 ohms
Due to different batches, the appearance, color and printed words of the product , which not affect the use.
Material: PCB
colour: green

Package Contents:
1 x Digital Attenuator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
