6mm² Solar Panel Extension Cable with Female and Male Solar Connector

Summary

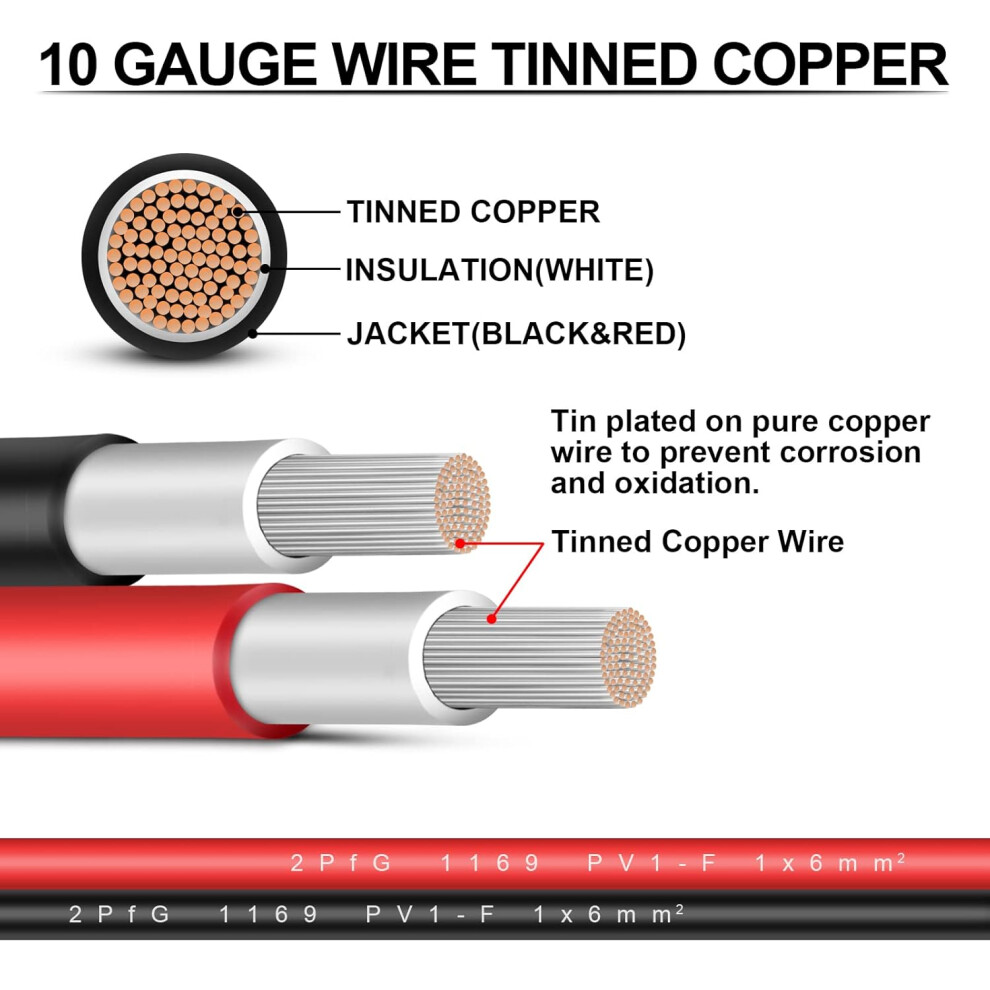

• 【Quality Solar Panel Extension Cable】The solar panel extension cable is made of tinned conductive copper material to ensure good electrical conductivity and the solar connector shell is made of PP insulating material with excellent anti-ageing and UV resistance. The wiring not affected by weather and the solar cable can withstand heat or cold environment.

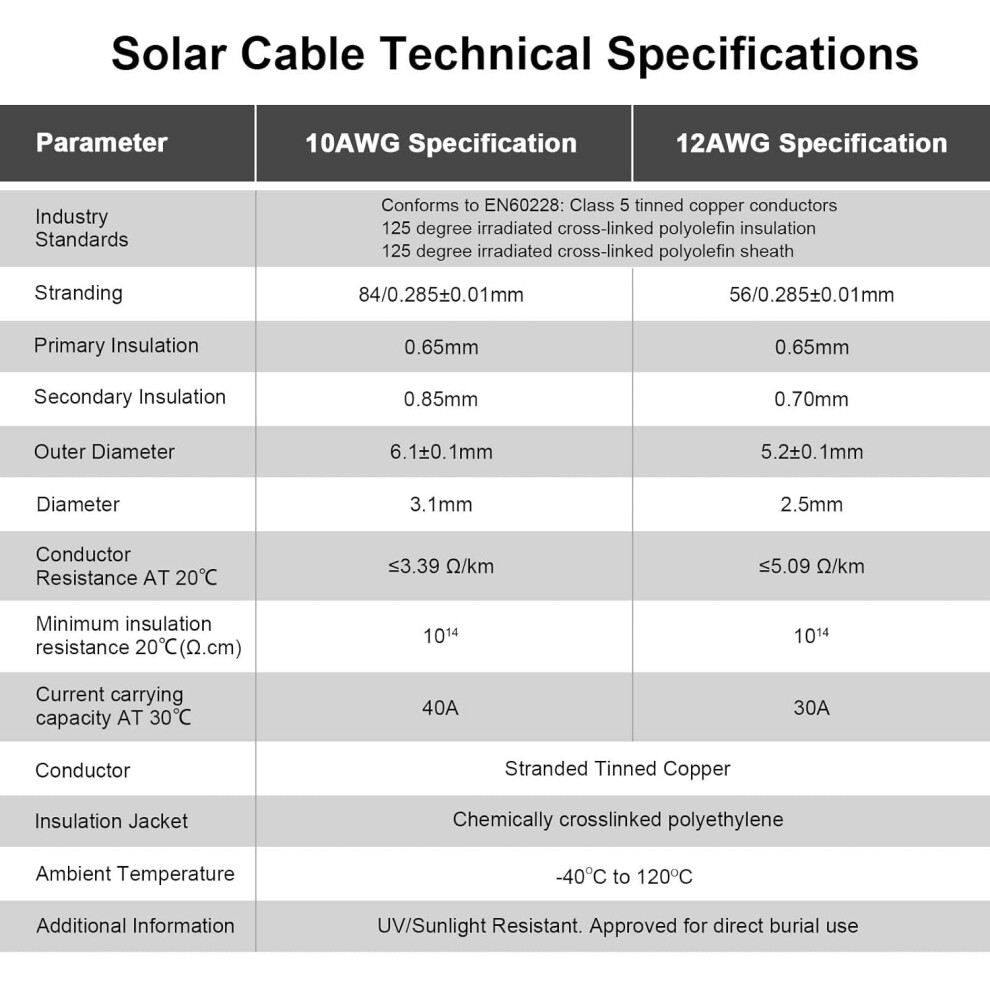

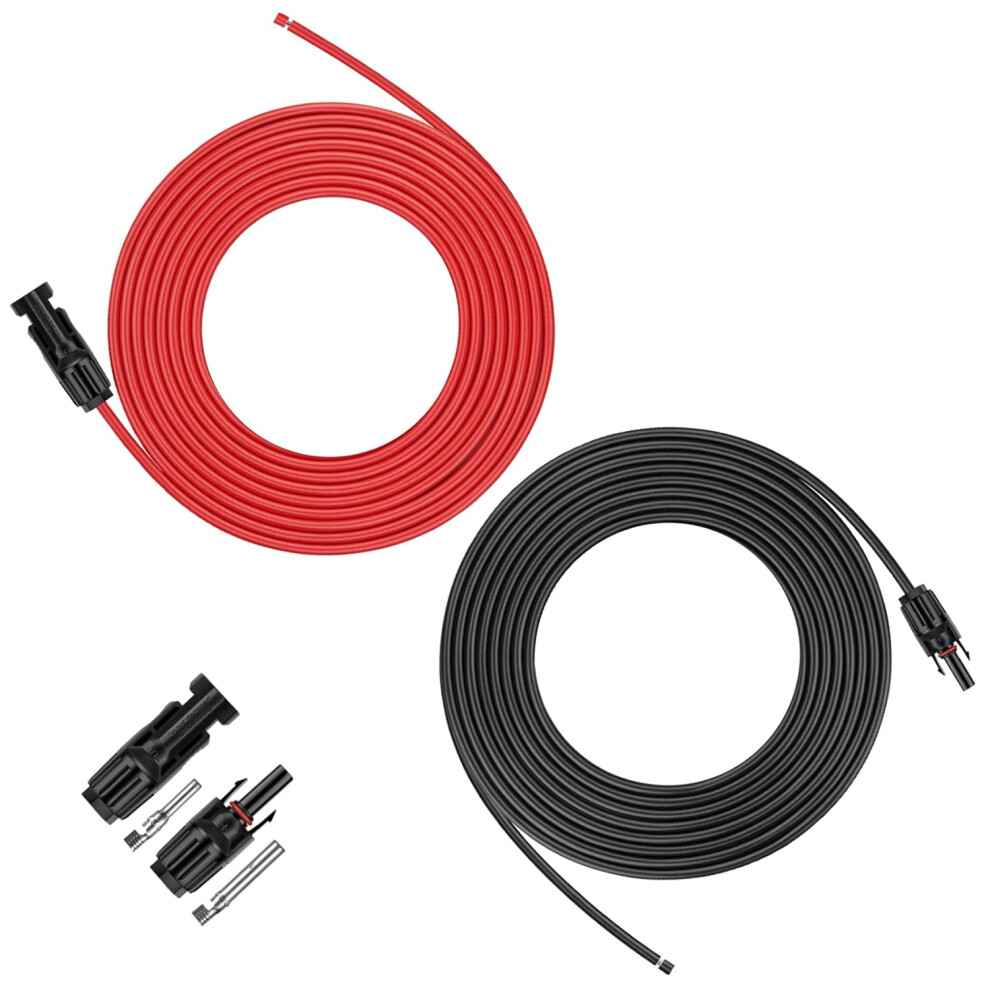

• 【Technical Specifications】One set includes one 6m red and one 6m black solar extension cable. Cross sectional area: approx 6.0mm². Insulation thickness 0.65mm. Temperature range:-40~120℃. Rated voltage: AC 0.6/1kV. Rated current: 30A. (Parameters may vary slightly depending on the environment or cable length)

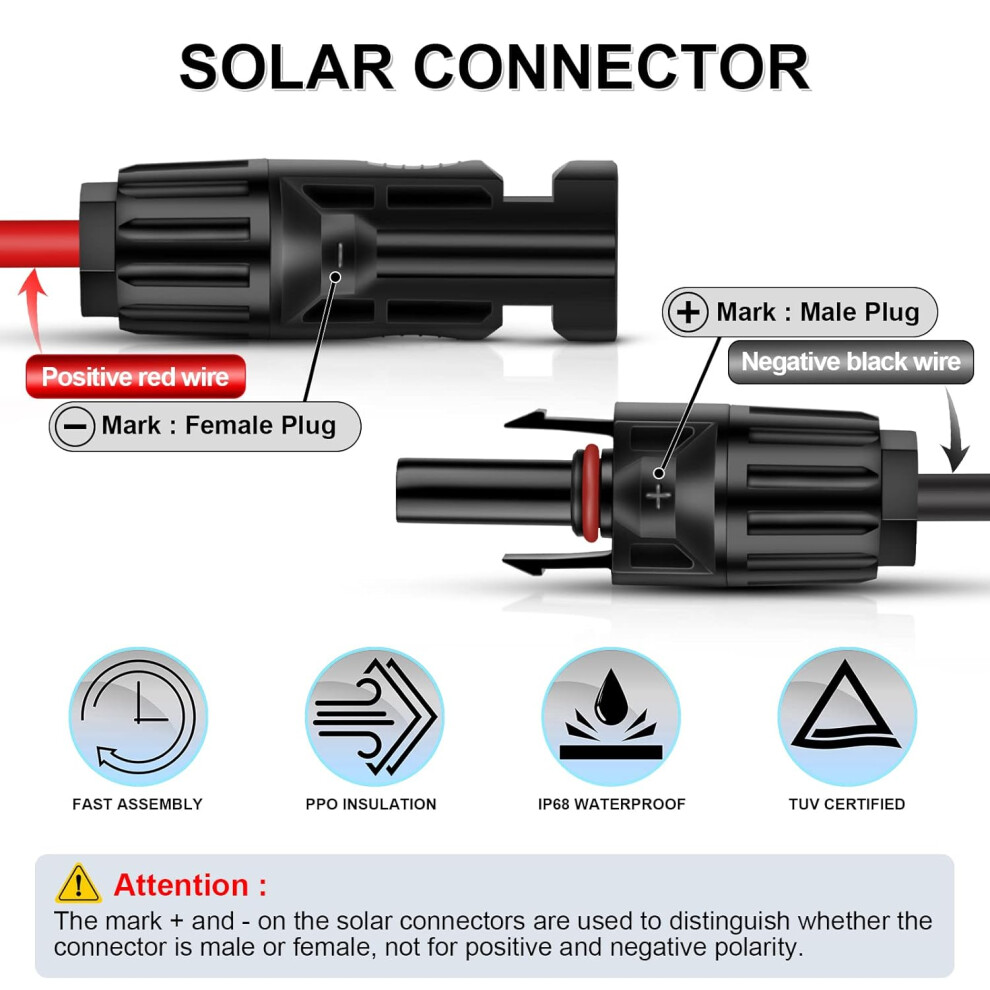

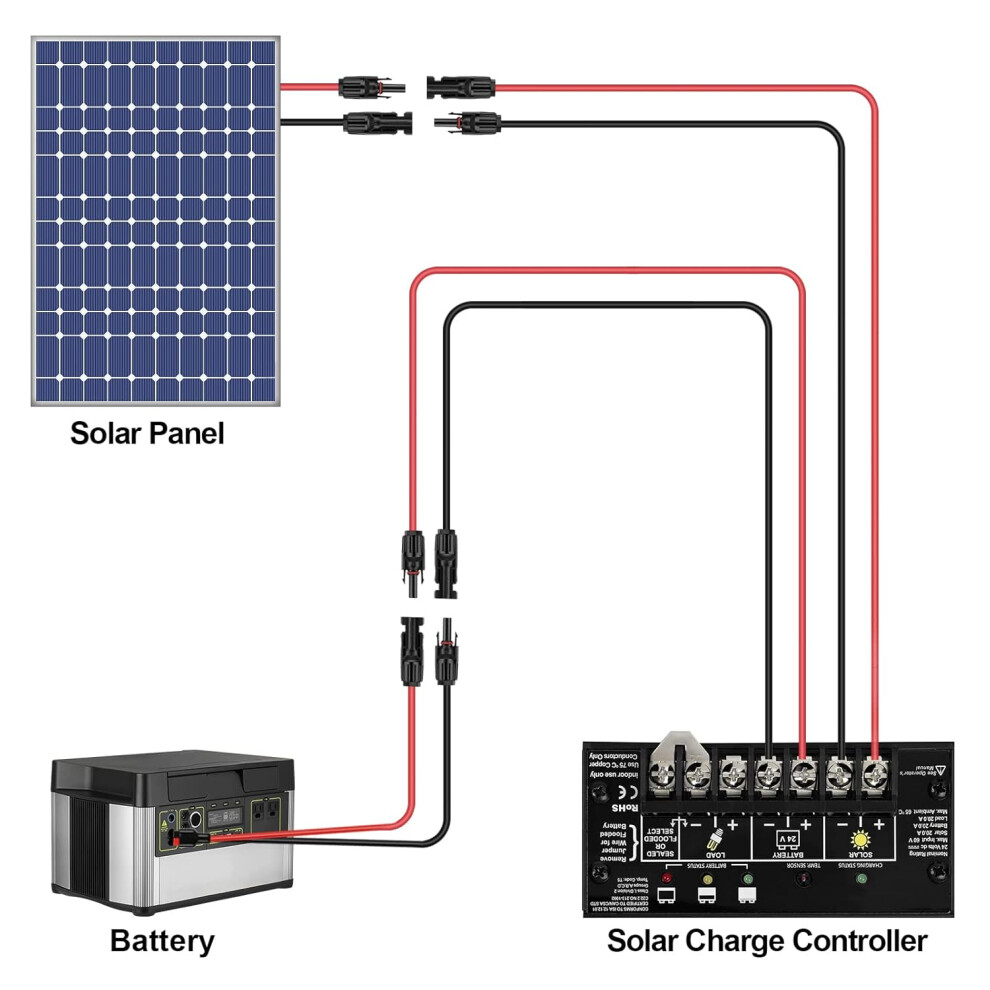

• 【Easy to Install】Our solar panel cables come with connectors and can be used without the need to install the cables and plugs yourself. Male and female connectors have a stable self-locking system and are easy to insert and withdraw. No tools are required for installation or removal. Only one end needs to be connected to the solar panel and the other to the solar charge controller.

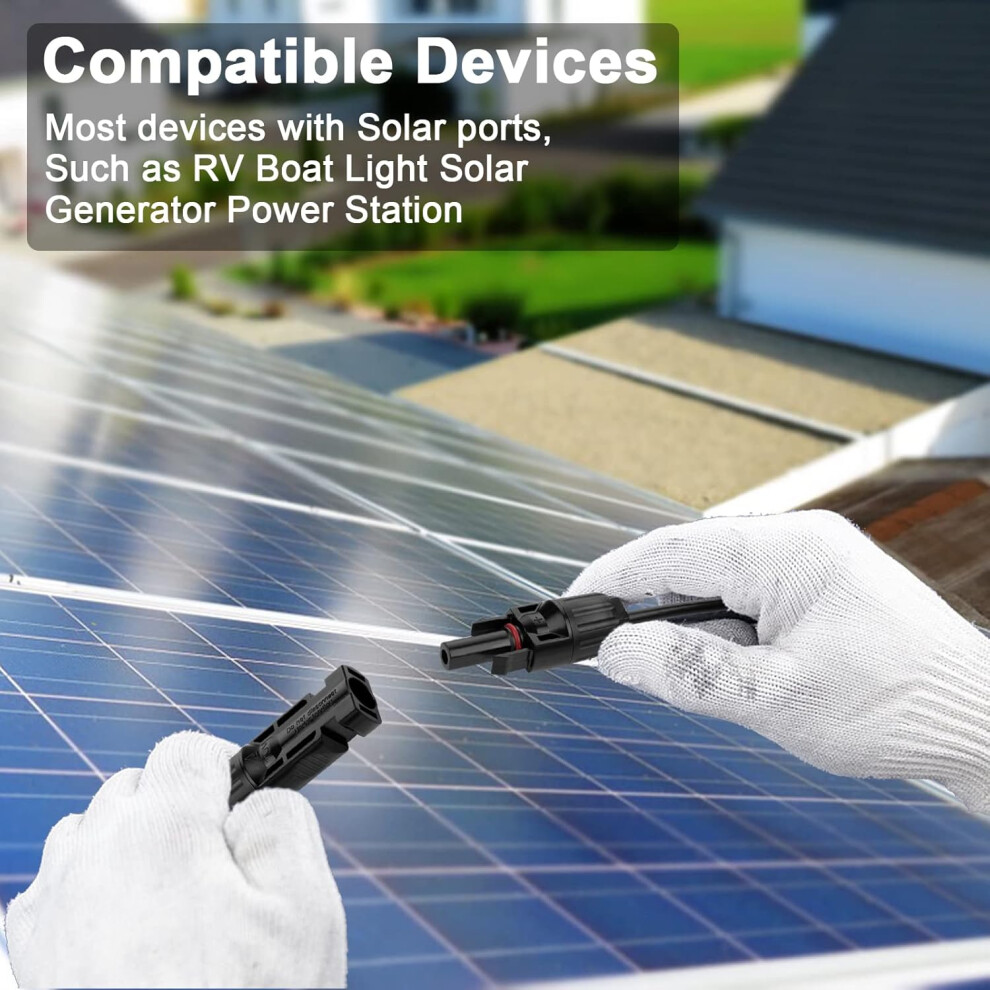

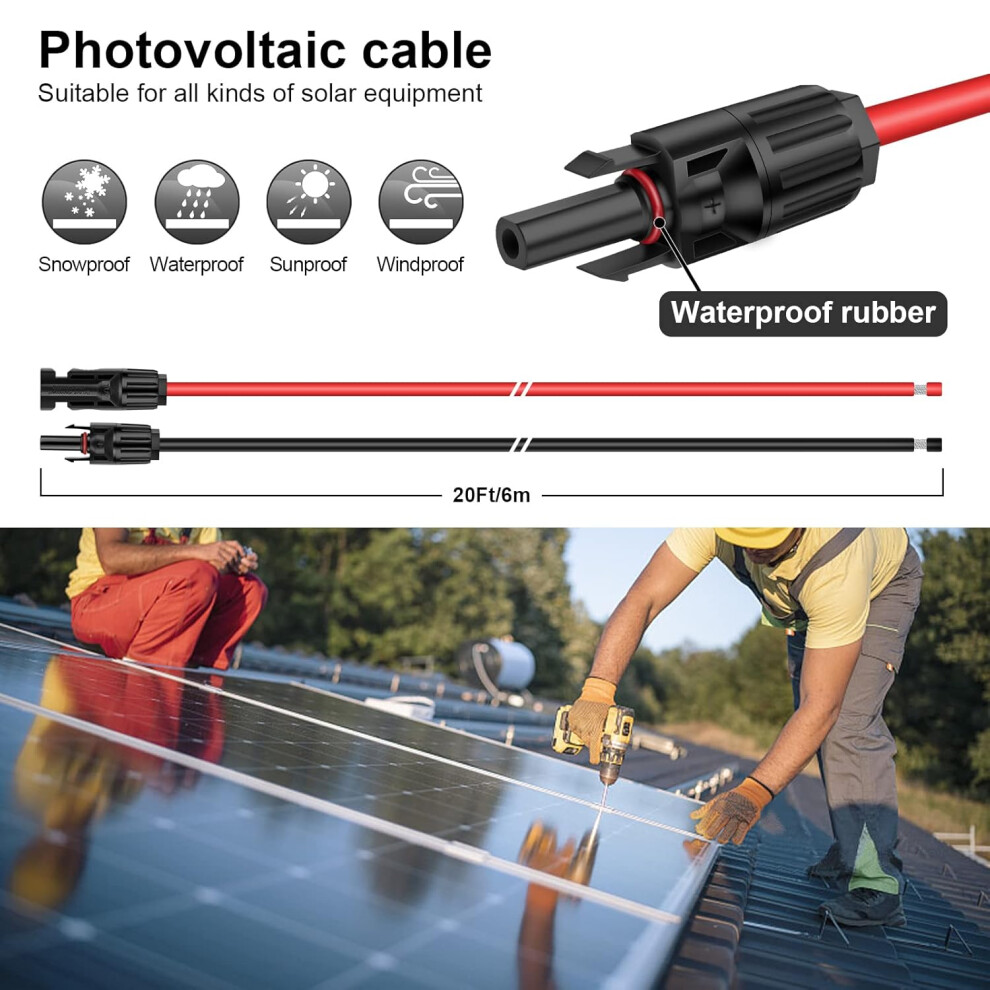

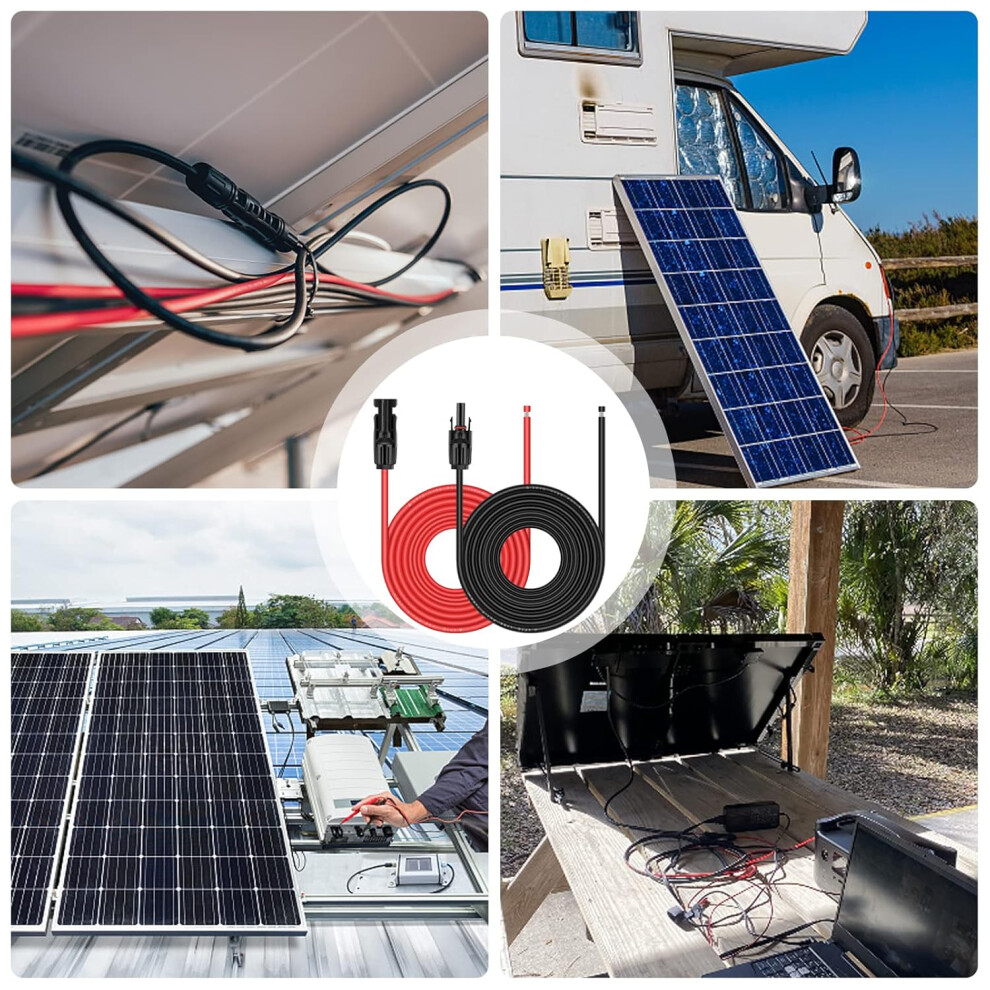

• 【Widely used Solar Panel Connector】Designed for outdoor use, they are moisture resistant, high/low temperature resistant, UV resistant, corrosion resistant and IP68 waterproof. The red and black PV extension cables are suitable for outdoor use on solar panel roofs, boats, caravans, traffic lights, car park charging stations or cars powered by solar panels, and many other applications.
• 【Reduced Power Loss】The more common solar extension cables are the 4mm² and 6mm² sizes. The solar cables we offerred are 6mm² which are designed for on-grid and off-grid systems. The use of larger diameter cables minimises power loss in solar panel systems.
