Description & Details
Summary
- Specification: 20A@12VDC; 10A@24VDC; 20A@125VAC; 10A@250VAC, this reverse polarity switch can be used under DC and AC circuits
- Switch Type: DPDT on off on Momentary. Reset automatically ( returns to off position ) when released

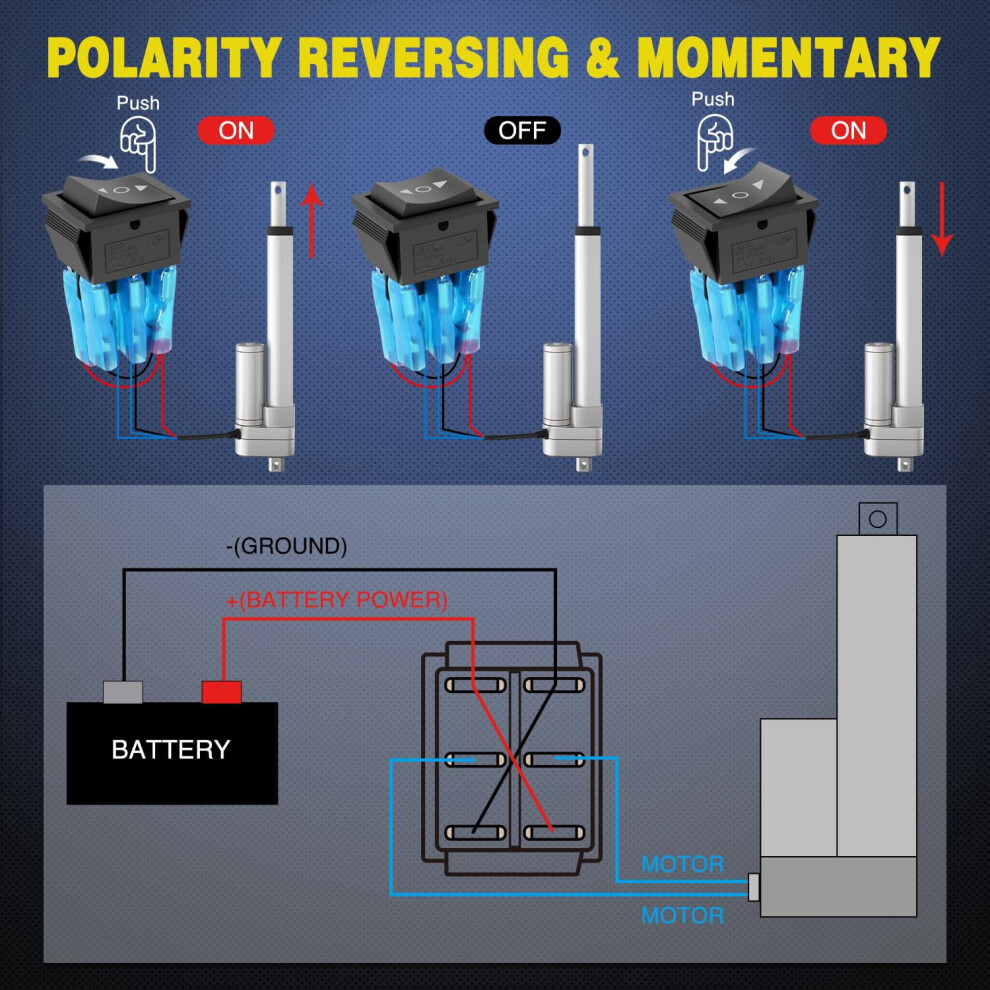

- Usage: The DC motor will reverse the motor direction with the switch when hooked red to + VDC and Black to - VDC, and Blue to the Motor. It is configured for polarity reversing. Simply connect power and ground and two DC motor leads and the switch will reverse the motor direction

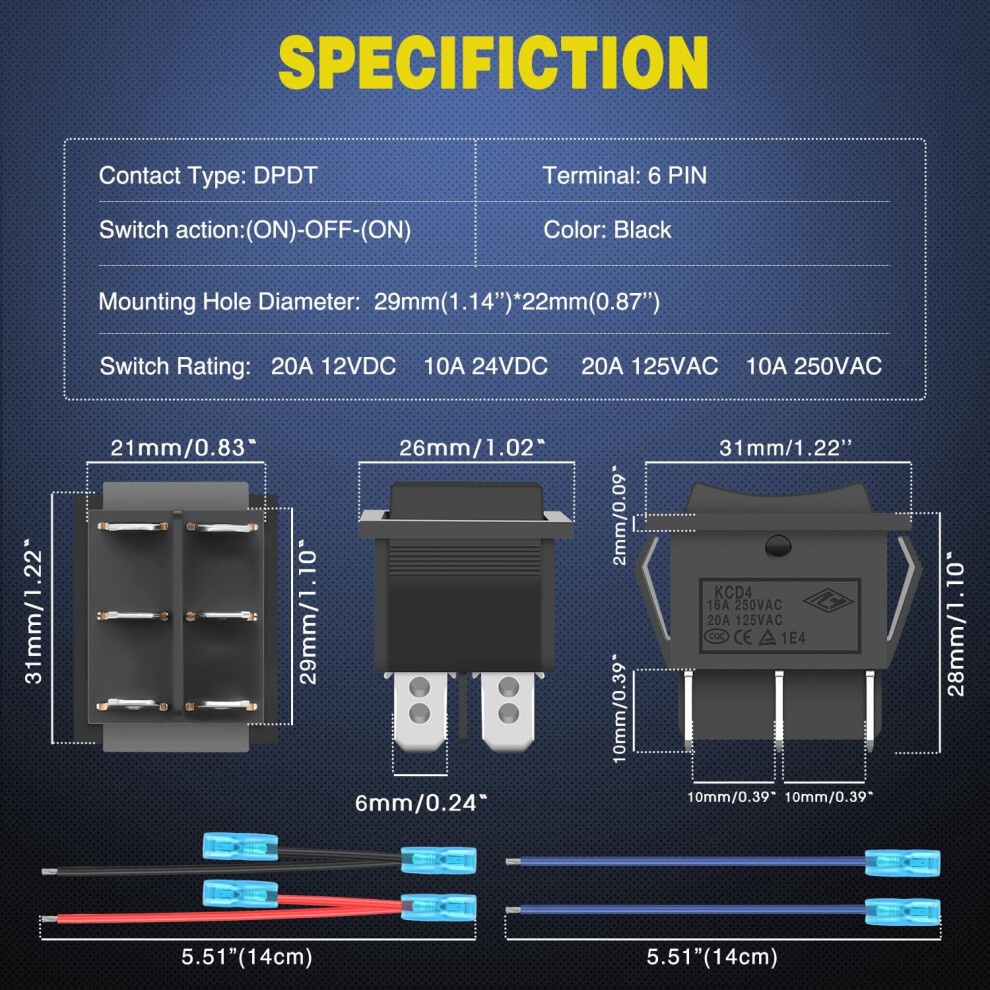

- Mounting Hole Size: 29 x 21mm/1.14" X 0.83" (LxW); Product Size: 31 x 25 x 35mm/1.21" X 1" x 1.4" (LxWxH)

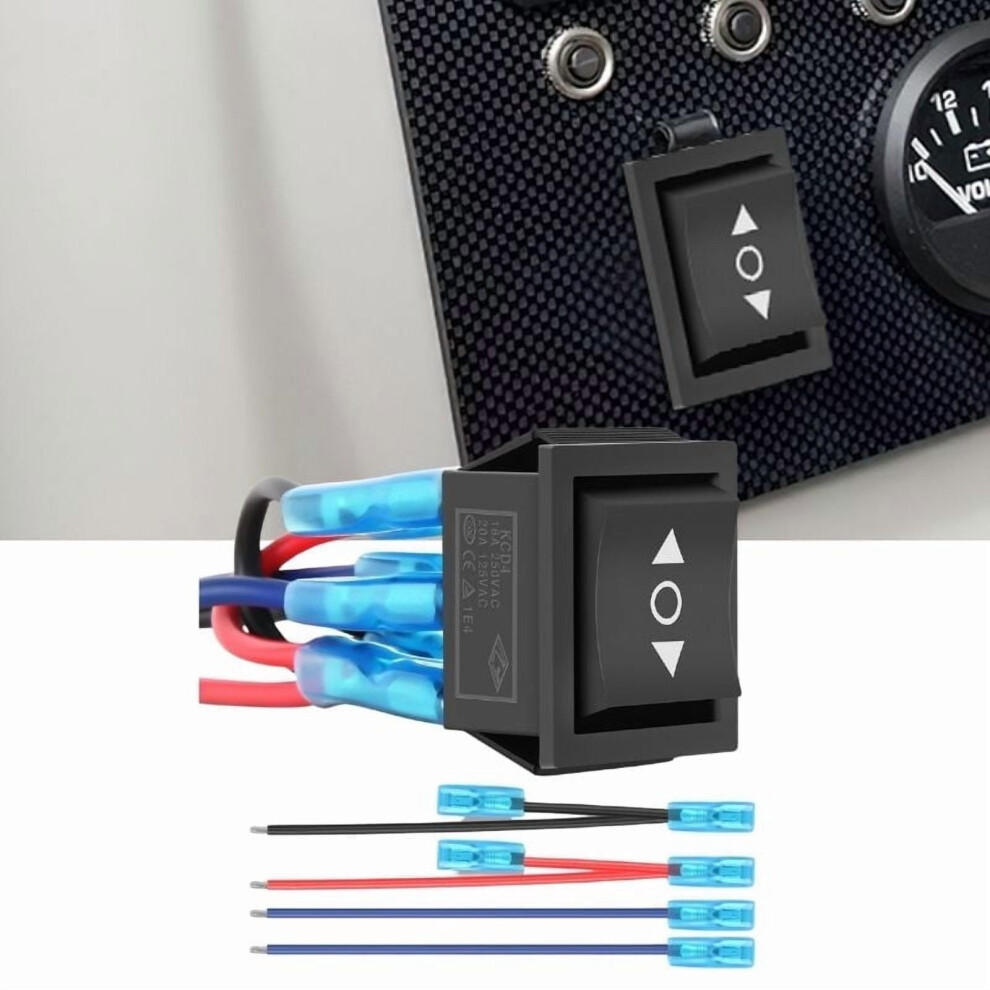

- Product Includes: 1PC 6Pin Polarity Reverse Rocker Switch, Jumper Wires
6Pin DPDT Momentary Polarity Reversal Switch 20A Description

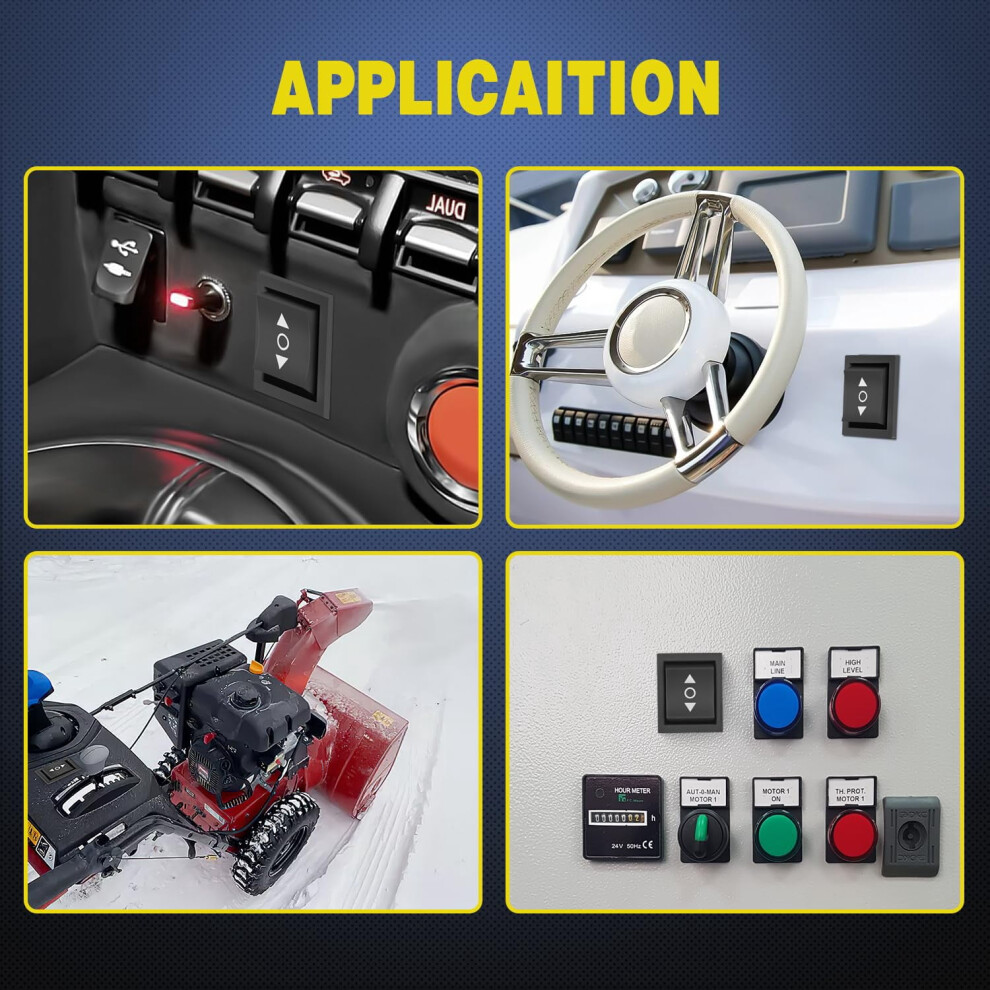

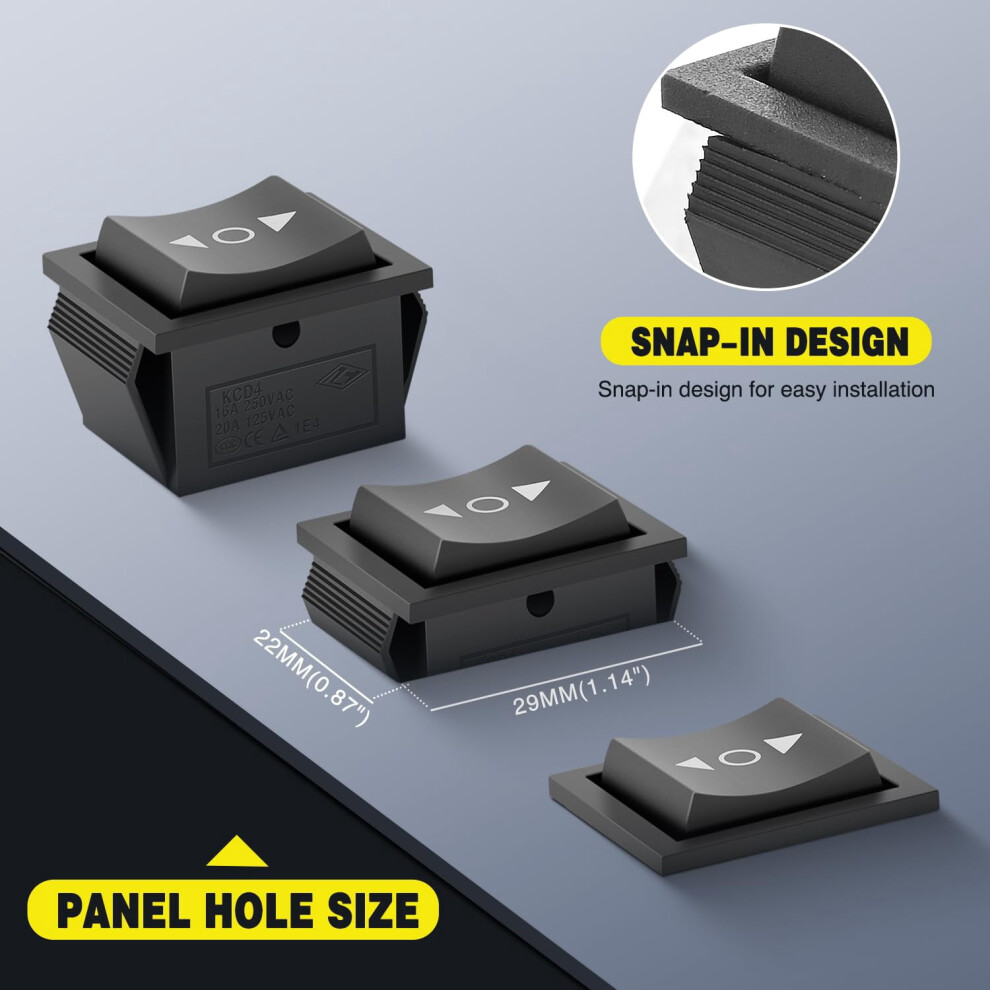

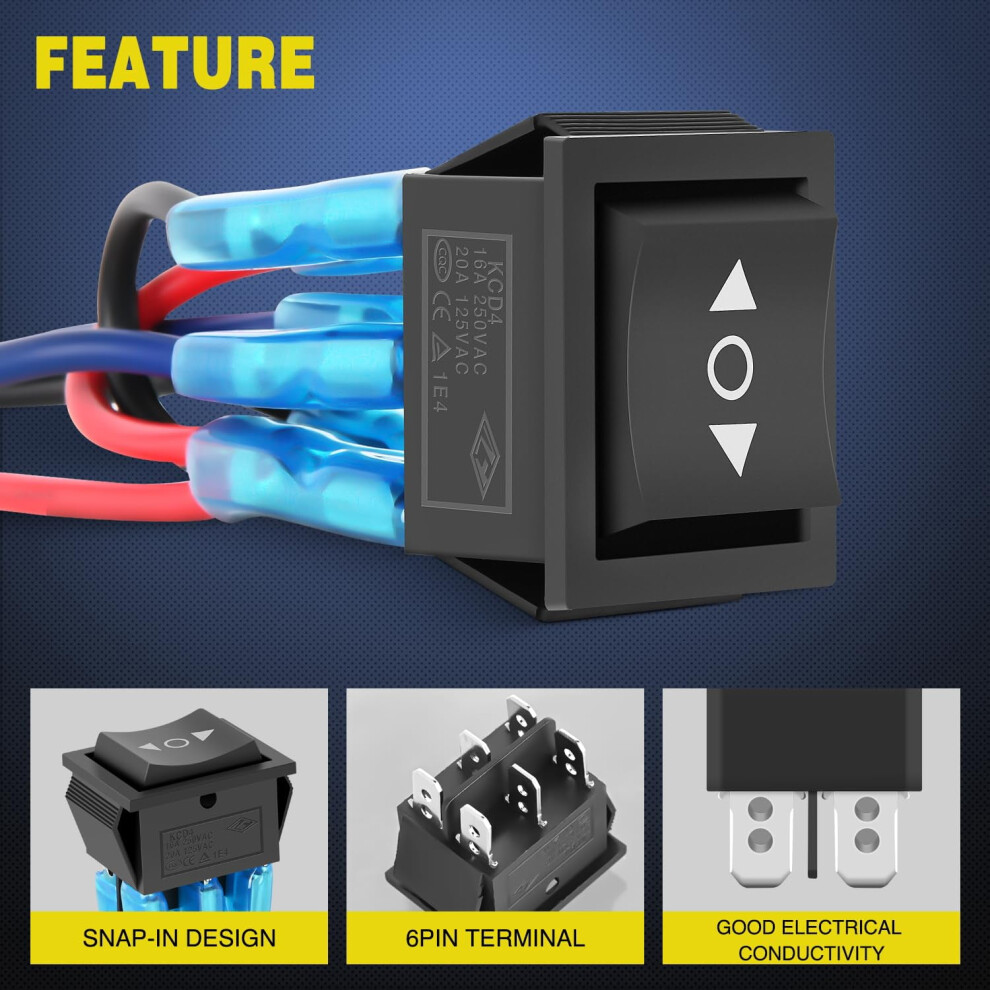

6Pin Momentary Polarity Reverse Switch On Off On DPDT 3 Position 20A 12VDC 125VAC Motor Control Automatic Reset Color: Black Item dimensions: 15 x 10 x 10 inches, 3.2 Ounces Specification Connect Type:DPDT Switch Rating: 20A 12VDC 10A 24VDC/20A 125VAC 10A 250VDC Terminal: 6PIN Switch Action: (ON)-OFF-(ON) Mounting Hole Diameter:29mm(1.14'')*22Mm(0.87'') Greatly suitable for most DC 12V cars, UTV/ATV, trucks, trailer, RV, caravan, bus, marine boat, yacht, airplane, etc. Features Momentary ON/OFF/ON Switch Momentary switch design, the button need to be pressed and held to make the momentary rocker switch ON; and release the button to make it OFF. With Wires The switch comes with a set of wires, make it more convenient to install. Silver-plated Terminals Thickened silver-plated terminals make the switch operate stably under 20A 12VDC 10A 24VDC/20A 125VAC 10A 250VDC. Snap-In Design Snap in Design make the switch easy to install. Extruding the plastic part, then Push in to the Panel.
Details
| OPC | PXV2BCP |
|---|---|
| Codes | 932590770202 (UPC) |
