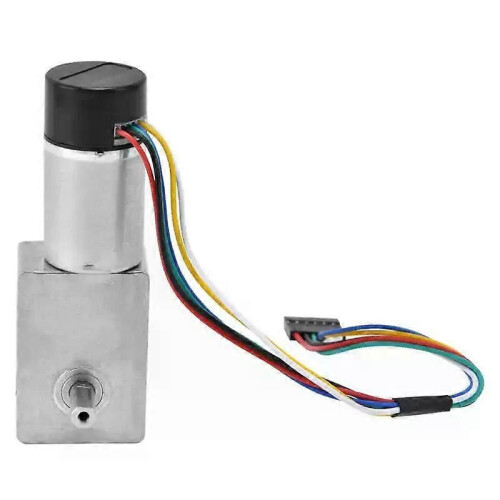

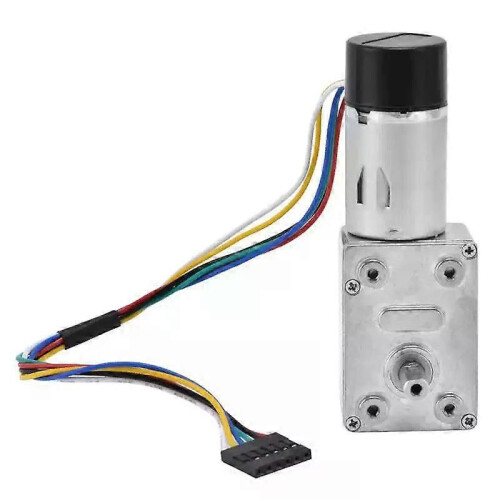

(6V) 15mm DC Worm Gear Motor Double Shaft Speed Reduction Drive Device With Encoder For JGY-370 Adjustable

(6V) 15mm DC Worm Gear Motor Double Shaft Speed Reduction Drive Device With Encoder For JGY-370 Adjustable Description

DC Worm Gear Motor 15mm Double Shaft Speed Reduction Drive Device with Encoder JGY370
STYLE:
Feature:
1. The DC worm gear motor has D type double shaft, with high hardness, good stability and excellent thermal conductivity.
2. The gear box is made of all metal materials, which is resistant to wear and rust, which can extend the service life of the motor
3. The encoder is coated with 3 layers of high density molecular paint to effectively isolate dust and greatly extend the service life.
4. The copper coil has super electrical conductivity, which makes the power output of the motor smoother.
5. Widely used in household appliances, office equipment, automotive automatic facilities, intelligent systems, automation control, and other industrial drive devices, etc.
Specification:
Item Type: DC Worm Gear Motor
Material: Zinc alloy, copper
Purpose: Industrial drive device
Output Shaft Diameter: Approx. 6mm / 0.2in
Output Shaft Length: Approx. 15mm / 0.6in
Shaft Type: D type
Speed Adjustment: Adjustable
Direction: CW and CCW
Cable Length: Approx. 230mm / 9.1in
DC 6V Parameter:
Reduction Ratio(Change Ratio)
40
65
90
150
200
260
340
600
1000
No Load Current MA
100
100
100
100
100
100
100
100
100
No Load Speed rpm
150
90
66
40
30
23
18
10
6
Rated Torsion Kg.cm
0.2
0.5
0.7
2
5.3
6.7
9
15.9
26.5
Rated Speed rpm
120
70
51
30
22
18
15
7.5
4
Rated Current A
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Maximum Torsion Kg.cm
0.9
1.6
2
7.5
10
13
18
30
45
Stall Current A
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
DC 12V Parameter:
Reduction Ratio(Change Ratio)
40
65
90
150
200
260
340
600
1000
No Load Current MA
60
60
60
60
60
60
60
60
60
No Load Speed rpm
150
90
66
40
30
23
18
10
6
Rated Torsion Kg.cm
0.2
0.5
0.7
2
5.3
6.7
9
15.9
26.5
Rated Speed rpm
120
70
51
30
22
18
15
7.5
4
Rated Current A
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Maximum Torsion Kg.cm
0.9
1.6
2
7.5
10
13
18
30
45
Stall Current A
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
Package List:
1 x Gear Motor
How to use:
Wiring:
Red:Redconnecttomotor+positivepole
Black:Blackconnecttomotornegativepole
Green:Greenconnecttosensorgroundwire(512V)
Blue:Blueconnecttosensorpower+(512V)
Yellow:Aoutputpoint(11pulses)
White:Boutputpoint(11pulses)
