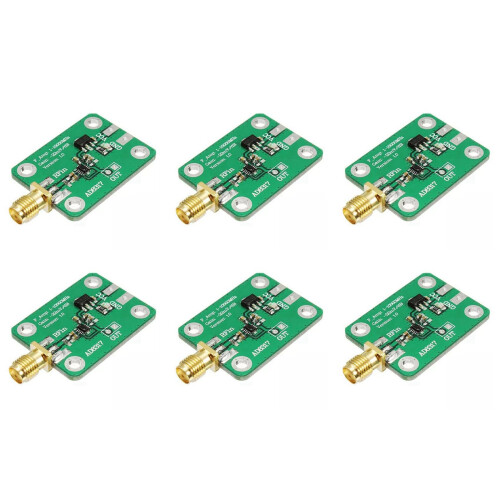

6X AD8317 Logarithmic HighSpeed Detector Log Detector Signal Log Output Power Meter 1M10000MHz Controller Ref: 9752

6X AD8317 Logarithmic HighSpeed Detector Log Detector Signal Log Output Power Meter 1M10000MHz Controller Ref: 9752 Description

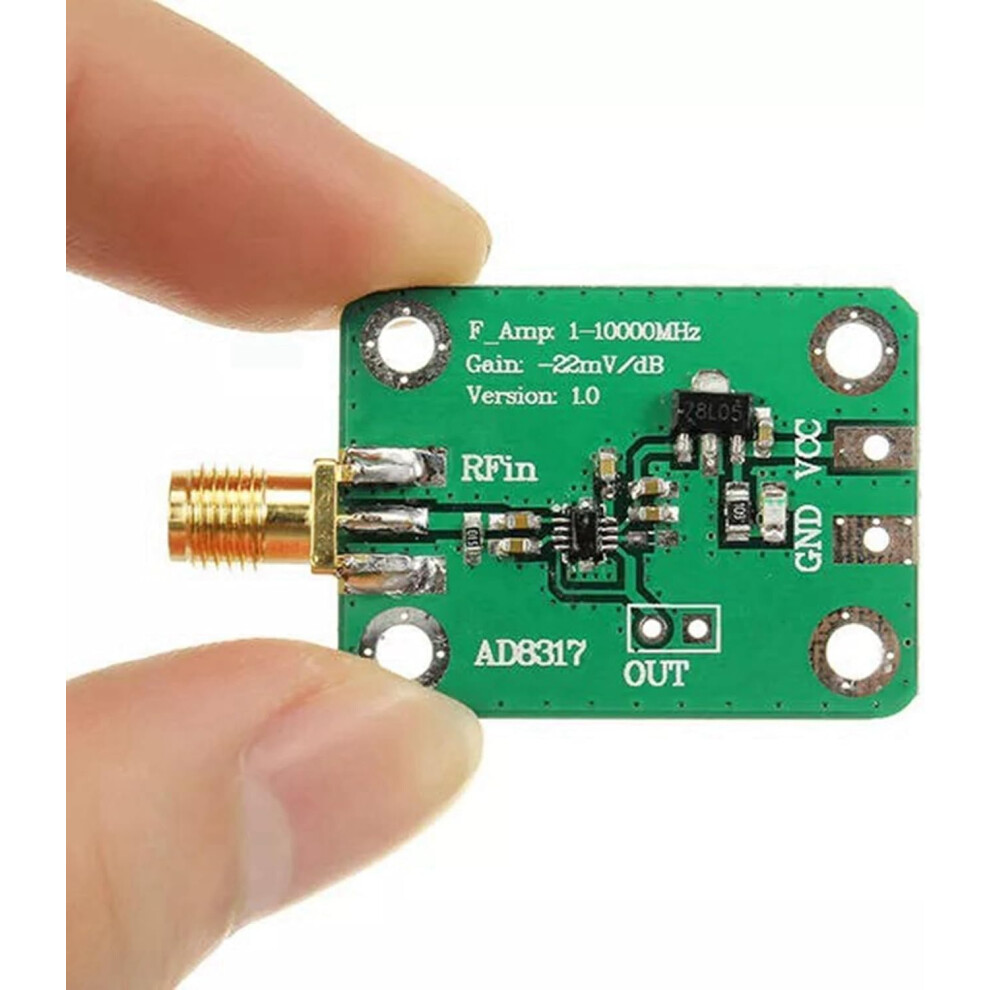

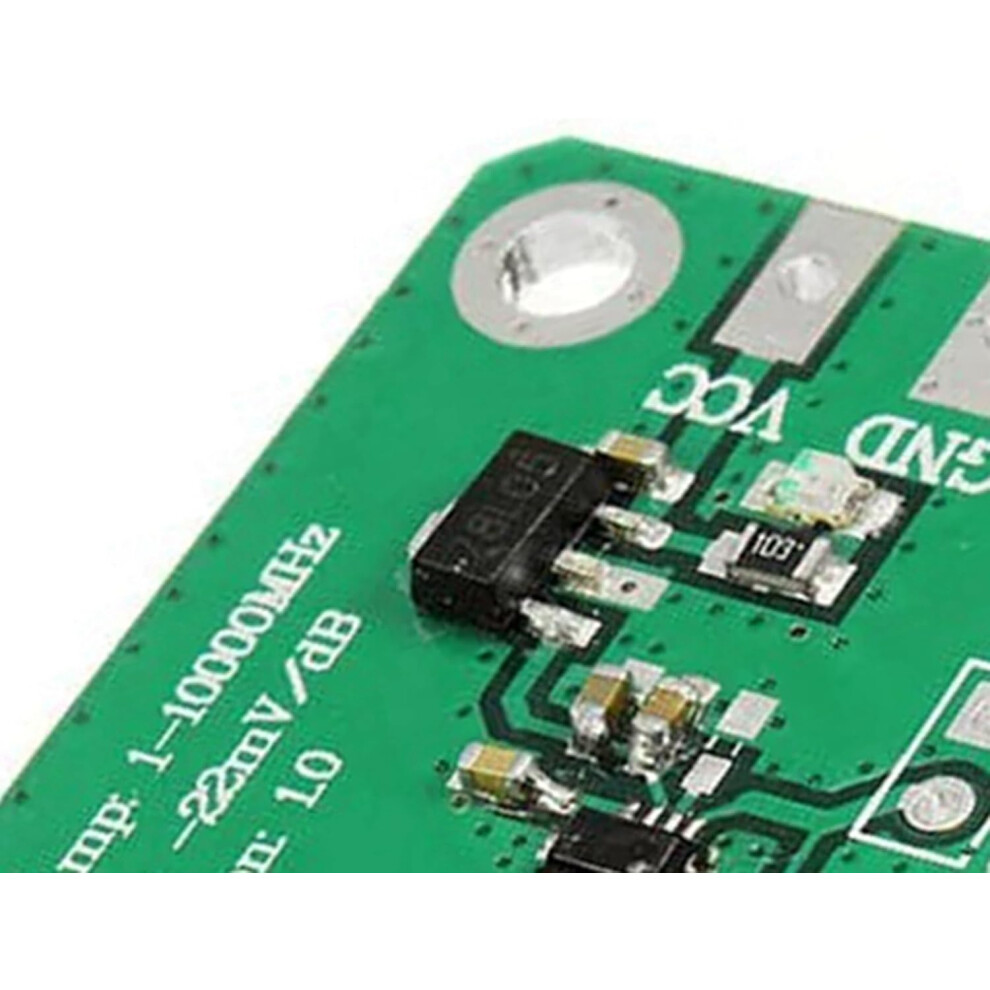

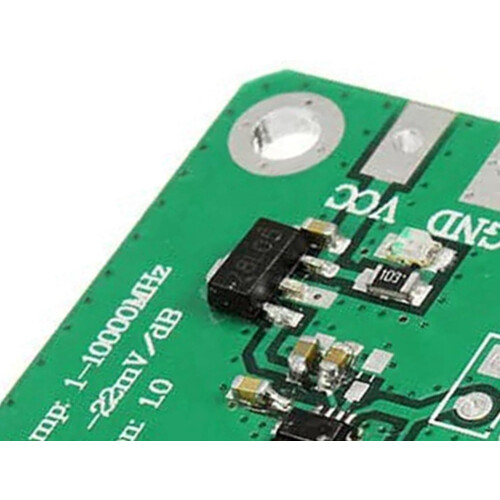

1.The detection frequency range is 1M10GHz, which can detect an RF signal with a power of 55dBm to 0dBm and convert this RF signal into a DC voltage output. 2.The larger the RF signal amplitude or power, the higher the output voltage, and the output voltage is proportional to the logarithm of the input signal amplitude, which extends the dynamic range of the detected signal by 55 dB. 3.Widely used in RF signal detection, signal power measurement, environmental field strength detection and can also be used as an integral part of automatic gain control and automatic level control. 4.This power meter is equipped with the AD8317 chip and is used to detect RF signal power.
