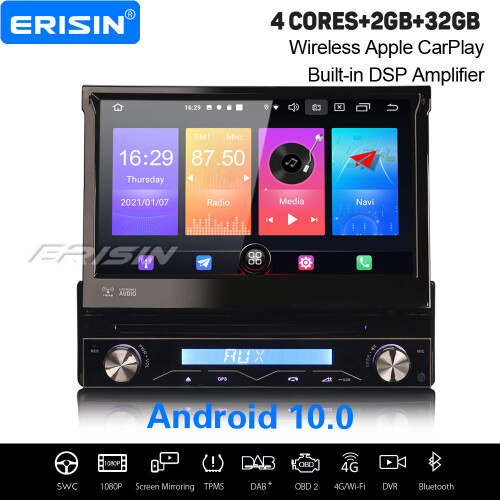

7" Android 10.0 Single Din Car Stereo DAB+ DSP 4G WiFi OBD2 Bluetooth DVR CarPlay Universal Sat Nav

7" Android 10.0 Single Din Car Stereo DAB+ DSP 4G WiFi OBD2 Bluetooth DVR CarPlay Universal Sat Nav Description

Key Features:

- Android 10.0 OS, Quad Core, 2GB RAM and 32GB ROM, 1 Card/3 USB up to 4*64GB extended Storage.
- Detachable front panel for Anti-theft Design, Fully motorized retractable screen, viewing angle adjustable.

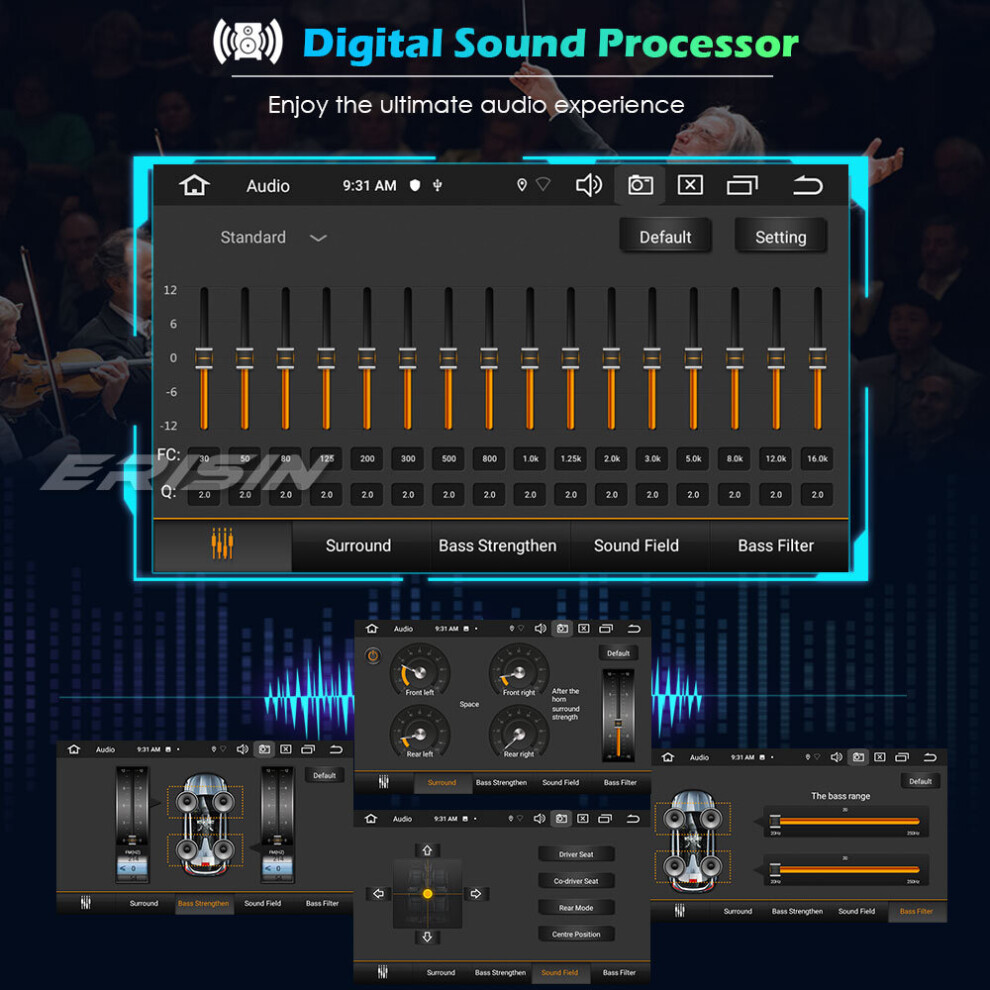

- Built-in DSP Amplifier System, which bring the perfect sound effect in your car.
- Built-in Wireless Apple CarPlay and Wired Android Auto module, you don't need to use another adapter, just
  just connect your iPhone to this unit via Bluetooth to use the CarPlay function, or connect your Android
  phone to this unit via USB to use the Android Auto function.

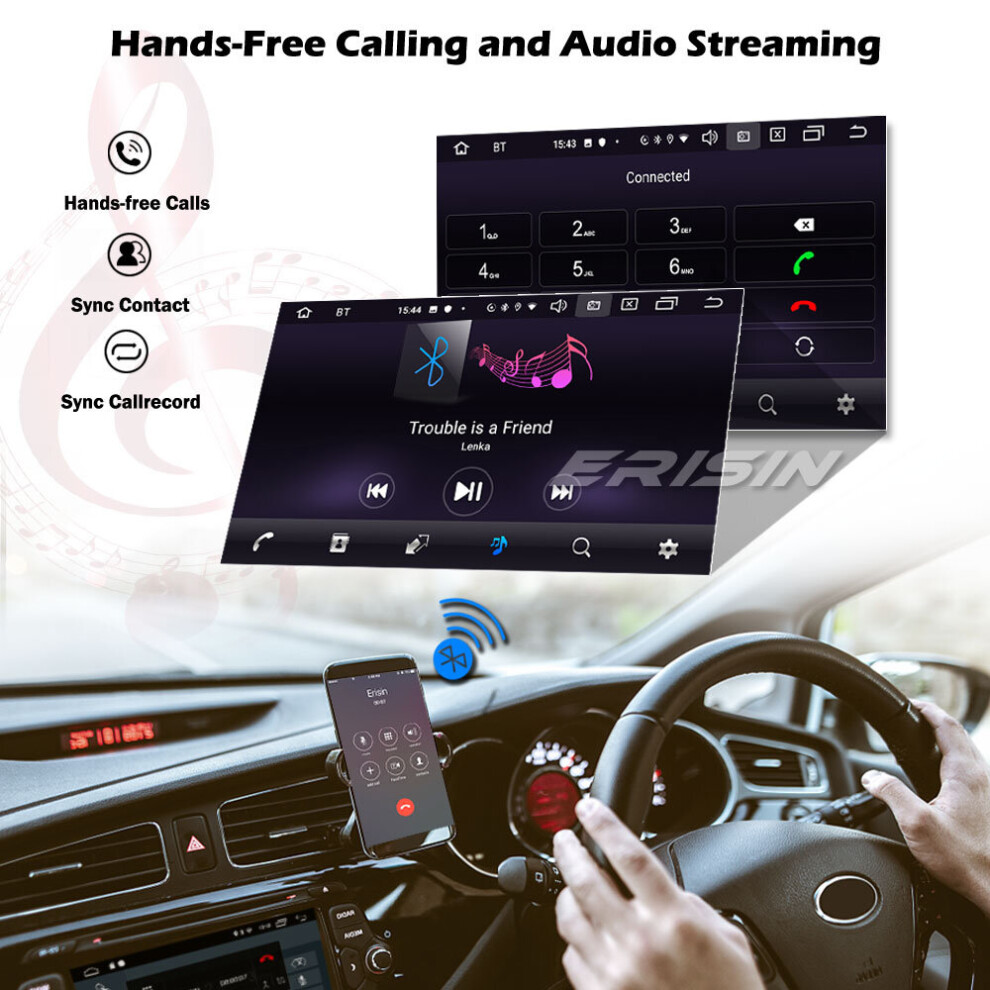

- Built-in Bluetooth module, which supports hands-free function with A2DP Audio Streaming.
- Built-in GPS Module, which supports offline GPS Navigation, GPS ready to use.

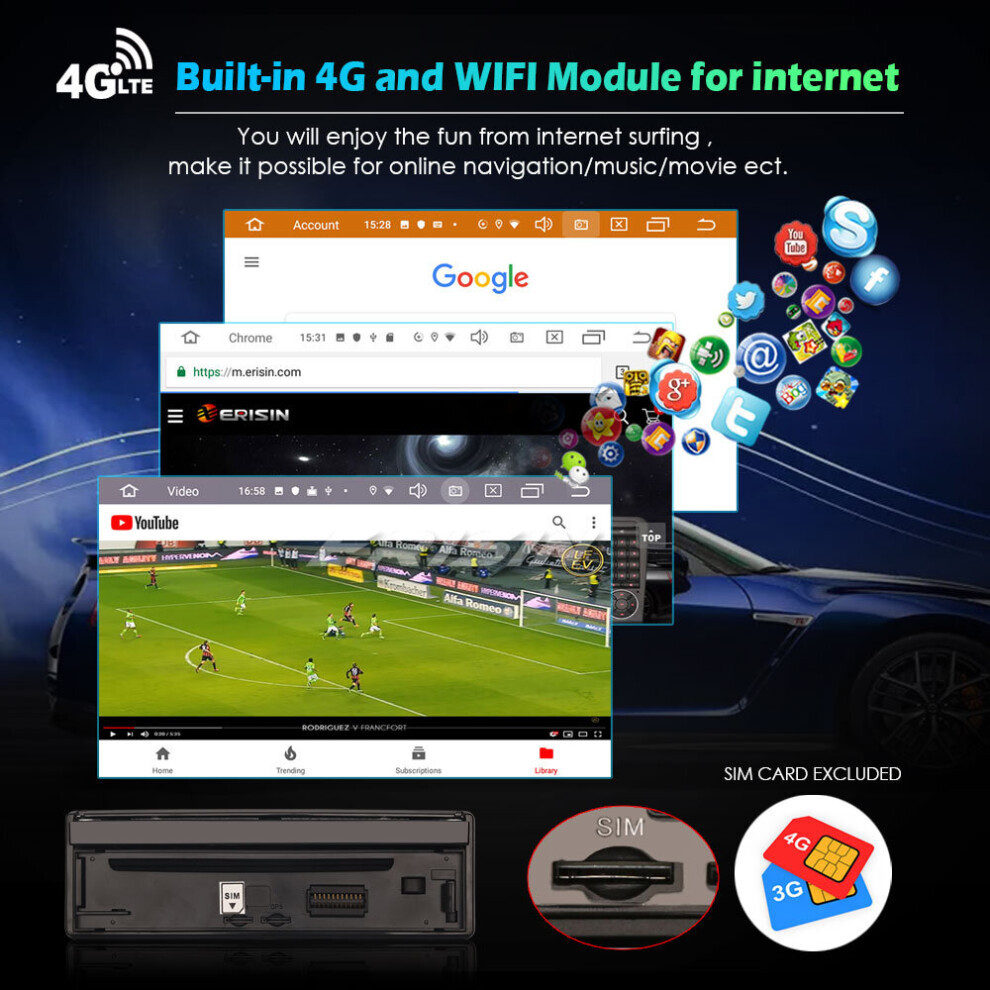

- Built-in 4G and WIFI Module for internet, just insert your 4G SIM Card, no matter where you are driving, you will enjoy
  the fun from internet surfing, make it possible for online navigation/ music/ movie ect.

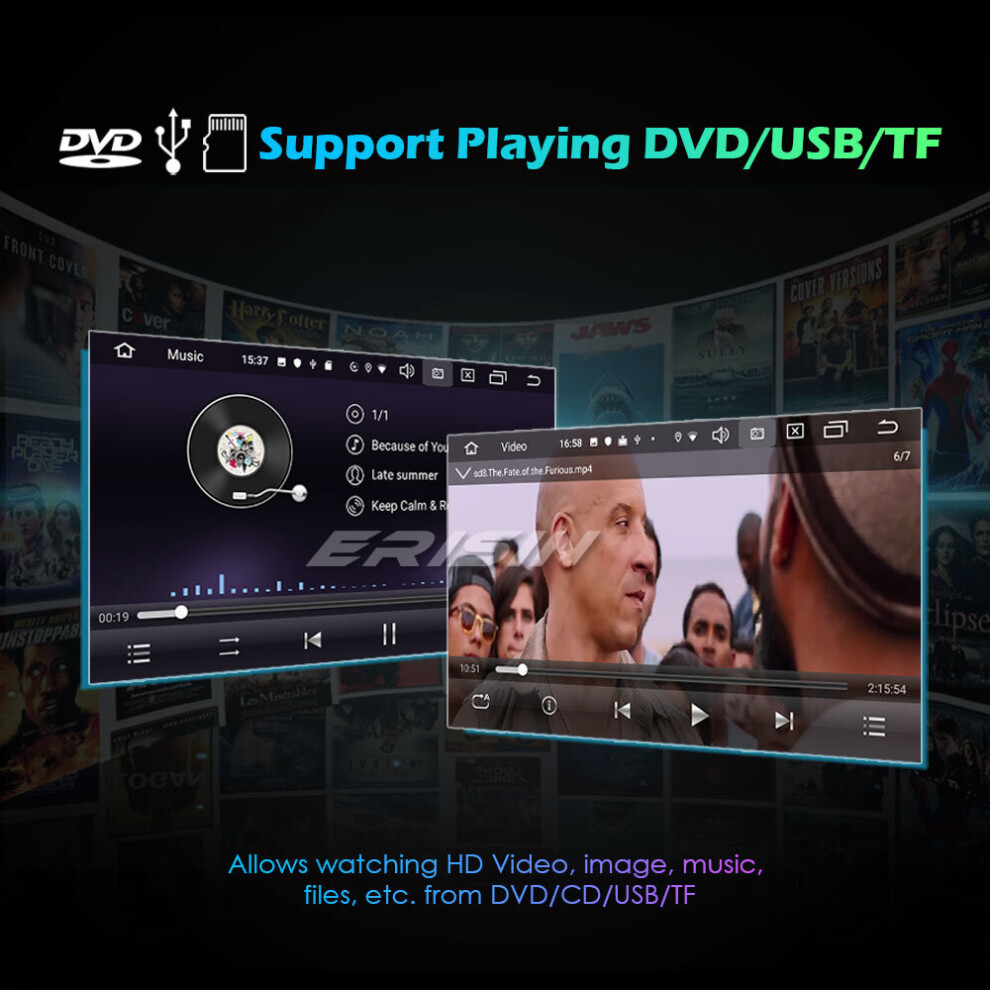

- Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF.
- Built-in DVD, USB, TF, Radio, RDS, WiFi, Clock, Calculator, Calendar.
- Support DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN, 3G, 4G etc. extended functions.

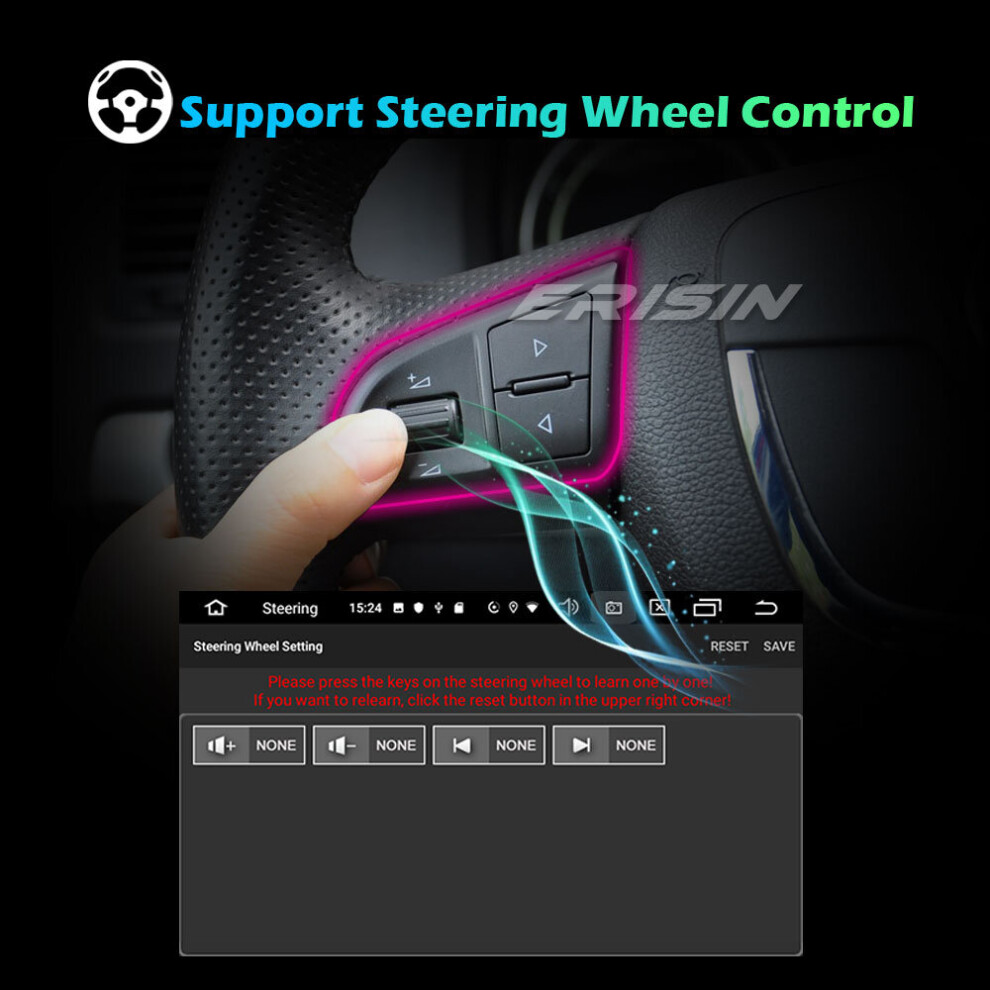

- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.
- Support panel light colors adjustment, many RGB-colors can be chosen.
- Support Split Screen, you can run two apps side by side.

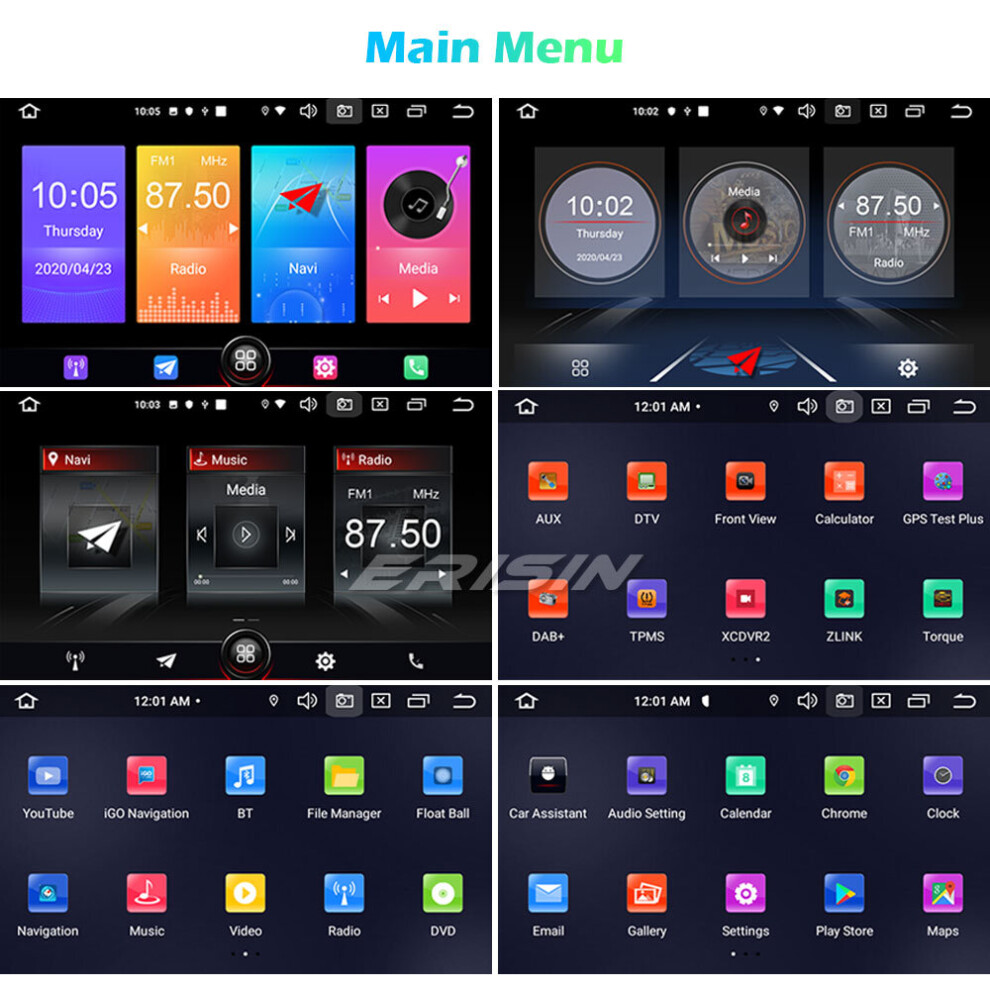

- Beautiful and fashionable 3 main menu UI Design.

Compatible Models & Years:

ISO 1 Din Universal Unit

ES2788U 7" Single DIN Quad-Core Android 10.0 Car Multimedia with GPS/WiFi/TPMS-IN/DVR-IN/DTV-IN/DAB-IN...

  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch
- Install Size: 1 Din 180mm*160mm*55mm
- Package Size: 320mm*260mm*150mm
- Shipping Weight: 3.5kg

  System
- Operation System: Google Android 10.0
- CPU: MT8321A 1300MHz Cortex A7
- RAM: 2GB
- Internal Memory: 32GB
- Extended Card/USB: Support USB/TF up to 64GB

  Display
- Screen Type: Multi-touch screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 2 live wallpapers, 7 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes

  WiFi/4G
- WiFi: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot
- 4G: Built-in 4G Module, support 4G SIM card. the slot is on the front panel
- Supported 4G Frequency: LTE-FDD, LTE-TDD, WCDMA, TD-SCDMA, EVDO, CDMA, GSM etc.
  LTE-FDD (with Rx-diversity): B1/B3/B5/B8
  LTE-TDD (with Rx-diversity): B38/B39/B40/B41
  WCDMA: B1/B5/B8
  TD-SCDMA: B34/B39
  EVDO/CDMA: BC0
  GSM: 850/900/1800MHz

  Internet
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
  DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
  MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)

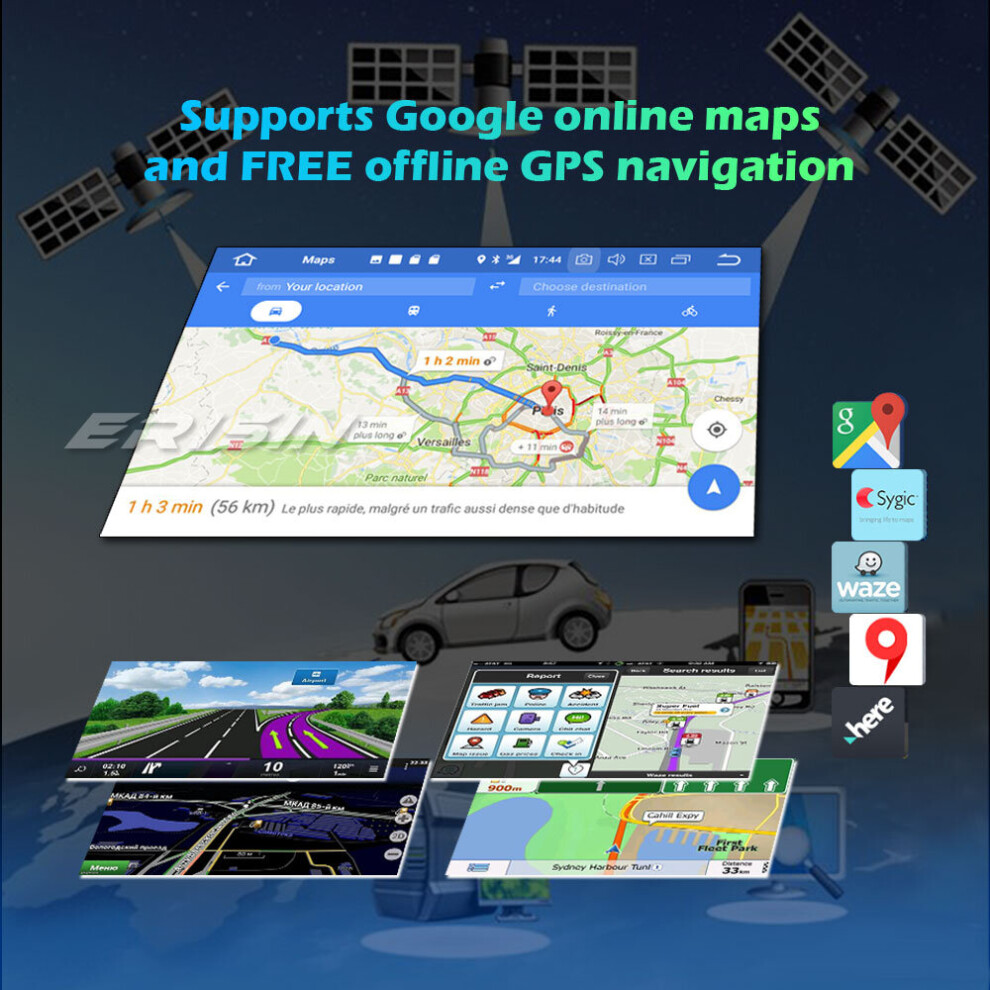

  GPS
- Operation System: Android 10.0
- Support Maps: IGO, Sygic, Waze maps for Android 10.0
- Support offline navigation: Yes, Ready to use.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps

  DVD
- Decode IC: 8202TQ
- Compatible Format: MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG
- OSD/Audio/Subtitle Language: English, Italian, French, Spanish, Portuguese, German, Russian...
- Auto-Save Function: Yes, expediently watch all kinds of disc continuously

  Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back, external Mic. incl.

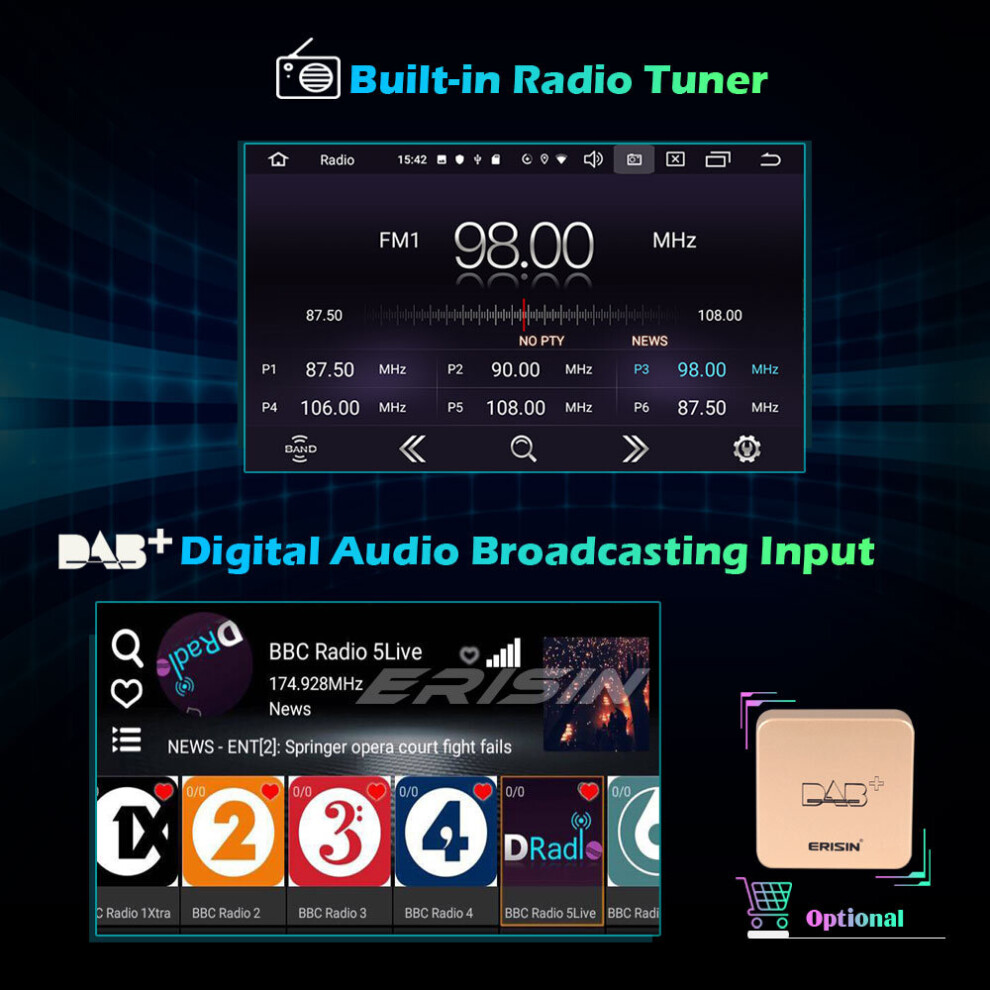

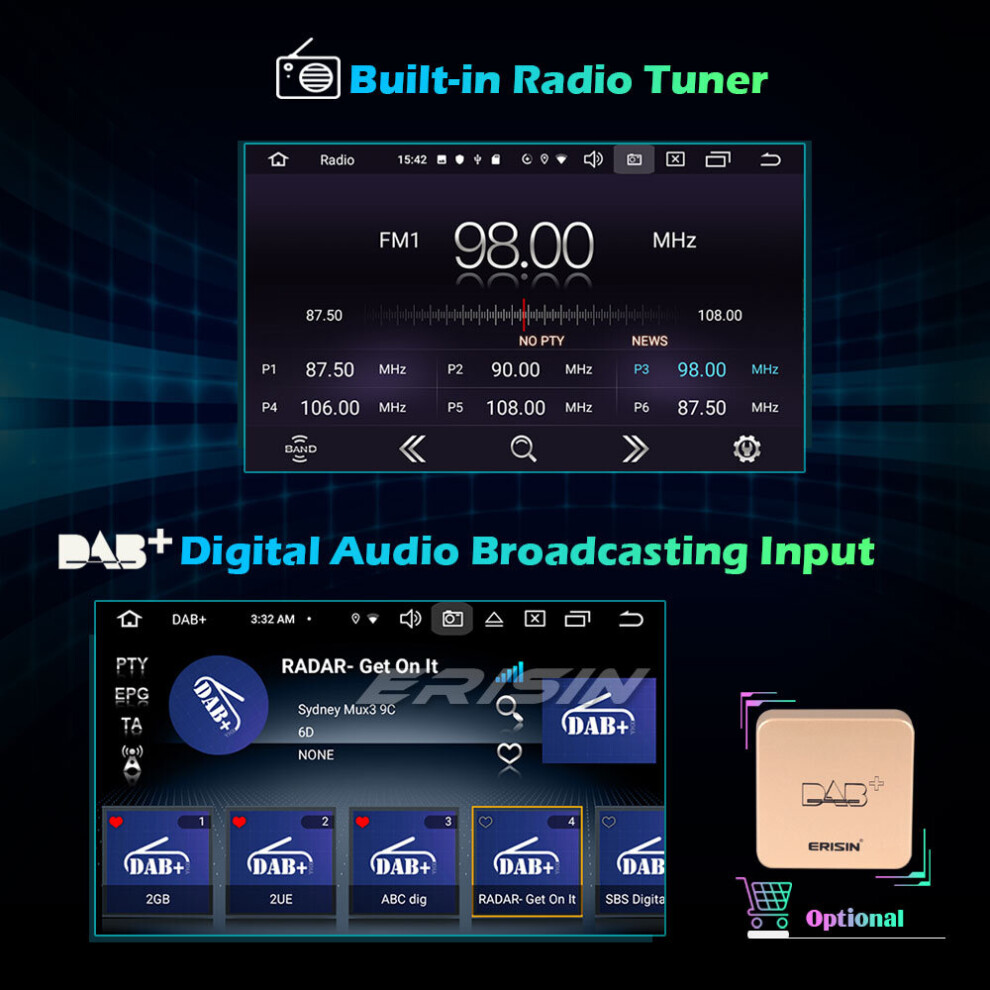

  Radio
- Main Chips: TEF6686
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)

  USB
- Position: 3 USB On the Back

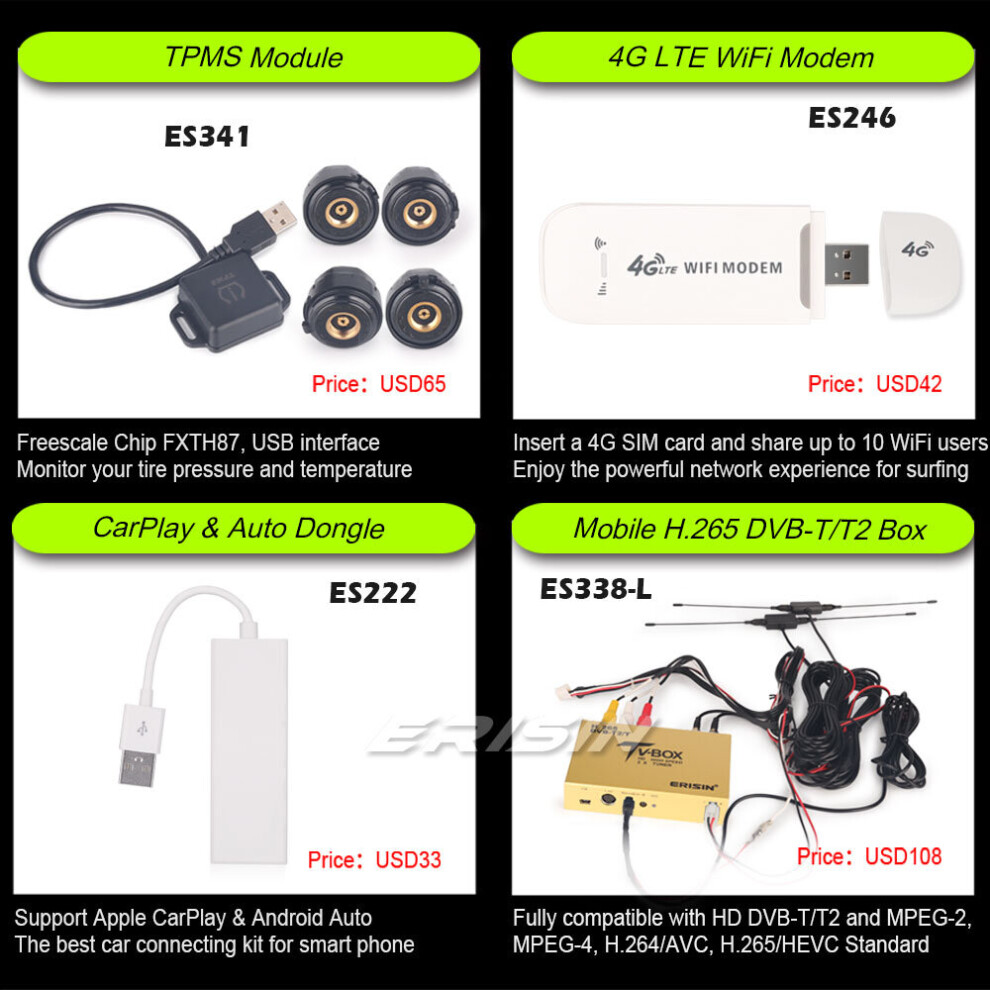

- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
- Capacity: 64GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

  TF
- Position: On the front panel
- Function: Can be used as Multimedia card or GPS card slot.
- Capacity: 64GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

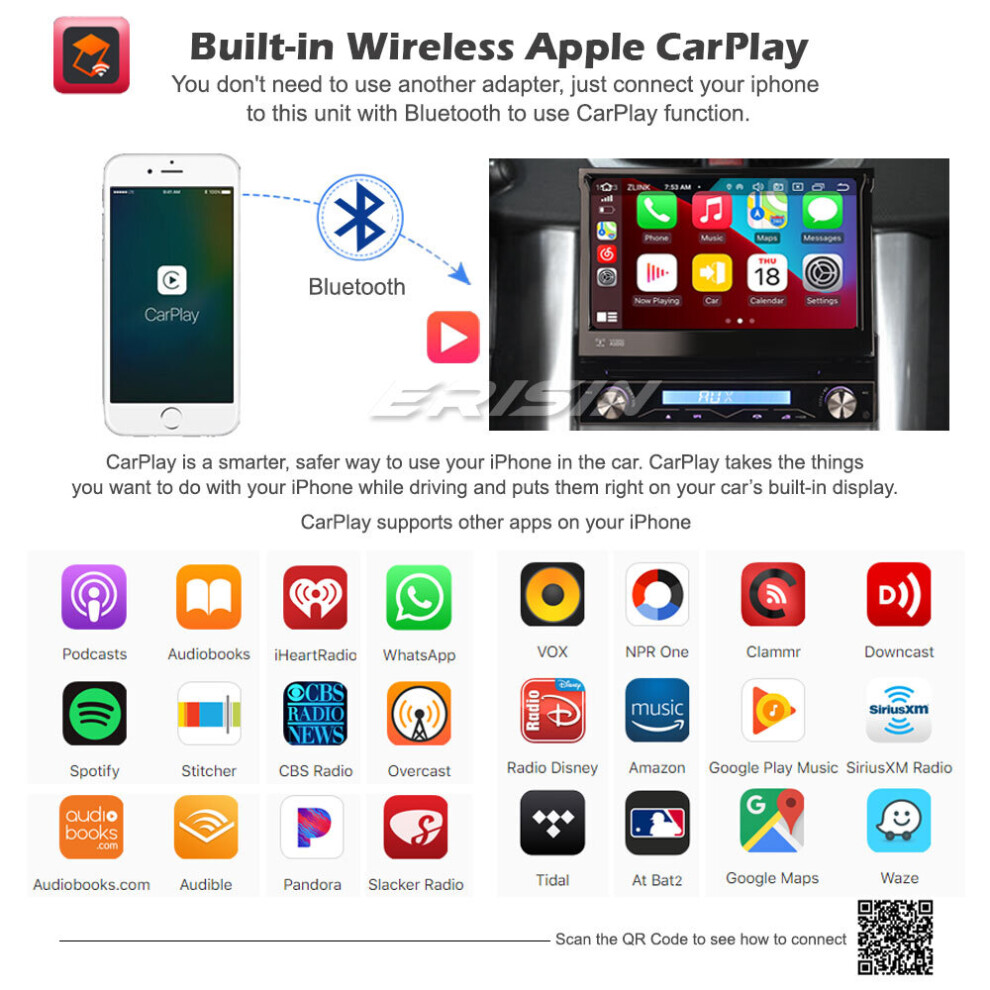

  CarPlay
- Built-in CarPlay: Yes, just connect your iPhone to this unit with Bluetooth to use this function
- Connection Port:  Bluetooth
- Support Device: iPhone iOS 7.1 and above
- Unit's Screen Control Phone: No, but you can download CarPlay supported function APK to use and control

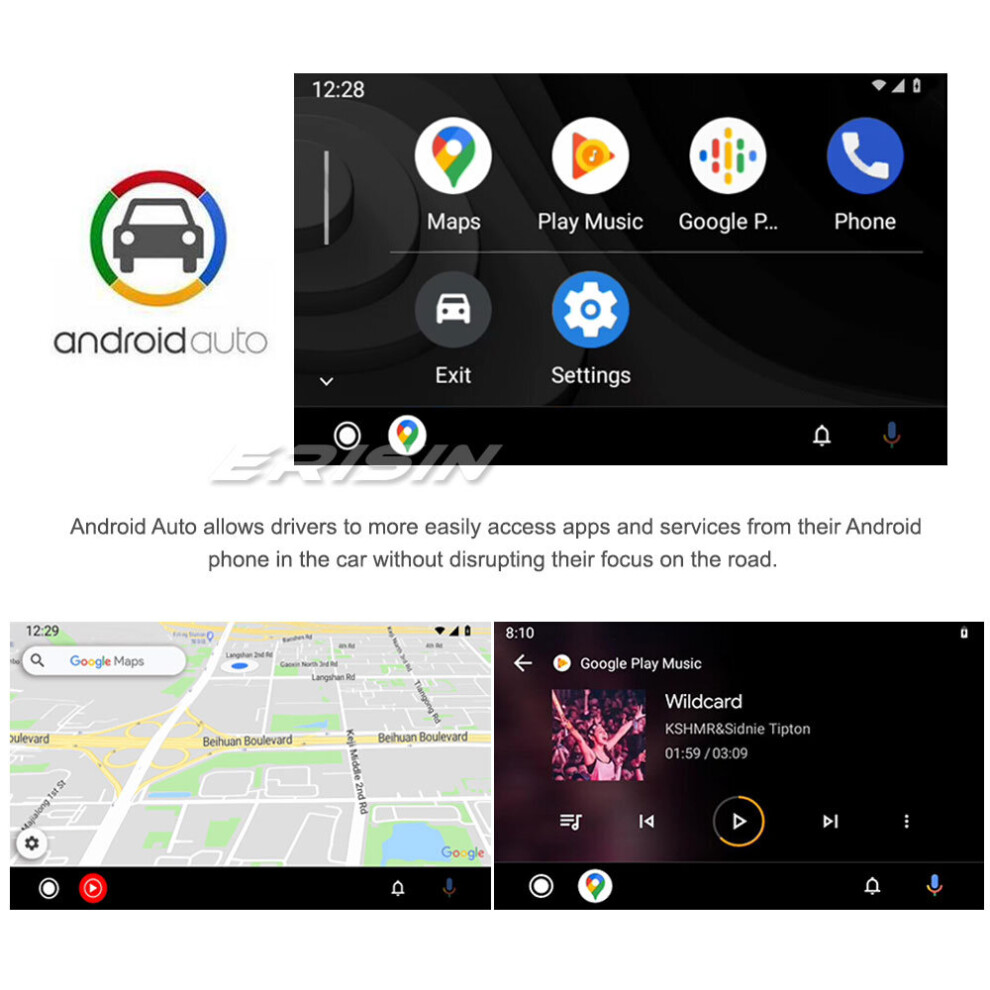

  Android Auto
- Built-in Android Auto: Yes, just connect your smartphone to this unit with USB to use this function
- Connection Port: USB
- Support Device: Android Smartphone with Android 5.0 and above
- Support Wireless connecting: No
- Control the connected Android Phone on head unit: Yes

  Car DVR
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes
- Play recorded Video directly: Yes
- Storing Position: Card/USB Storage can be changed

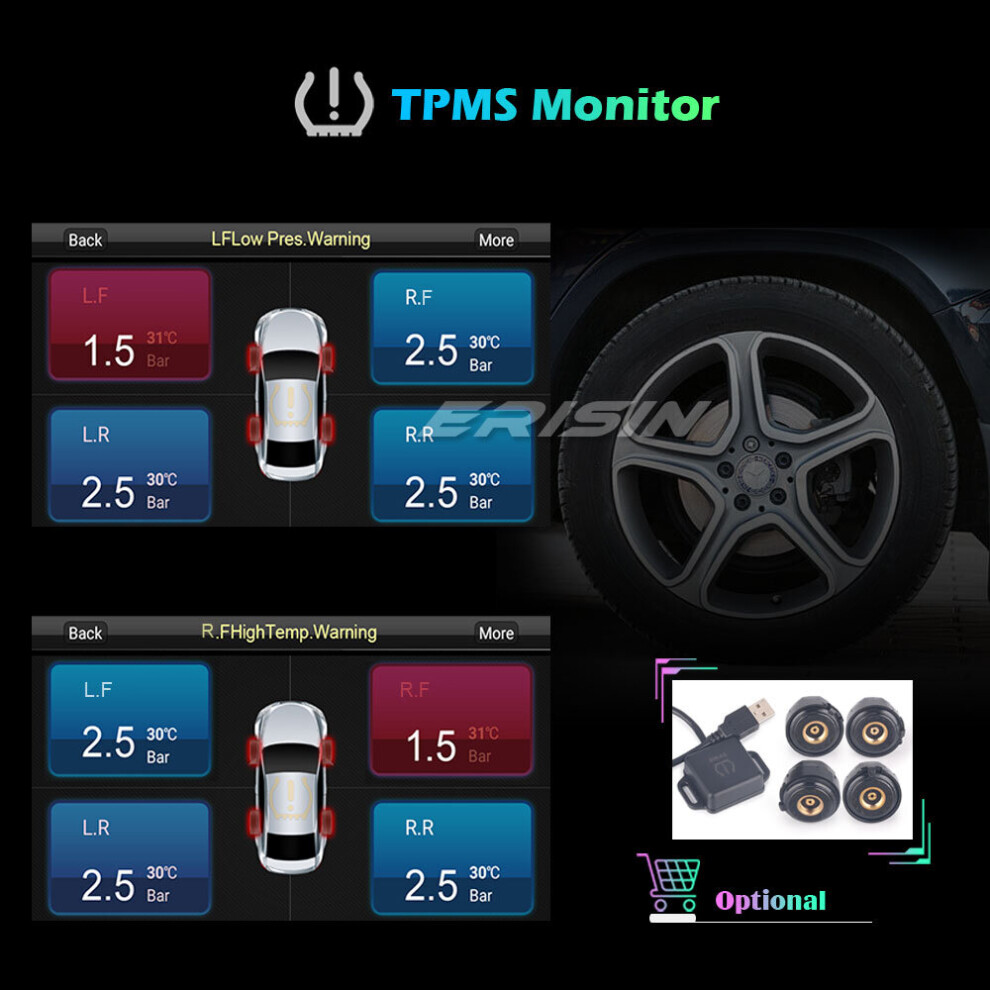

  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control: Yes

  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch unit's screen to control the connected DAB+ Box: Yes

  DTV-IN
- Built-in DAB Player App: Yes
- Connection Port: Special
- Power Supply to connected DTV Box directly: Yes, you can connect our DTV Box to achieve this function
- Touch unit's screen to control the connected DTV Box: Yes, you can connect our DTV Box to achieve this function

  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer

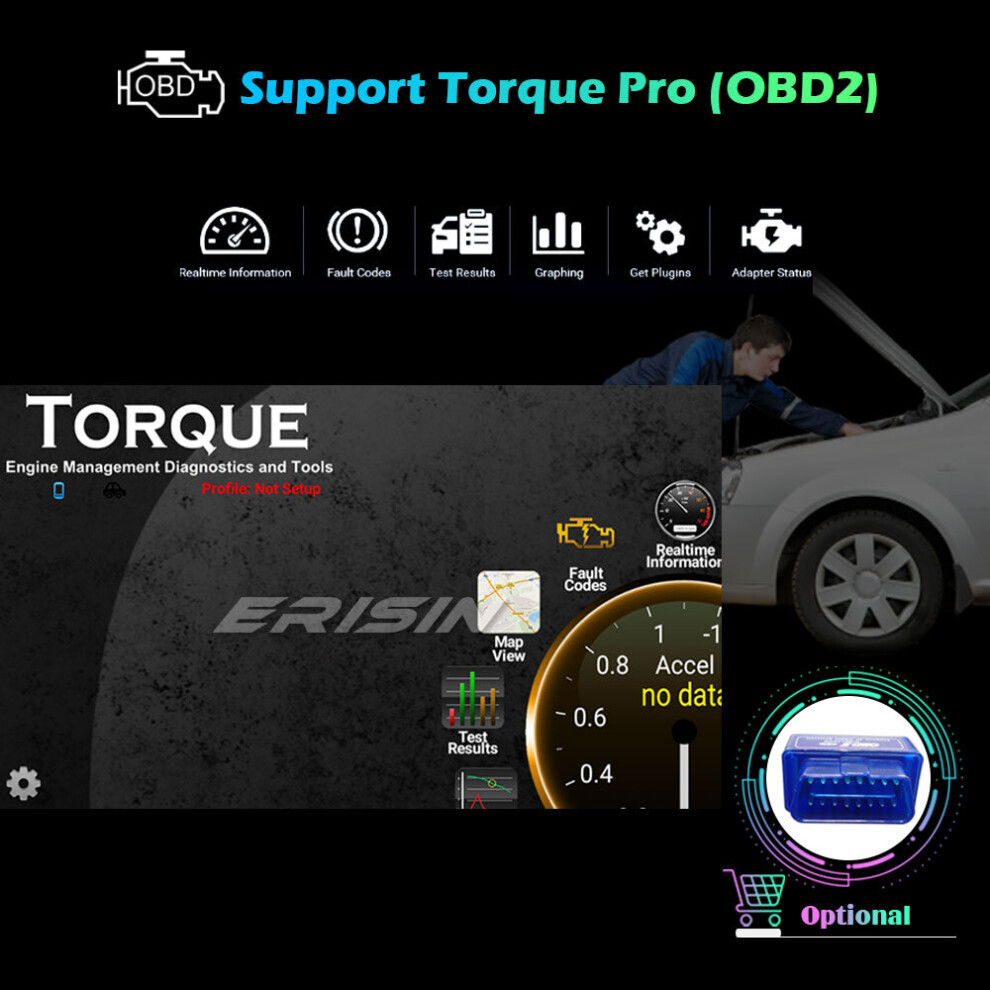

- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving
- Support panel light colors adjustment, many RGB-colors can be chosen
- Built-in DSP Amplifier System, which bring the perfect sound effect in your car.
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF

  Input
- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- TPMS Box In: One
- DTV Box In: One
- DAB+ Box In: One
- Car DVR In: One

  Output
- Video Out: Two
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

  Accessories
- 1*Camera and SWC Cable
- 1*Power Cable with ISO Connector
- 1*RCA AV Cable
- 1*External microphone Cable
- 1*USB Cable & USB OTG Cable
- 1*GPS Antenna
- 1*WiFi Antenna
- 1*4G Antenna
- 1*Install Frame and Fittings
