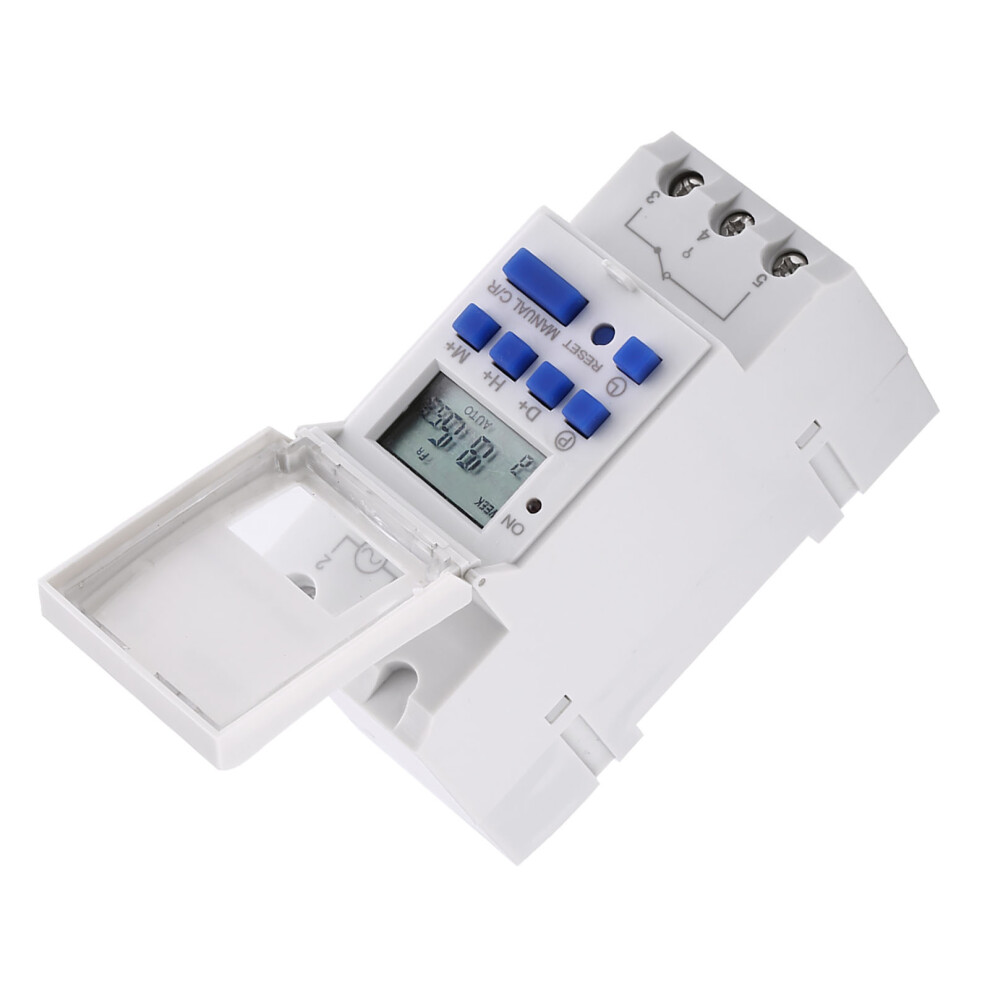

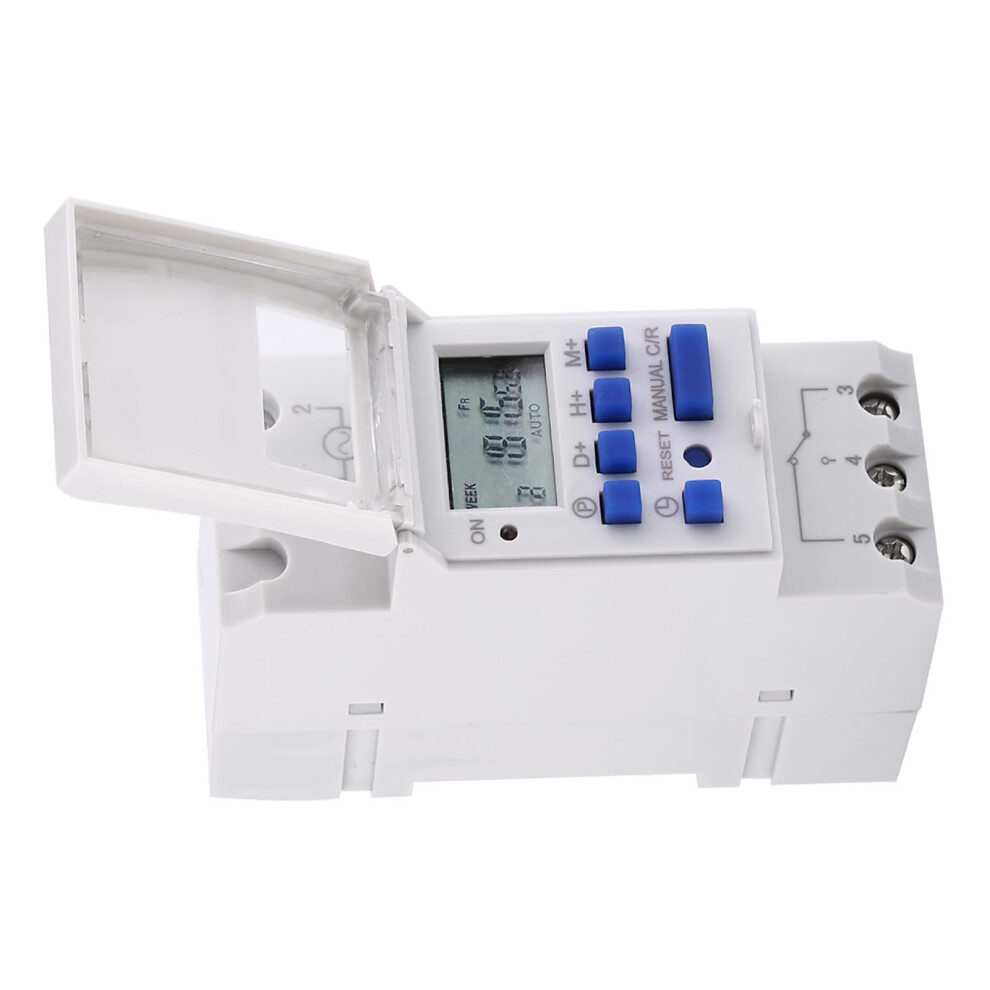

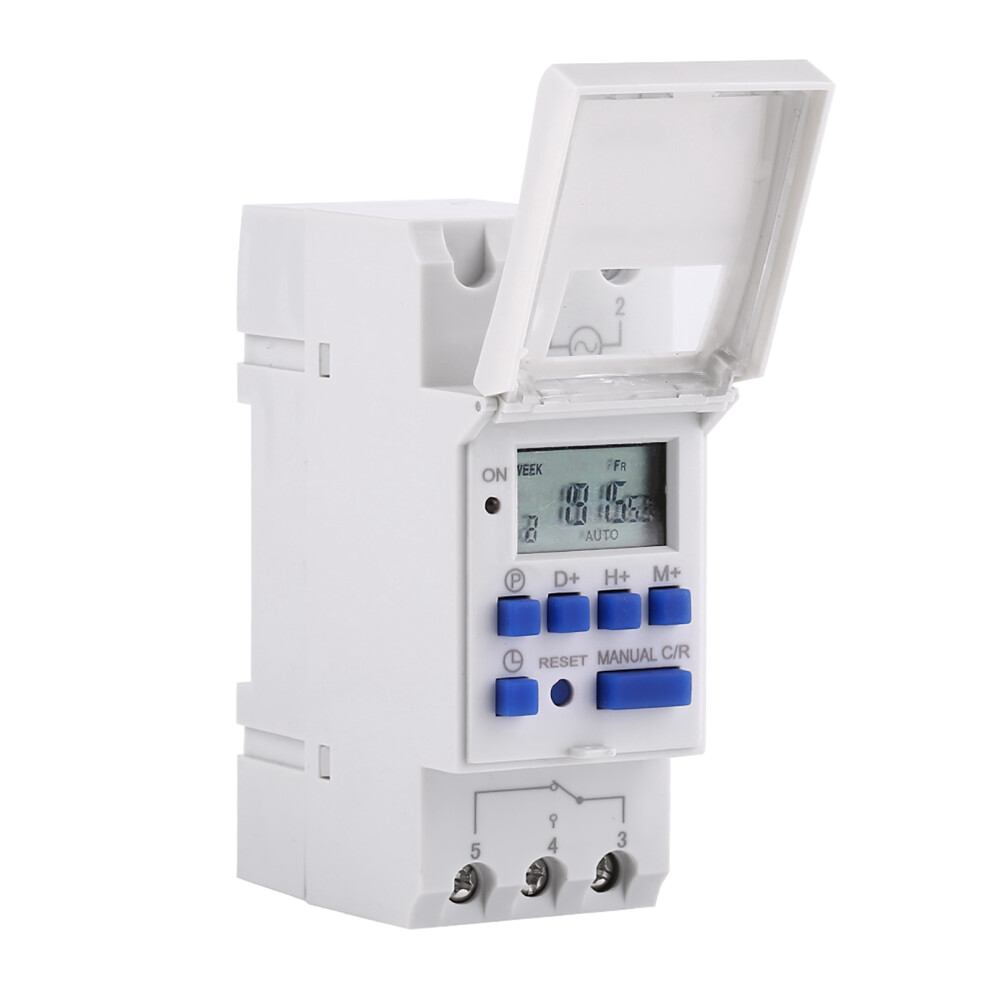

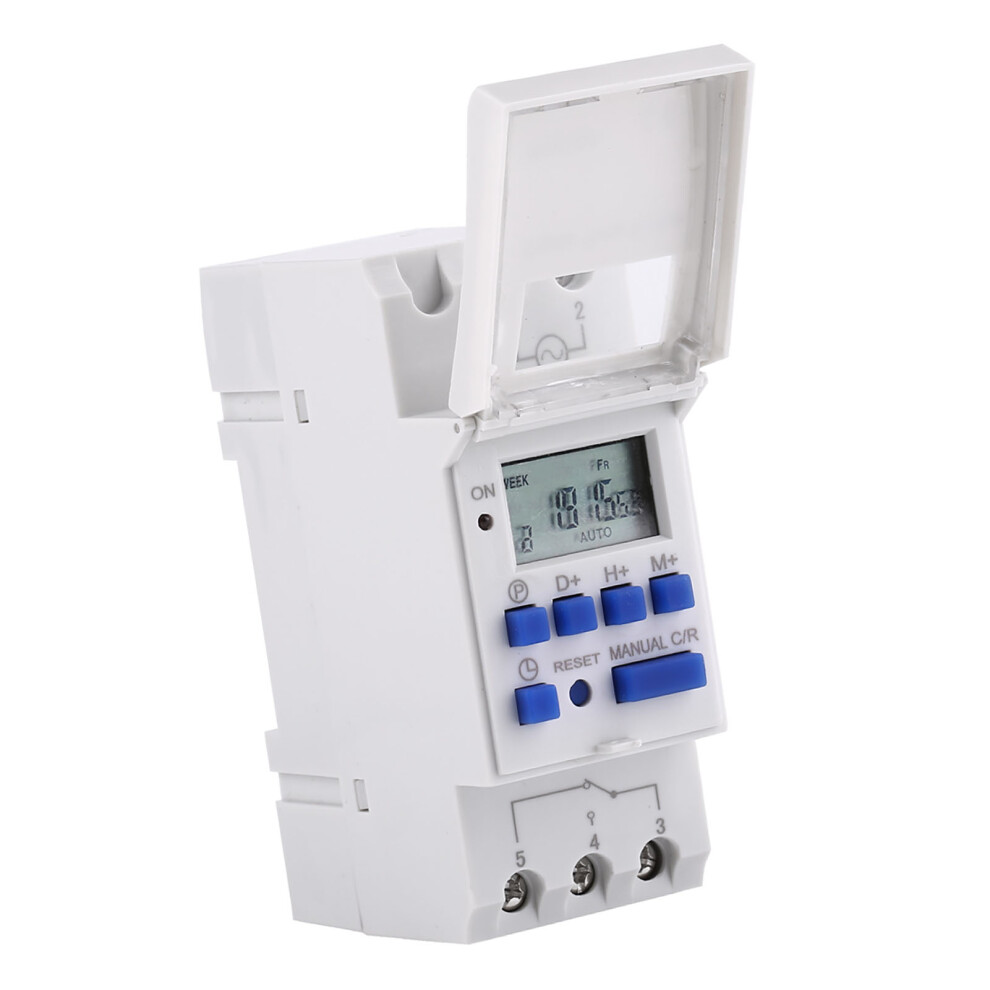

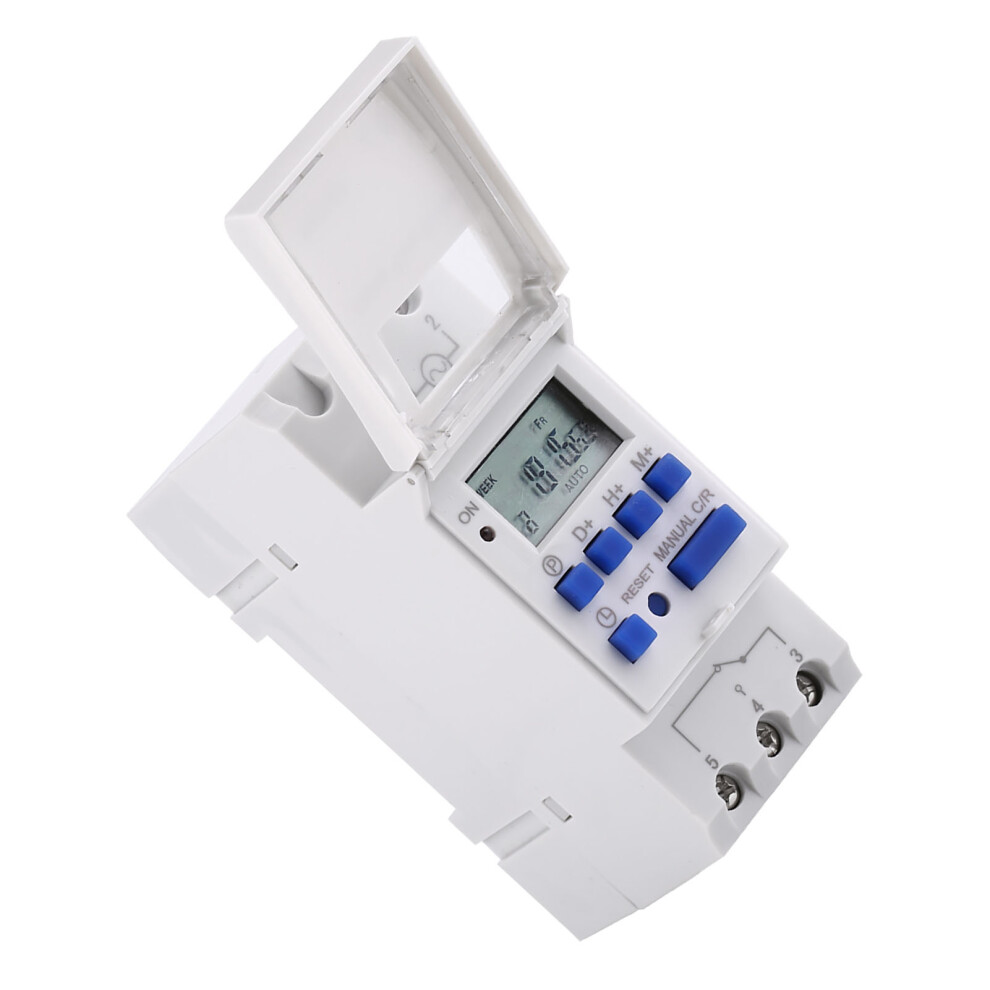

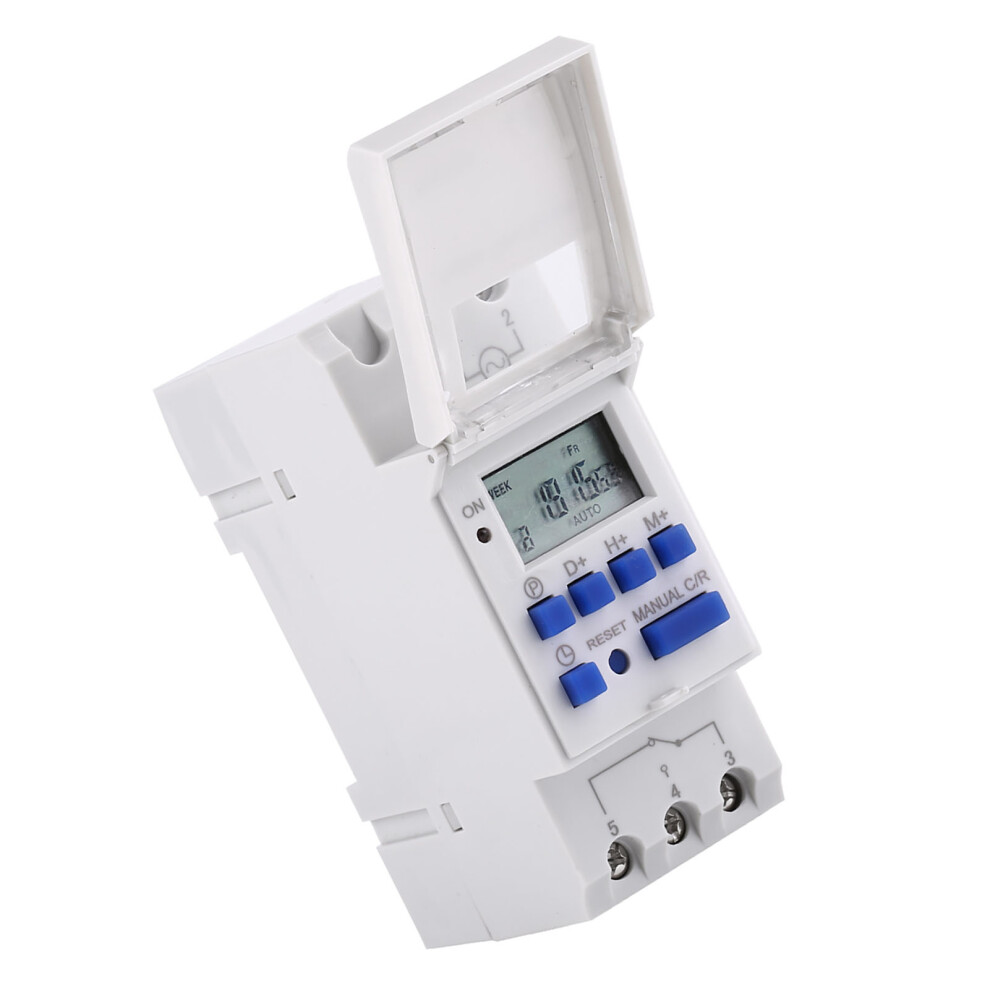

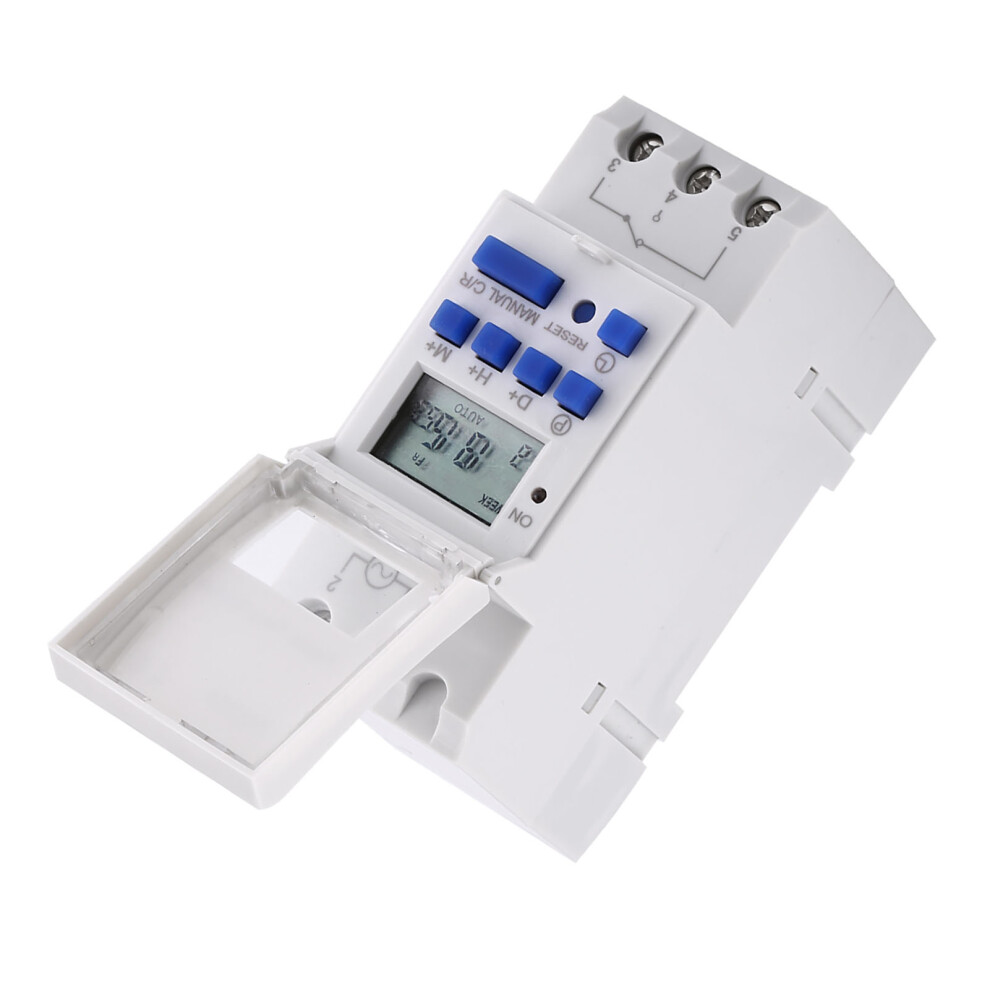

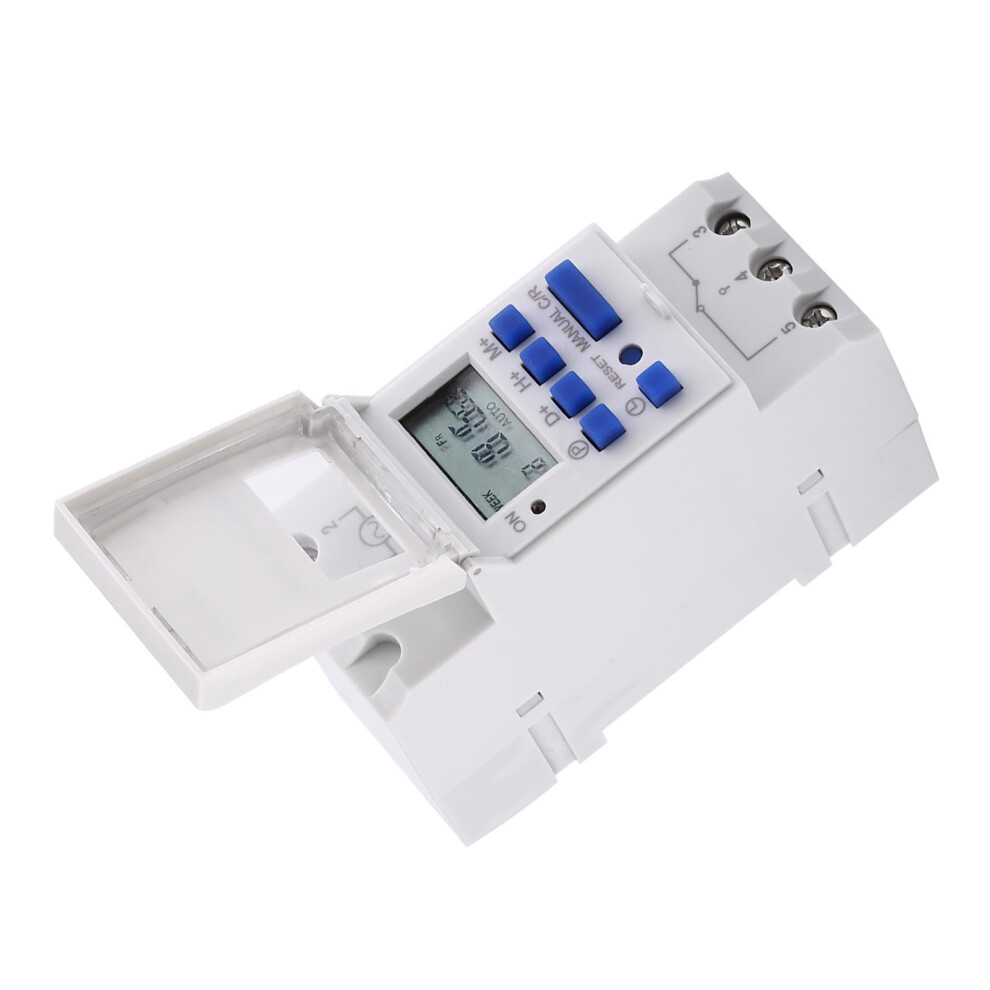

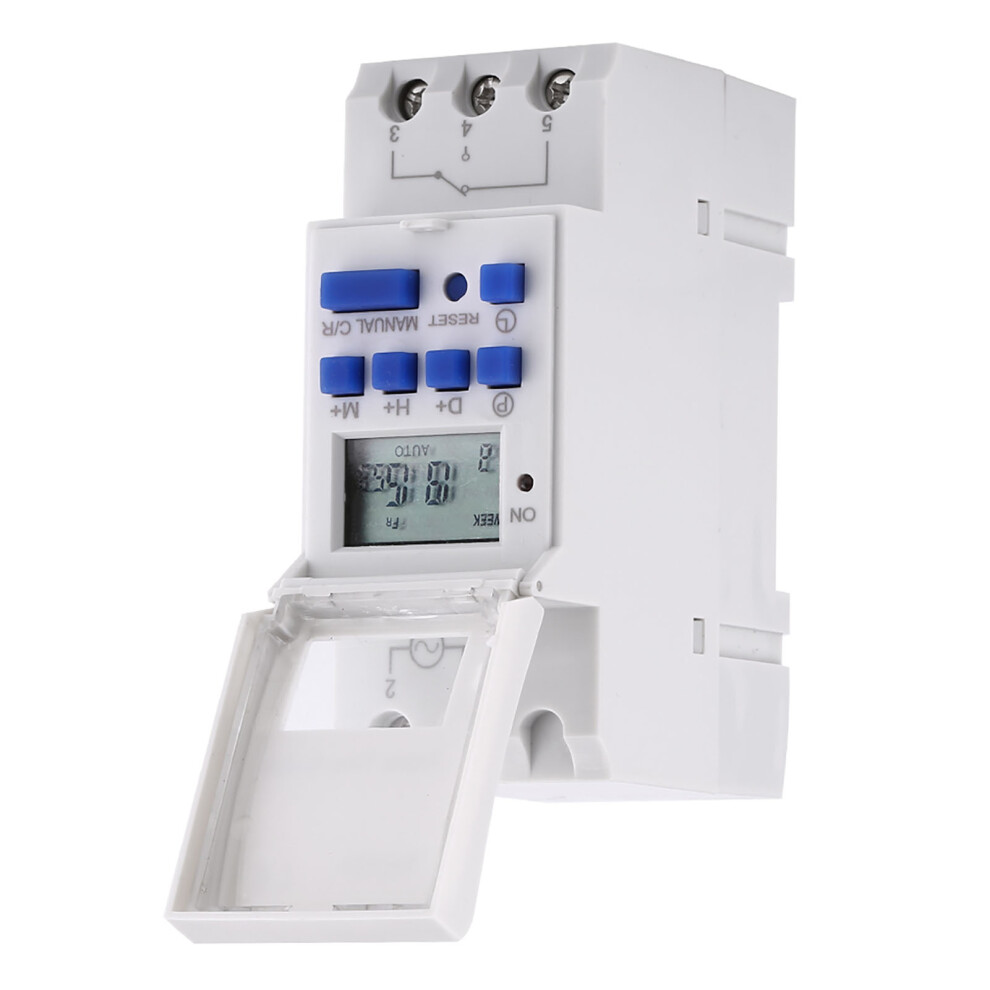

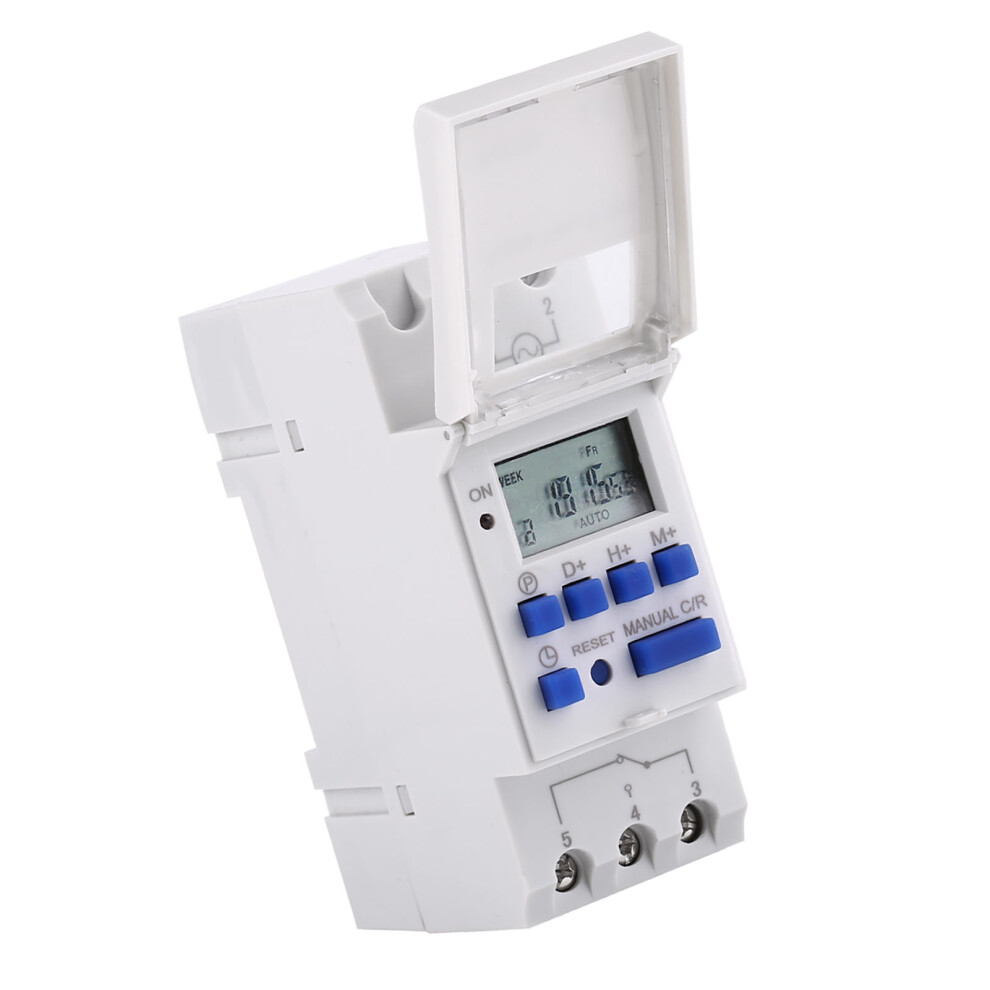

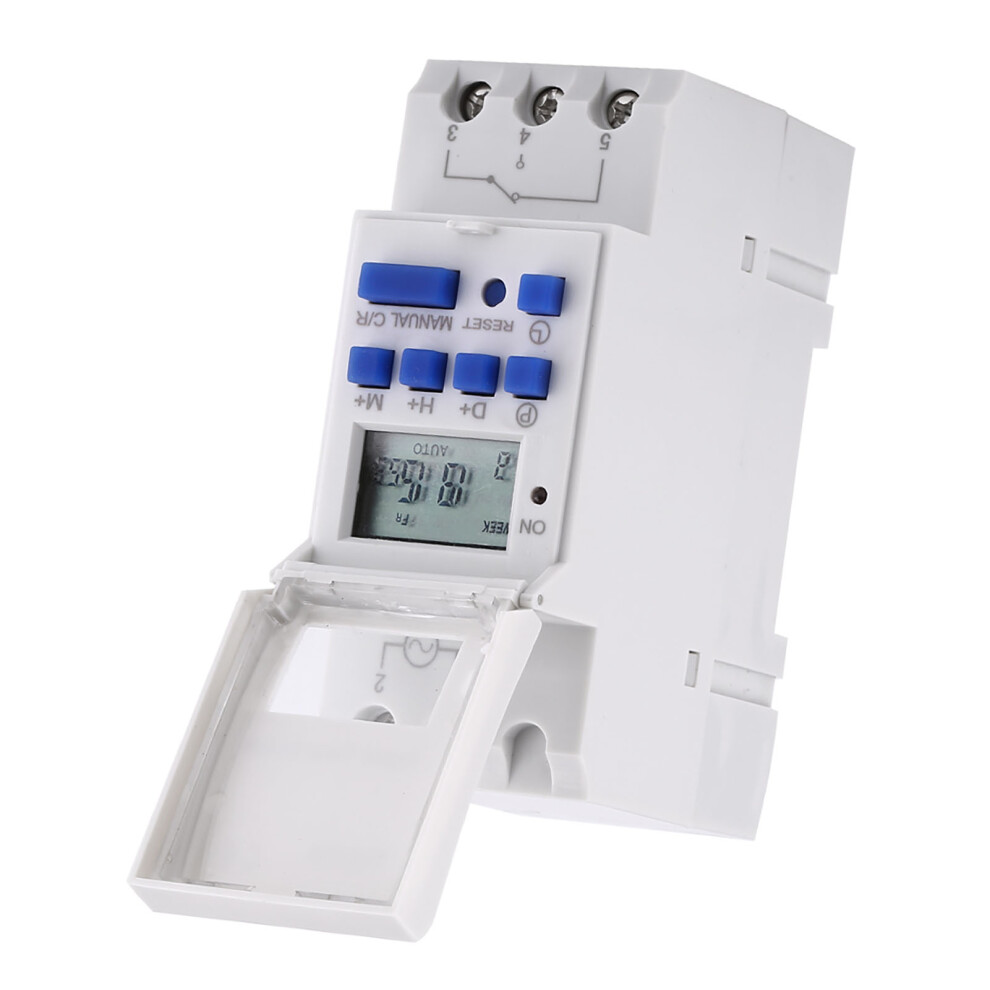

7-Day Programmable Digital Timer Switch with LCD 16 ON & 8 OFF AC 110V

7-Day Programmable Digital Timer Switch with LCD 16 ON & 8 OFF AC 110V Description

LCD Display 7 Days Programmable Electronic Relay Time Switch 16on＆8off Timer(AC110V)

Description:

This timer switch could automatic turn on/off all kinds of electric equipment according to the time user set. It has a built-in 1.2V/40mA rechargeable battery and a industrial grade chip. With high precision and strong anti-interference ability, the timer switch is great for controlling street lamps, neon lamps, production equipment, radio and television and many other home appliances.

Features:

Advanced pre-setting one week before.


Digital electronics general purpose time switch with daily and weekly programs.


Repeat programs with 16 ON and 8 OFF settings.


To-the-minute setting accuracy.


LCD displays real time to Hour/Minute and ON/AUTO/OFF.


DIN rail installation, DIN rail is not included.


Specifications:
Input Voltage: AC/DC12V, AC/DC24V, AC110V(Optional)
Contact Voltage Rating: AC 180V to 264V(50/60Hz)
Load Capacity: 16A 250VAC(resistive load)
On/Off Operation: 16 on and 8 off(manual/auto)
Display: LCD
Power: 4.5VA(max)
Error: 2s/day(25)
Mounting Method: DIN rail(not included)
Bound: 1 min to 168 hours
Operating Temperature: -10 to 55
Size: 86 x 36 x 65mm / 3.38 x 1.41 x 2.56"
Quantity: 1

Instruction:
1, When you use the timer switch for the first time, input AC and charge the inbuilt battery please, then press reset button.
2, The timer switch is at 24-hour mode as default. Press and hold "time" button(bottom left, next to "reset") for 5 seconds till it display "AM" to set to 12-hour mode. Press and hold again "time" button for 5 seconds to set back to 24-hour mode.

Package Includes:
1 x Timer Switch
1 x English Manual
