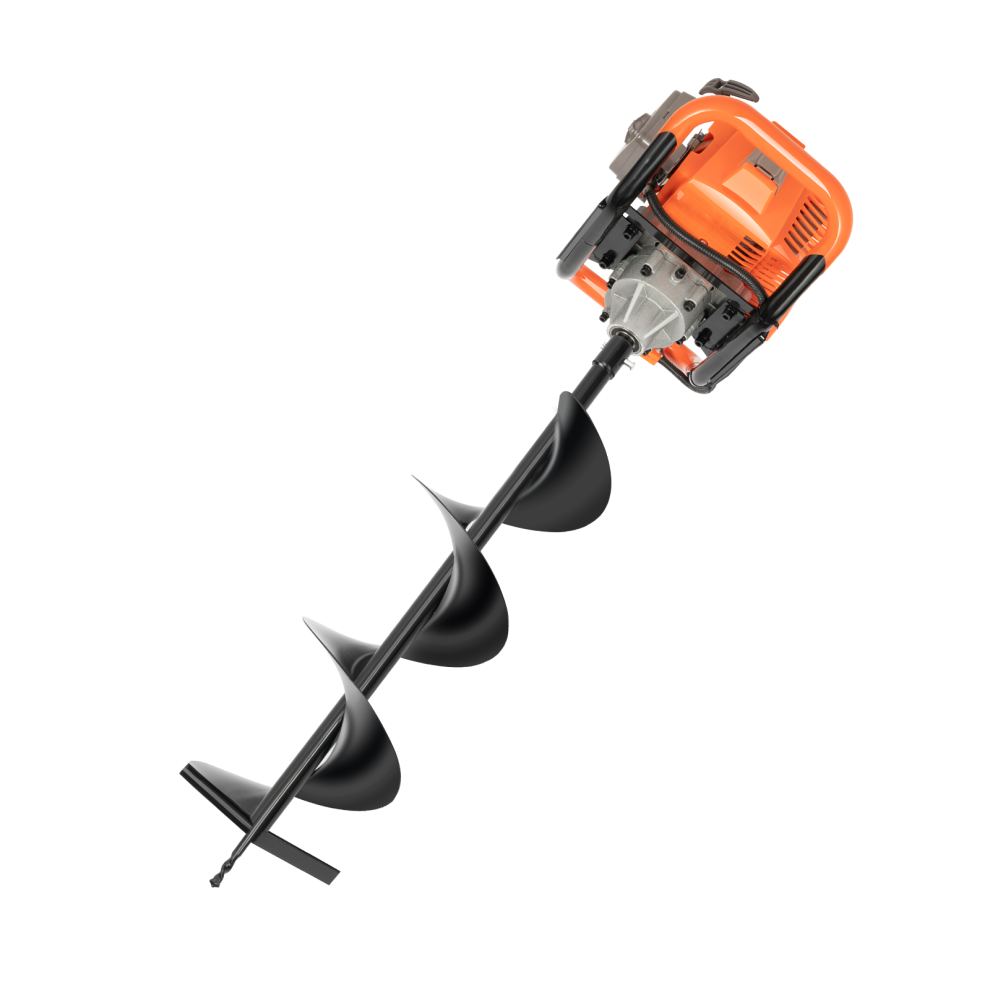

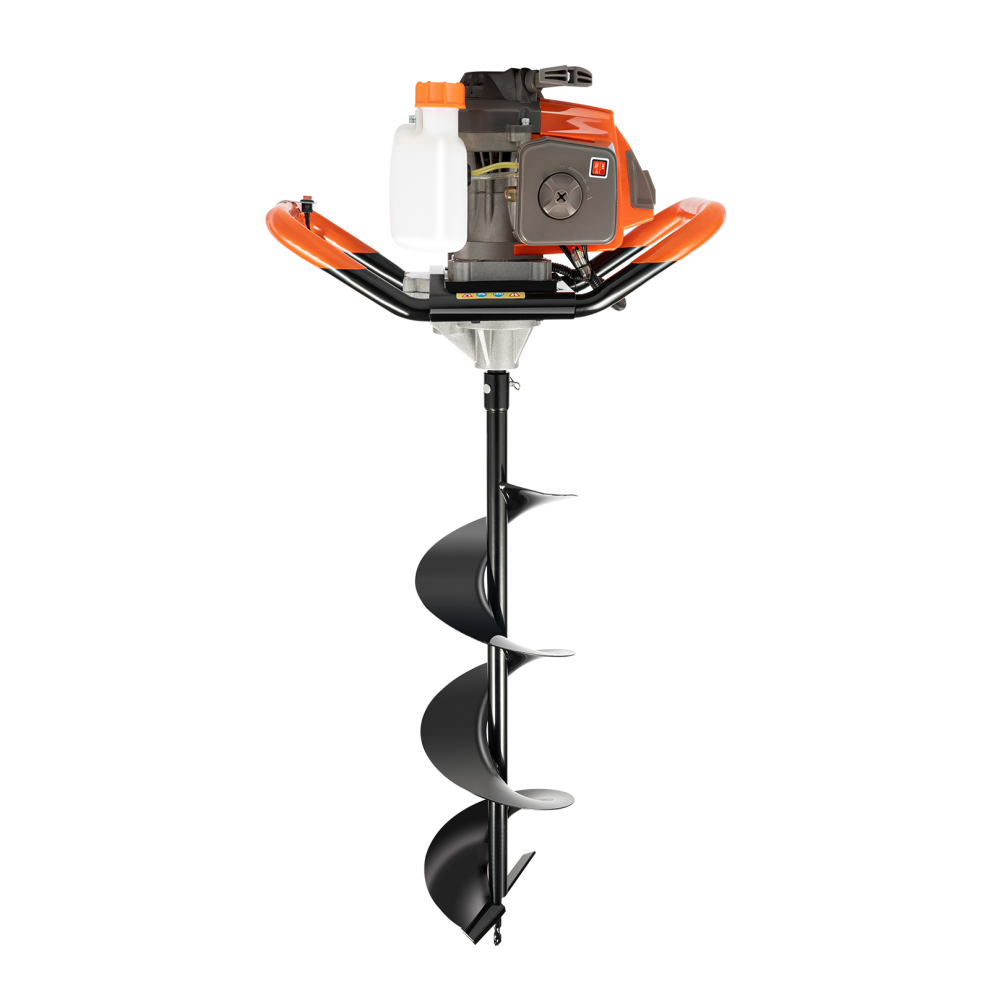

71cc 2-stroke petrol trench digger Drilling machine

71cc 2-stroke petrol trench digger Drilling machine Description

The traditional method of digging pits with a hoe or shovel is time-consuming, labor-intensive, and prone to back pain at the end of the process. If you also have such troubles, why not stop hesitating and look at our post hole digging machine, let technological progress bring tangible help to your work! It is equipped with a powerful engine that can quickly penetrate various soils, forming pits of suitable width and depth. Say hello to easier tree planting and fence construction!

Key Features

• Digging Assistant: It is a simpler and more efficient method of digging pits, an important driving force for you to give up traditional shovels.
• Excellent Performance: The 71CC two-stroke engine has a speed of up to 300RPM and a power of 2.3KW, making it particularly suitable for pile drilling and deep hole drilling.

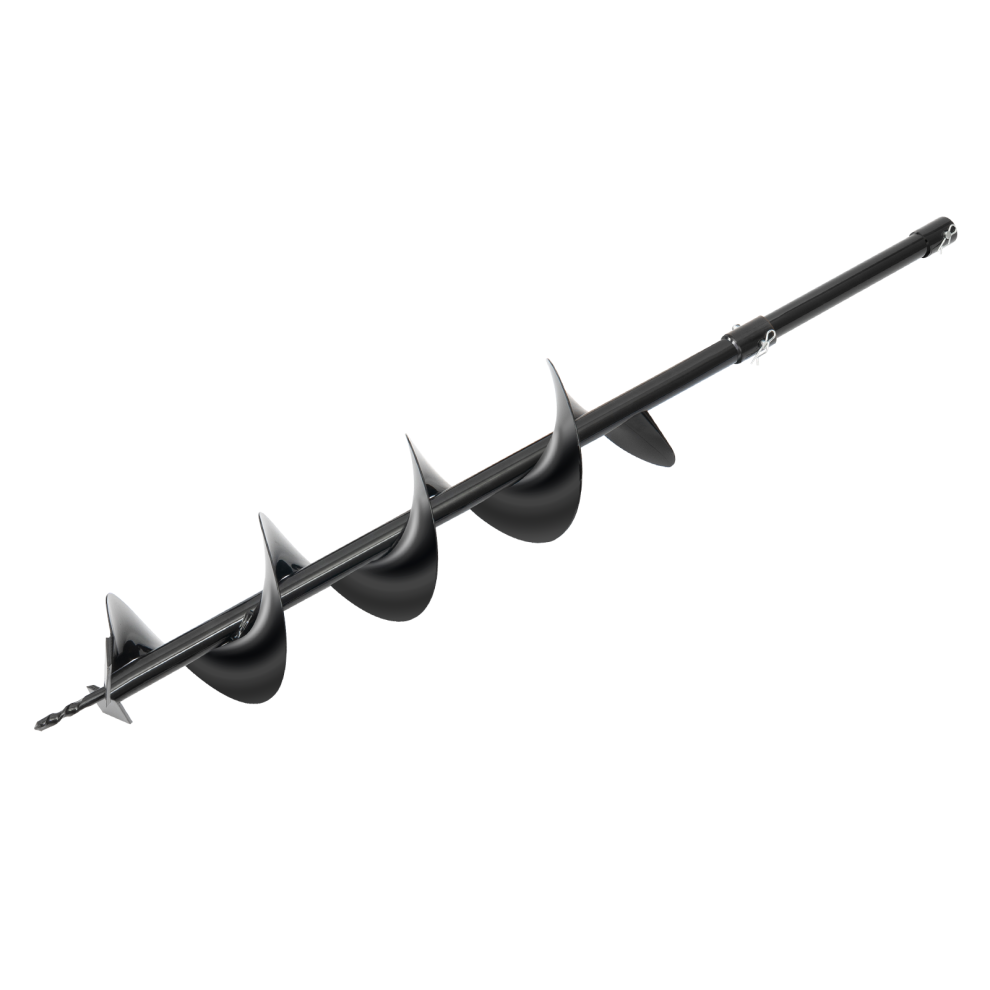

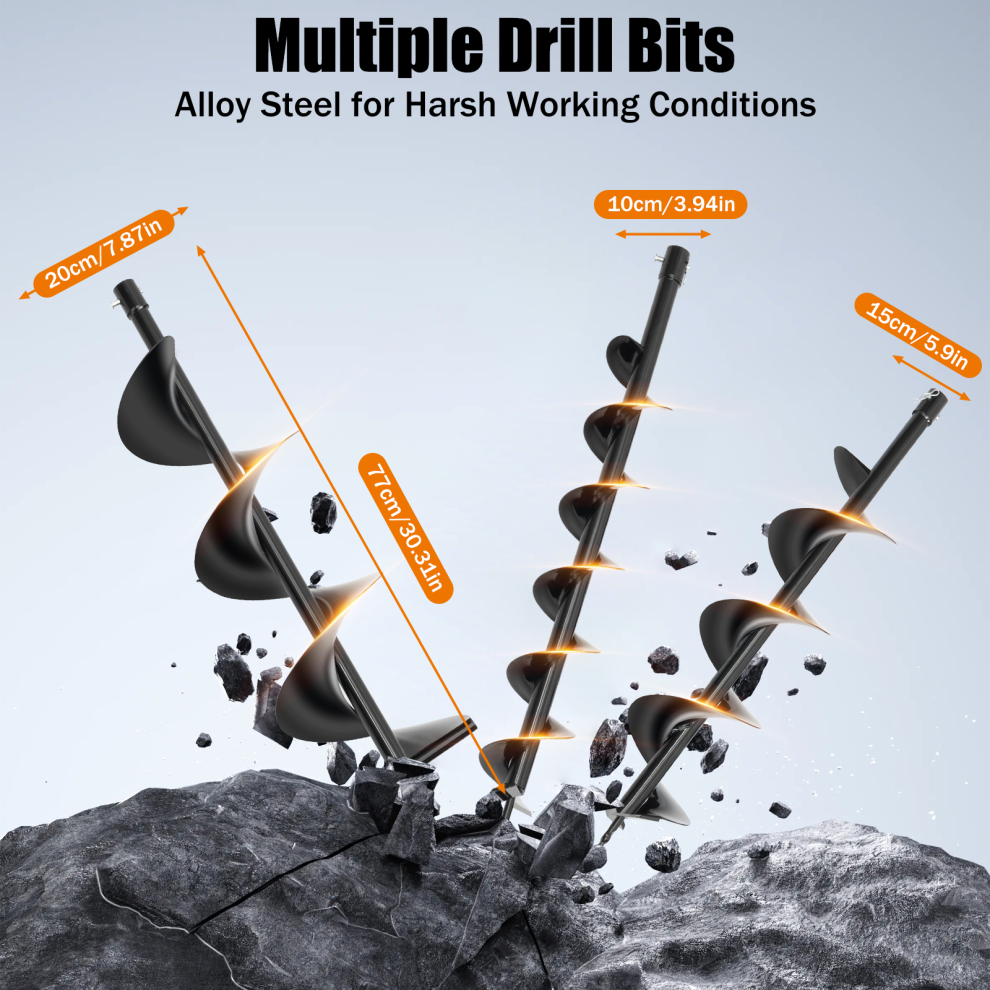

• Multiple Drill Bits: Alloy steel drill bits can withstand harsh working conditions such as impact, compression, and material-wear well. The different diameters (3.94in; 5.9in; 7.87in) and suitable lengths(30.31in) are widely used in various excavation projects to meet different drilling requirements.
• Easy to Operate: The ergonomic design provides maximum leverage and stability during work. The integrated design of the switch and paddle facilitates finger control of the machine while in grip, enhancing your control over power and speed.
• High-quality Materials: It is made of high-strength alloy steel and aluminum alloy, which has high strength and light weight, can withstand high temperature, corrosion, and impact, especially suitable for drilling in harsh soil conditions.
• Large Fuel Tank: The large capacity (0.26 gal) visual fuel tank allows you to easily track the fuel level and use it for long-term operation, avoiding the hassle of frequent refueling.
• Highly Adaptable: The output shaft with a diameter of 0.8in can accommodate most drill bit sizes on the market. If necessary, you can purchase drill bits of other sizes for installation (not included).
• Complete Set: Our package includes the engine, three different sizes of drill bits, a tool kit, an extension rod, and other components, allowing you to get a complete set of parts with just one purchase, meeting diverse needs.

Details

1. Pin: The connection between the drill bit and the machine adopts a reliable pin design, which ensures a secure attachment while being easy to replace.
2. Extension Rod: The combination of a spiral drill and a 12in extension rod allows you to drill deep holes without bending over, enabling you to quickly complete digging projects.

Application

This product is suitable for sandy soil, forests, farmland, clay, and many other lawn applications such as installing guardrails, and decks, planting trees and shrubs, landscape beautification, and soil sampling.

Specifications

• Material: Alloy Steel, Aluminum Alloy, Plastic, Rubber
• Color: Orange, Black
• Style: Modern
• Surface Treatment: Spray Painting
• Engine: Two Stroke, Air-cooled, Single Cylinder
• Assembly Required: Yes
• Displacement: 71cc
• Maximum Power: 2.3kw
• Speed: 0-300rpm
• Fuel Tank Capacity: 1L/0.26gal
• Fuel Efficiency: 610g/1.34lbs/kw/h
• Fuel: 25 #93 Gasoline : 1 Two Stroke Engine Oil

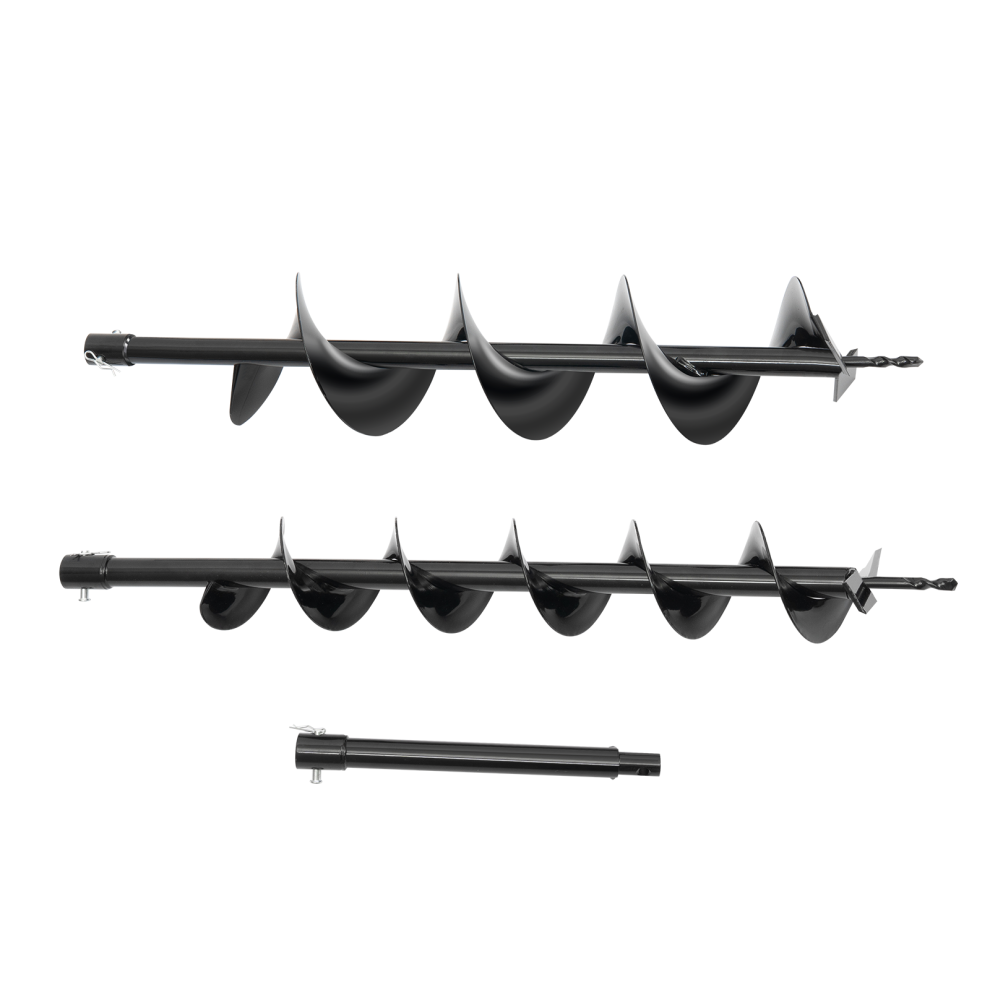

Drill Bits Package:

• Drill Bit Length: 77cm/30.31in
• Interface Diameter: 30mm/1.18in
• Drill Bits Diameter: 10cm/3.94in; 15cm/5.9in; 20cm/7.87in
• Extension Rod Length: 30.5cm/12in
• Package Size: 82*24*33cm/32.28*9.45*13in
• Gross Weight: 9.1kg/20lbs
• Net Weight: 7.8kg/17.2lbs

Machine Package:

• Engine Size: 50*34*24cm/19.7*13.4*9.45in
• Interface Diameter: 20mm/0.8in
• Package Size: 36.5*40*29cm/14.37*15.75*11.42in
• Gross Weight: 10.1kg/22.27lbs
• Net Weight: 9.3kg/20.5lbs

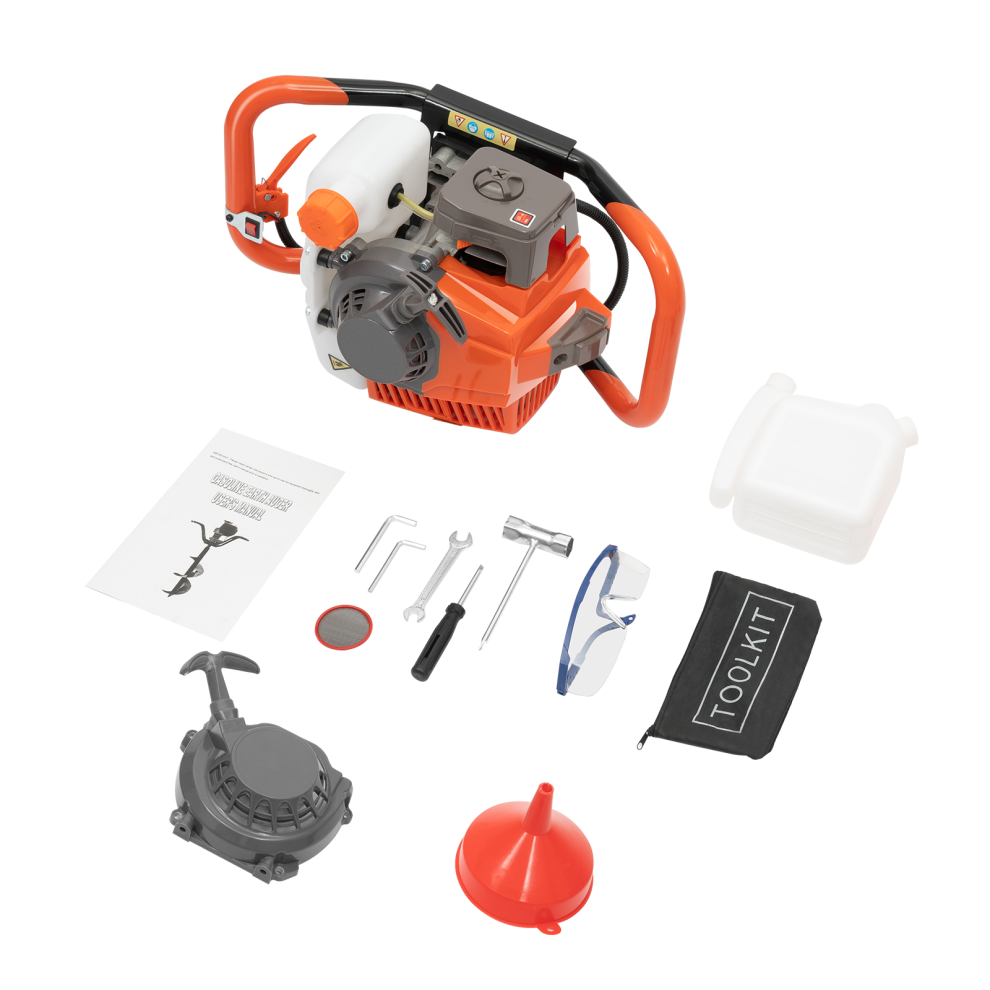

Package Included

1*Post Hole Digging Machine

1*Oil Mixing Bottle

1*Funnel

1*Spare Starter

1*Protective Goggle

1*Tool Kit

1*English Manual

3*Drill Bits

1*Extension Rod

All Accessories for Assembly

Notes

1. Please carefully read the manual and strictly follow the precautions to have a better experience.

2. Please note that this product will be shipped in two packages.

3. Please note that hard materials such as frozen soil/bricks/sand gravel mixed soil are not suitable for this product.

4. Please close the air door before starting the cold machine, and open the air door during normal operation.

5. Before leaving the factory, we added butter to the gearbox. After working for a while, please add butter appropriately according to your usage frequency.

6. Before starting, please press the oil bubble several times to check if there is oil in the oil pipe.

7. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
