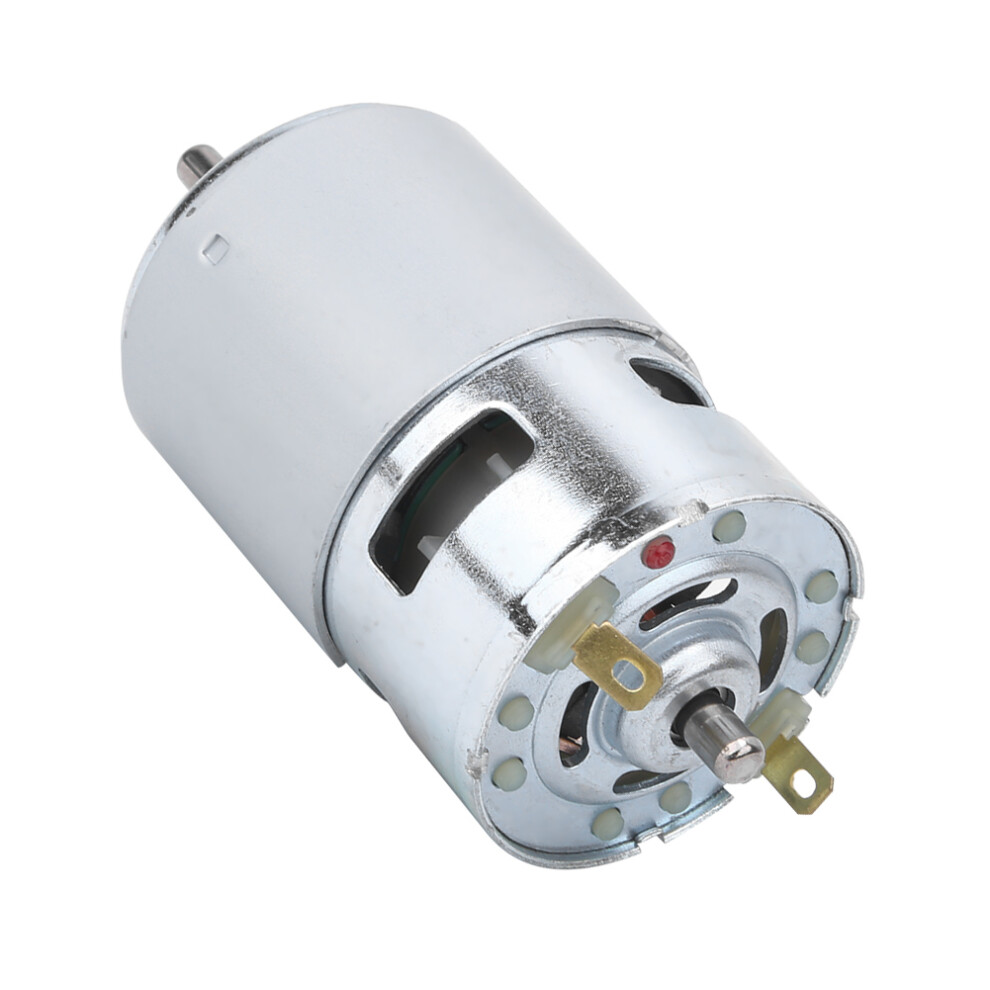

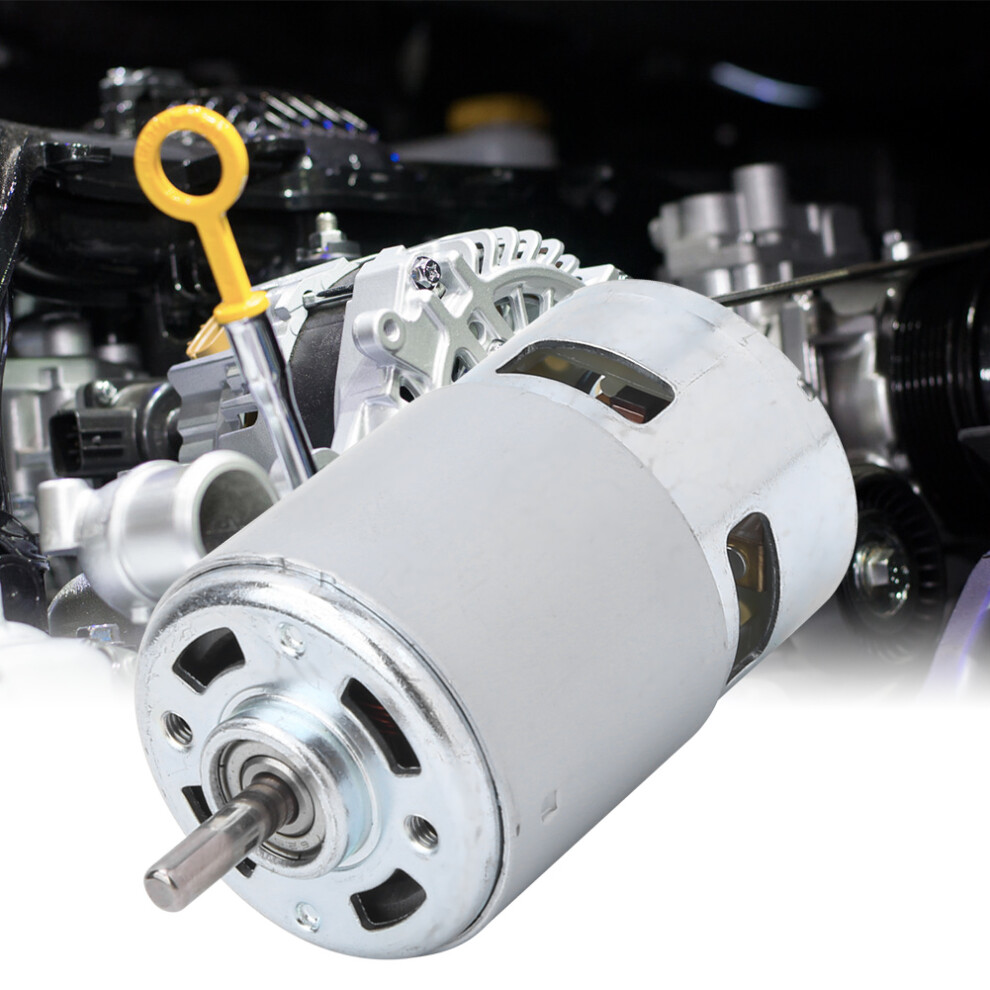

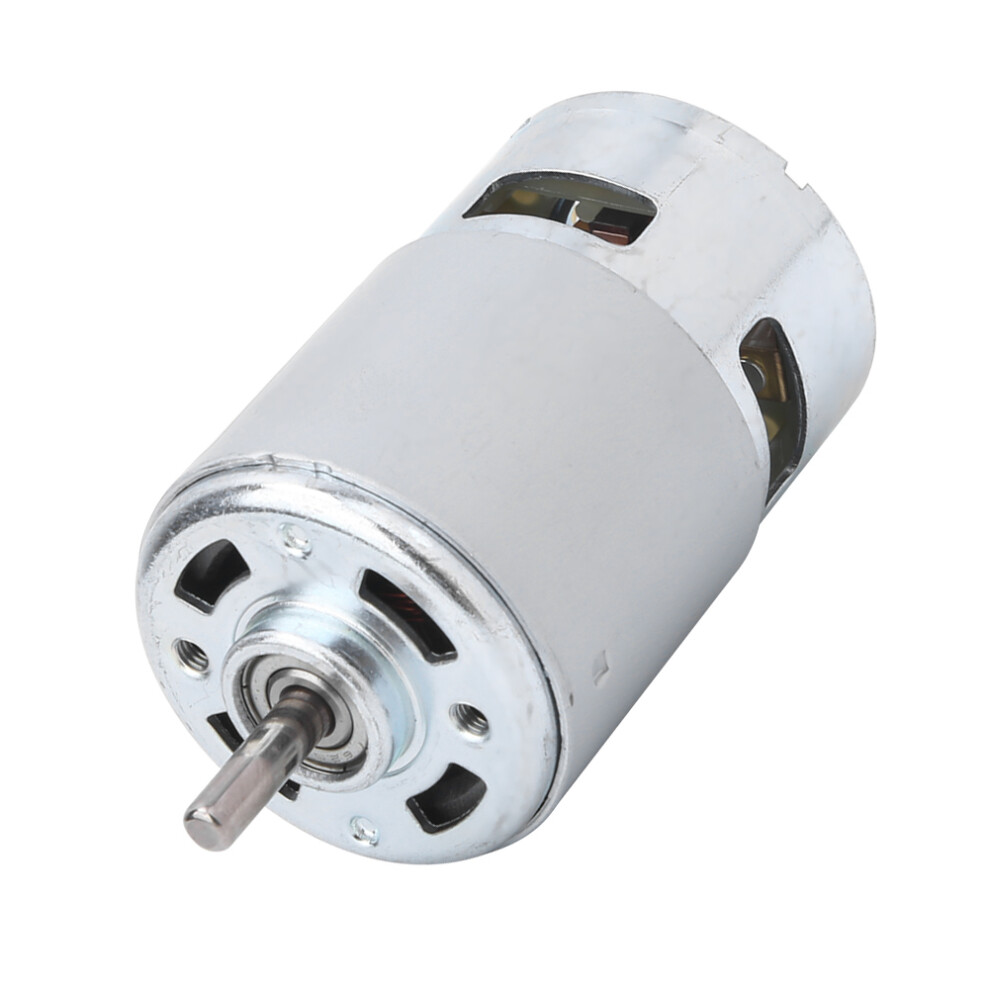

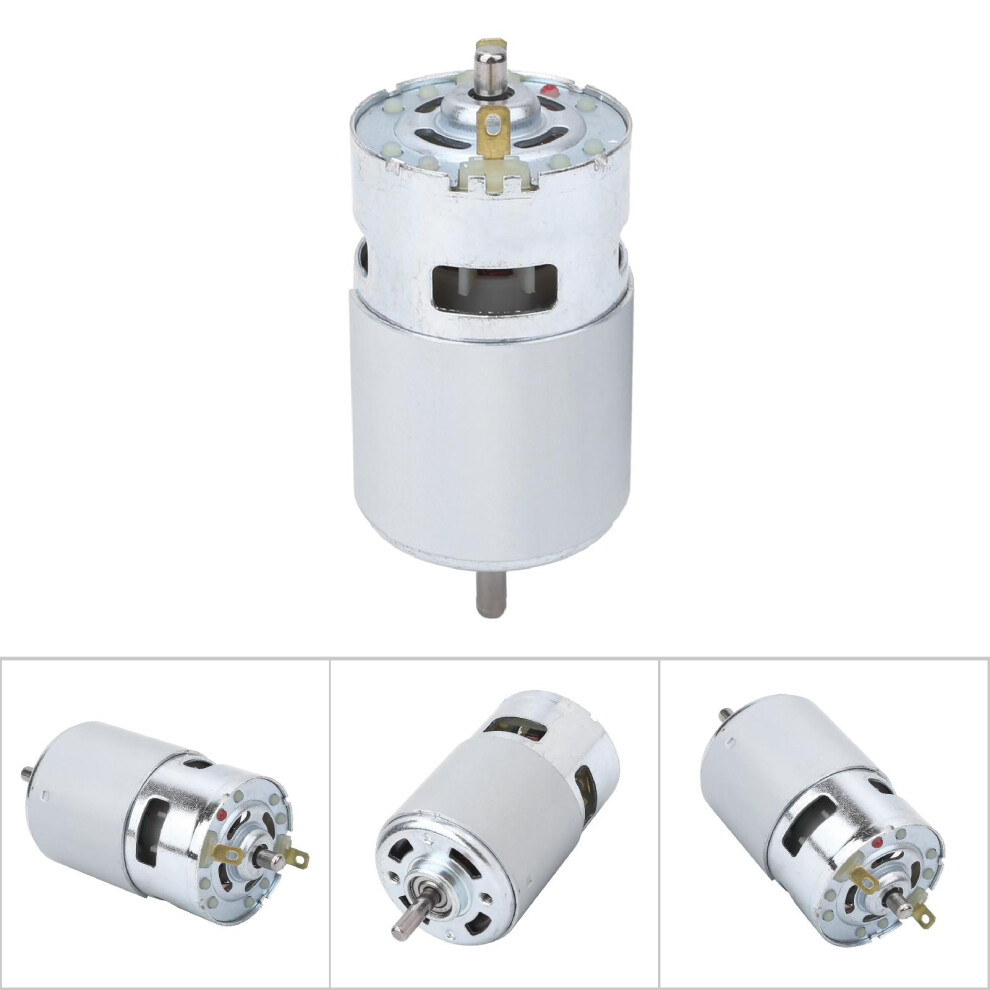

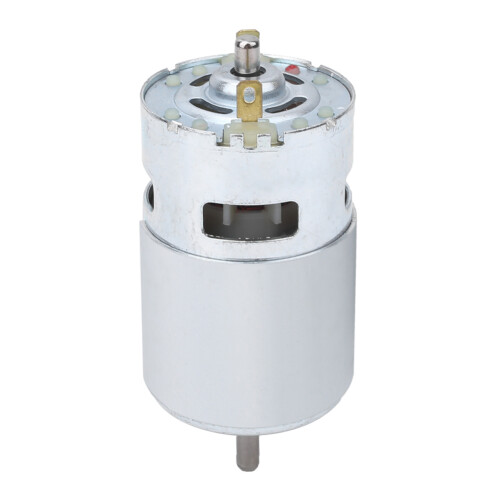

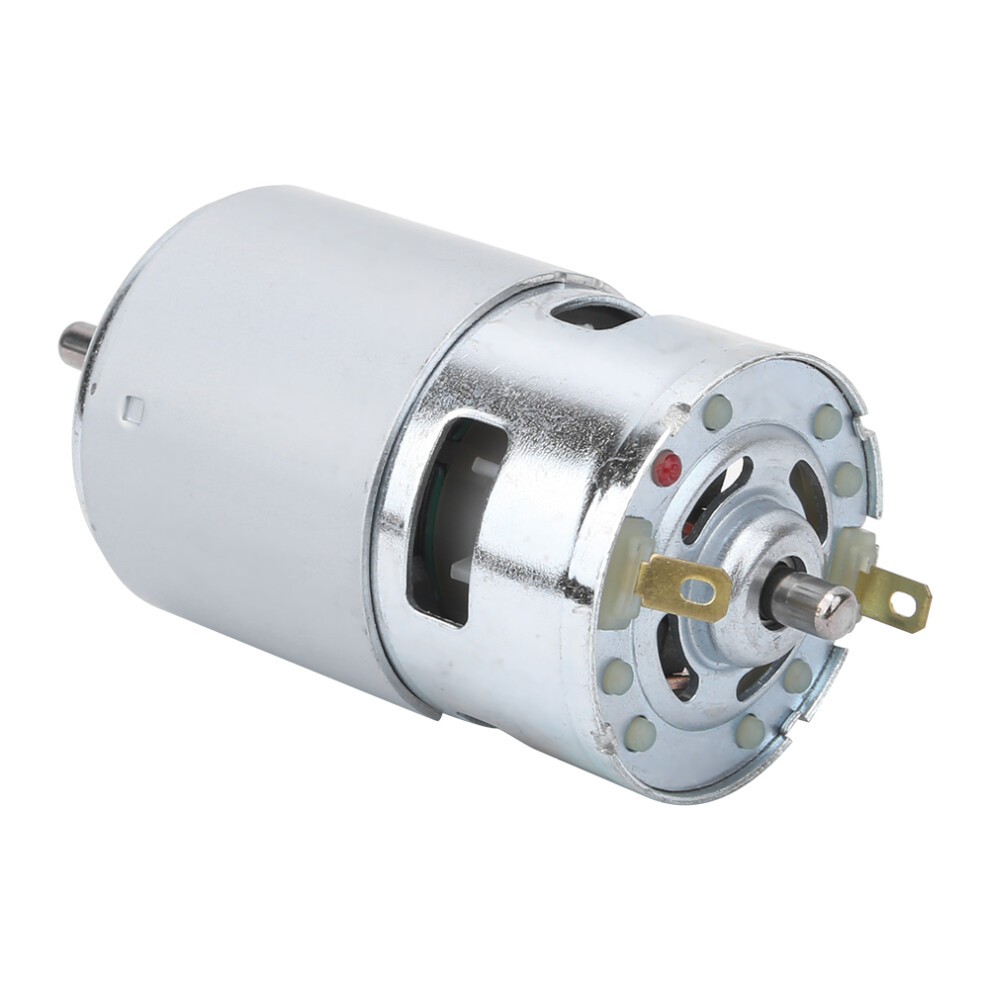

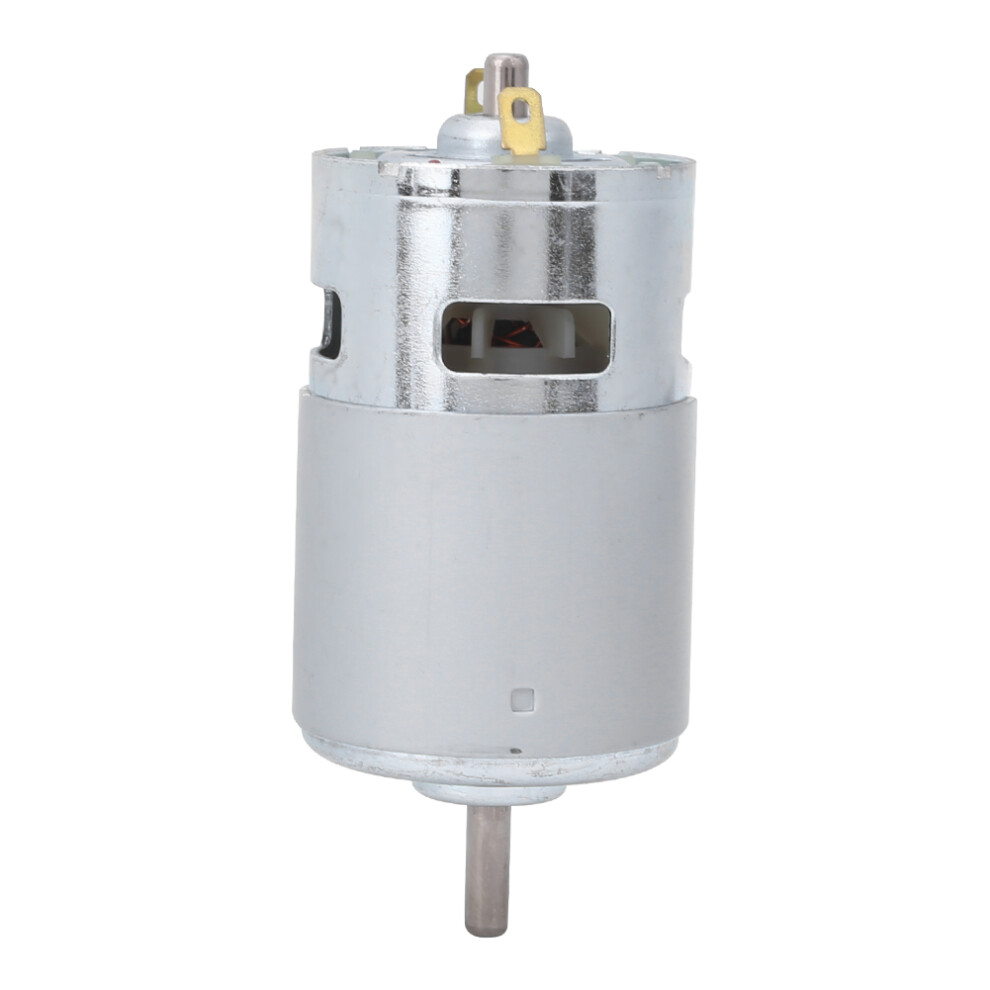

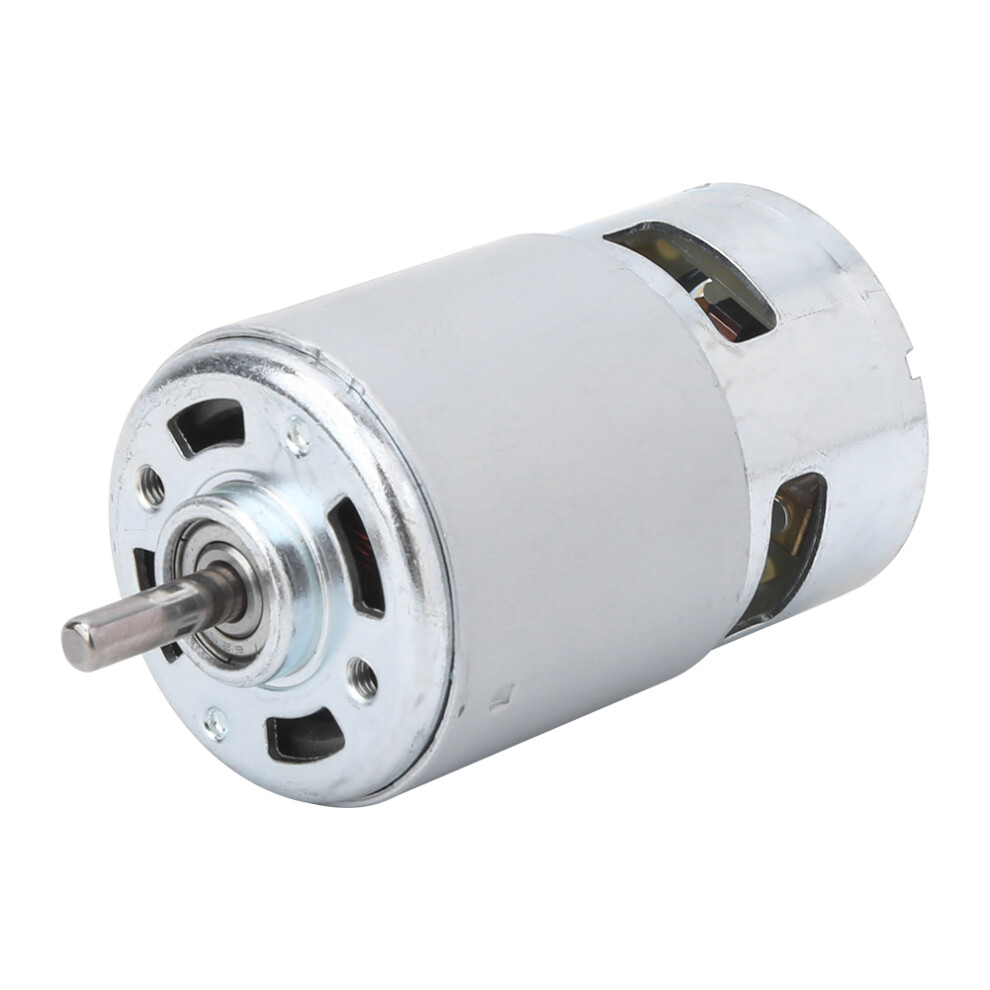

775 Motor 12-24V High Speed Large Torque DC Motor

775 Motor 12-24V High Speed Large Torque DC Motor Description

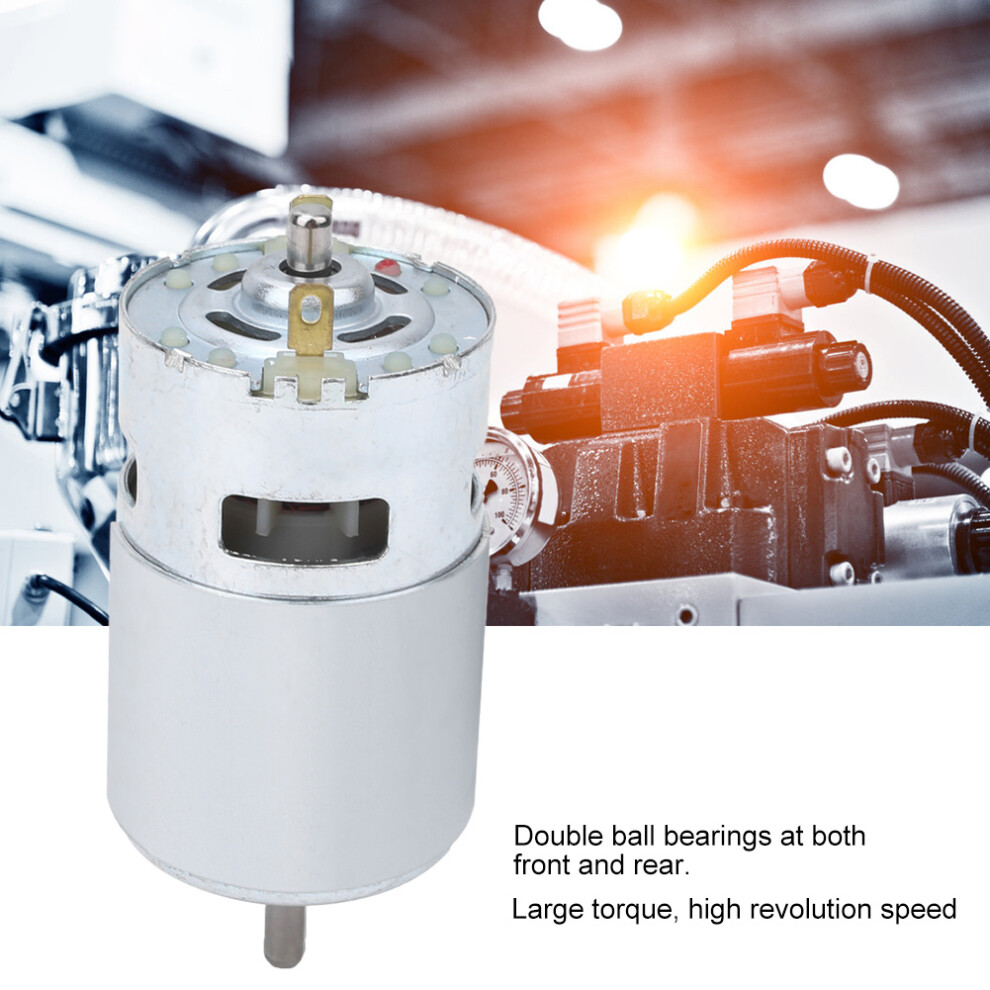

775 Motor 12-24V High Speed Large Torque DC Motor Double Ball Bearing



1、Double ball bearings at both front and rear. 2、Large torque, high revolution speed. 3、Low starting current, stable and efficient. 4、Metal outer case, anti-rust and durable. 5、Operating voltage is DC 12-24V.



Item Type: Motor Measured Parameters (for reference): 12V: No-load current: 0.92A, Stall current: 2.6A, No load speed: 10000rpm, load speed: 8800rpm 24V: No-load current: 1.46A, Stall current: 2.9A, No load speed: 20000rpm, load speed: 17600rpm Motor Step Height: 4.5mm Motor Step Diameter: 17.5mm Output Shaft Length: 16mm (Shaft length above the step level) Shaft Diameter: 5mm Motor Diameter: 42mm Motor Length: 66.5mm Motor Tail Step Height: Approx 4.5mm Motor Tail Shaft Length: Approx 6.5mm Mounting Hole Pitch: Approx 29mm Mounting Screw: M4 Screw FAQ: Motor shakes or revolves not smoothly after power-on. This is due to insufficient power supply. It is recommended to replace the larger power adapter.



1 x Motor
