7inch Wired Video Door Phone Intercom System 110-240V

7inch Wired Video Door Phone Intercom System 110-240V Description

1、7 inch digital color LCD screen, no radiation and low power consumption, true high definition 16:9 widescreen display. 2、Ultra-thin design, aluminum panel, electroplated keys, high-grade beauty all show luxury style. 3、With Speakerphone function. 4、Active monitoring of outdoor functions. 5、The brightness, color and volume of the image can be adjusted synchronously at will.
Apartment 2 units independent 7 inch color LCD Intercom doorbell, two households independent, separate video, talk to each other, unlock.
Features:
Indoor monitor:
7 inch digital color LCD screen, no radiation and low power consumption, true high definition 16:9 widescreen display.
Ultra-thin design, aluminum panel, electroplated keys, high-grade beauty all show luxury style.
With Speakerphone function.
Active monitoring of outdoor functions.
The brightness, color and volume of the image can be adjusted synchronously at will.
One-key unlock function.
Outdoor unit:
Electronic control unlock function (open the lock with power on, and use the special access control power supply if the lock is opened without power).
All metal waterproof and explosion-proof.
Two separate buttons
Night vision function, 6 night vision infrared lights.
Intercom function between indoor monitor and outdoor unit
Specification:
Plug type: EU plug
Display resolution: 840*480
System: PAL /NTSC (alternative);
Power supply mode: switch power supply ac110-240v 50Hz/DC15V 2A;
Current: less than 800mA;
Call delay time: 120S10%;
Monitoring delay time:60S10%;
Camera sensor: hd color CMOS; 700 line
Outdoor infrared night vision function: low open 10LUX infrared open;
Indoor monitor installation: wall-mounted;
Outdoor monitor installation: wall-mounted;
Connecting wire: standard 5-meter 4-core connecting wire + 15cm 2-core terminal wire (connected with electronic control lock);
Effective distance: can be connected to 200 meters of cable, image, intercom work normally;
Indoor machine: 180*120*18mm/7.1*4.7*0.7in
Outdoor:180*90*20mm/7.1*3.5*0.8in
Weight: Approx.1953g/68.9oz

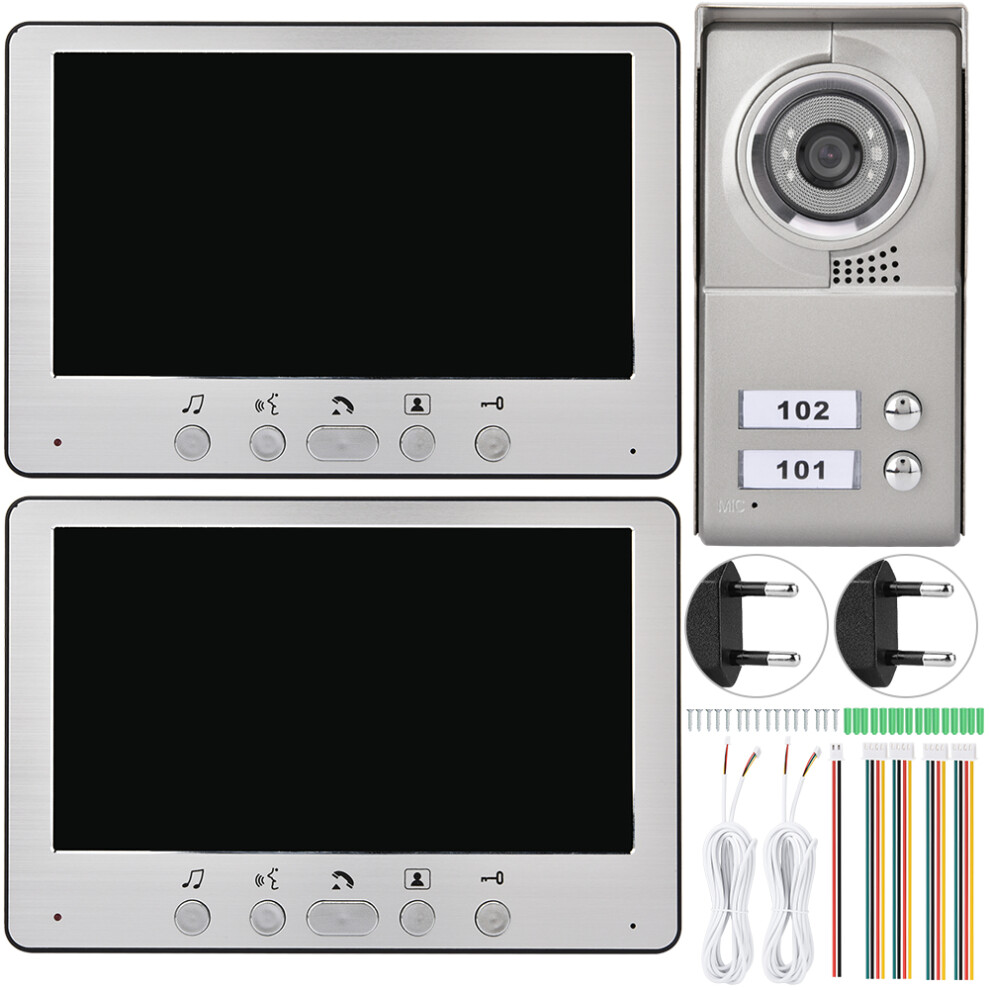

Package list:
1 * outdoor unit
2 * indoor monitor
2 * power supply
2 * 5m quad conductor
1 * 2 core interface wire
2 * set mounting screws
1 * English manual
4 * quad port line
