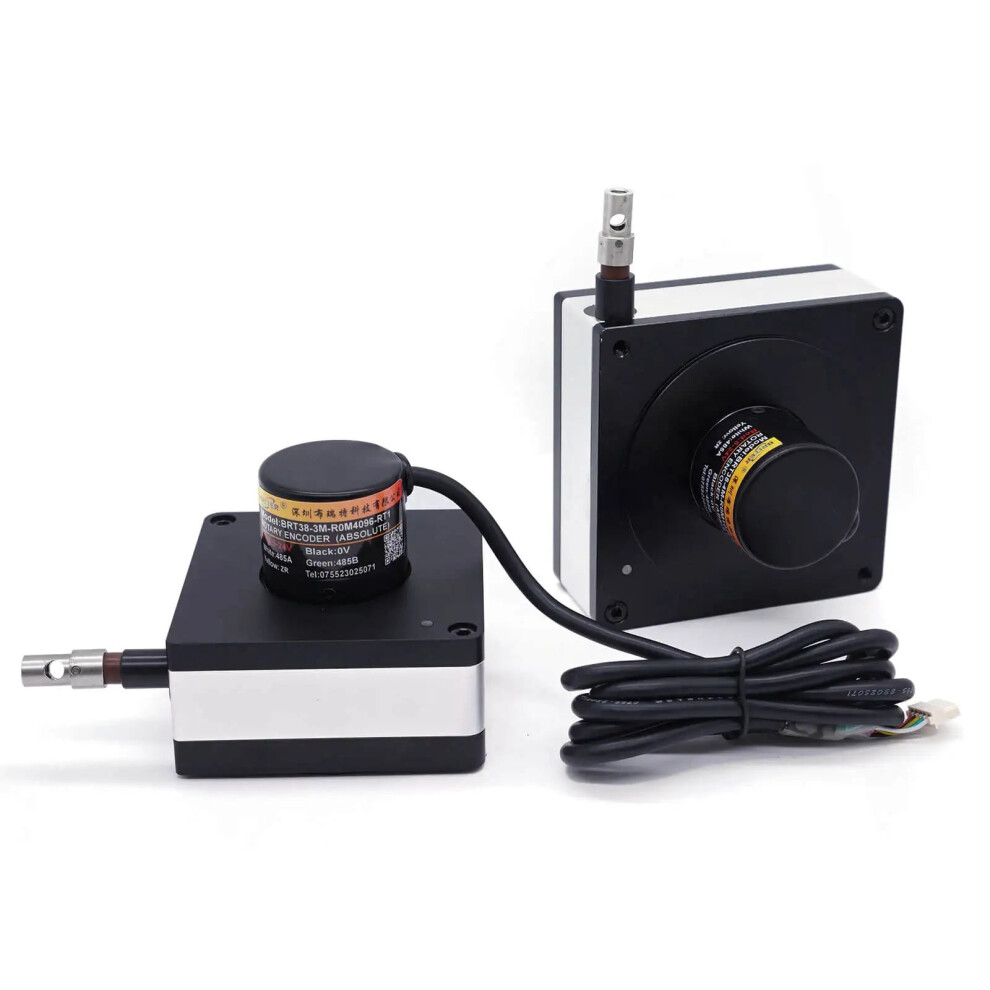

7m Range Linear Pull Wire Displacement Sensor with SSI Analog Encoder Interface

7m Range Linear Pull Wire Displacement Sensor with SSI Analog Encoder Interface Description

This 7-meter range linear pull wire displacement sensor offers precise measurement and reliable performance. Crafted with a durable aluminum alloy housing, it ensures robustness in various environments. The sensor features a stainless steel wire with nylon coating, measuring 0.8 mm in diameter, capable of withstanding a rope breaking force of approximately 330 N and a maximum wire pull-out speed of 1 m/s. It supports multiple interface options including SSI, Canopen, RS485 Modbus RTU, RS232, and Analog, providing versatile connectivity for different applications. The device operates within a voltage range of 5 to 30V and can function effectively from -40C up to +85C, with protection ratings of IP54, IP68, and Ex for enhanced durability. Its high accuracy is reflected in a cable transducer linearity of 0.5% FS and repeatability of 0.3% FS. Designed for long life, it boasts approximately 500,000 cycles at 25C. The sensor is available with either a male connector or cable connection, making installation straightforward. For more information, visit www.briterencoder.com or contact [email protected].
