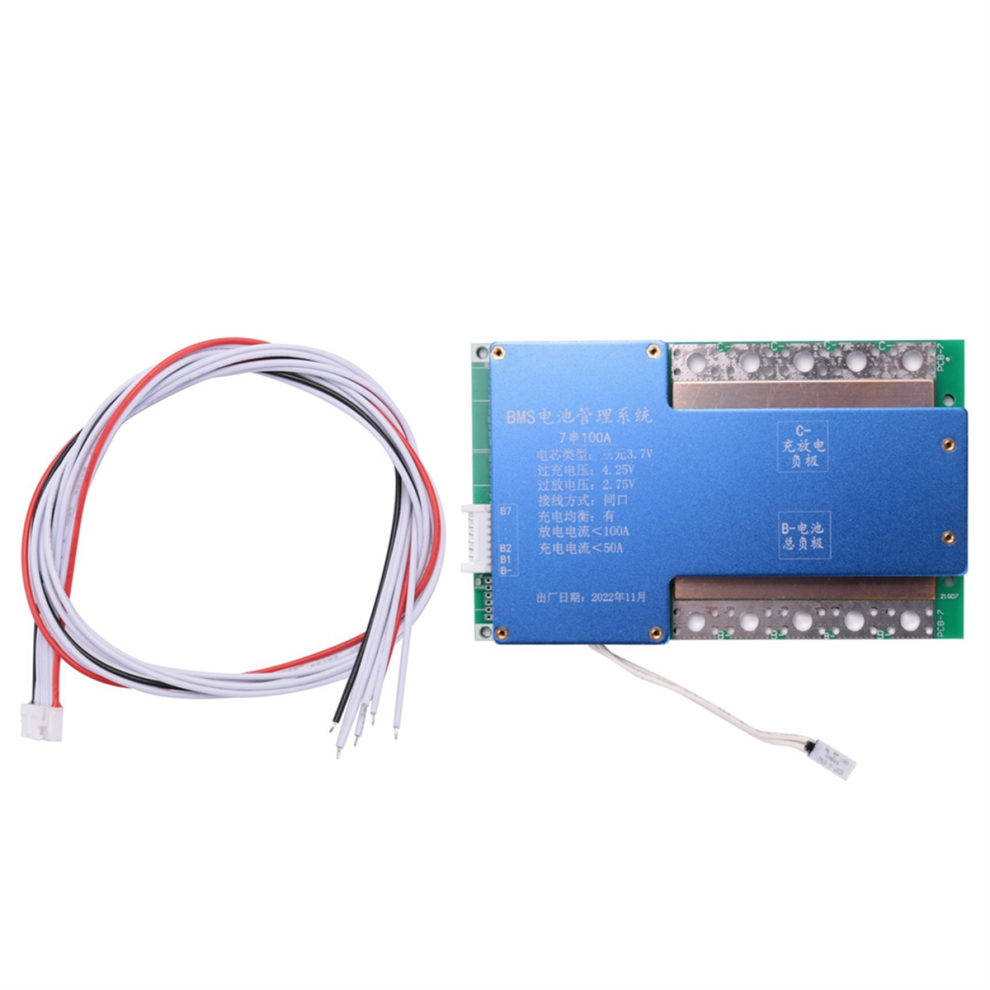

7S 24V 100A 18650 Lithium Battery Pack Board Equalizer

7S 24V 100A 18650 Lithium Battery Pack Board Equalizer Description

ADOPTS WITH LITHIUM CELL MANAGEMENT OFFERS FAST AND SAFE CHARGING-Adopt intelligent lithium cell management IC for fast and safe charging
BALANCING CHARGING EXTENDS BATTERY LIFE-With balance charging to balance the characteristic of each battery in battery pack and prolong battery life
MULTI-OVER PROTECTION ENSURES SAFETY USE-Provide a variety of protection functions including overcharge, over-discharge, short circuit, and temperature protection
EQUIPPED WITH ALUMINUM FIN ENSURES QUICK HEAT DISSIPATION-Equipped with thickened aluminum fin to achieve quick heat dissipation
MANY TIMES TESTING ENSURES HIGH QUALITY-This product has gone through load and aging test for quality assurance

Discharge current: 100A
Overload protection
Detection voltage: 4.250.025v
Detection delay: 1000ms 500ms
Release voltage: 4.150.05v
Overvoltage discharge protection
Detection voltage: 2.750.1v
Detection delay: 1000ms 500ms
Release voltage: 3.00.1v
balanced tension
Detection voltage: 4.150.025v
Detection delay: 100 50 50ms
Balance current: 42 55ma
Overcurrent protection discharge
Detection voltage: 50 1515mv
Detection delay: 1000ms 500ms
Overload protection: 30050A/45050A/60060A
Short circuit protection
Trigger condition: external short circuit
Detection delay: 300US
Release condition: disconnect the load
Temperature control protection
Charging working temperature: 55
Discharge working temperature: 75
Release Conditions: Recover within operating temperature
self-consumption
Working power consumption: 3535ua
Dormant overdischarge power consumption: 1010ua
Operating temperature range: -30/+80C
size:132x80x10mm
Material:ABS+Metal
colour:Blue

Package Contents:
3 x battery charging protection board

Only the above package content, other products are not included.
