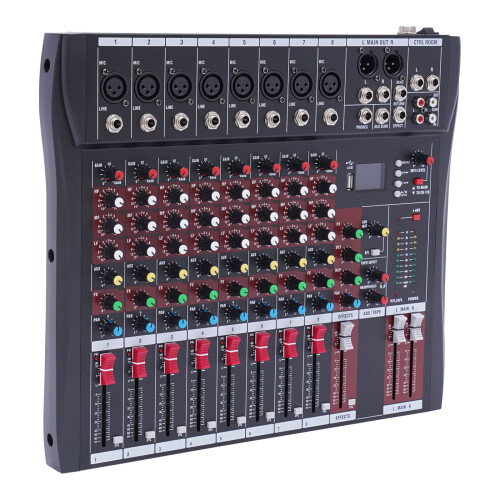

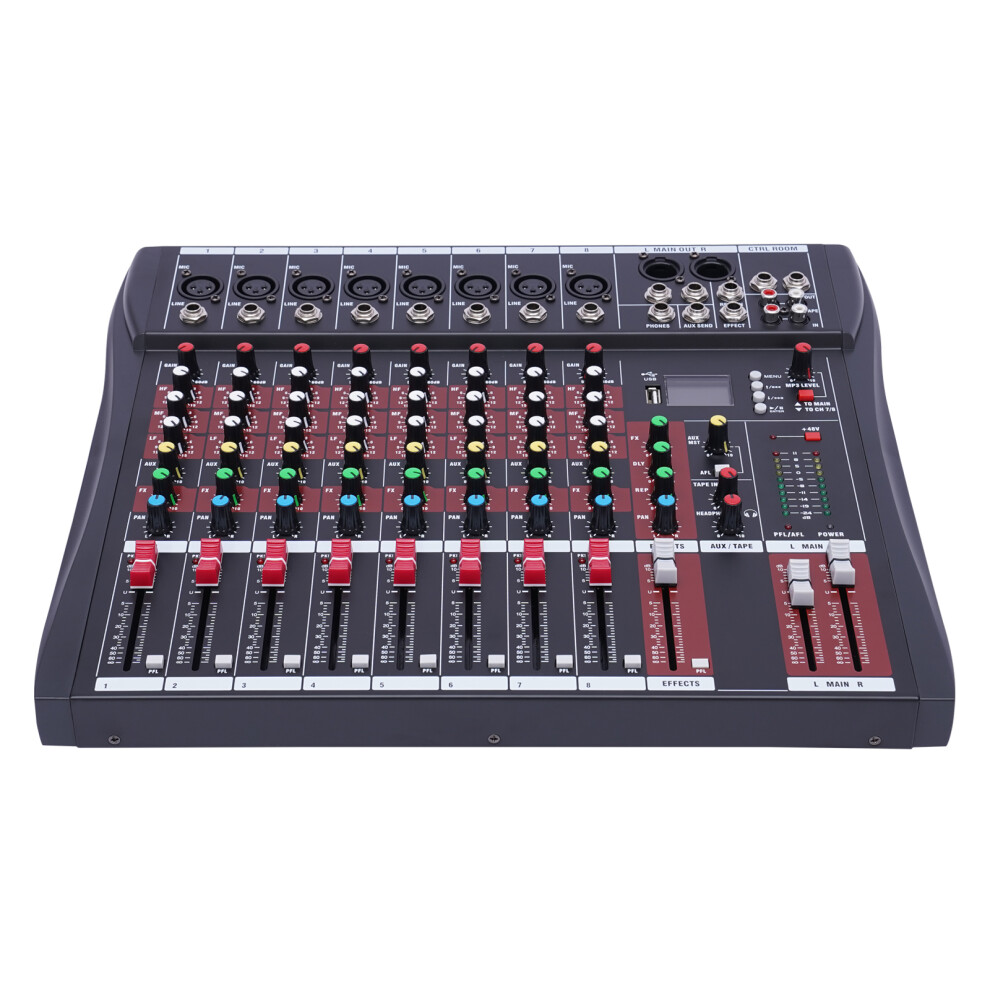

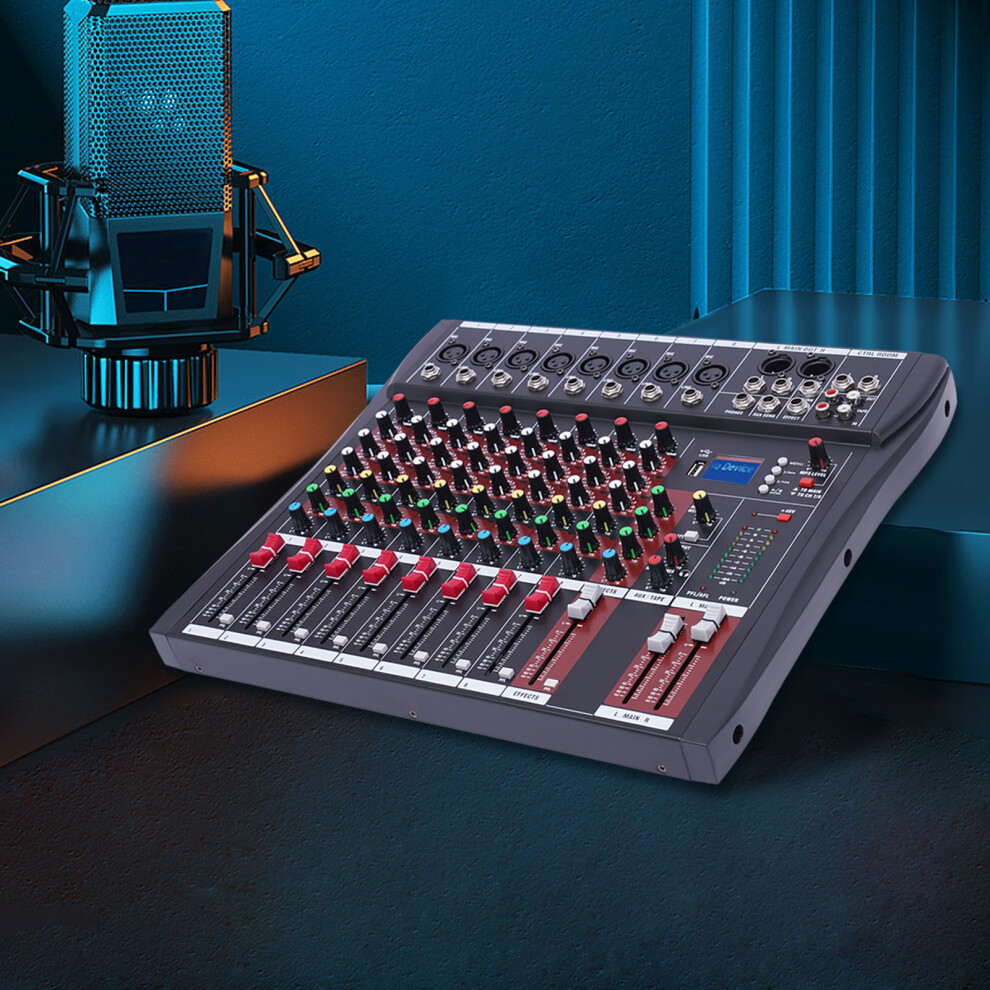

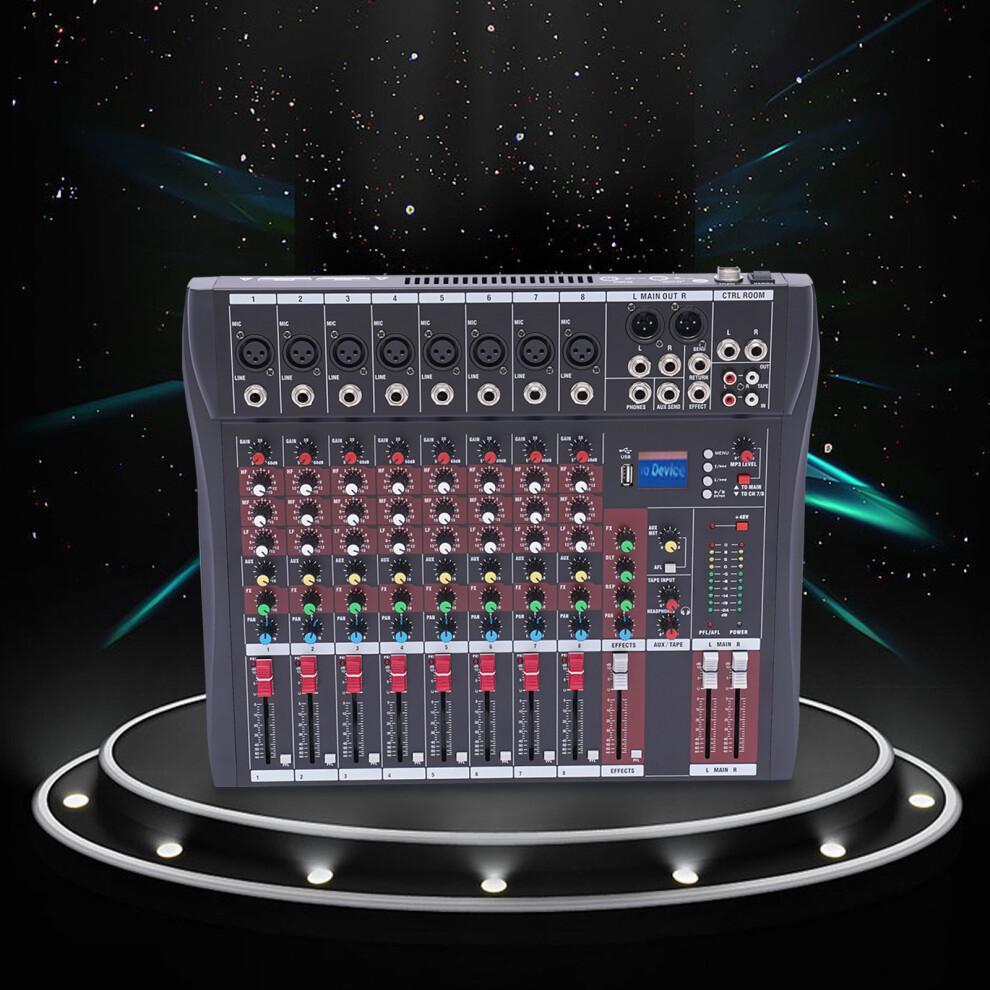

8 Channel Audio Mixer,48V Phantom Power DJ Mixer W/ LCD Display

8 Channel Audio Mixer,48V Phantom Power DJ Mixer W/ LCD Display Description

Application

It is suitable for home KTV, campus language, conferences, bars, stage performances, music dining bars, recording studios, etc.

Specification

Material: ABS

Color: Black

Number of Channels: 8

Plug: UK Standard

Power Source: Corded Electric

Connection Technology: USB, Bluetooth

Input: AC 230V 50HZ 18W

Output: AC18V*2 350mA

Maximum Input Level of the Microphone: + 24dBu

Maximum Input Level of the Line: + 24dBu

Maximum Output Level: XLR Card + 26dBu

Main Level Meter: 10-segment LED, -24 dB to CLIP

Frequency Response: 20Hz-30Khz 0.5dB

Maximum Input Power: 18W

Total Chopping Distortion (RHD + N): <0.01%.

Crosstalk (1 kHz): Fader off> 85 dB Channel> 82 dB

Noise (22Hz-22KHz): Equivalent Input Noise -122dBu Remaining Output Noise <-90dBu

Mono / Stereo Channel EQ: High Frequency +/- 15 dB, 12 kHz Low Frequency +/- 15 dB, 80 kHz High IF +/- 15 dB, 2.5 kHz

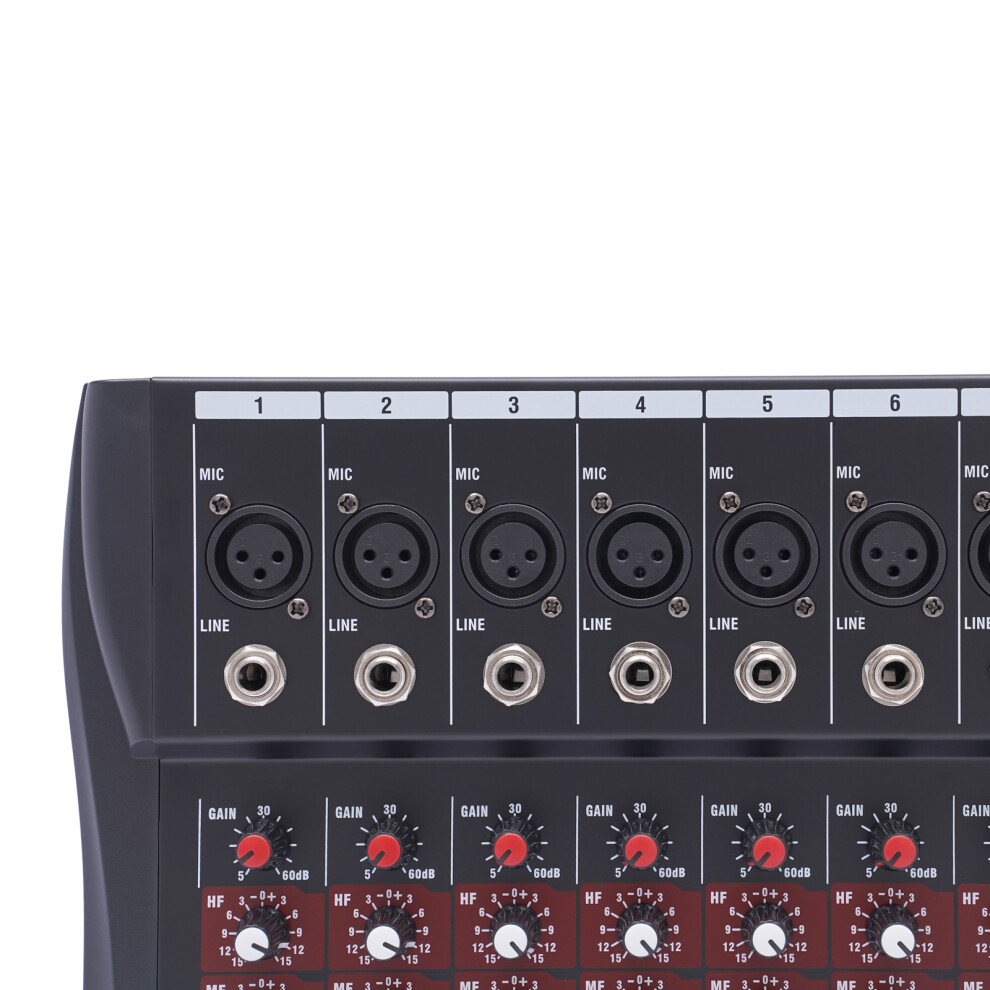

Mono: XLR Balanced, 2-pin Hot End, 2Kohm, Sensitivity -60-14dbu TRS Balanced, Tip Hot End, 10Kohm, Sensitivity -40+14dbu XLR Fantasy Power +48V

2-track Return: RCA-seat, Unbalanced, 4K ohms, -2dBu

2-track Gear: RCA-seat, Unbalanced, <75 Ohm, -2dBu

L / R Output: XLR, Balanced, Hot End of the Tip, <75 ohms, + 4 dBu, Max + 22 dBu

FX / AUX Output: TRS, Unbalanced, Hot End of Tip, <75 ohms, -2dBu, max + 18dBu

Headphone: TRS, Tip L, Ring R, Recommended Headphones with 30 to 600 ohms

Bluetooth Wireless Control Range: Max 4.6m/15ft

Package Size: 41*35*5cm/16*13.4*2in

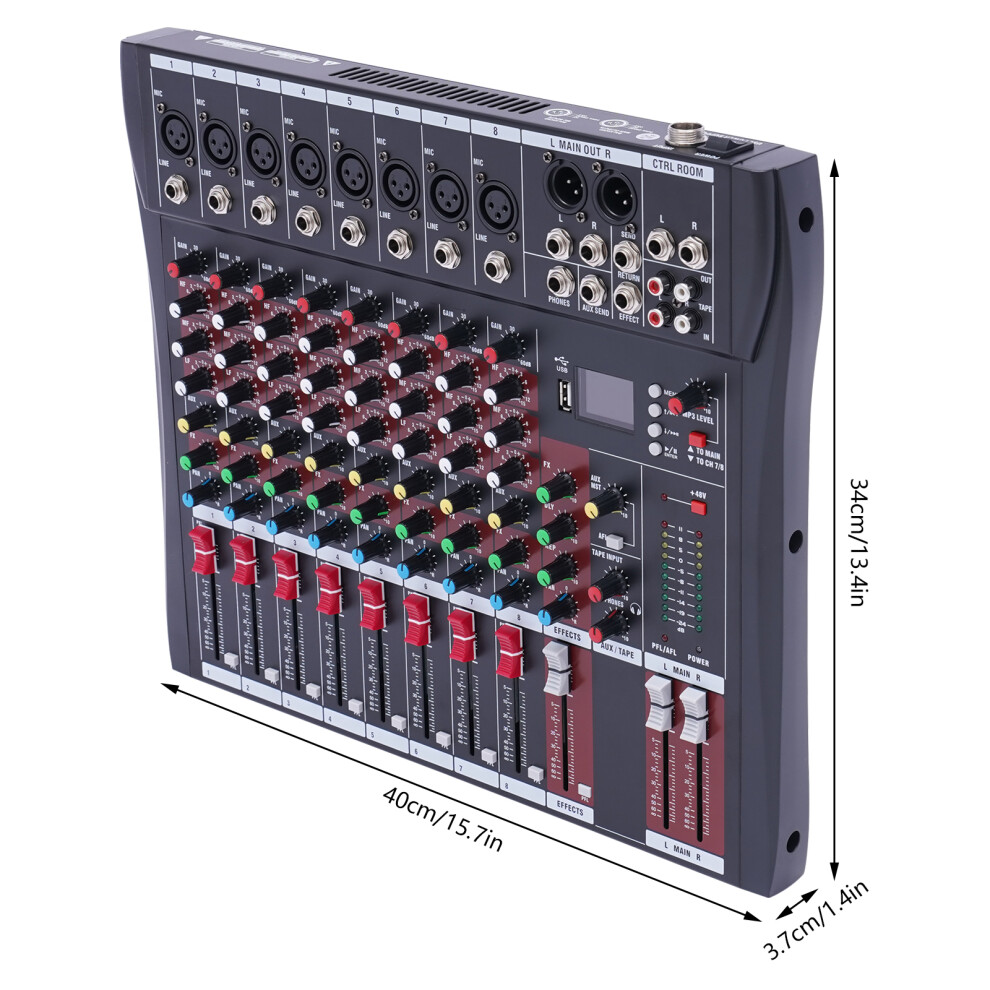

Product Size: 40*3.7*34cm/15.7*1.4*13.4in

Gross Weight: 4.6kg/10lbs

Net Weight: 4.4kg/9.7lbs

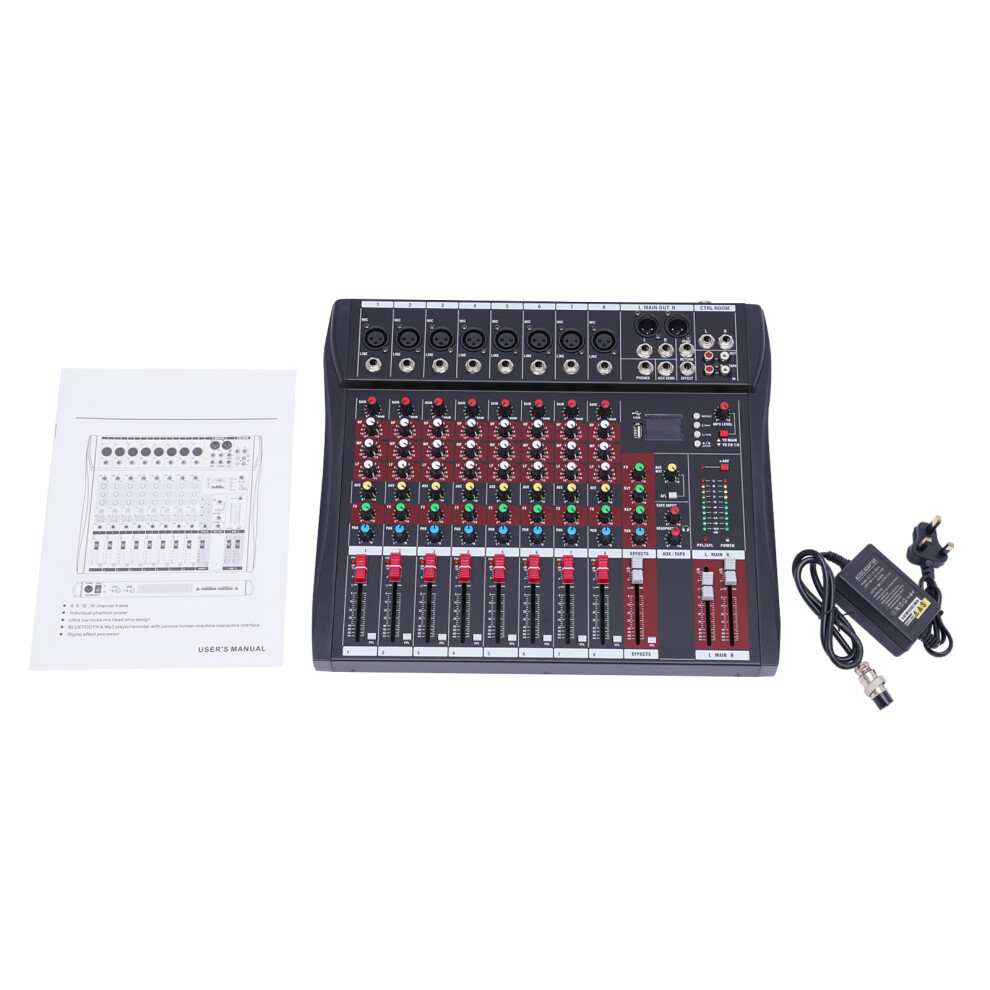

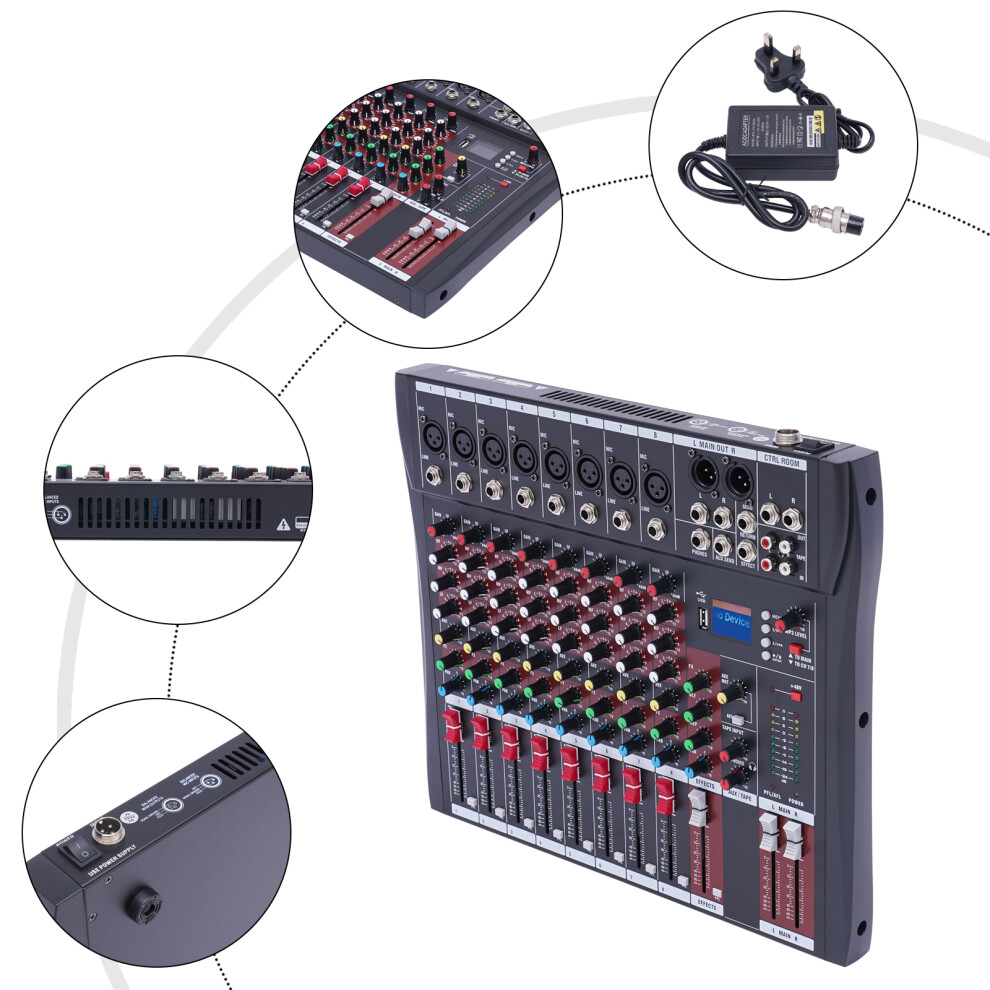

Package Included

1*Audio Mixer

1*Power Adapter

1*English Manual

Notes

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.

Key Features

Three-band Equalizer: It is equipped with a three-band equalizer for the main channel, so you can independently control the high / medium/low voice, so that the voice quality levels are richer, to bring you a wonderful musical feast.

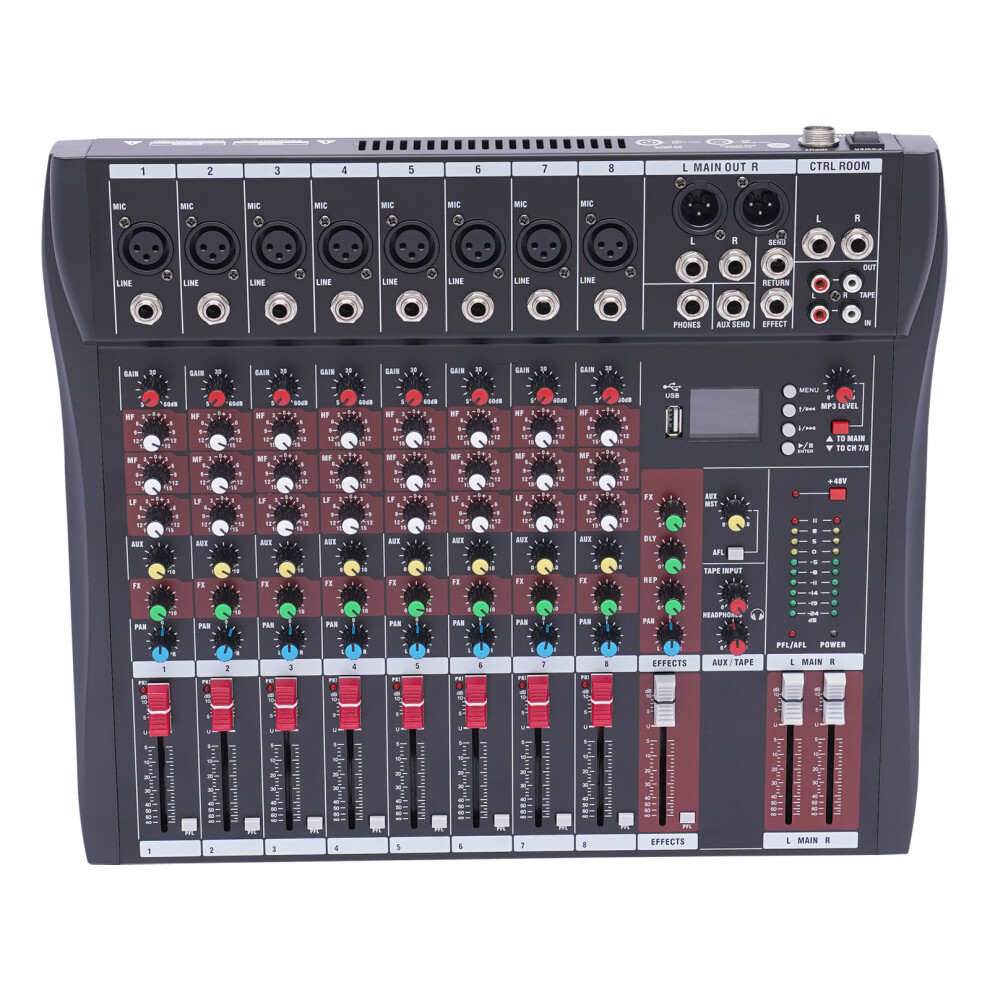

8-channel Microphone Input: It is very suitable for the connection of multiple devices, as it has 8 channels. At the same time, it meticulously processes various audio signals to obtain excellent sound.

Multiple Connections: With its built-in Bluetooth module and wireless range within 15 feet, it is compatible with TVs, desktop computers, laptops, cell phones, tablets and MP3 devices, making it easy to turn your home into a professional recording studio.

Real-time Monitoring: The audio mixer has a monitor headphone interface, which allows access to headphones to monitor the level signal of each channel in real-time, providing you with a stepping stone to becoming a professional mixer!

Easy to Use: It comes with headphone volume, total volume, reverb volume, and channel volume adjustment faders to accurately adjust the volume of each sector. Or you can use a USB cable to connect it to your computer for tuning to create a better sound.

+48V Phantom Power: It uses 48V phantom power to enable the use of professional recording condenser microphones, creating a professional-grade tuning experience for you and supporting wireless, wired, condenser and other microphones, making the product more widely used.

Ultra-thin and Sturdy: It is made of high-quality ABS, which is hard and rust-proof.  Only a 1.46inch thin design makes it a lightweight and delicate body, so you can carry it around with you and enjoy the brilliance of music creation.

Details

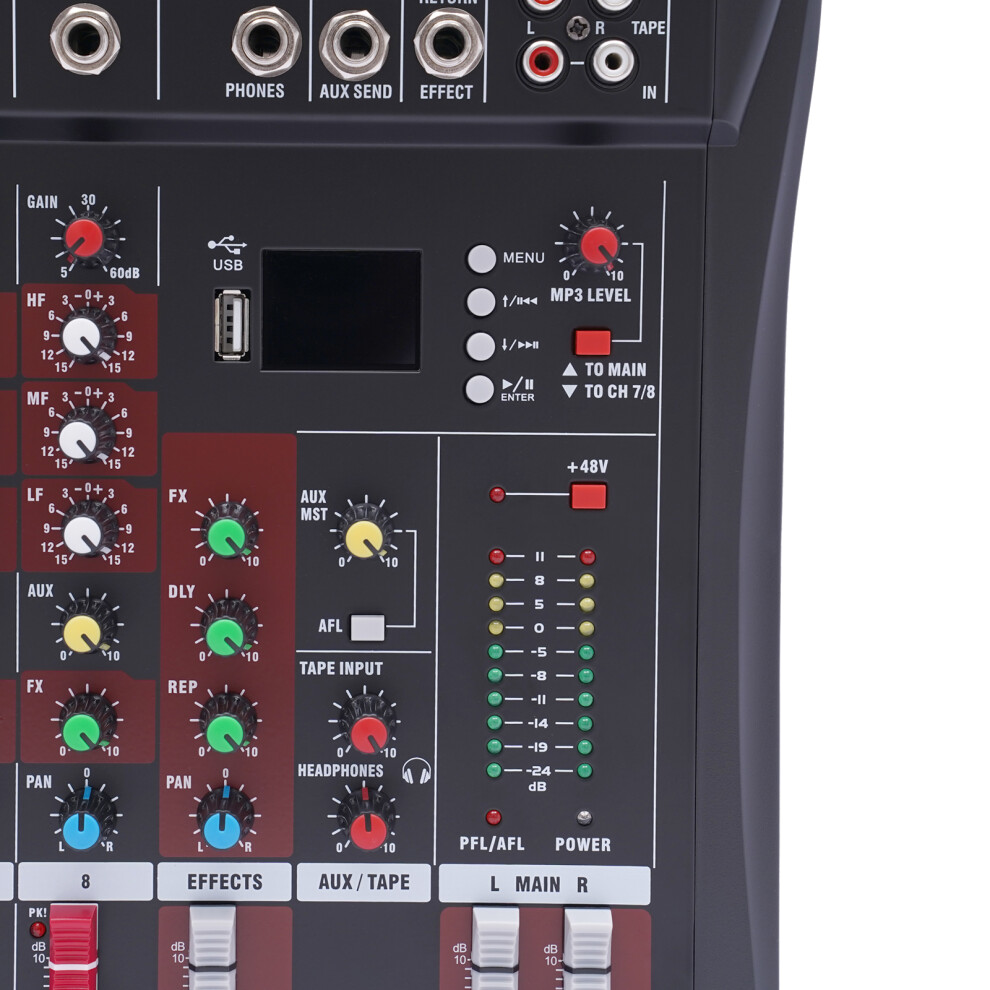

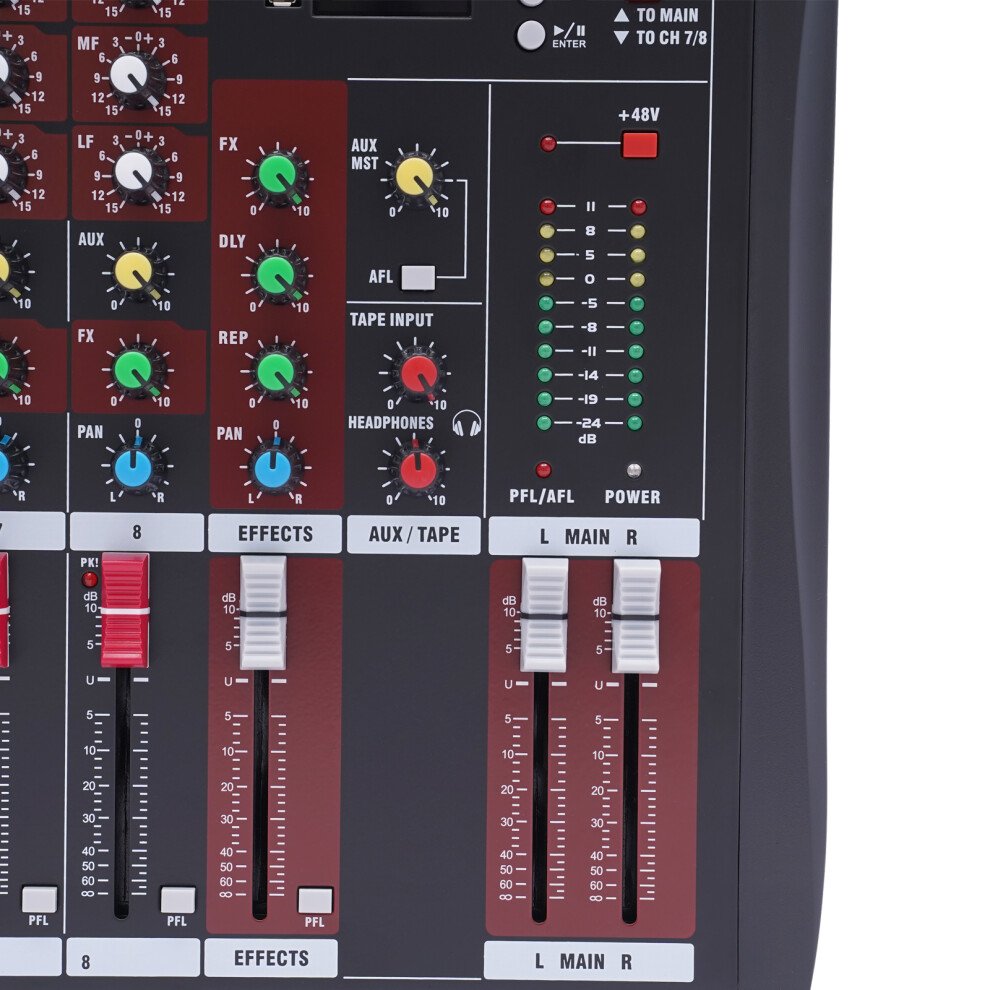

Indicators: The left and right channels each have a 10-segment level peak indicator, allowing you to grasp the signal condition in real-time and accurately adjust to avoid overload on the amplifier and speakers caused by adverse effects.

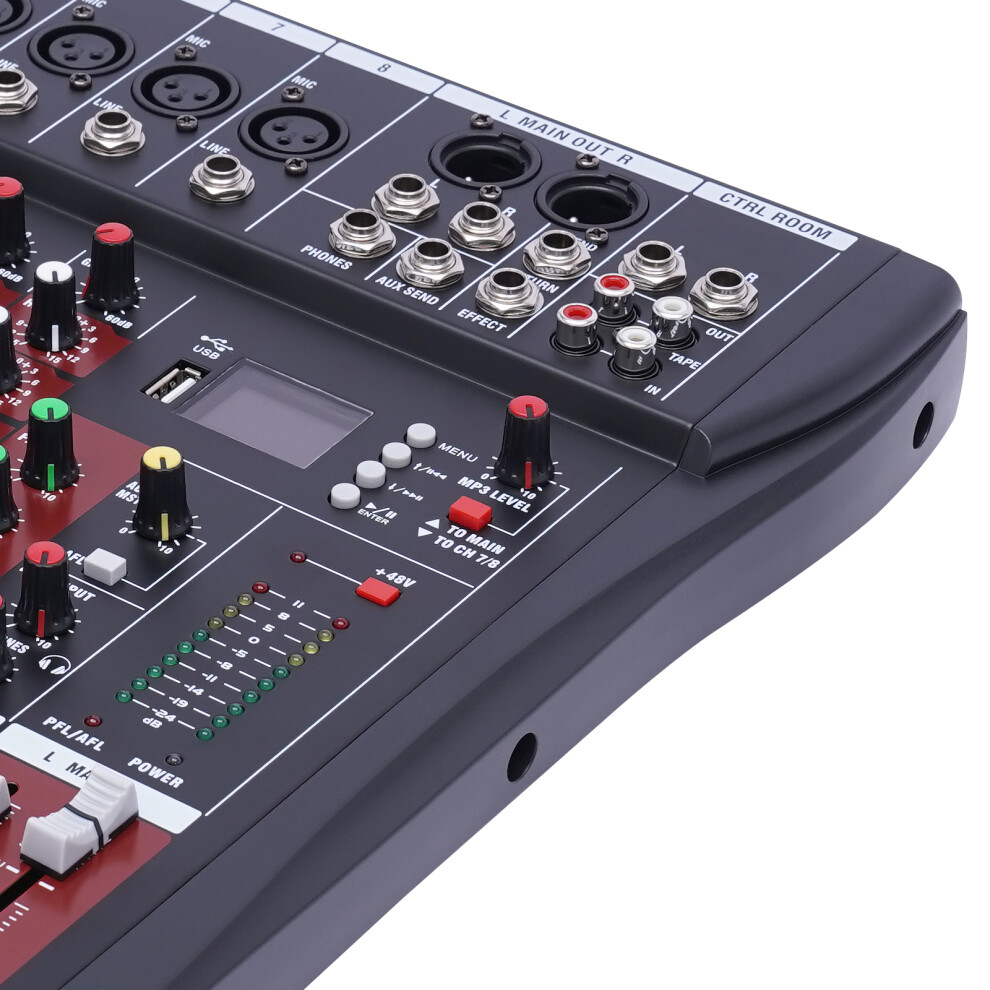

USB Slot: The USB slot lets it connect to portable audio devices like USB drives or MP3s, so you can tune in anywhere, anytime!

LCD Display: There is an LCD screen on this product that displays system functions in real-time so you can easily adjust them.

Strip Heat Sink: The product comes with a strip heat sink on top to extend the life of the product.

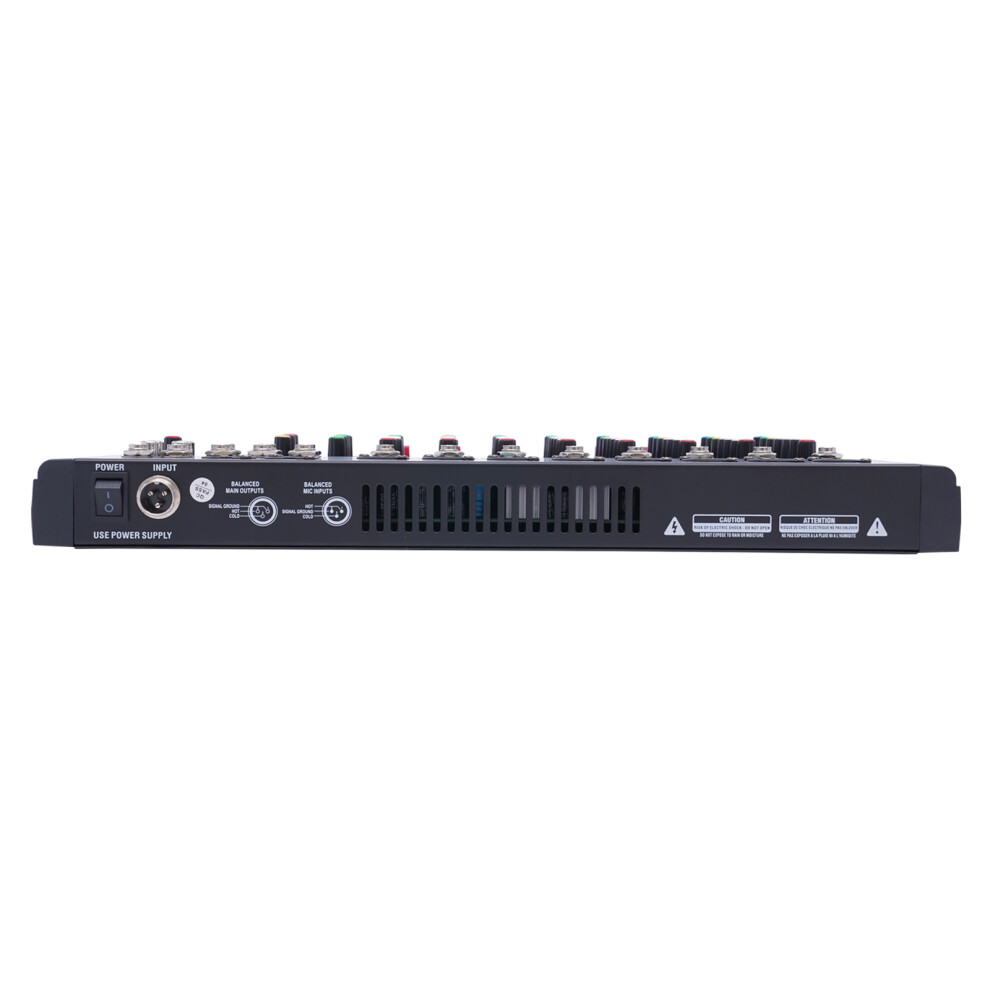

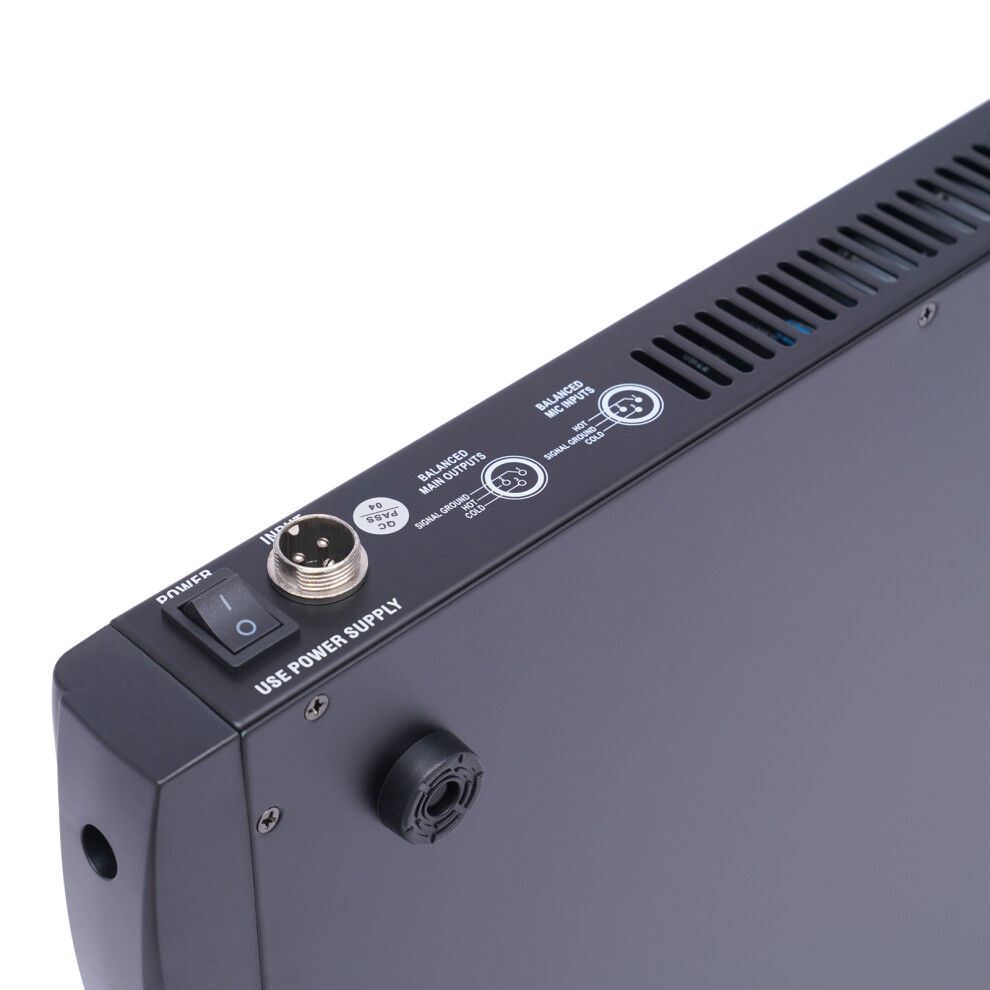

Single-touch Power Switch: The product is equipped with a one-touch power switch, which is very convenient to turn on/off the power with just one touch.

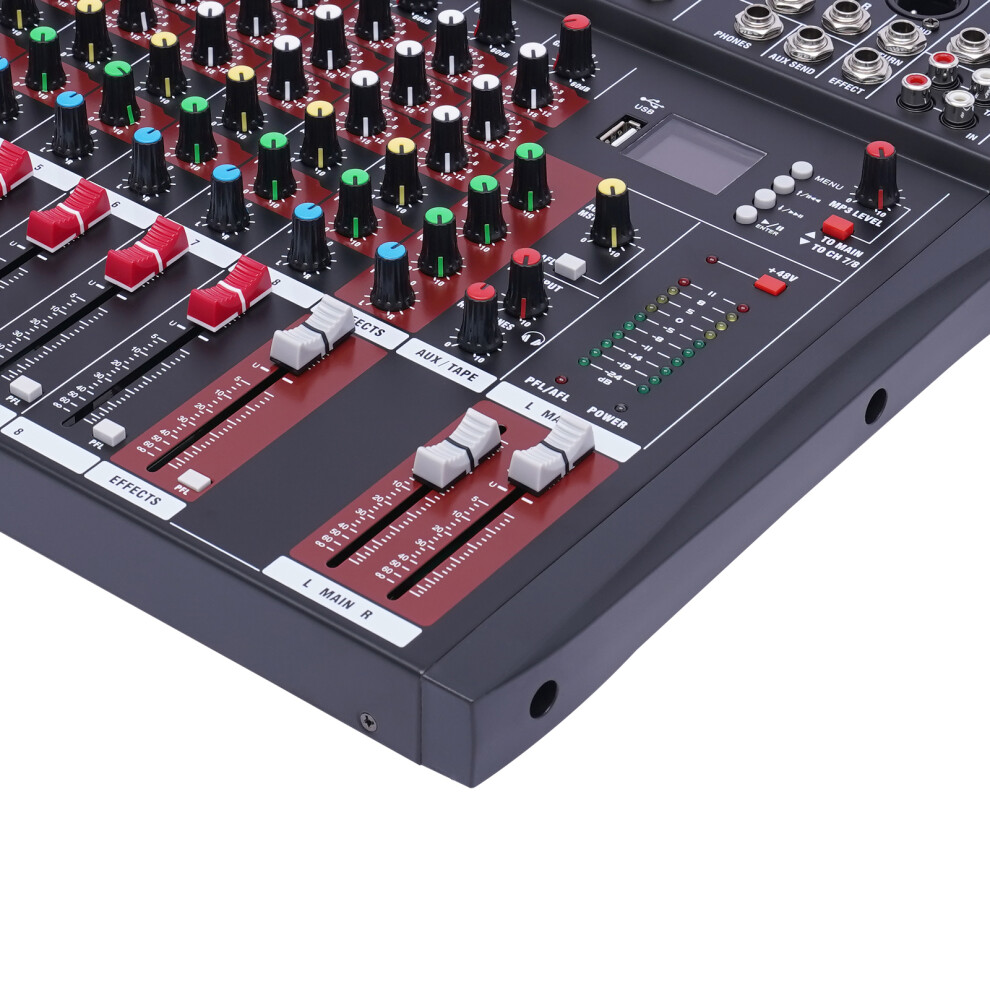

Smooth Fader: The fader is made of selected high-quality damping material, smooth and easy to push and the concave convex design is for slip resistance.
