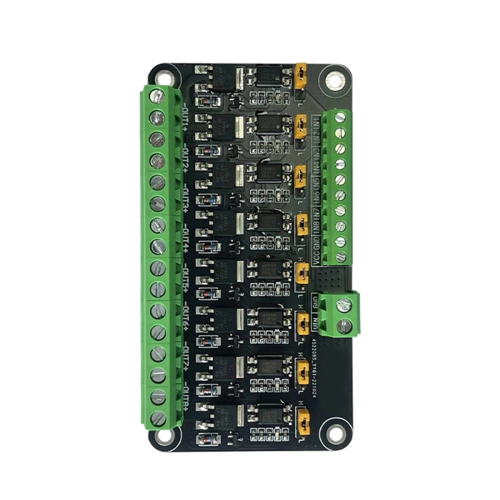

8 Channel MOSFET Microcontroller PLC Amplification

8 Channel MOSFET Microcontroller PLC Amplification Description

Power supply mode: DC
Continuous output current: 2A
Input voltage: 48V
Suitable motor: DC
Maximum applicable motor capacity: 60W. Maximum output current: 3A

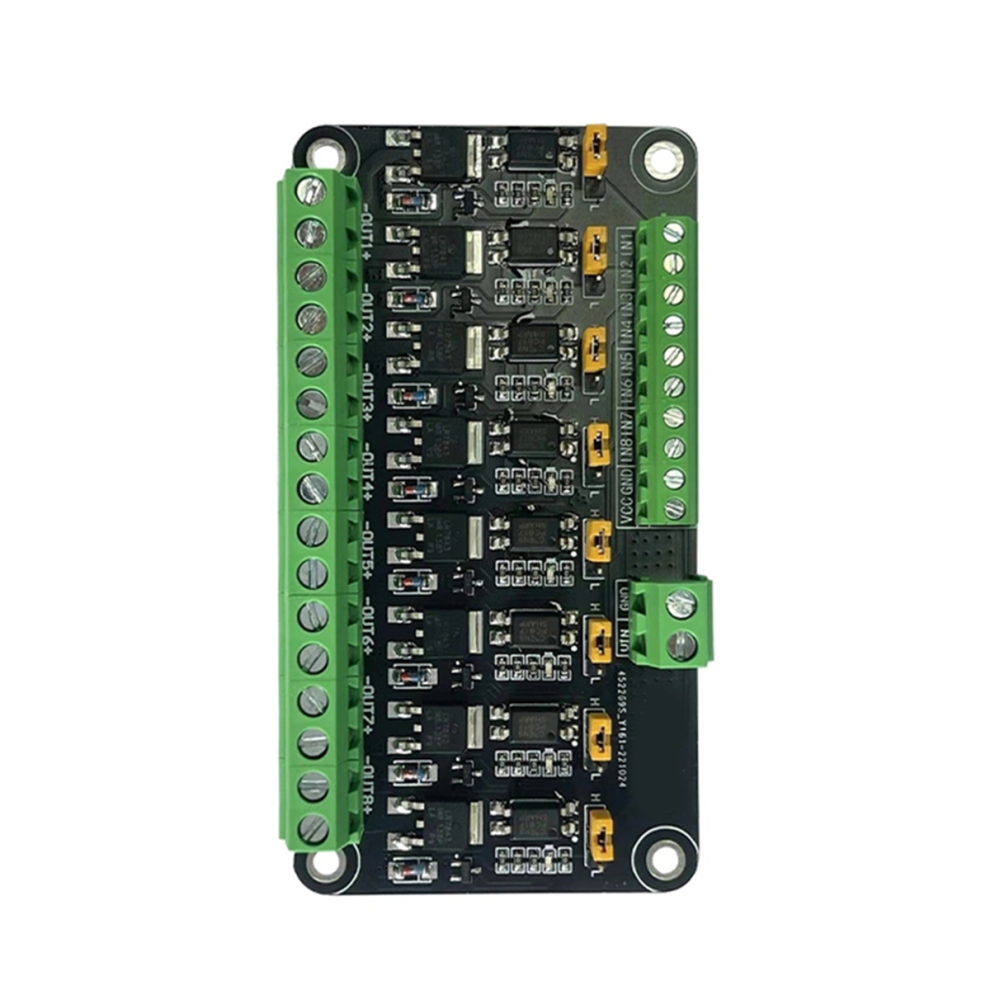

Interface

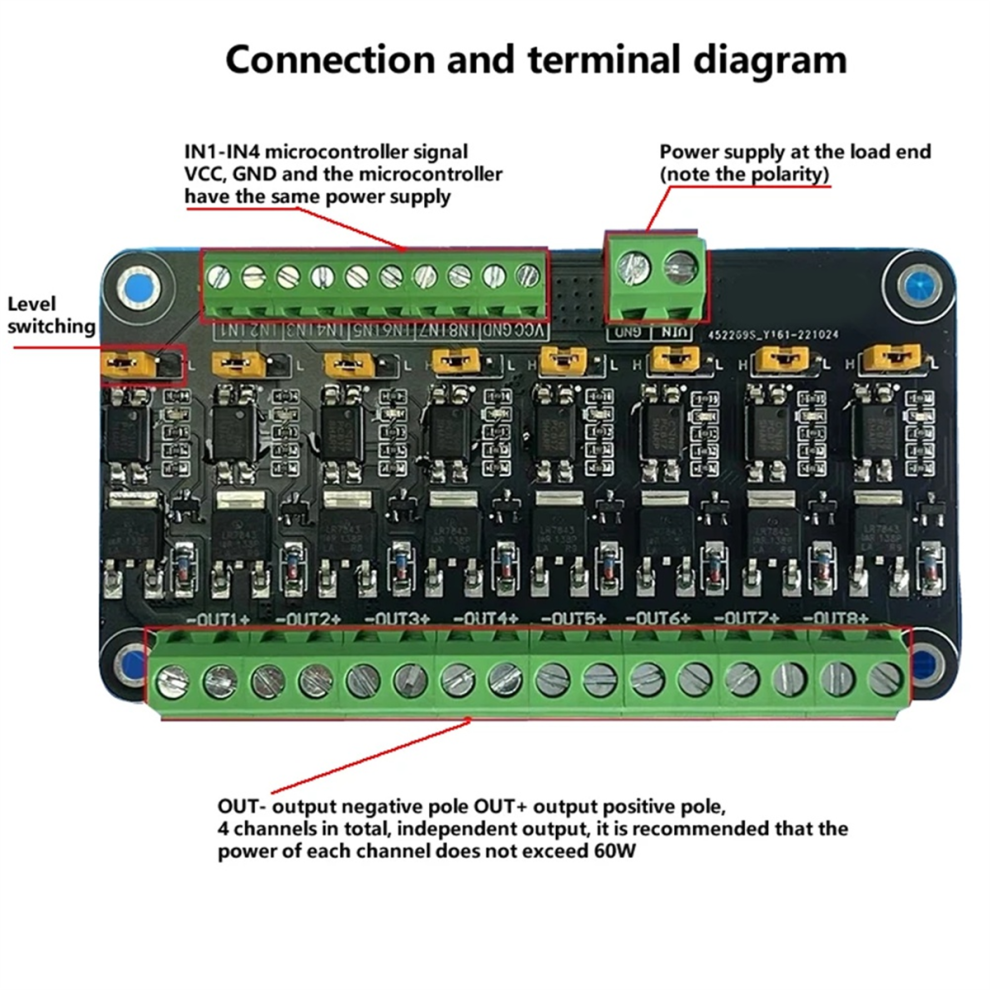

1. VCC: Connect to the positive pole of DC 5V power supply
2. GND: Connect the negative terminal of the DC 5V power supply, which needs to be grounded together with the signal terminal
3. IN1-IN8: Connect to the IO port of a microcontroller or PLC
4. jumper: H is high level, L is low level, and the middle is the common terminal
5. VIN: Load side power supply DC positive level, GND: Load side power supply DC negative pole
6. Connect the load terminals OUT1-OUT8 to the positive pole of the load device
Connect the load terminal GND to the negative terminal of the load device

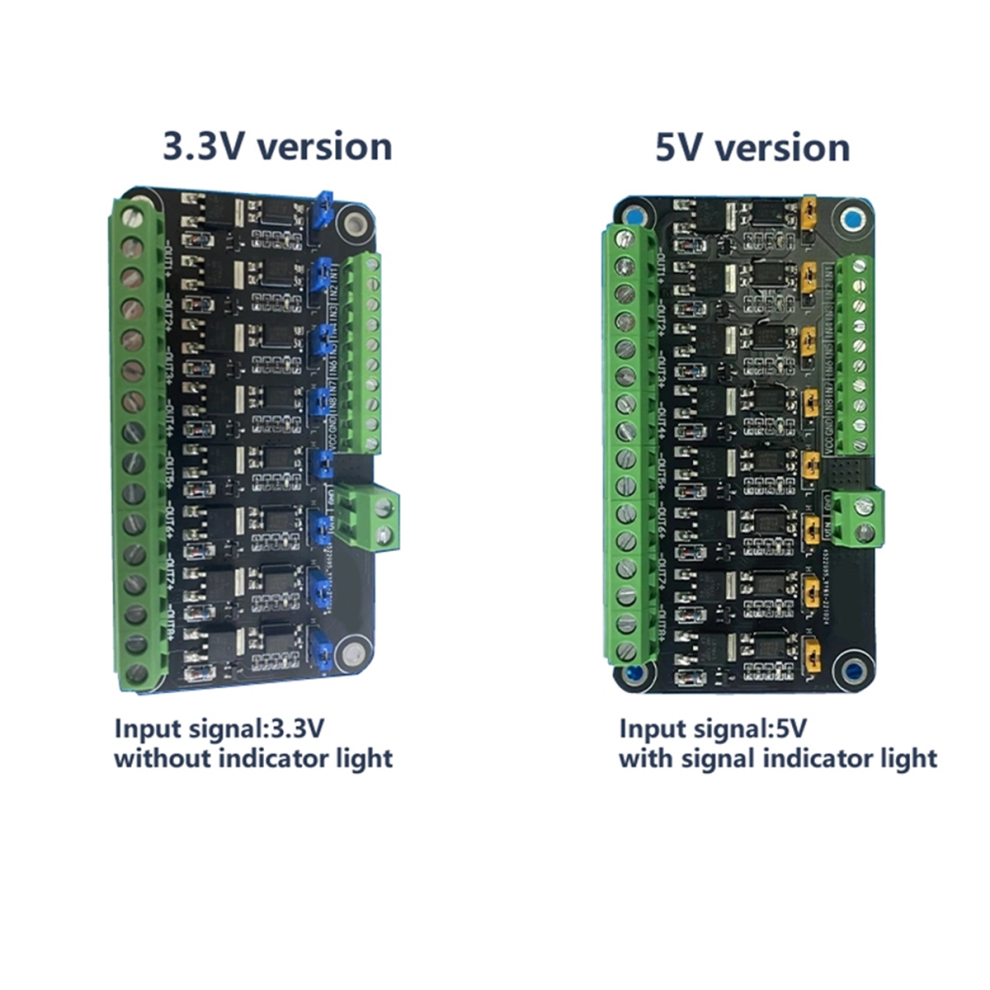

1. Indicator light: The 5V version comes with an indicator light, which lights up when there is a signal
2. Application scenario: The output end can control high-power DC devices such as motors, light bulbs, LED light strips, DC motors, Micro-water pump solenoid valves, etc; PWM can be input to control motor speed, light brightness, etc;
3. The voltage range of the control terminal is DC 5V-DC48V. As the control board has not undergone high-power heat dissipation treatment, it is recommended that the single power should not exceed 60W;
4. The control end and signal end are isolated by optocouplers, please to use

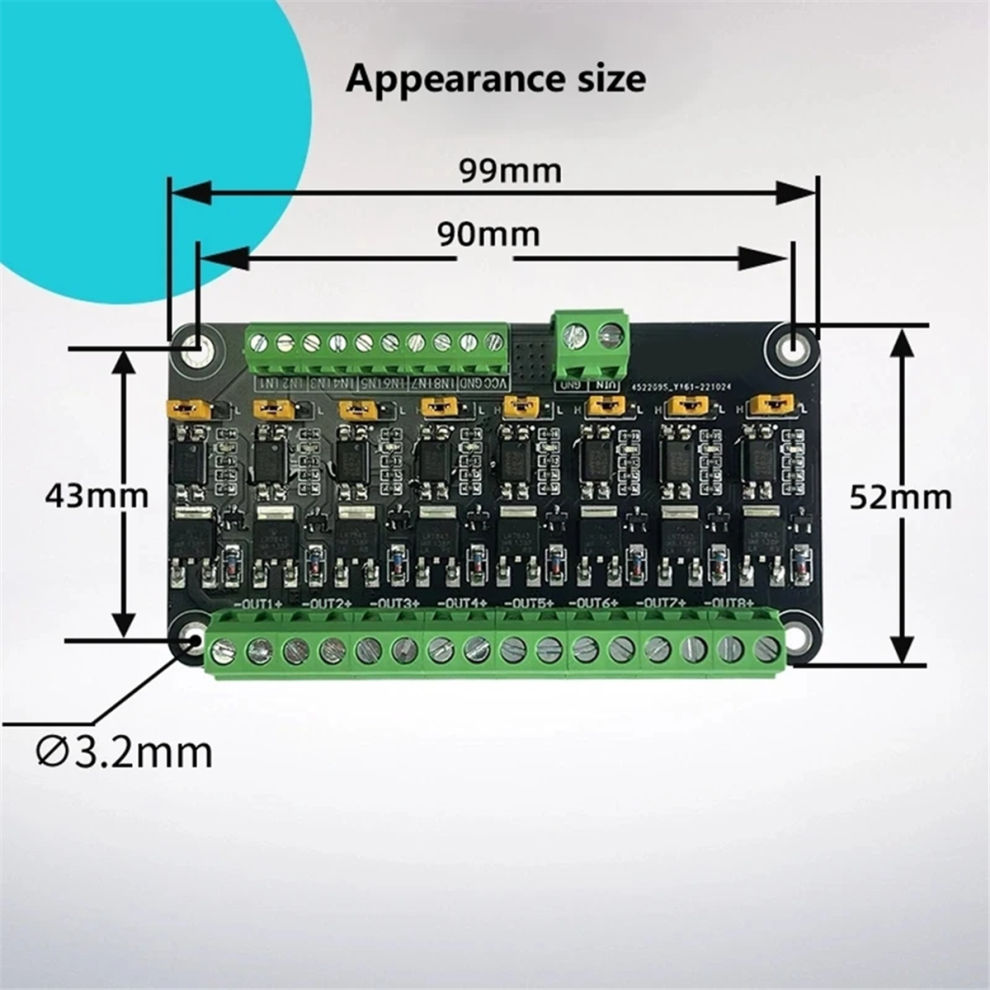

Specifications: A:5V version
Color: As Shown
Material: plastic

Package Contents:
1 x 8 Channel MOS Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
