Product Images

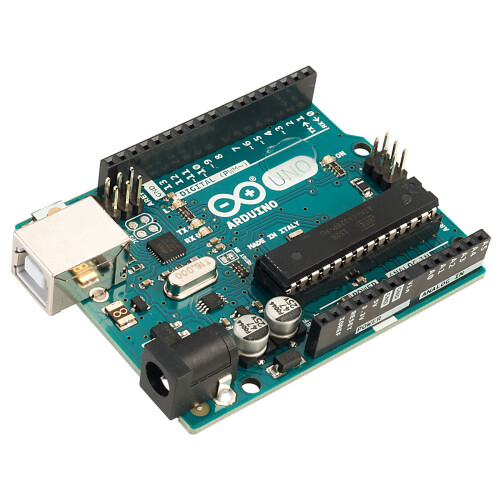

Arduino Uno A000066 Board R3
Brand Arduino Education
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£55.72
FREE Delivery
1%
Earn £0.56 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 20th - Sat 25th Jul
Returns: 30 days
180-day payment protection
Most Popular in Circuit Boards
Description & Details
Arduino Uno A000066 Board R3 Description

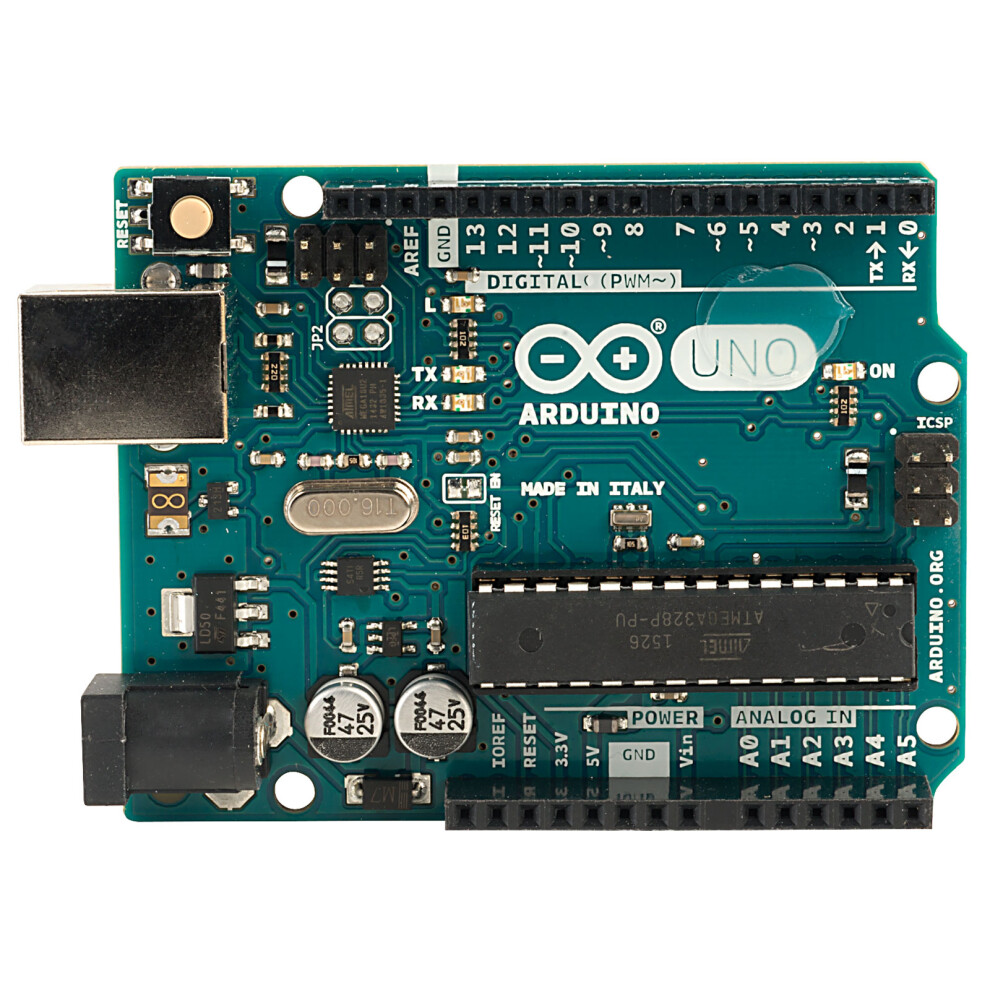

The Arduino Uno Board A000066 R3 is a microcontroller board based on the ATmega328.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller - simply connect it to a computer with a USB cable or power it with an AC-to-DC adaptor or battery to get started.
The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2 programmed as a USB-to-serial converter.
- Microcontroller ATmega328
- Operating voltage 5V
- Input voltage range nom. 7-12V
- Maximum supply voltage 20V
- Digital I/O pins 14 (of which 6 provide PWM output)
- Analog input pins 6
- DC Current per I/O pin 40 mA
- DC Current for 3.3V pin 50 mA
- Flash memory 32 KB of which 0.5 KB is used by bootloader
- SRAM 2 KB
- EEPROM 1 KB
- Clock speed 16 MHz
- USB Connector type B Male
Details
| OPC | PDV7P5Z |
|---|---|
| Brand | Arduino Education |
| Codes | 8058333490090 (EAN) |
| Rank | #13 Circuit Boards |
| #29 Circuit Boards & Electronic Components | |
| #683 Power & Electrical Supplies |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Arduino Uno is the ideal board for getting started with electronics, through fun and engaging hands-on projects. This board is your entry to the unique Arduino experience: great for learning the basics of how sensors and actuators work, and an essential tool for your rapid prototyping needs. Arduino Uno Rev3 is the most used and documented board in the Arduino family.
Thanks to the lively and helpful community surrounding the Arduino Uno, no one will find themselves without support.
Arduino Uno Rev3 is a microcontroller board based on the ATmega328P, an 8-bit microcontroller with 32KB of Flash memory and 2KB of RAM. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Alternative names:
- Arduino UNO Rev3 development board
Detailed Product Information
Weight & dimensions
| Weight | 25 g |
|---|---|
| Board dimensions | 53.4 x 68.6 mm |
Memory
| Flash memory | 0.032 MB |
|---|---|
| SRAM (Static Random Access Memory) | 2 KB |
| EEPROM (Electrically Erasable Programmable Read-Only Memory) | 1 KB |
Features
| Form factor | Arduino |
|---|
Ports & interfaces
| Ethernet LAN | No |
|---|---|
| Wi-Fi | No |
| USB ports quantity | 1 |
| Number of analog I/O pins | 6 |
| Number of digital I/O pins | 14 |
| PWM digital I/O pins | 6 |
Power
| Operating voltage | 5 V |
|---|---|
| DC input voltage | 7-12 V |
| Input voltage (max) | 6 - 20 V |
| DC current per I/O pin | 40 mA |
Processor
| Microcontroller model | ATmega328 |
|---|---|
| Microcontroller frequency | 16 MHz |
