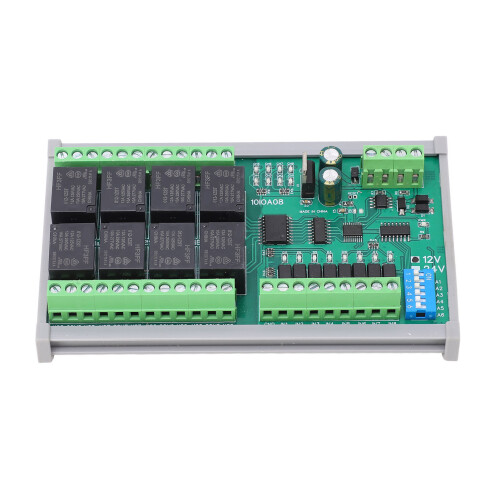

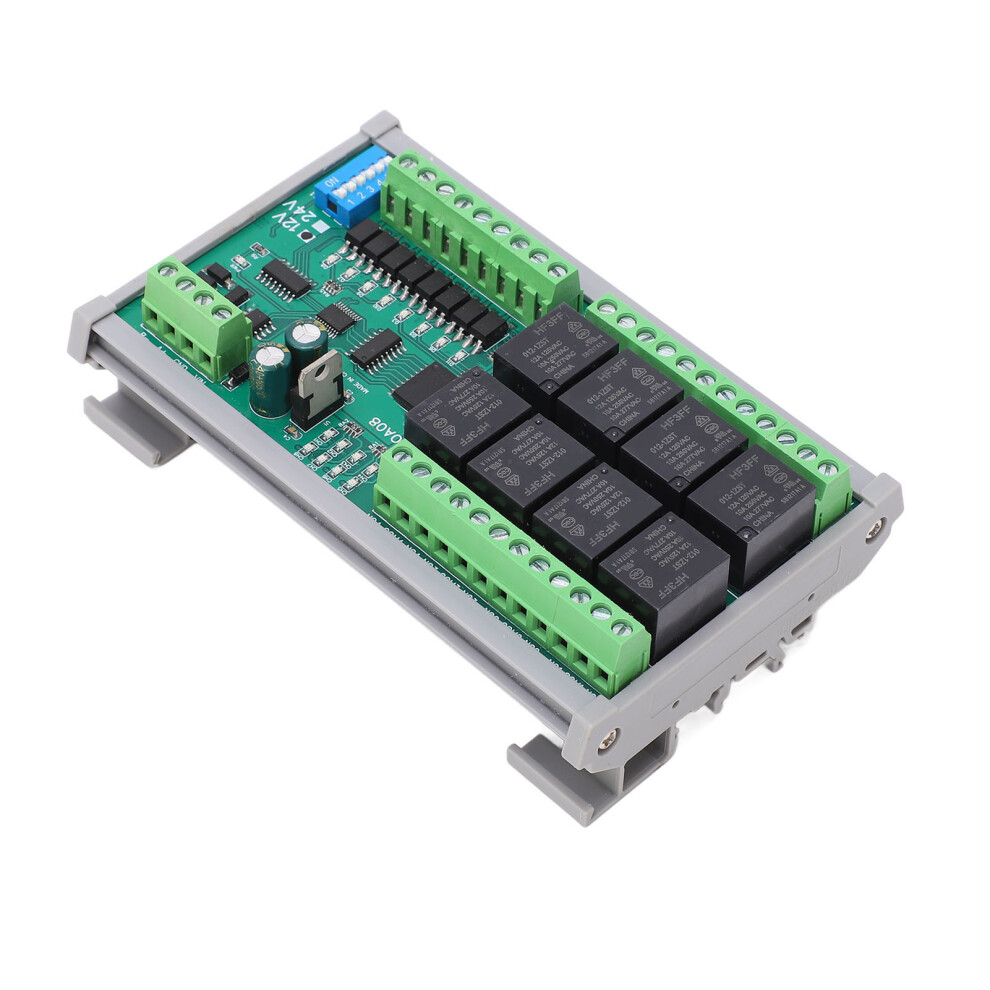

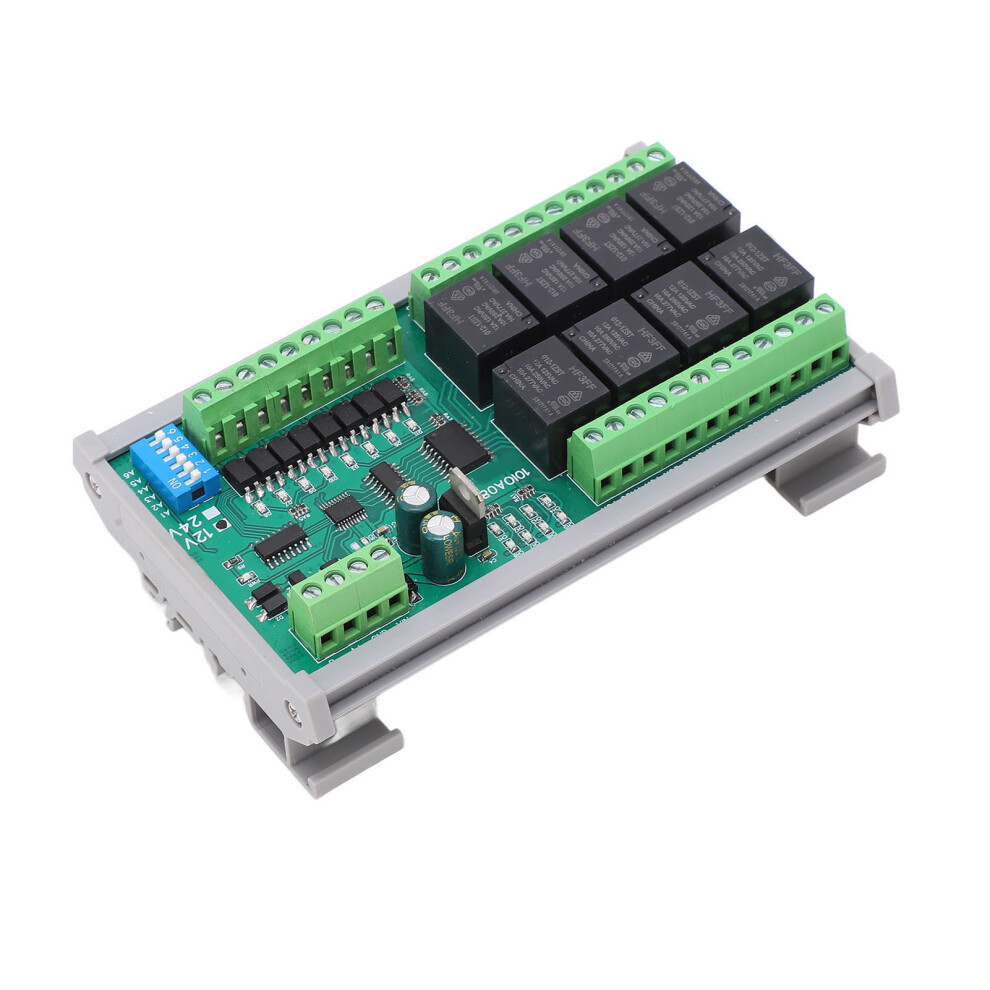

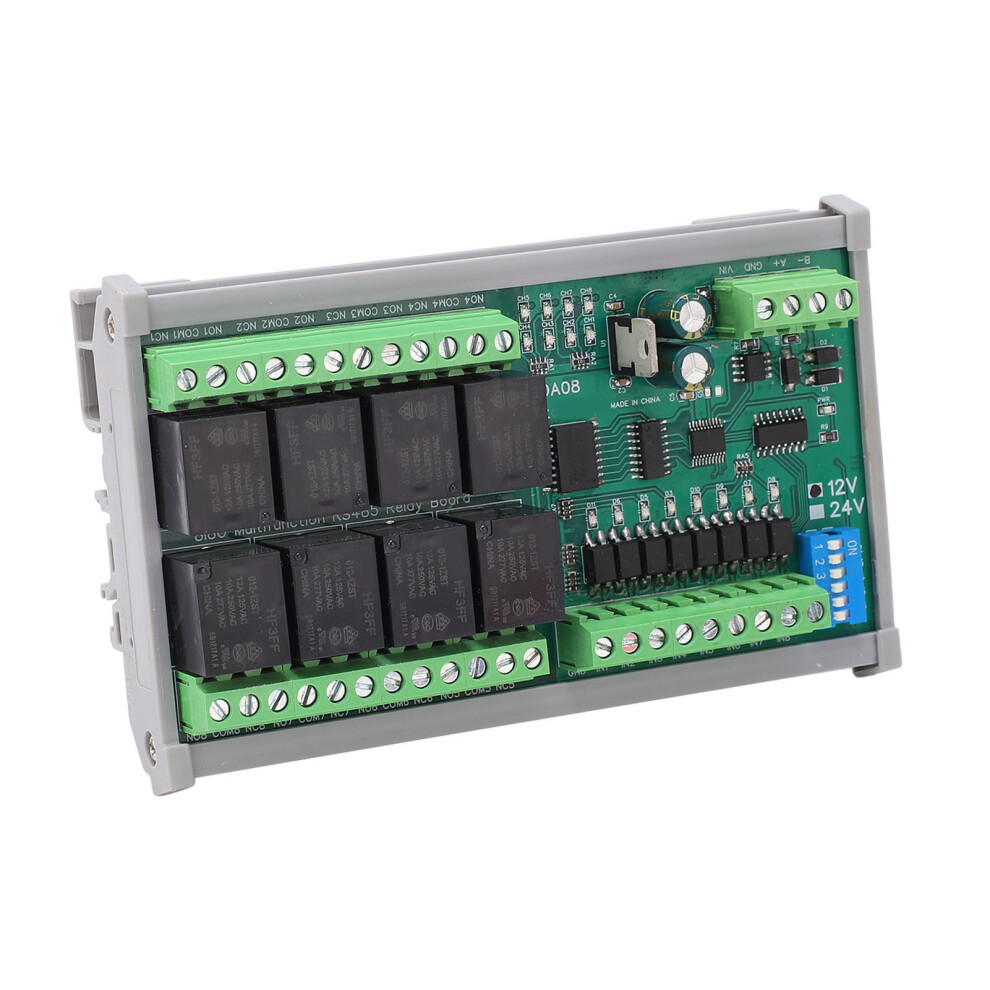

8 Channel RS485 Relay Module DC12V TVS Anti-Surge

8 Channel RS485 Relay Module DC12V TVS Anti-Surge Description

1、Support Multiple Devices in Parallel: In the specified command mode, the relay module can support up to 64 devices in parallel. 2、Anti Surge Protection: The module comes with TVS anti surge protection function, which can prevent the transient current caused by excessive current when connecting to the circuit. 3、Configurable Association Mode: The input and output relationship of the relay module can be set to various association modes through instructions according to your needs. 4、Complete Functions: The relay module not only has TVS anti surge function, but also has hardware reset function. 5、Wide Application: Relay modules are widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment, and are one of the most important control components.
Item Type: Relay Module
Material: PCB
Standby Current: 14MA
Single relay on: 40MA, 2 relays on: 68MA, 3 relays on: 96MA,
4 relays open: 122MA, 5 relays open: 149MA, 6 relays open: 177MA,
7 relays open: 202MA, 8 relays open: 226MA
Default Baud Rate: 9600BPS
Baud Rate Can be Selected by Command: 2400,4800,9600,19200,38400,57600,115200BPS
Maximum Data Sending and Returning Time: 1000ms
Check Mode: No check, even check and odd check
Hardware Reset Function: Yes
TVS Anti Surge Protection: Yes
1 x Relay Module
