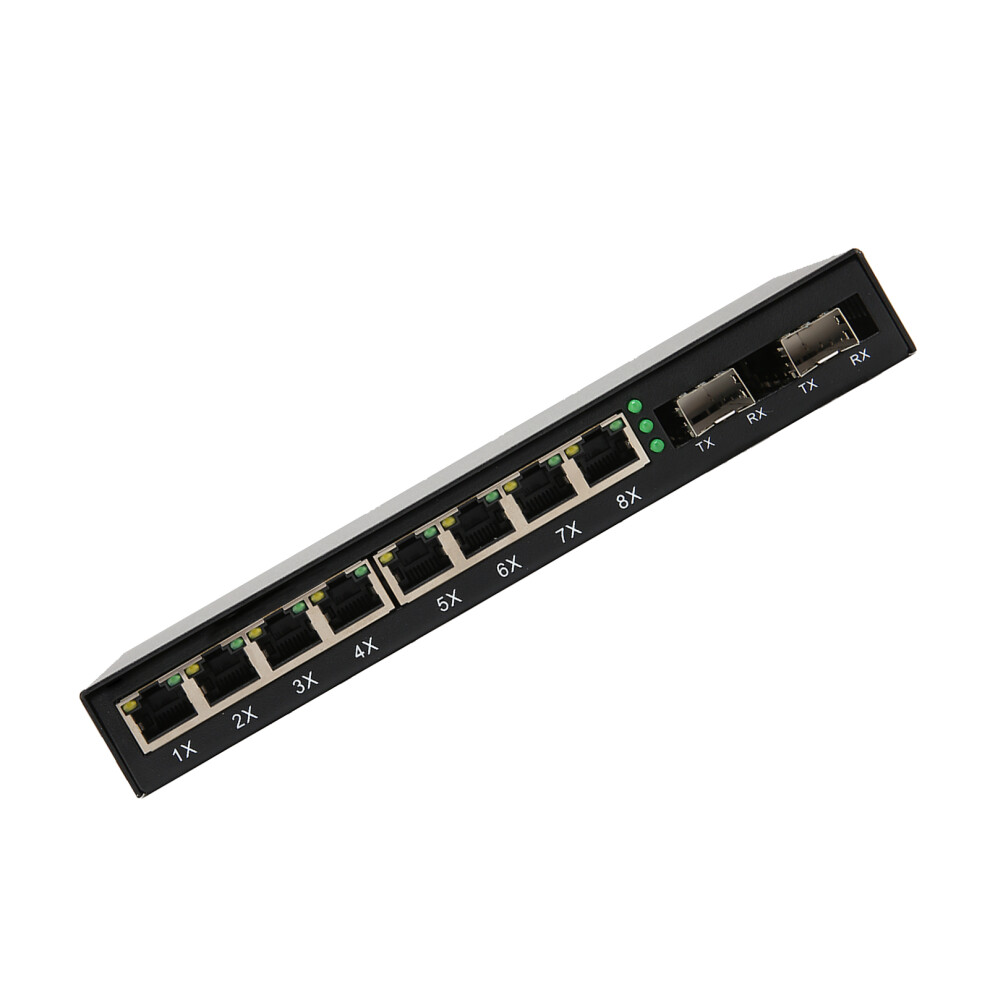

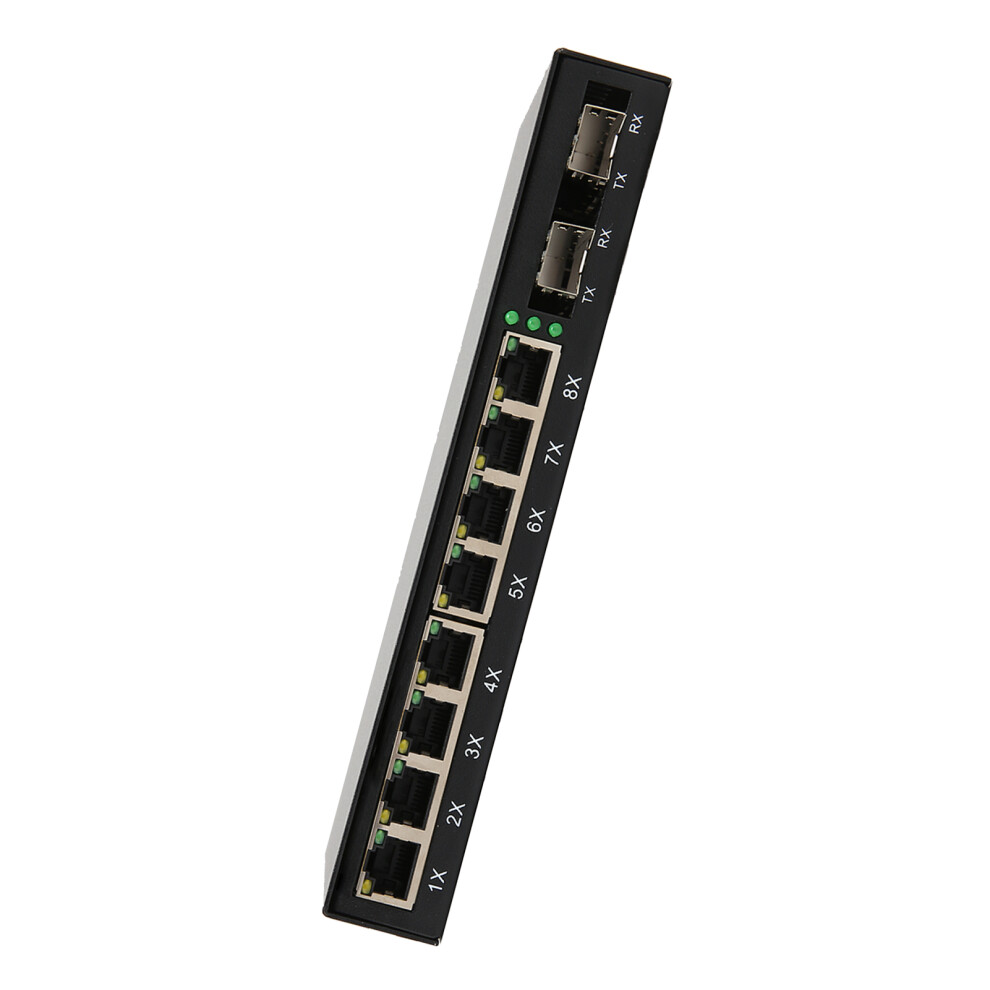

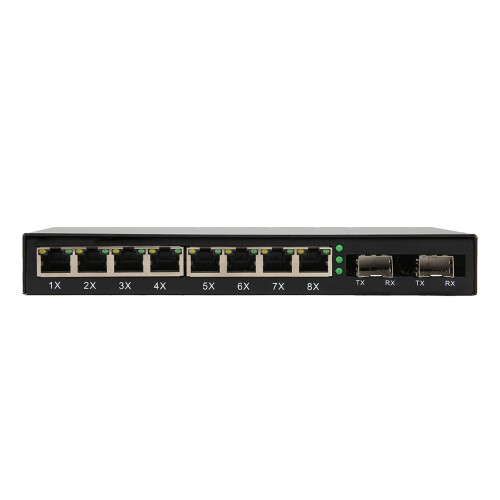

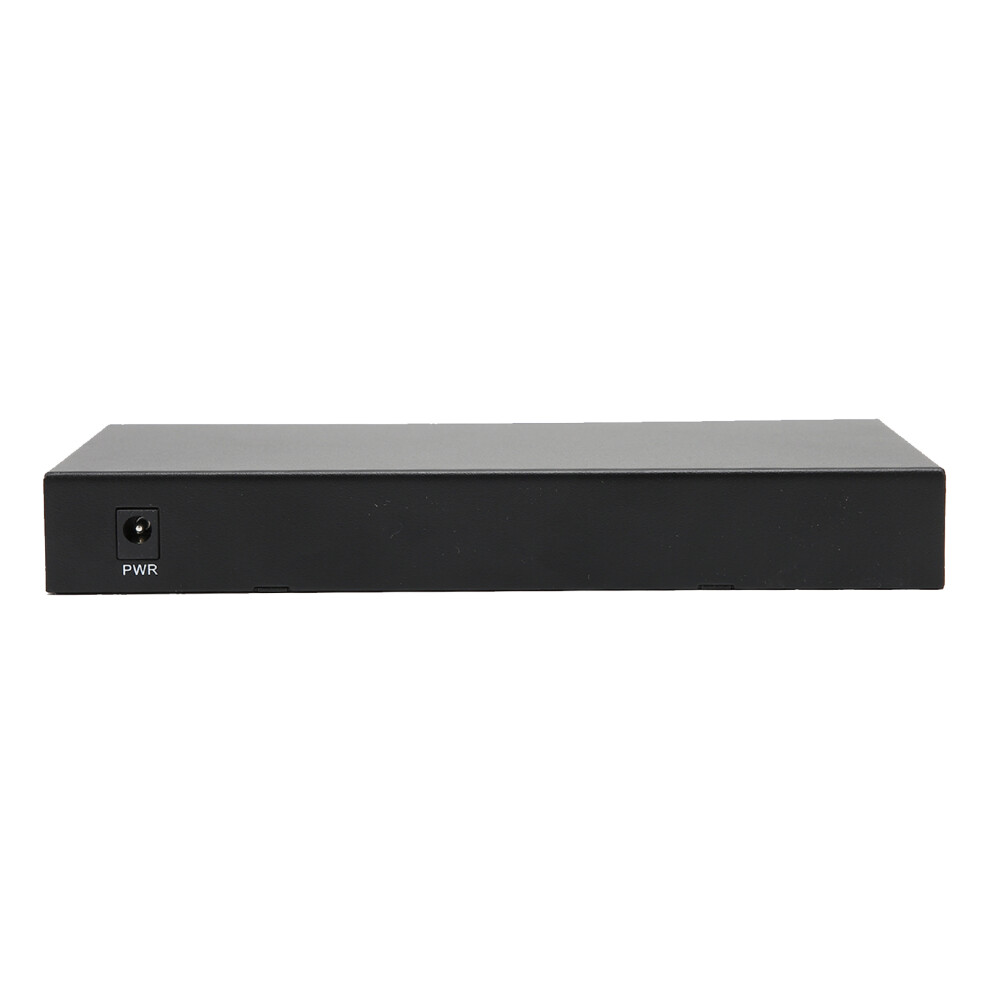

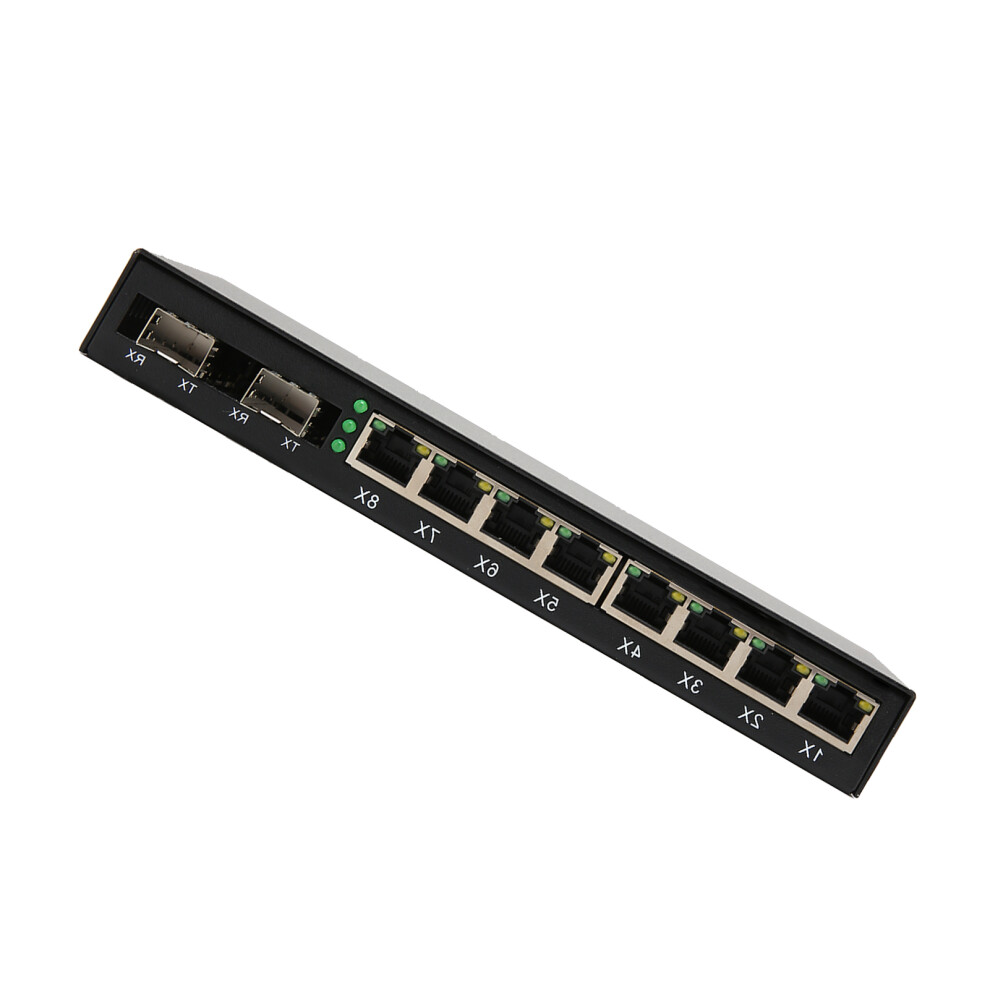

8 Port Gigabit Switch 10/100/1000M Ethernet Converter

8 Port Gigabit Switch 10/100/1000M Ethernet Converter Description

1、This gigabit switch supports IEEE802.3Z/AB 1000Base‑SXLX protocol, duplex full mode and half mode working mode. 2、The power socket of the optical converter is an adaptive 10/100/1000M Gigabit optical converter. 3、Optical fiber interface: SC optical fiber interface is duplex type, including TX and RX two interfaces. 4、When two sets of optical converters are connected or connected to a switch through optical fiber interfaces, the optical fibers are in a crossed‑connected state, that is, "TX‑RX" and "RX‑TX". 5、The transmission medium adopts CAT5 and CAT 6 twisted pair cables. The high‑quality RJ‑45 and the well‑made jumper have the function of automatically identifying the straight line and the crossed line.
Item Type: Gigabit Switch
Material: Aluminum Alloy
Standard Protocol: IEEE802.3Z/AB 1000Base-T/SX/LX
Transmission Rate: Electrical Interface: 10/100/1000Mbps; Optical Fiber Interface: 1.25Gbps
Operating Mode: Full-Duplex Mode or Half-Duplex Mode
Power Parameters: 5VDC
Ambient Temperature: 0-60
Relative Humidity: 5%-90%
TP Line: 5E, CAT6
Transmission Fiber: Multi-Mode: 50/125, 62.5/125um; Single-Mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm
1 x
Gigabit Switch
1 x User Manual
