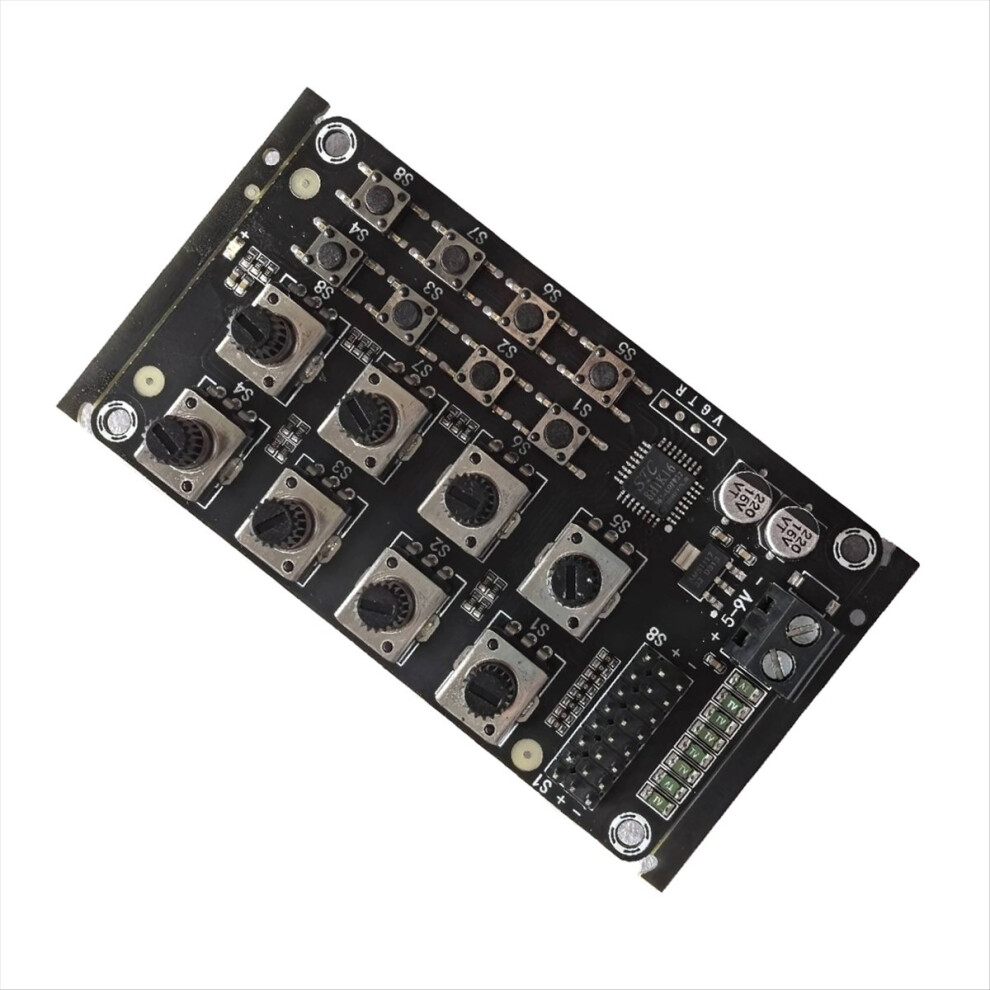

8 Way Rotary Knob Servo Driver Controller Board Overcurrent Protection Tester for DIY Robot Arm Part

8 Way Rotary Knob Servo Driver Controller Board Overcurrent Protection Tester for DIY Robot Arm Part Description

1. High- potentiometer, which can control the servo in real time.
2. Onboard 8-way overcurrent protection interface (0.1.2 interface) can prevent the servo from being burned by excessive current
3. High-resolution PWM signal, MCU can make the control accuracy higher
4. Support manual servo controller/servo reset, switch through function buttons
5. Servo controller accuracy: 0.09 (referring to the PWM minimum change value of 1us)

Colour:black
Material:Metal + Plastic

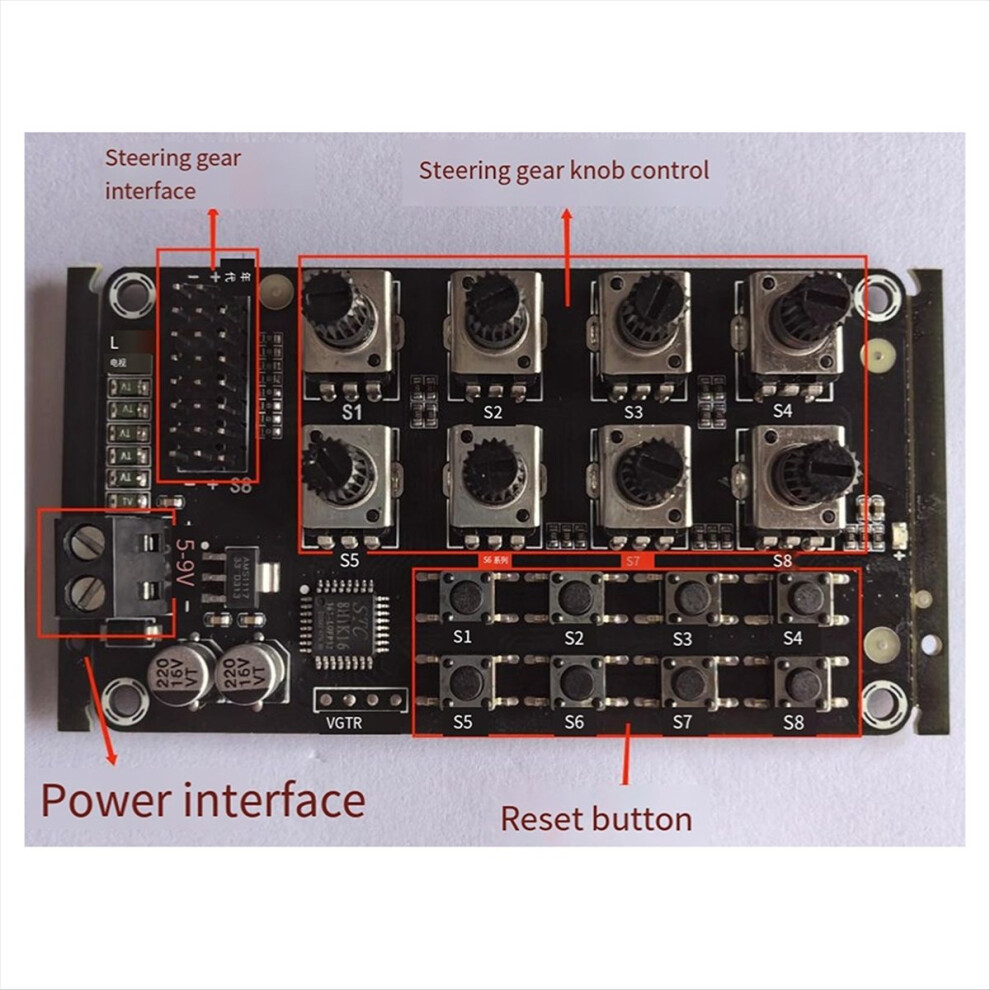

The eight-way knob servo controller has 8-way PWM digital servo interface onboard. The high- potentiometer can realize the functions of servo synchronization controller and servo reset. The controller has 8-way overcurrent protection onboard, which can prevent the servo from being burned by excessive current, making it very suitable for testing and robot development of servos!
Step 1
The servo is connected to the 3Pin servo interface.(﹣ is the negative pole, + is the positive pole, S is the signal end)

Connect the power supply to the controller. (5-8.4V power supply)
Step 3
Reset the servo
the reset button to reset the servo

Package Contents:
1 set * overload protective board

Only the above package content, other products are not included.
