800/1000W Pipe Welding Machine 220V Pipe Welding Iron PB/

Instructions:

1. Install the heatsink on the fixed welding device, place the welding device on the rack, install the corresponding heating die according to the required pipe specifications, and use the spanner to tighten, usually small in the front end in the back.
2. Power on: power on (pay attention to the power must be with a ground protection line), the green indicator light, until the green light is off, the red light is on, indicating that the fuse into the automatic temperature control state, you can start operation. Note: In the automatic temperature control state, red light, green light will be alternately lit, indicating that the fuse is in a controlled state, does not affect the operation.
3. Welded pipe: pipe cutter with a straight cut off the pipe, the pipe and pipe at the same time without rotating into the fuse die, and in accordance with the requirements of the table to operate, to the heating time immediately after the pipe and pipe removed from the die at the same time , Quickly and without rotation directly into the required depth of uniform, so that the joints open into uniform flange.

Features:

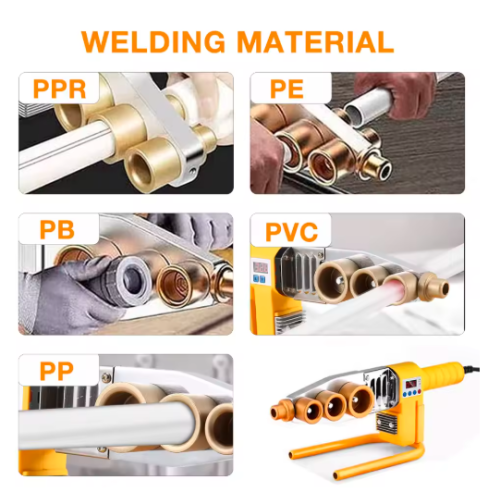

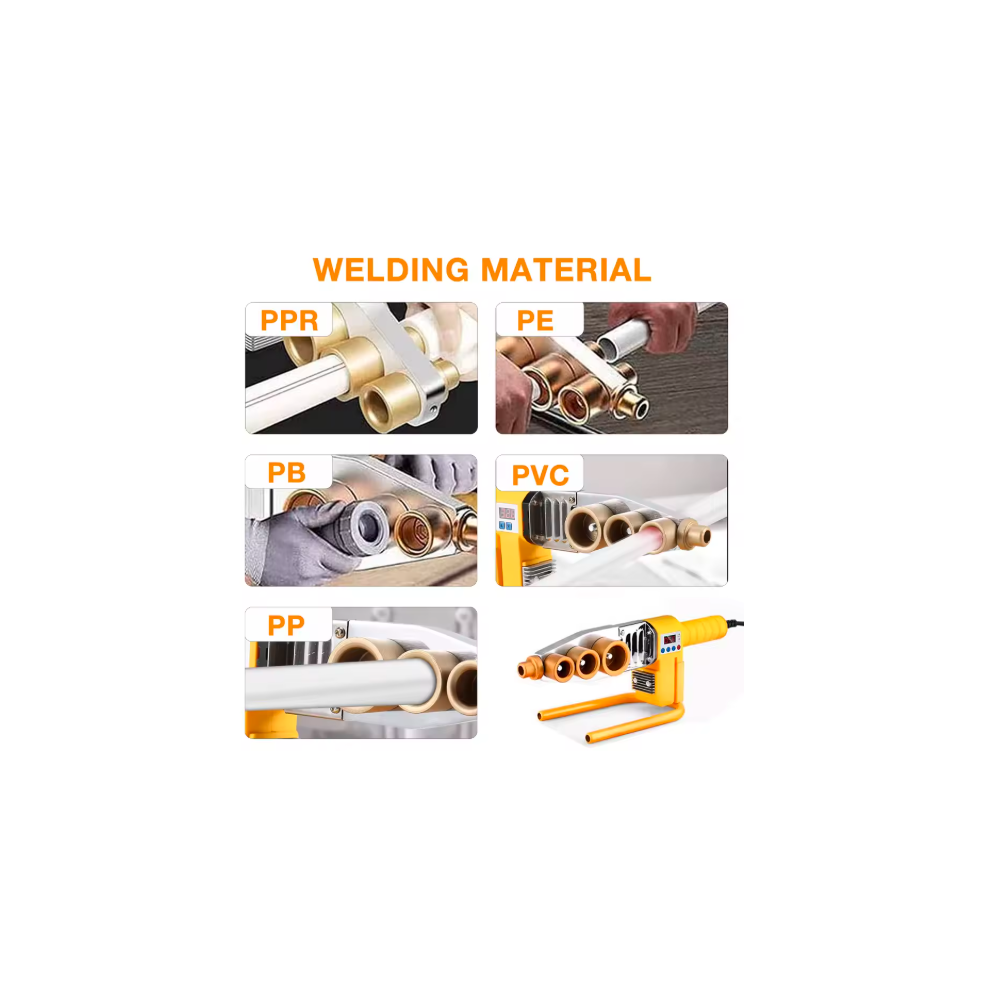

- For welding plastic pipes such as PP / PPR / PB / PE / PP-C pipe and etc.
- Designed for long time use.
- Non-slip handle, comfortable to grab.

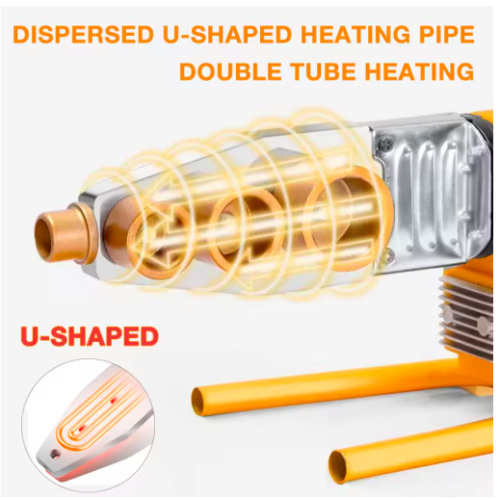

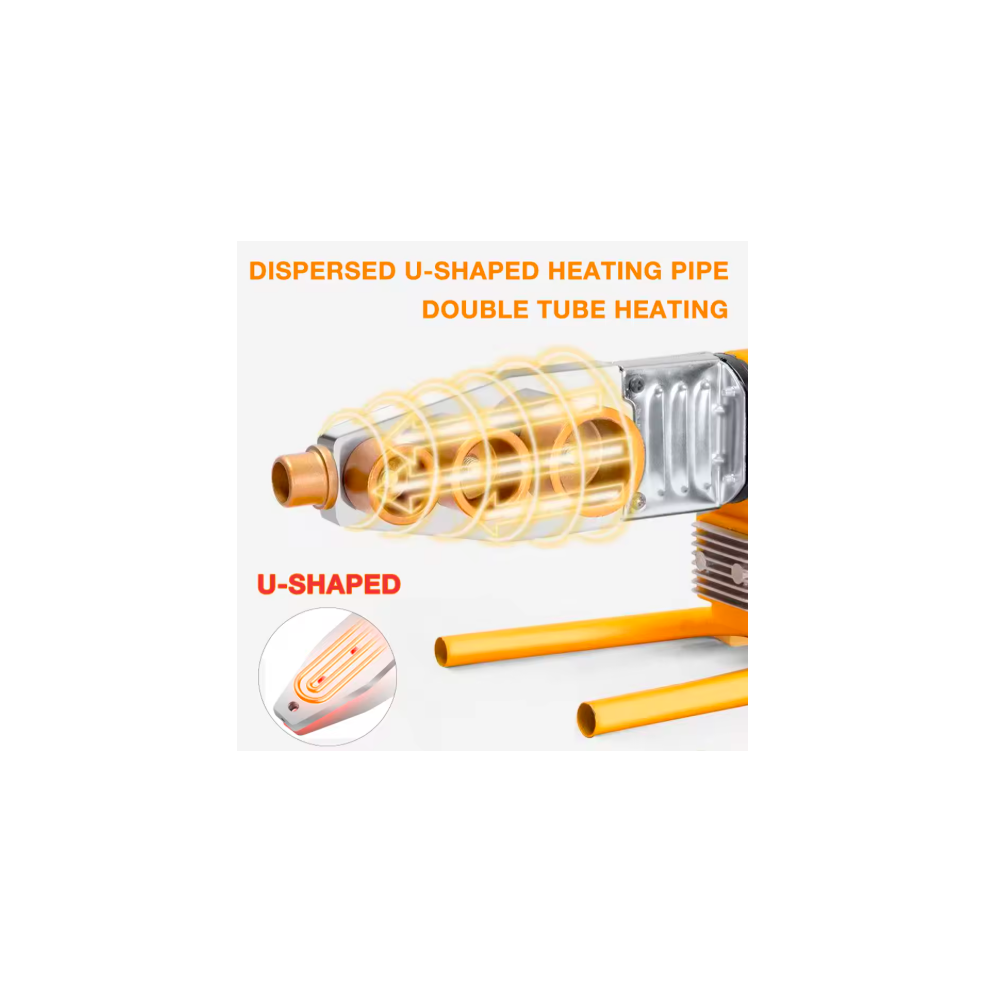

- Thickened steel panel, fast heat conduction.
- Thick gold paint touch head, hot melt fast heating.
- Suitable for pipeline construction equipment.
Specifications:

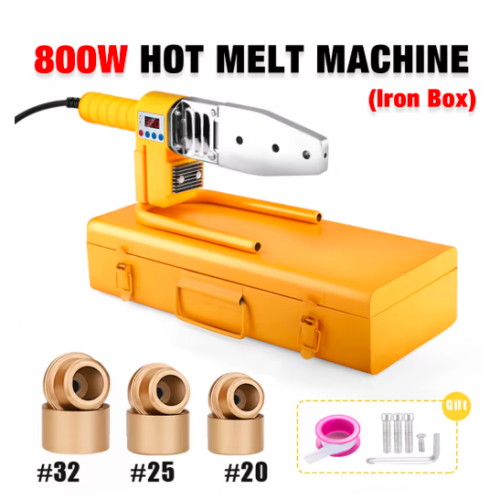

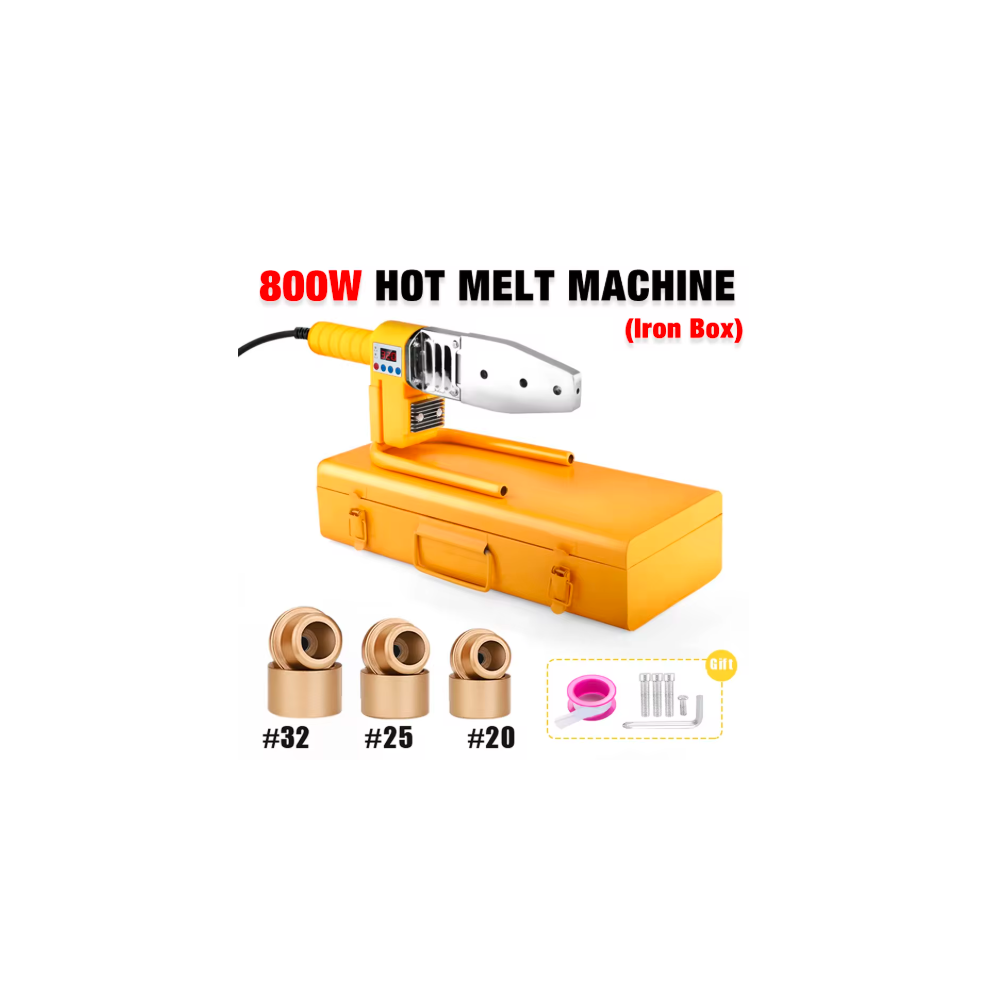

Product Name: Pipe Welding Machine Kit
Type: 800W / 1000W
Material: Metal
Color: Yellow
Plug: EU Plug
Heating Speed: 1 Min
Fit For: PPR / PB / PE Pipe
Relative Humidity: 45% to 95%
Heating Temp: 0 ~ 320℃ / 32 ~ 608℉
Ambient Temperature: -20 ~ 50℃ / -4 ~ 122℉
Temp Control: Digital Temperature Control
