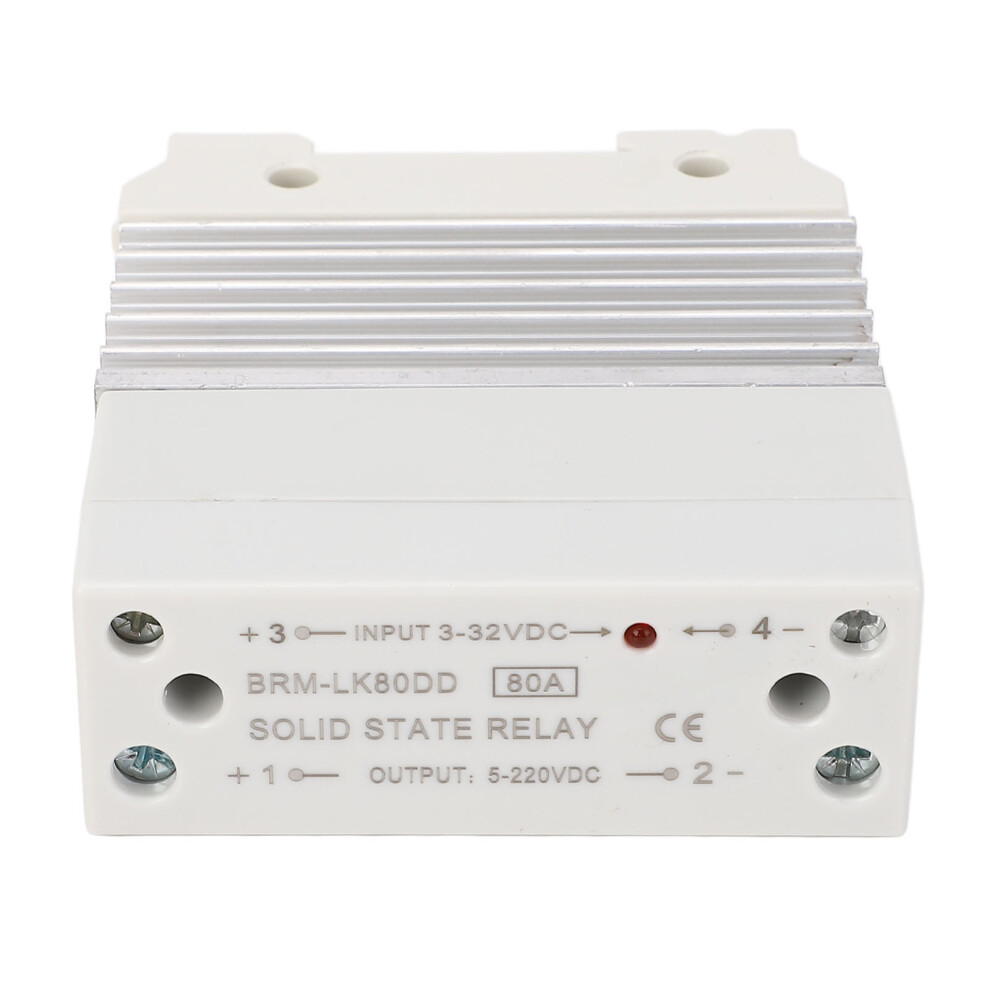

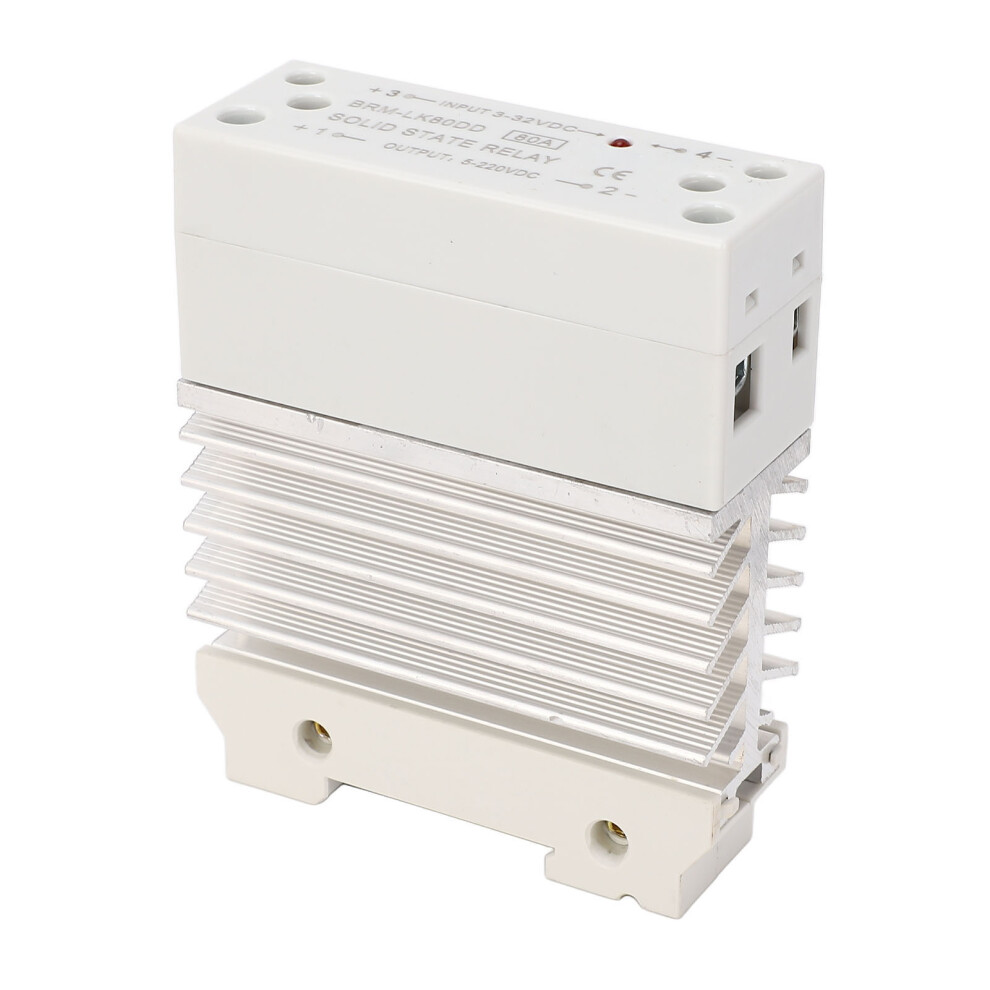

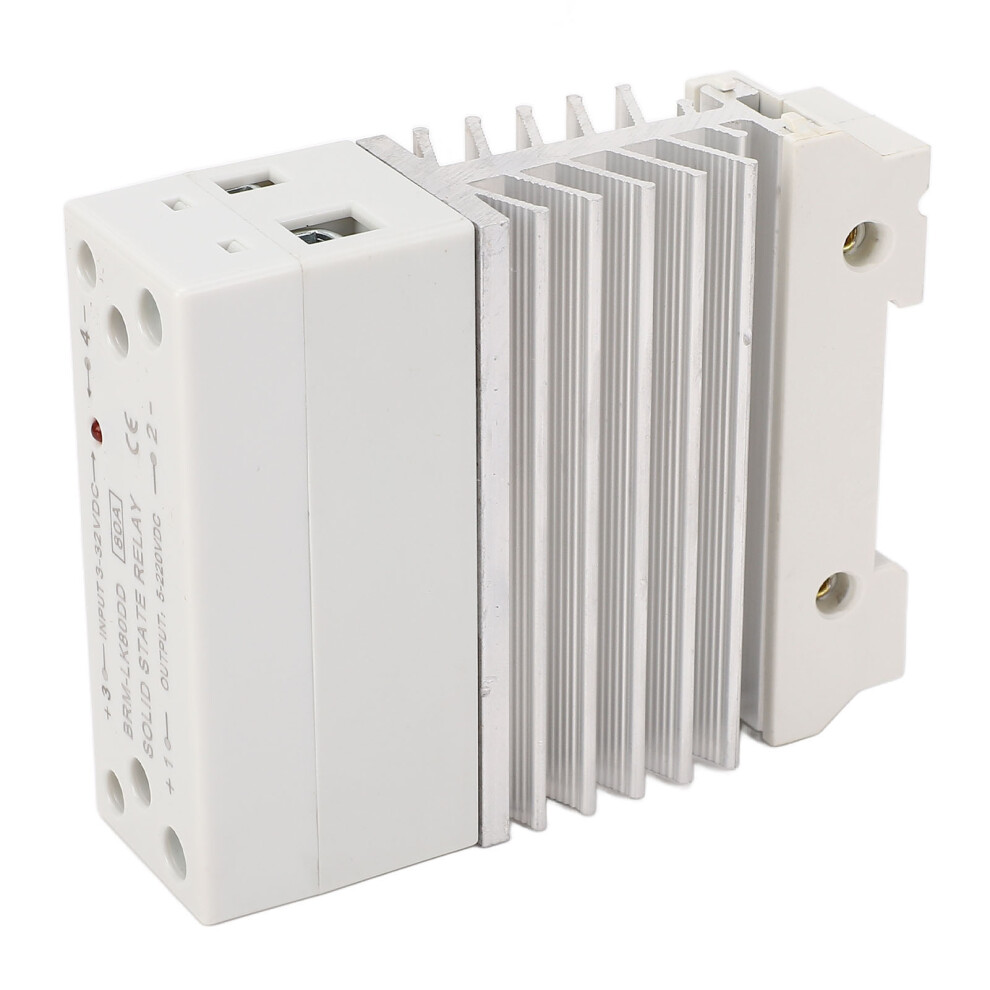

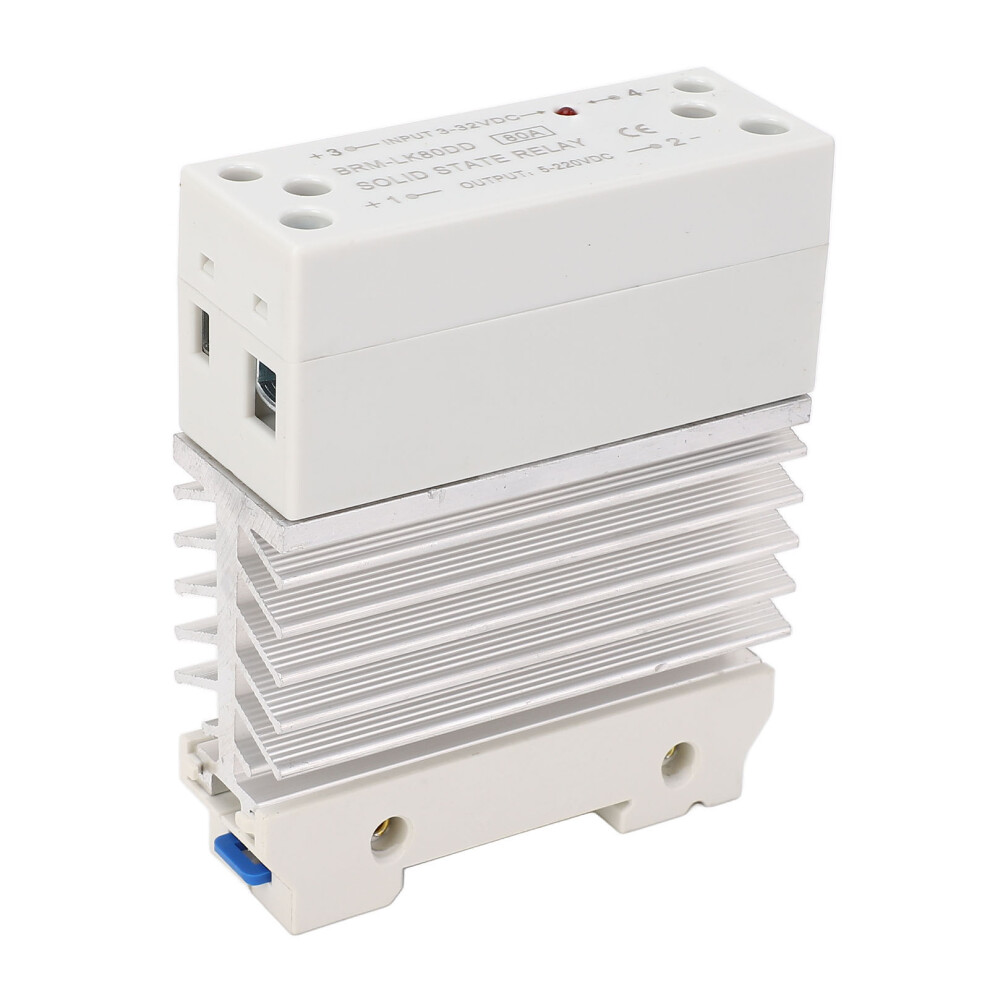

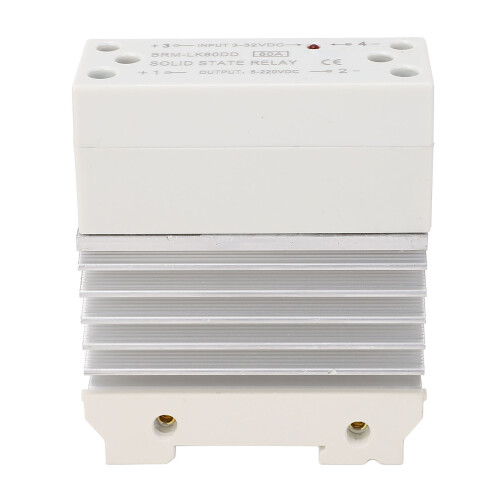

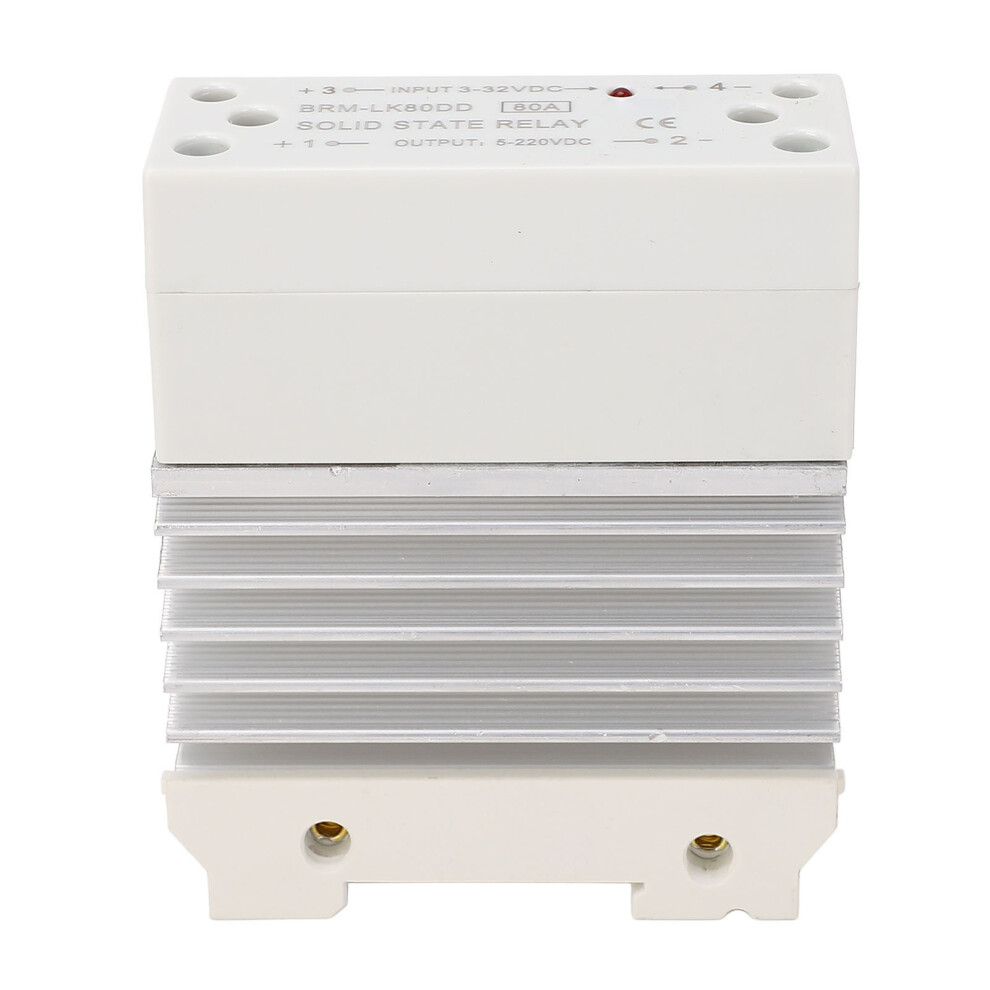

80A 3-32VDC Input SSR 5-220VDC Output with Heatsink

80A 3-32VDC Input SSR 5-220VDC Output with Heatsink Description

1、[DC to DC SSR] This solid state relay adopts DC to DC control method, inputs 3 to 32VDC, outputs 5 to 220VDC, supports 80A load current. 2、[Reliable Performance] This solid state relay features low input power consumption, high sensitivity, excellent electromagnetic compatibility, and minimal noise. 3、[Premium Construction] Made of premium PP material, this solid state relay is resistant to damp and erosion, ensuring durability in harsh environments. 4、[Easy Installation] The SSR is designed for standard 35mm rail mounting, with bottom mounted rail fastening buckle for quick assembly and disassembly. 5、[Efficient Heat Dissipation] Equipped with a thickened aluminum heat sink, efficiently absorbs and dissipates heat, reducing thermal fatigue and extending the longevity of the equipment.
Item Type: Solid State Relay
Material: PP, Aluminum Alloy
Input Voltage: 3-32VDC
Output Voltage: 5-220VDC
Load Current: 80A
Control Method: DC to DC
Insulation Resistance: 1000M
On State Leakage Current: 2mA
On Off Time: 10ms
On State Voltage Drop: 1.5V
Operating Temperature: -30~70
1 x Solid State Relay
