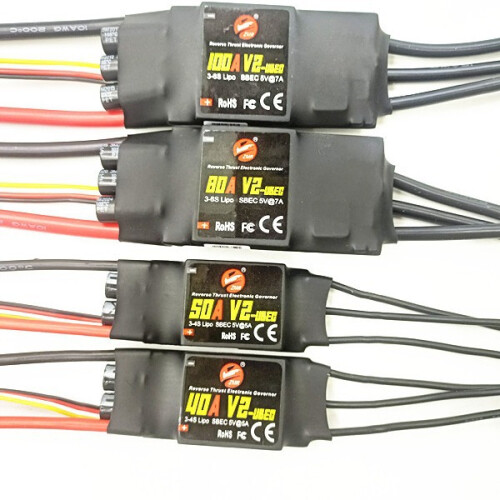

(80A) Bidirectional Brushless ESC 40/50/80/100A for Aeromodelling & Fixed Wing Models

(80A) Bidirectional Brushless ESC 40/50/80/100A for Aeromodelling & Fixed Wing Models Description

Features:

1. Safe power-up function: when the power is turned on, no matter the throttle] rocker is in any position, it will not start the motor immediately to avoid causing personal injury.

2. Throttle stroke adjustment function: adapt to the difference of throttle stroke of different remote controls, improve the linearity of throttle response.

3. Programme setting items (can be set by remote control throttle rocker or LED parameter setting card).

Brake setting: without brake/with brake; 3.

Battery type: lithium battery/nickel-metal hydride.

Low-voltage protection mode: soft shutdown/hard shutdown.

Low Voltage Protection Threshold:Low/Medium/High.

Starting mode: normal/soft/ultra soft start.

Input Angle:Low/Medium/High.

Restore factory defaults.

Comprehensive protection functions:

Under-voltage protection: set by user through the programme, when the battery voltage is lower than the protection threshold, the ESC will automatically reduce the output power;

Over-voltage protection: the input voltage exceeds the permissible input range without starting, automatic protection, and at the same time issued a sharp "beep" alarm tone;

Overheating protection: Built-in temperature detection circuit, ESC will shut down automatically when the temperature of MOS tube is too high.

Remote control signal loss protection: reduce the power after 1 second of remote control signal loss, and then no remote control signal for 2 seconds, then shut down the output.

Specification:

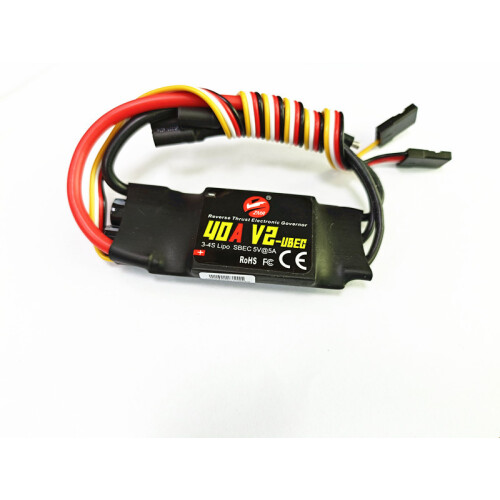

Continuous/peak current: 40A/60A

Battery Cells: 3-4S Lipo

BEC output: linear mode 5V,5A

Power cord: 14AWG Red-100mm*1 Black-100mm*1

Output cable: Black-16AWG-75mm*3

Power plug: no plug

Output plug: 3.5mm gold plug (female)

Remote Control: Support

LED Setting Card Adjustment: Support

LED programming box reference: not support

LCD programming box reference: not support

WIFI Express wireless module: not support

OTA Programmer: Not supported

Programming Interface: Independent programming line

Firmware Online Upgrade: Not Supported

Size: 60*25*8mm

Continuous/peak current: 50A/70A

Battery Cells: 3-4S Lipo

BEC output: linear mode 5V,5A

Power cord: 14AWG Red-100mm*1 Black-100mm*1

Output cable: Black-16AWG-75mm*3

Power plug: no plug

Output plug: 3.5mm gold plug (female)

Remote Control: Support

LED Setting Card Adjustment: Support

LED programming box reference: not support

LCD Programming Box Adjustment: Not Supported

WIFI Express Wireless Module: Not Supported

OTA Programmer: not support

Programming Interface: Independent programming line

Firmware Online Upgrade: Not Supported

Size: 60*25*8mm

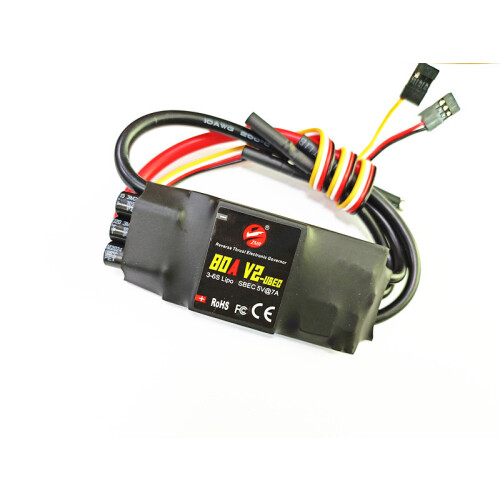

Continuous/peak current: 80A/100A

Battery Cells: 3-6S Lipo

BEC output: switch mode 5V,7A

Power cord: 12AWG Red-150mm*1 Black-150mm*1

Output cable: Black-14AWG-100mm*3

Power plug: no plug

Output plug: 4.0mm gold plug (female)

Remote Control: Support

LED Setting Card Adjustment: Not Supported

LED Programming Box Adjustment: Support

LCD Programming Box Adjustment: Not Supported

WIFI Express Wireless Module: Not Supported

OTA Programmer: not support

Programming Interface: Independent programming line

Firmware Online Upgrade: Not Supported

Size: 85*36*9mm

Continuous/peak current: 100A/120A

Battery Cells: 3-6S Lipo

BEC output: switch mode 5V,7A

Power cord: 10AWG Red-150mm*1 Black-150mm*1

Output cable: Black-12AWG-100mm*3

Power plug: no plug

Output plug: 4.0mm gold plug (female)

Remote control: Support

LED Setting Card Adjustment: Not Supported

LED Programming Box Adjustment: Support

LCD Programming Box Adjustment: Not Supported

WIFI Express Wireless Module: Not Supported

OTA Programmer: Not supported

Programming Interface: Independent programming line

Firmware Online Upgrade: Not Supported

Size: 85*36*9mm

Package Included:

1*Bidirectional ESC
