868MHz 1.54" E-Paper LoRa GPS RF Transceiver Module for Beidou

868MHz 1.54" E-Paper LoRa GPS RF Transceiver Module for Beidou Description

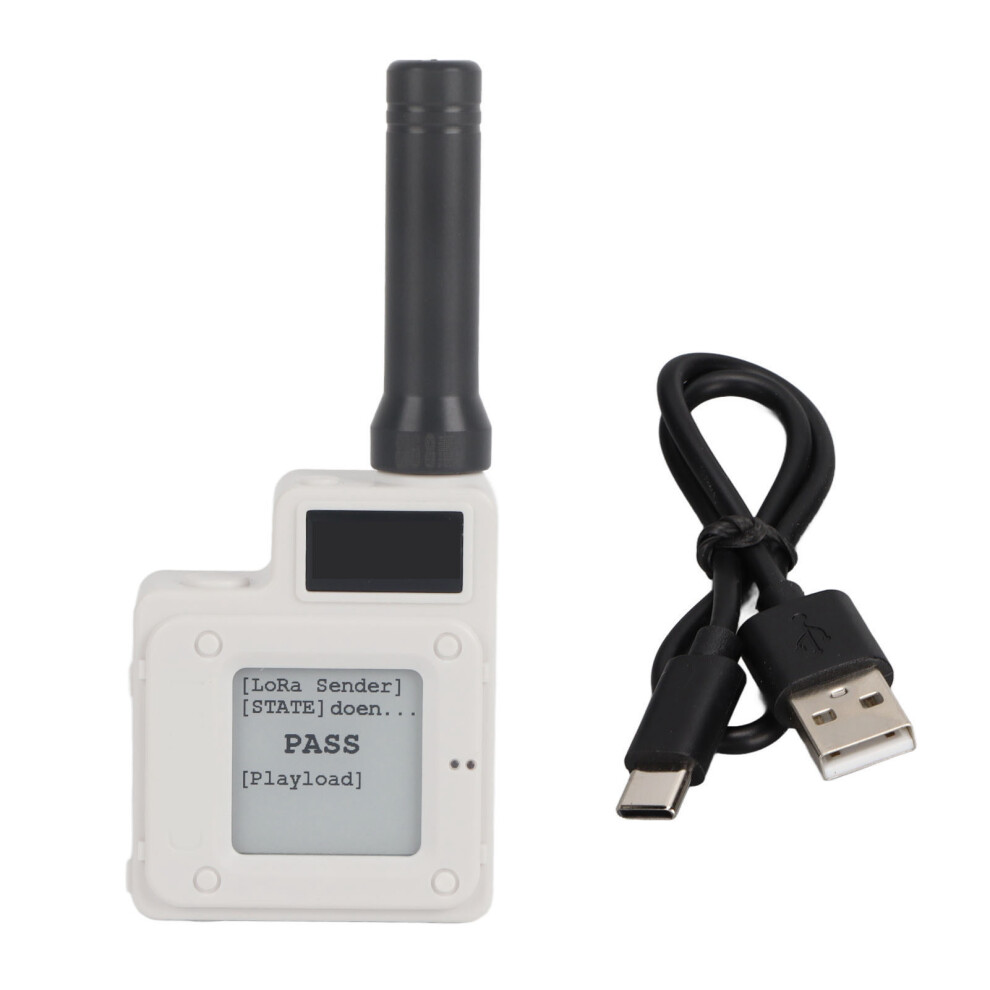

1、Receiving Distance: SX1262 LoRa transceiver supports ultra long distance, low power data transmission and reception, and only supports 868MHz. 2、1.54 inch Ultra Low Power Ink Screen: Partial refresh 03S, global refresh 2S. Resolution: 200200 Viewing angle: >170 without power saving display. 3、Concurrent GNSS Receiving Module: Supports 1PPS, AGNSS functions, and supports Beidou, GPS, GLONASS, QZSS and other multi satellite systems. 4、High Sensitivity: This 868MHz Module has a built in LNA, which can achieve high sensitivity, high accurate positioning and signal tracking. 5、Anti Interference: This 868MHz Module has a built in surface acoustic filter, which can greatly increase the anti interference ability of the module. Item Type: Transceiver Module Material: ABS MCU: NRF52840 FLASH: 2MB RAM: 256kB Communication Protocol: UART, SPI, TWI, PDM, 12S, QSPI Wireless Protocol: Bluetooth 5, Bluetooth Mesh, Thread, ANT, 802.15.4, for Zigbee Built In Li Battery Capacity: 850mAh (Inclusive) 1 x 868Mhz Transceiver Module 1 x Charging Cable 1 x Antenna
