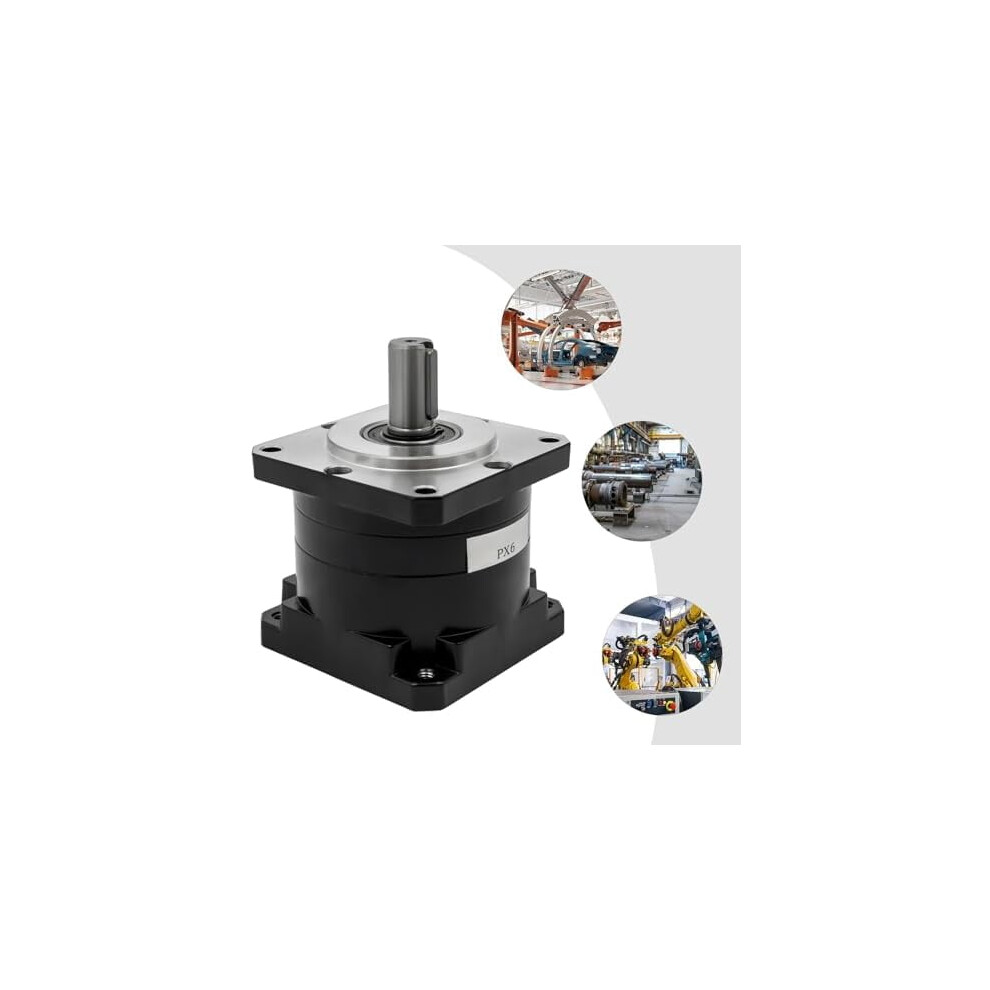

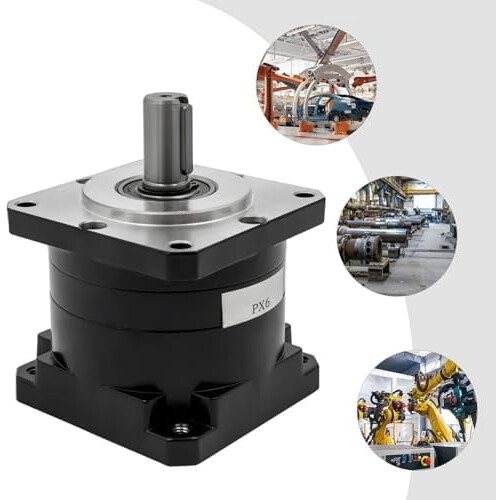

86mm Stepper Motor Planetary Gearbox 40Nm 6:1

86mm Stepper Motor Planetary Gearbox 40Nm 6:1 Description

SpecificationsMaterial: Cast Aluminum, 45#SteelProcess: HobbingColor: BlackStyle: ModernAssembly Required: NoInstallation Form: VerticalGear Type: Cylindrical Gear ReducerInput Speed: 100-3000rpmOutput Speed: 16-500rpmMax. Holding Torque: 40N·m Reduction Ratio: 6:1Operating Noise: 70dBInput Hole Spacing: 69.6mm/2.74inOutput Hole Spacing: 70mm/2.76inProduct Size: 8.6*8.6*11.1cm/ 3.39*3.39*4.37in Package Size: 11*11.5*13cm/4.33*4.53*5.12inGross Weight: 1.8kg/3.97 lbsNet Weight: 1.76kg/3.88 lbsPackage Included1* 86 Stepper Motor Reducer Gearbox Other Accessories Required for Installation Notes1.Please note that the output shaft is not recommended to be disassembled by non-professionals.2.Please note that the gear reducer output shaft-mounted fittings shall not be knocked downward with force to avoid excessive up-and-down tampering. When installing the circular gearbox, the length of the mounting screws should be controlled, and the screws screwed in too long will damage the internal structural parts of the box.3.Please note that the reducer must not be rotated directly on the output, which may cause internal gear breakage.4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order. High-quality Material: The gearbox is made of high-quality cast aluminum and 45 # steel and processed by hobbing, which is wear-resistant, impact-resistant, protecting the internal parts well and ensuring longer service life High Efficiency: It adopts an efficient gear meshing design, low friction bearings and compact internal machinery to improve transmission efficiency Excellent Performance: Its input shaft and sun gear adopt an integrated structure, which provides higher accuracy and concentricity and withstands greater torque, thus providing greater accuracy and stability Space-saving: Its compact design and lightweight(3.88 lbs) allow it to be installed on machines that have limited space for a gearbox, making it particularly suitable for integration into small automation equipment High Compatibility: The bottom standard interface makes it easy to connect with stepper motors, simplifying the installation process and shortening the equipment commissioning time
