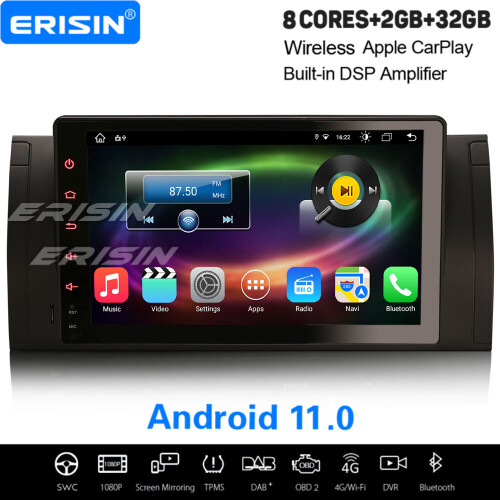

9" 8-Core Android 11 Car Stereo BMW X5 E53 5 Series E39 M5 DAB+ Satnav 32GB CarPlay TPMS Bluetooth

9" 8-Core Android 11 Car Stereo BMW X5 E53 5 Series E39 M5 DAB+ Satnav 32GB CarPlay TPMS Bluetooth Description

Key Features:

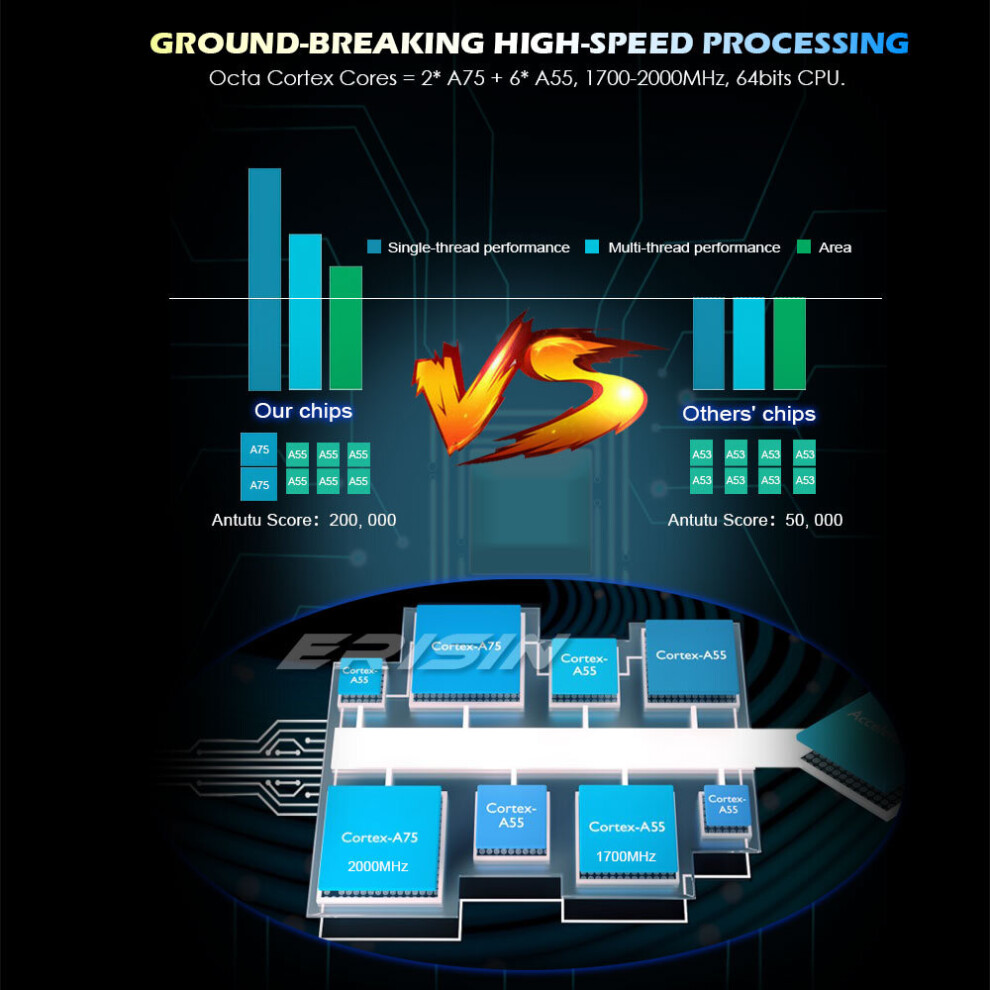

- Android 11.0 OS, Octa Core, 2*A75+6*A55 64-bit 2000MHz CPU Architecture, benchmark scores does go above 200000
- 2GB RAM and 32GB ROM, 3 USB up to 3*128GB extended Storage.

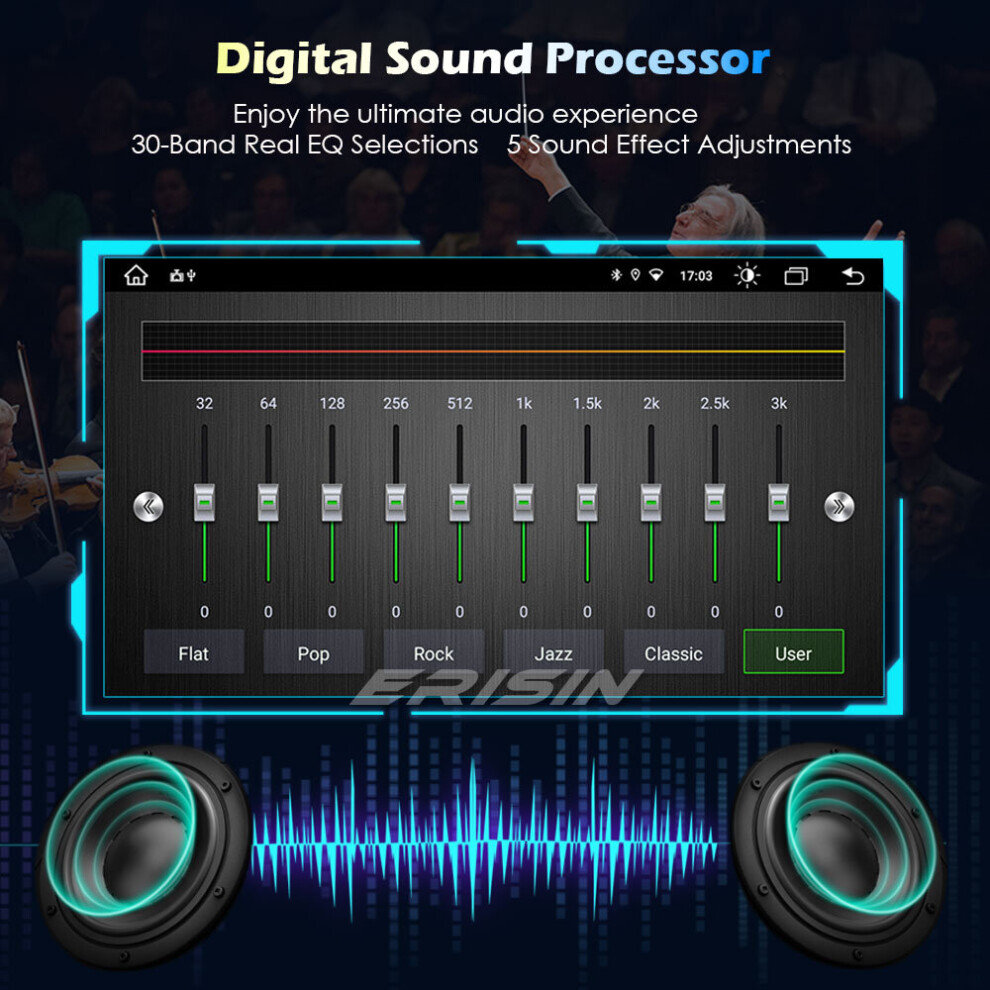

- Built-in DSP Amplifier System, which bring the perfect sound effect in your car.
- Built-in Wireless Apple CarPlay and Wired Android Auto module, you don't need to use another adapter, just
  just connect your iPhone to this unit via Bluetooth to use the CarPlay function, or connect your Android
  phone to this unit via USB to use the Android Auto function.
- Built-in Bluetooth module, which supports hands-free function with A2DP Audio Streaming.
- Built-in GPS Module, which supports offline GPS Navigation, GPS function ready to use.
- Built-in Dual Band WiFi Module for Internet, support 2.4GHz and 5GHz WiFi networking, go online faster.
- Built-in 4G Module for Internet, support 99% of carriers in the word, support micro SIM card.
- Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB.
- Built-in USB, Radio, RDS, WiFi, Clock, Calendar, Chrome, Adobe Reader.
- Support DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN etc. extended functions.
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving, Canbus decoder included.
- Support panel light colors adjustment, many RGB-colors can be chosen

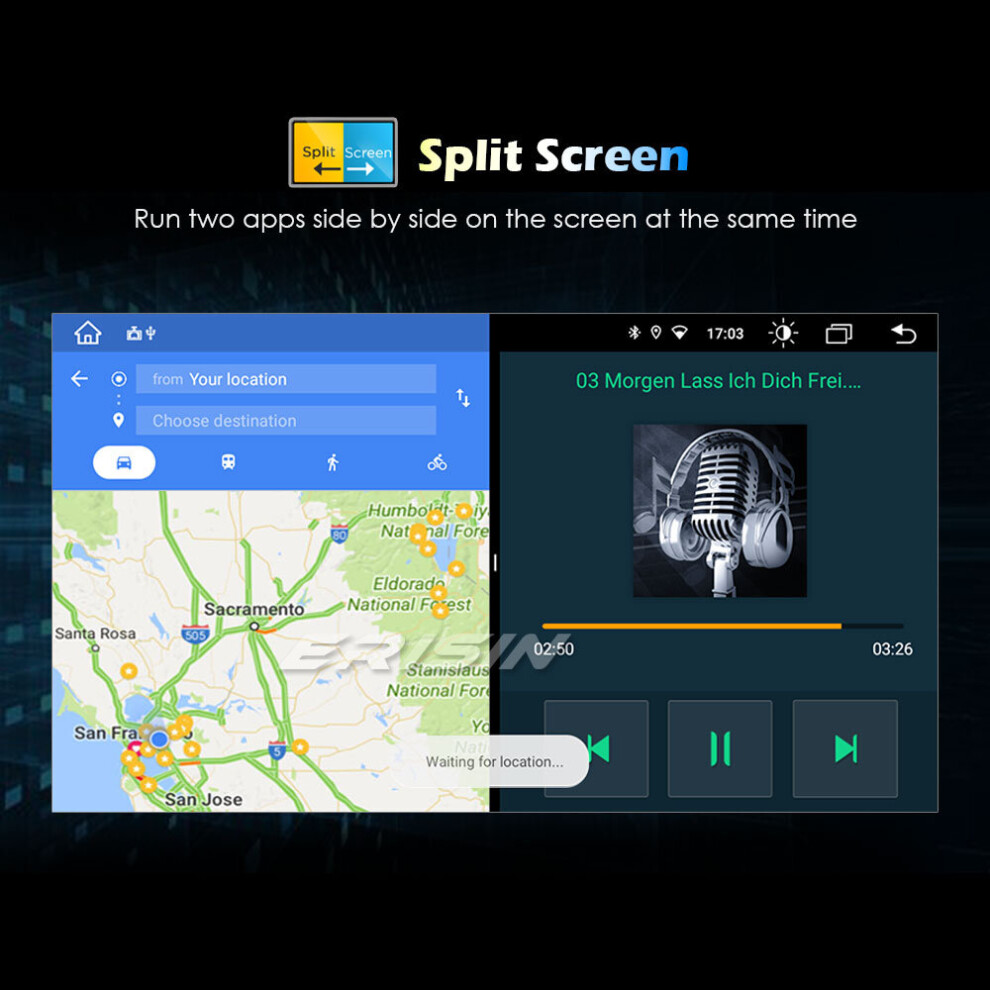

- Support Split Screen, you can run two apps side by side.

Compatible Models & Years:

BMW 5 Series E39 1996 to 2001 with Old 17-Pin connector
BMW 5 Series E39 2002 to 2003 with New 40-Pin connector
BMW X5 E53 2000 to 2001 with Old 17-Pin connector
BMW X5 E53 2002 to 2007 with New 40-Pin connector
BMW M5 1996 to 2003 with Old 17-Pin or New 40-Pin connector

Important Note:

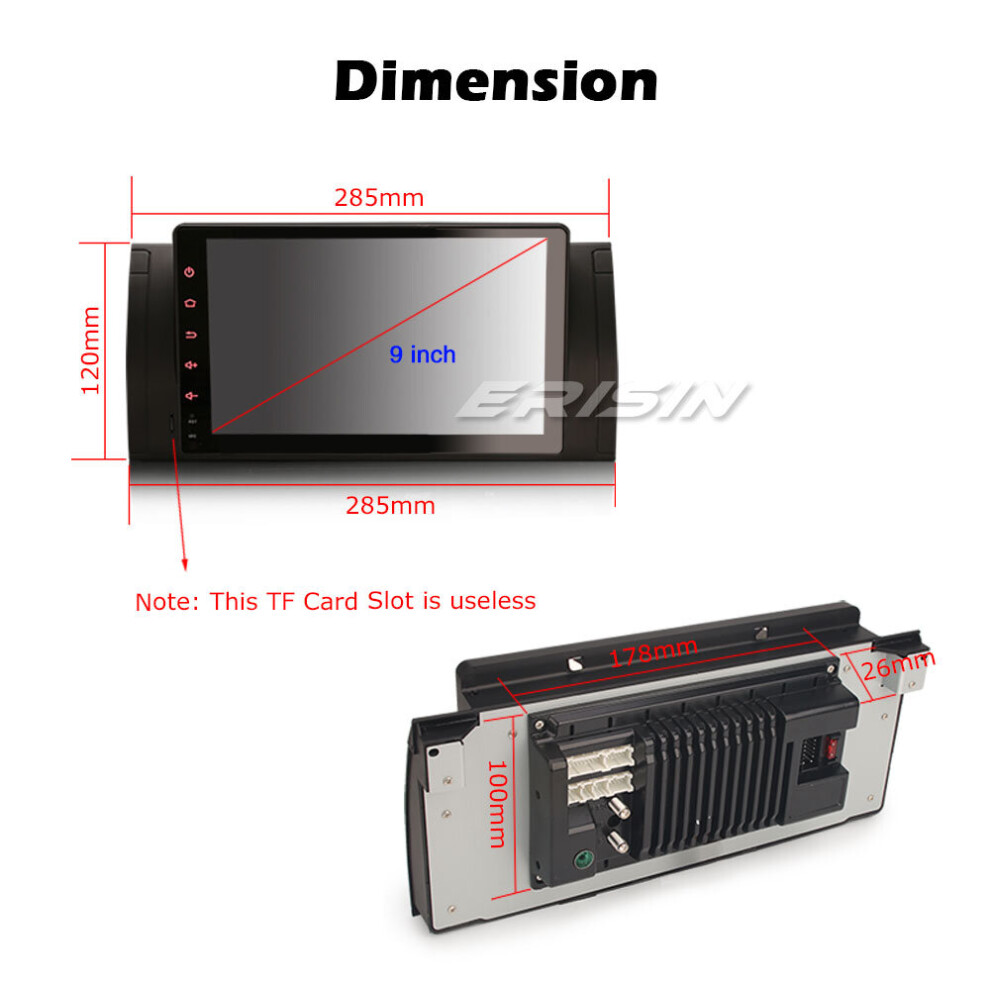

This unit has front panel size 285mm(Top width)*120mm(High)*285mm(Bottom width). To make sure the item fits your car, please check the shape and dimensions of your original car Media Player which is the same as the description in our listing before bidding.

ES8693B 9" Octa-Core Android 11.0 Car Multimedia CarPlay & Auto GPS TPMS/DVR/DTV/DAB-IN...

  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 9 inch
- Front panel Size: 285mm(Top width)*120mm(High)*285mm(Bottom width)
- Package Size: 320mm*180mm*140mm
- Shipping Weight: 2.0kg

  System
- Operation System: Google Android 11.0
- CPU: MT8667 2000MHz 64-bit Cortex 2* A75 + 6* A55
- RAM: 2GB
- Internal Memory: 32GB
- Extended Card/USB: Support USB Stick up to 128GB

  Display
- Screen Type: Multi-touch screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time

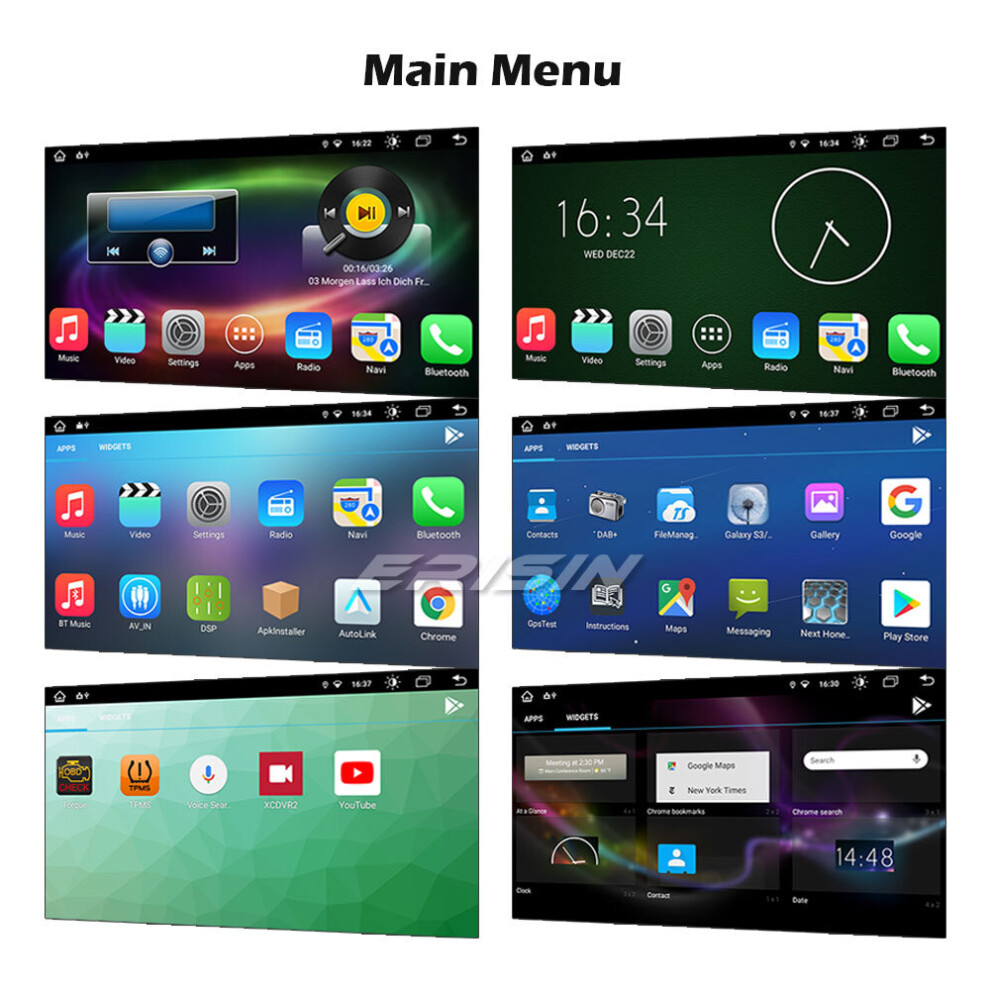

- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 3 live wallpapers, 15 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes

  Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot, support 2.4GHz and 5.0GHz Dual Band WiFi networking.
- 3G/4G Internet: Built-in 4G Module, support 99% of carriers in the word, support micro SIM card.
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: TDA7851, Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)

  GPS
- Operation System: Android 11.0
- Support Maps: IGO, Sygic, Waze maps for Android 11.0
- Support offline navigation: Yes, ready to use.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps

  Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back

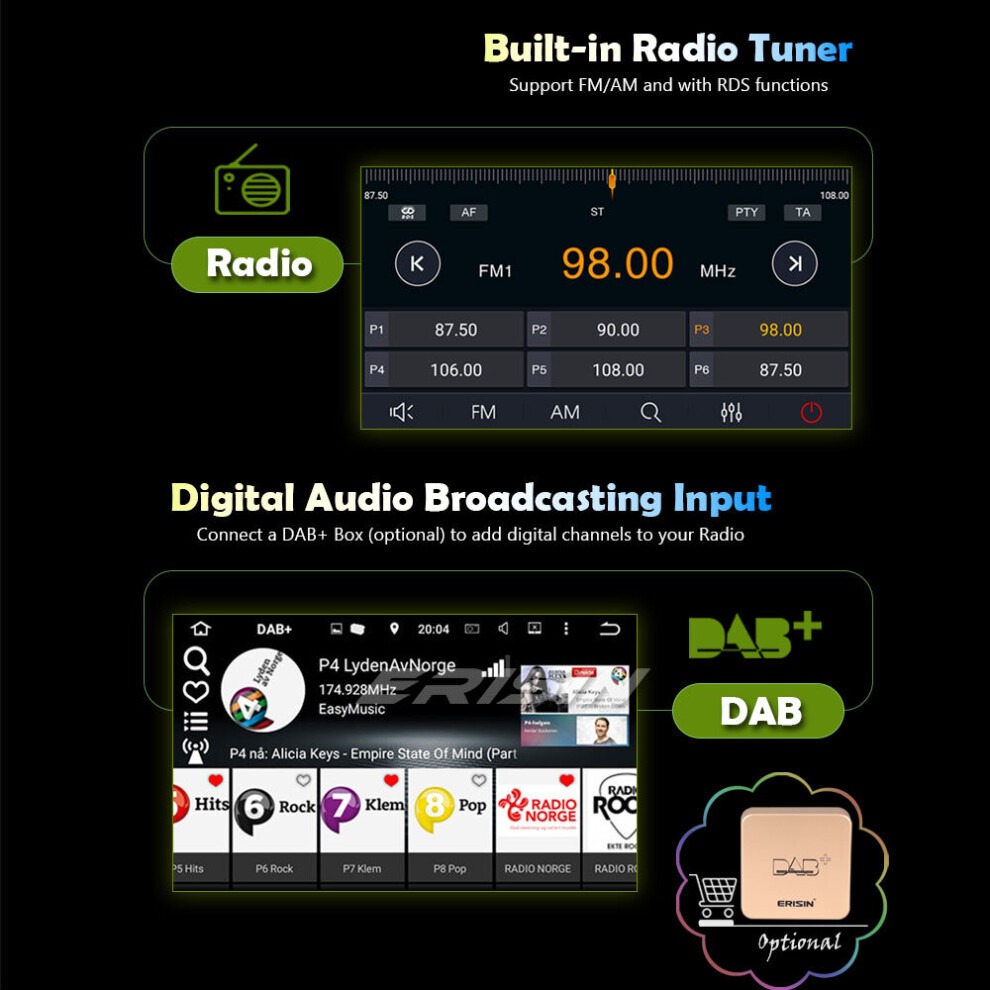

  Radio
- Main Chips: TDA7708
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)

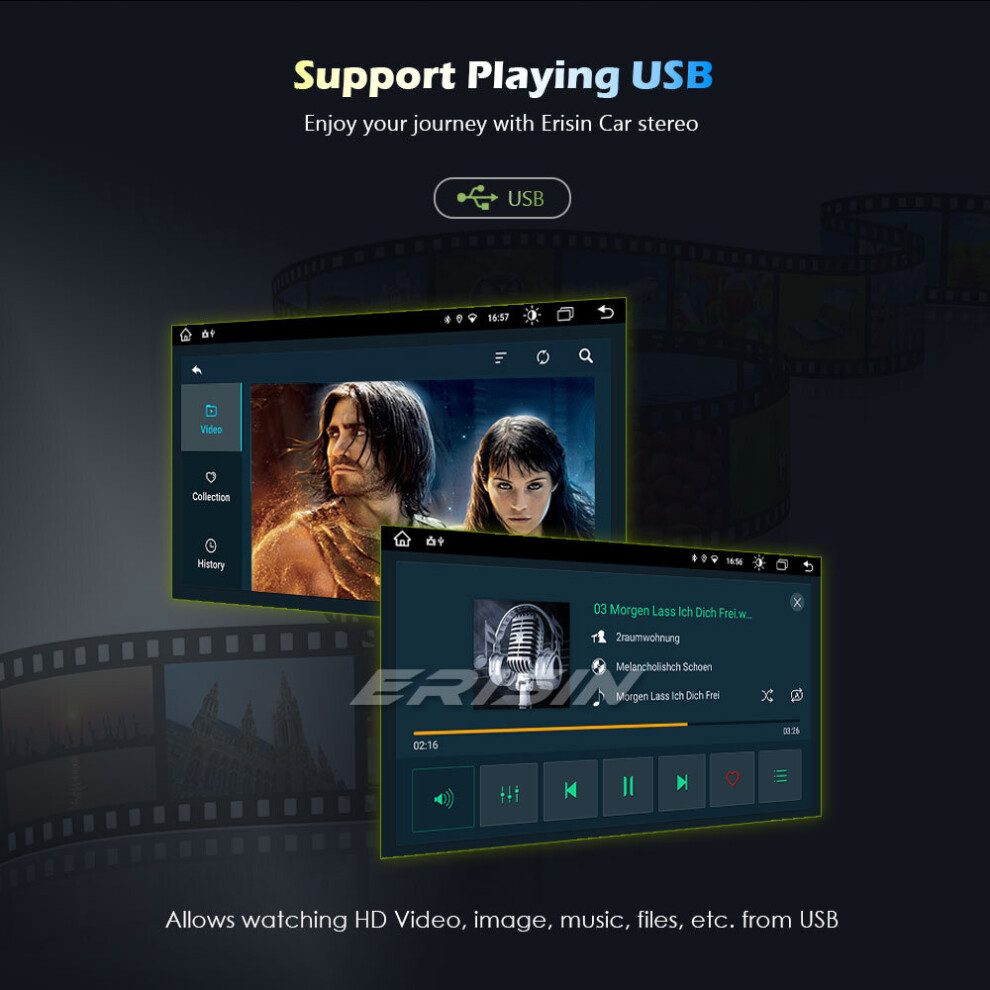

  USB
- Position: 3 USB Port On the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

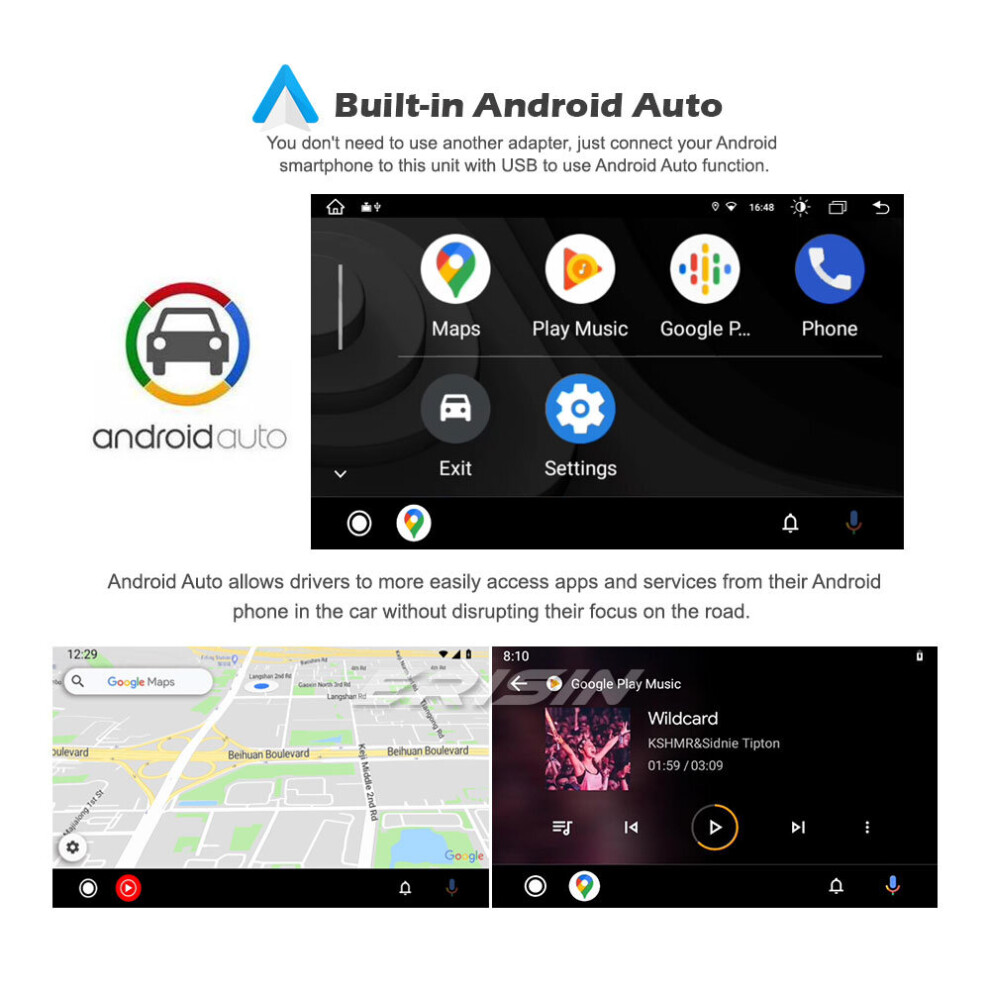

  Android Auto
- Built-in Android Auto: Yes, just connect your smartphone to this unit with USB to use this function
- Connection Port: USB
- Support Device: Android Smartphone with Android 5.0 and above
- Support Wireless connecting: No
- Control the connected Android Phone on head unit: Yes

  CarPlay
- Built-in CarPlay: Yes, just connect your smartphone to this unit with Bluetooth to use this function
- Connection Port: Bluetooth
- Support Device: iPhone iOS 7.1 and above
- Support Wireless connecting: No
- Unit's Screen Control Phone: No, but you can download CarPlay supported function APK to use and control

  Car DVR
- Built-in DVR App: Yes, just connect a USB DVR Camera to use this function
- Connection Port: USB
- Storing Position: TF Card in Camera
- Touch Control DVR-Camera on unit: Yes
- DVR-Camera incl.: No, you can contact us to buy it together

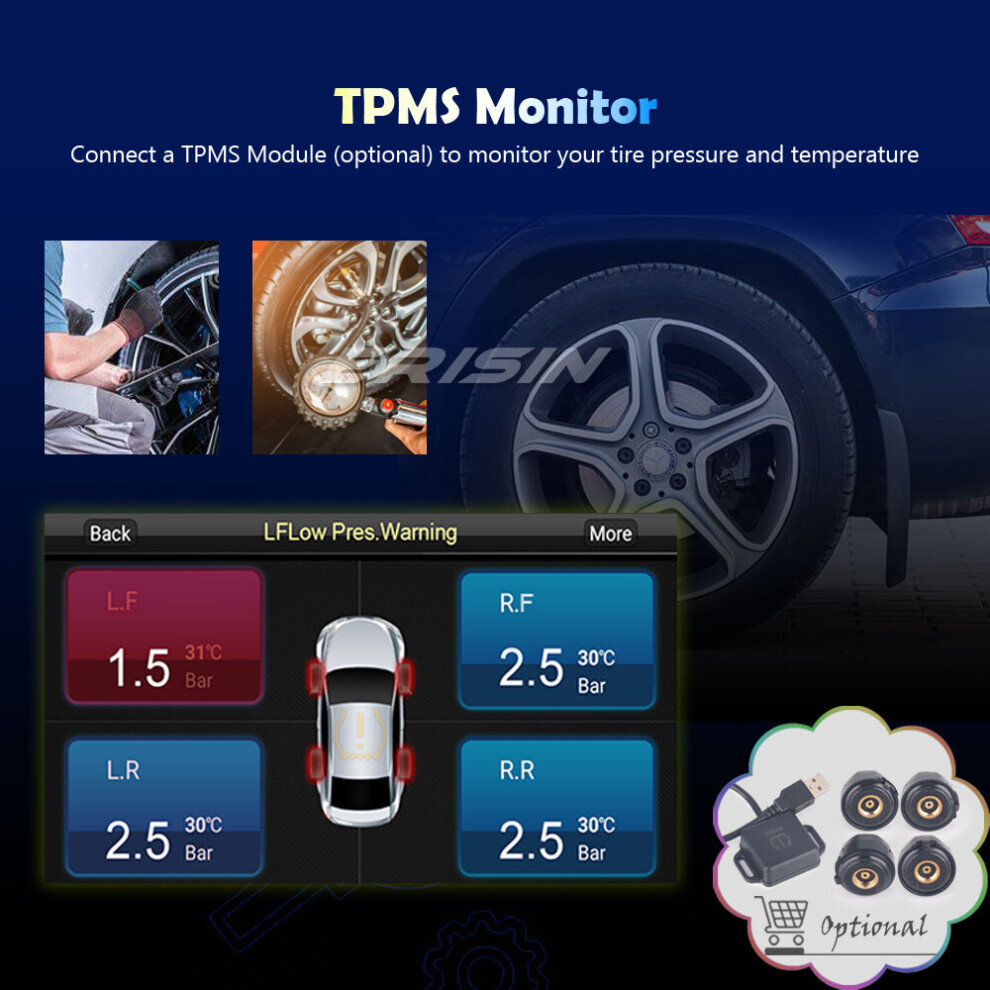

  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control TPMS Module on unit: Yes
- TPMS Module incl.: No, you can contact us to buy it together

  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes
- DAB+ Box incl.: No, you can contact us to buy it together

  AV-IN
- Built-in AV-IN App: Yes, Support external Audio & Video Input
- Connection Port: RCA
- Support DTV-IN: Yes, you can connect with a Digital TV Box (DVB-T/T2, ATSC, ISDB) to use

  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer

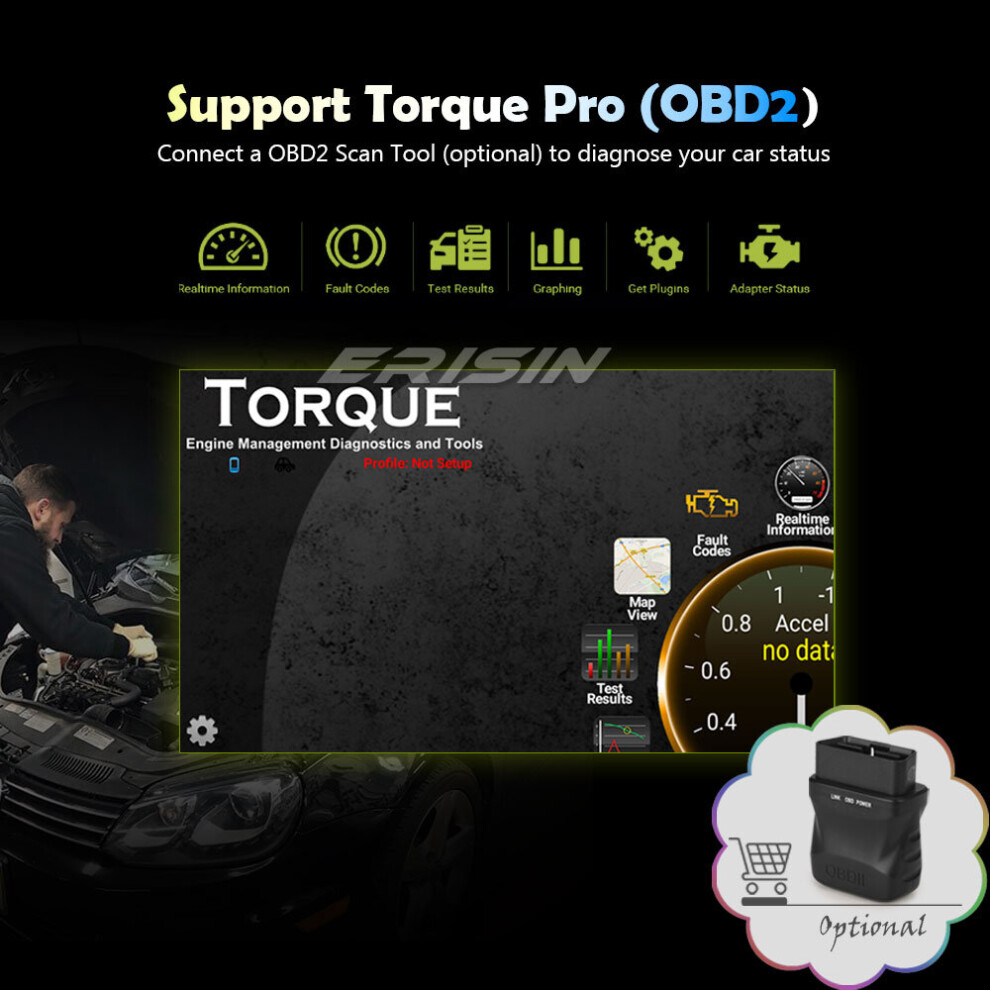

- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support steering wheel control
- Support change panel light colors, many RGB-colors can choose
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB

  Input
- AUX Video In: One

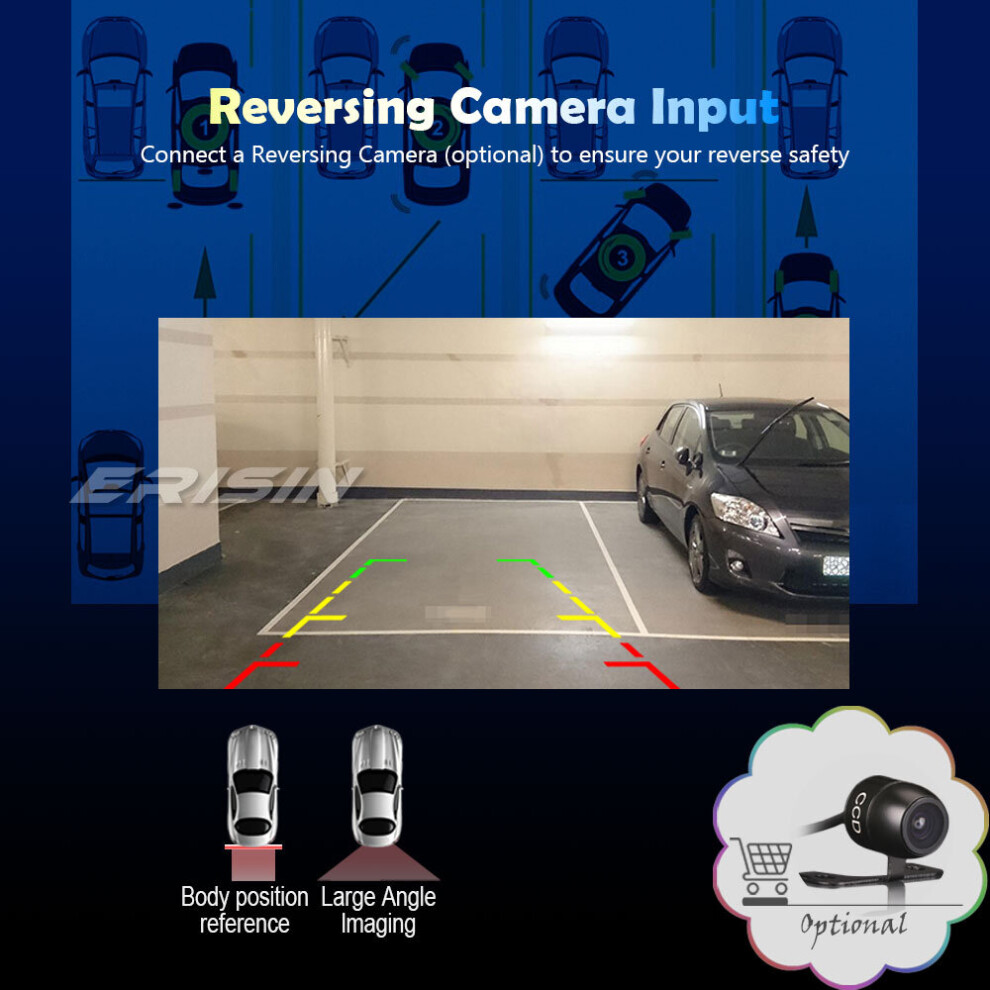

- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- CarPlay In: One
- TPMS Box In: One
- DAB+ Box In: One
- Car DVR In: One

  Output
- Video Out: Two
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

  Accessories
- 1*User's Manual in English
- 1*RCA AV Connecting Cable
- 1*RCA Audio Output Cable
- 1*Camera input and control cable
- 1*Power Cable with 40Pin Connector
- 1*Power Cable with 17Pin Connector
- 1*Special CanBus Decoder Box
- 1*Radio Antenna Adapter Cable
- 2*Rear USB Adapter Cables
- 1*4G Antenna
- 1*GPS Antenna
