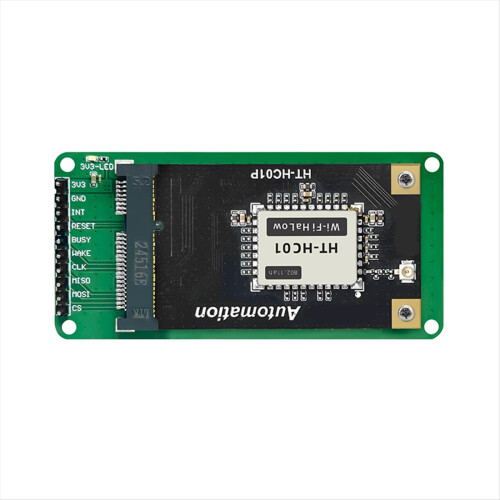

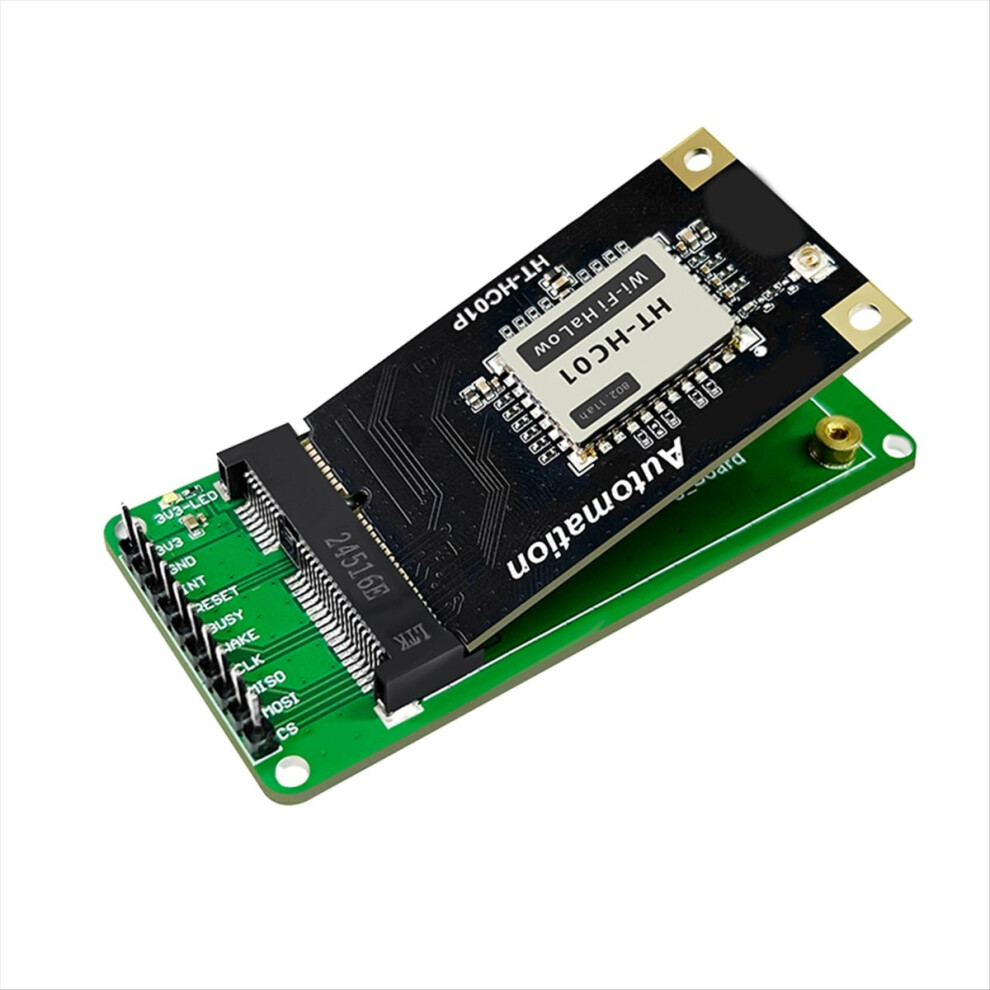

902-928mhz Wifi Halow Expansion Board Mini Pcie Mm

902-928mhz Wifi Halow Expansion Board Mini Pcie Mm Description

Long-range transmission, up to 1km or and further within the visual distance
Channel bandwidth options of 1/2/4/8 MHz
Support Sub-1 GHz frequency bands: 902~928 MHz
Max output power:21dBm
High data rate, single-stream max. data rate of 32.5 Mbps @ 8 MHz or 15 Mbps @ 4 MHz channel

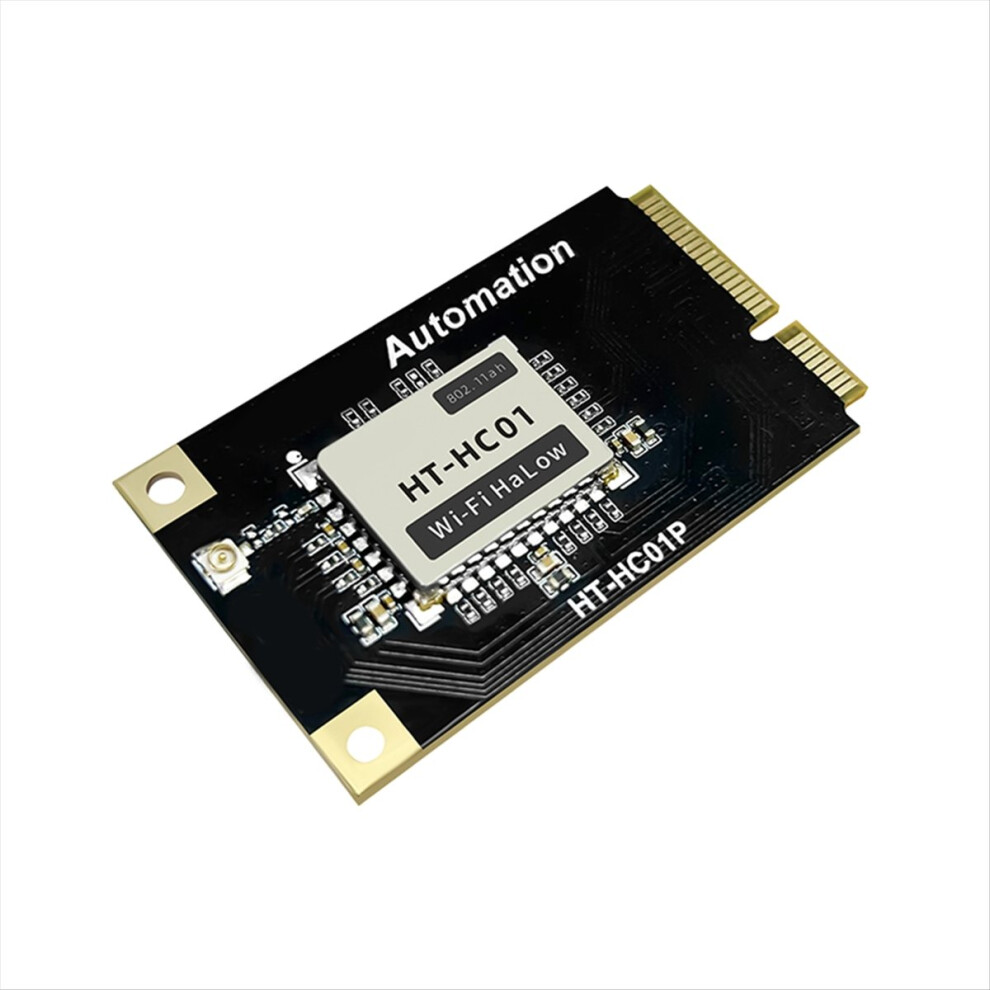

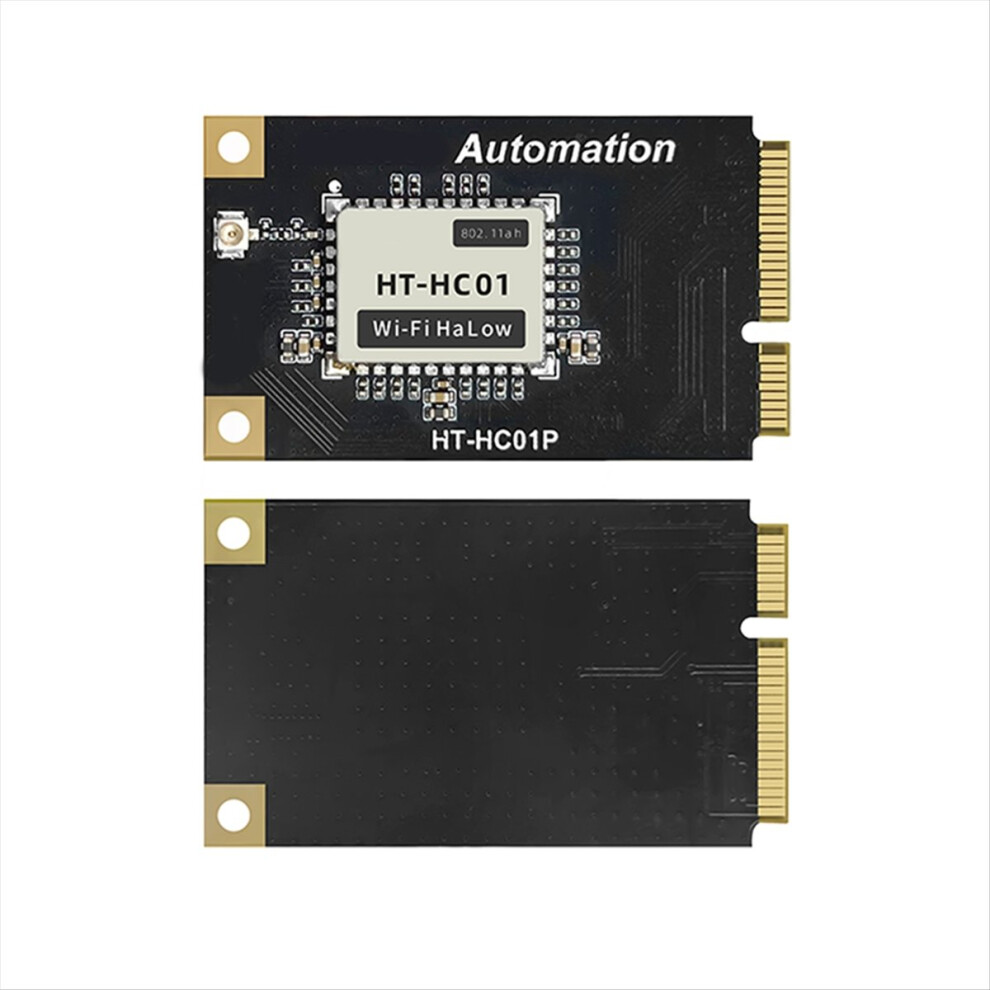

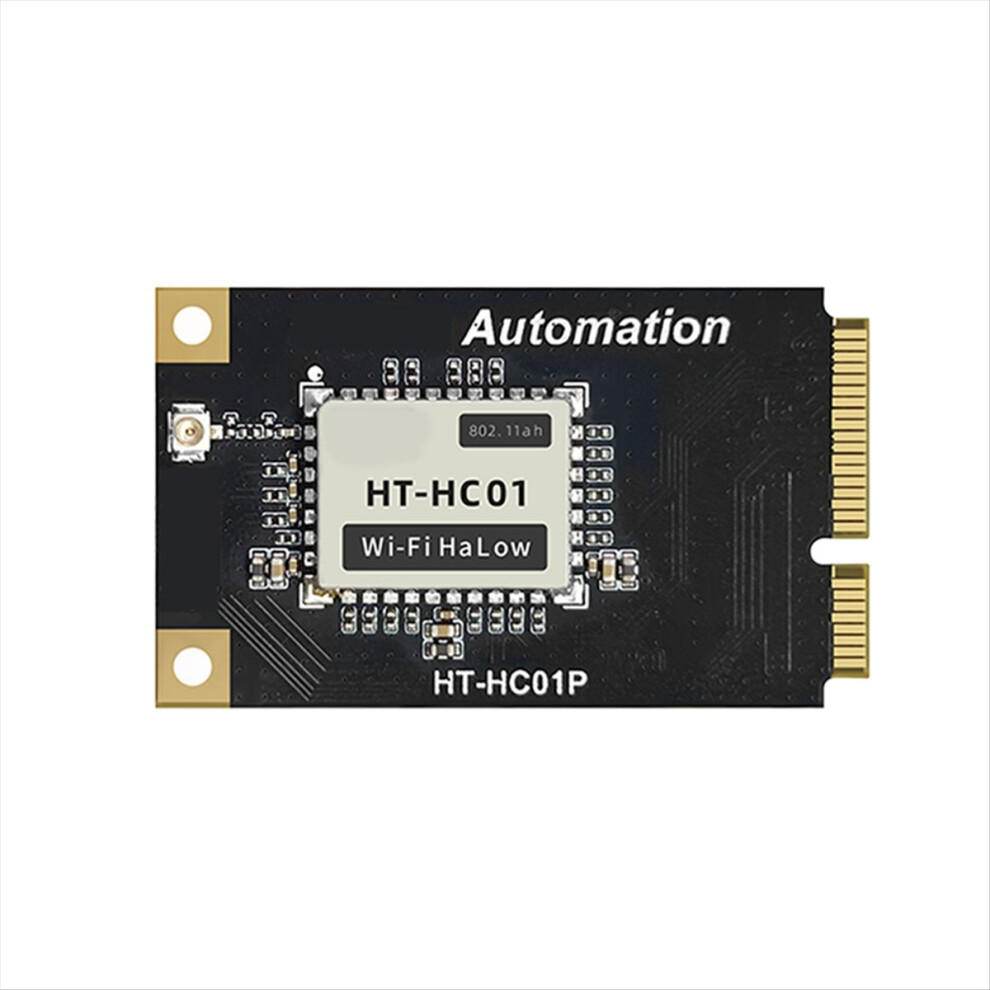

HC01P is a Wi-Fi HaLow module with mini PCIe interface, which operates in 902 - 928MHz, with maximum data rates of 32.5Mbps and up to 1-2km transmission range. It meets IEEE 802.11ah standard, which is specifically designed for battery-operated devices, allowing them to remain in longer sleep and idle states without frequent wake-ups. This significantly reduces power consumption and extends the device's battery life.
Specifications
Main Chip:MM6108IQ
Power Supply:3.3V
HaLow Standard:IEEE 802.11ah
Band Width:1/2/4/8MHz

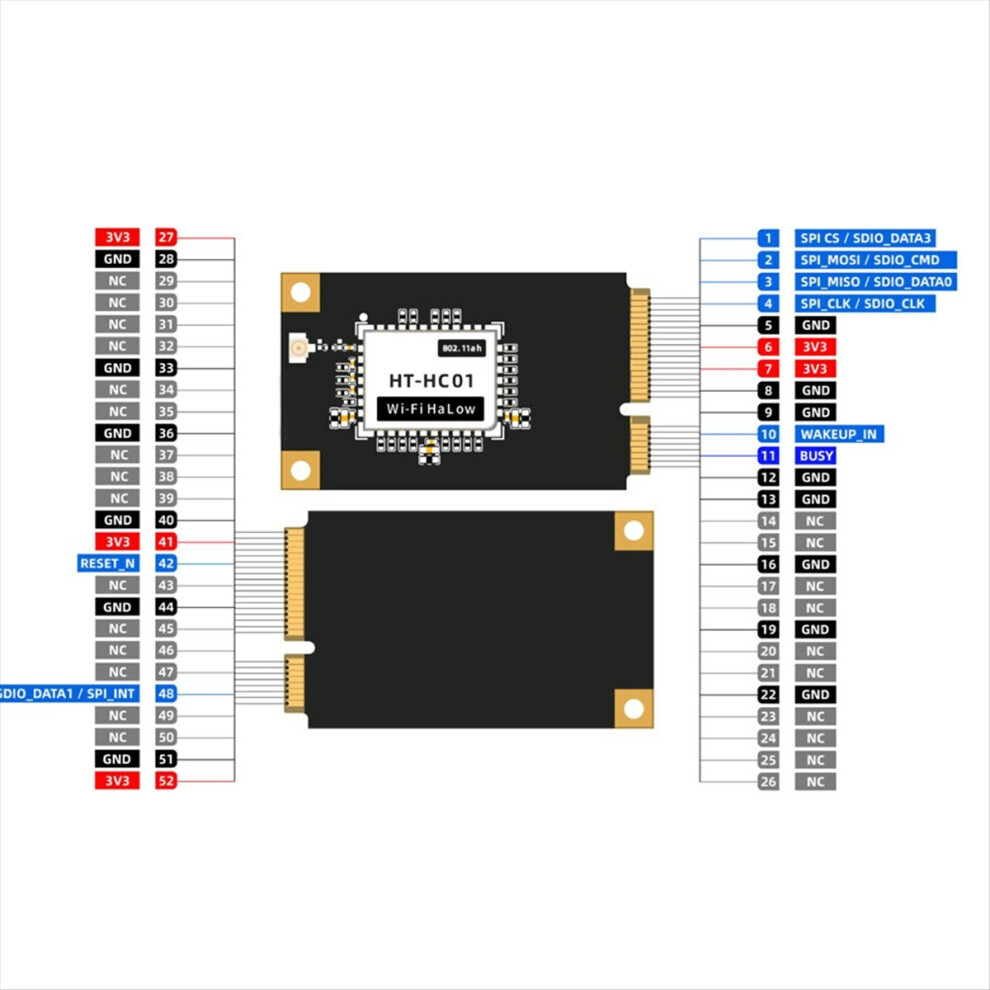

Interface:Mini PCIe
Operating temperature:-40 ~ 85
Operating humidity:10%~90%, no-condensing
Dimensions:50.95 x 30.00 x 3.75 mm
Max. Data Rate:32.5 Mbps
(The product appearance and printed words depending on the batch, but this does not affect use)
Color: As Shown
Material: PCB

Package Contents:
1 x Wifi Halow Module kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
