9.0F Car Power Capacitor DC12V High Performance Energy Storage

9.0F Car Power Capacitor DC12V High Performance Energy Storage Description

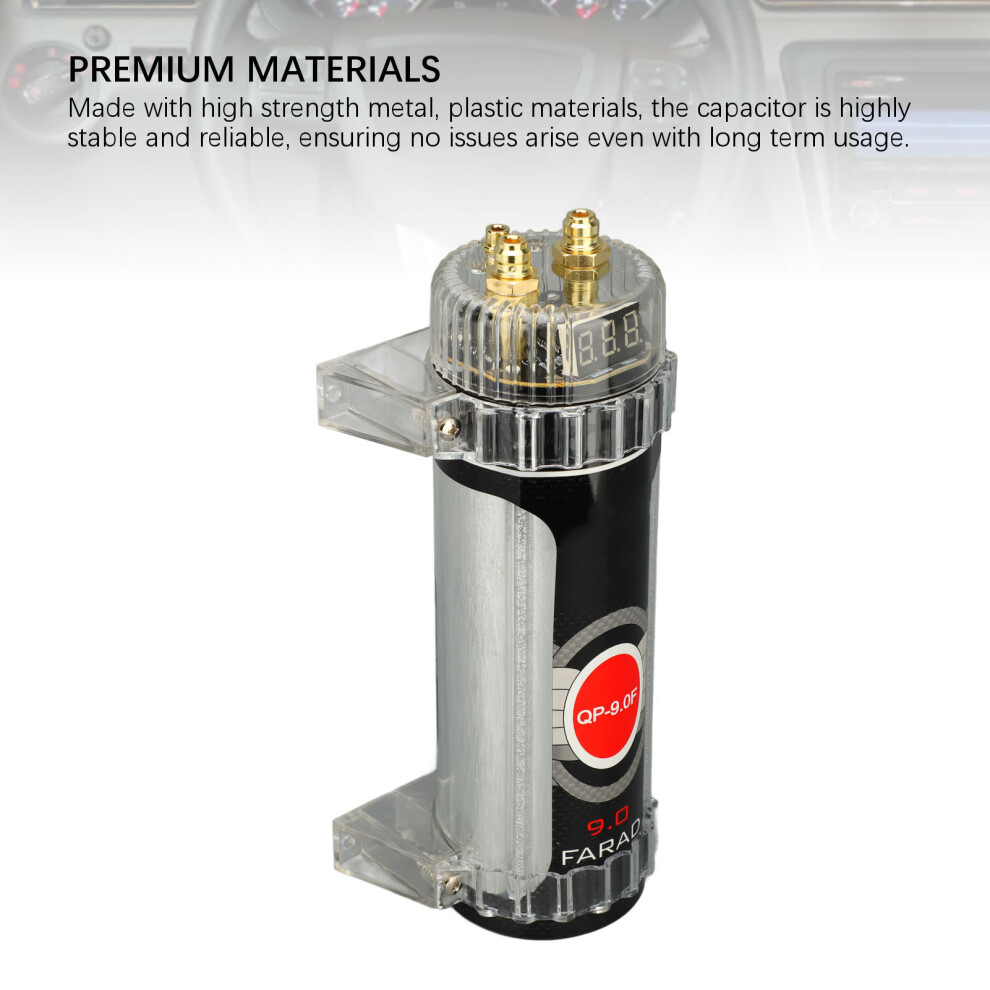

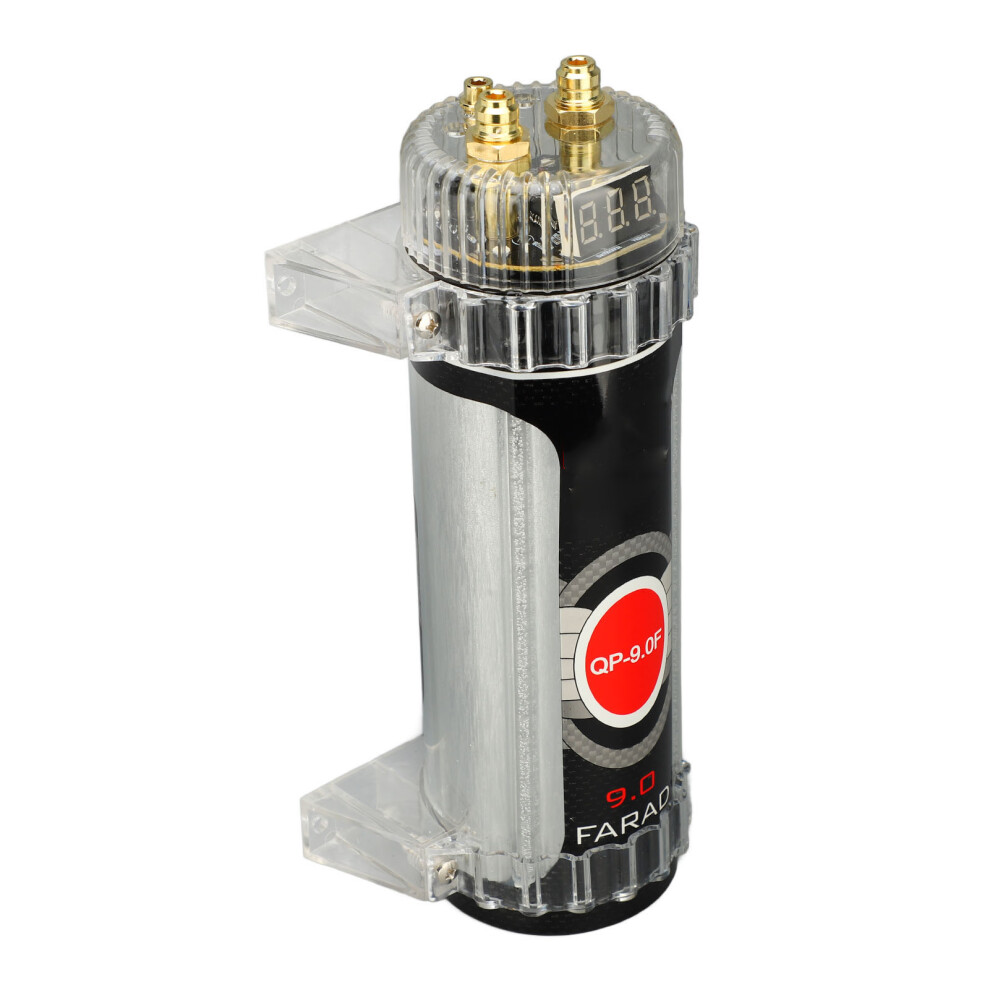

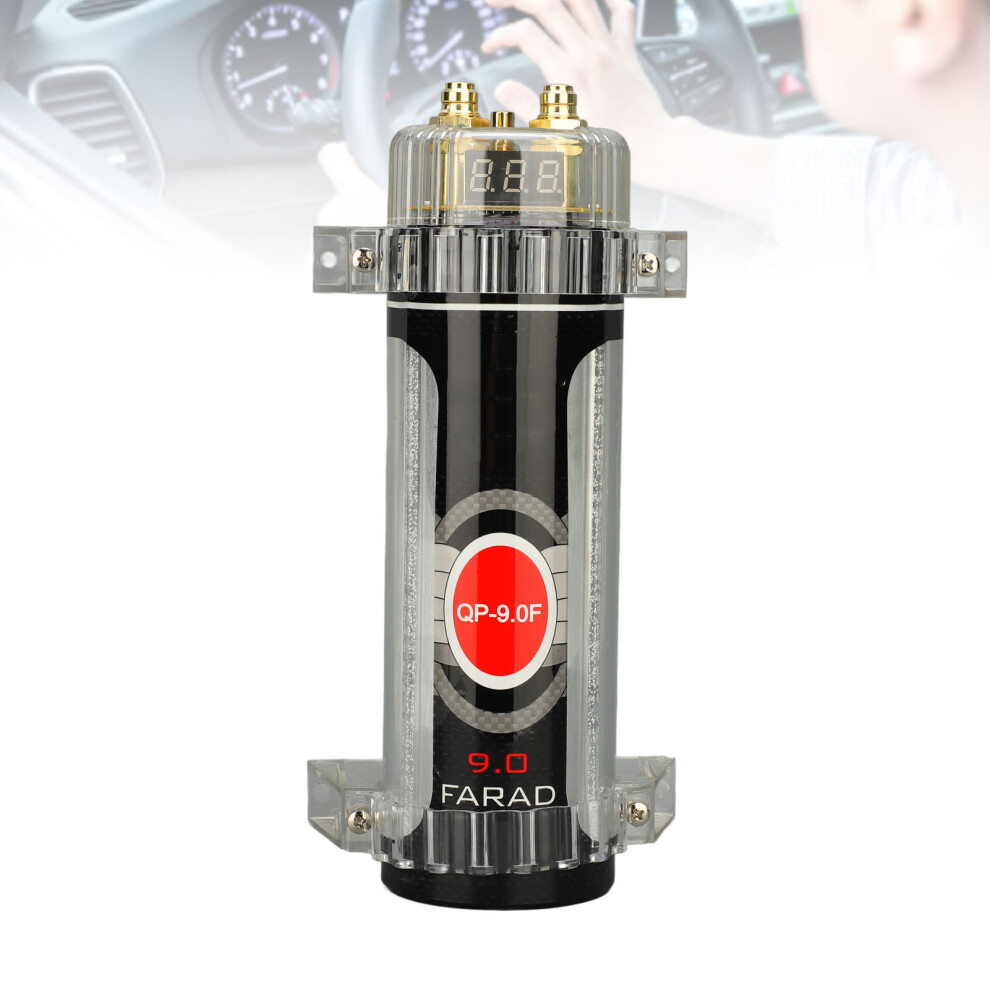

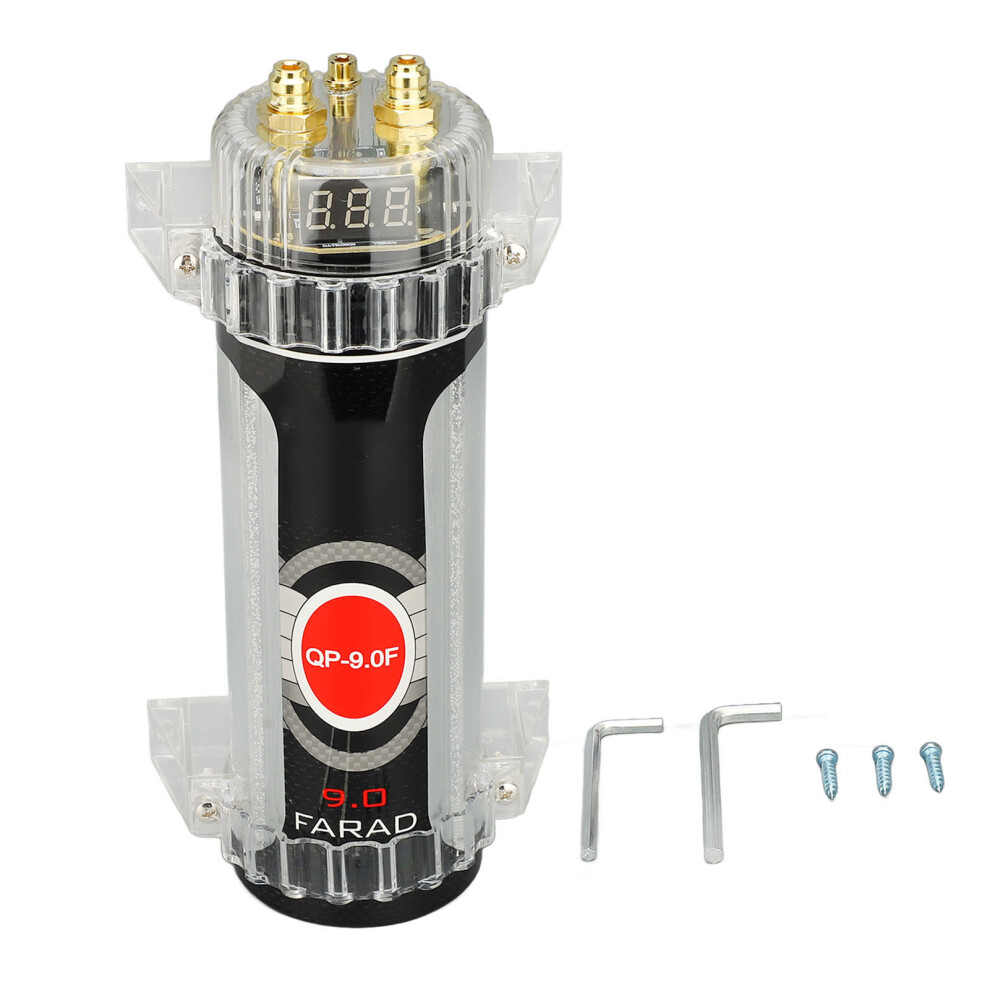

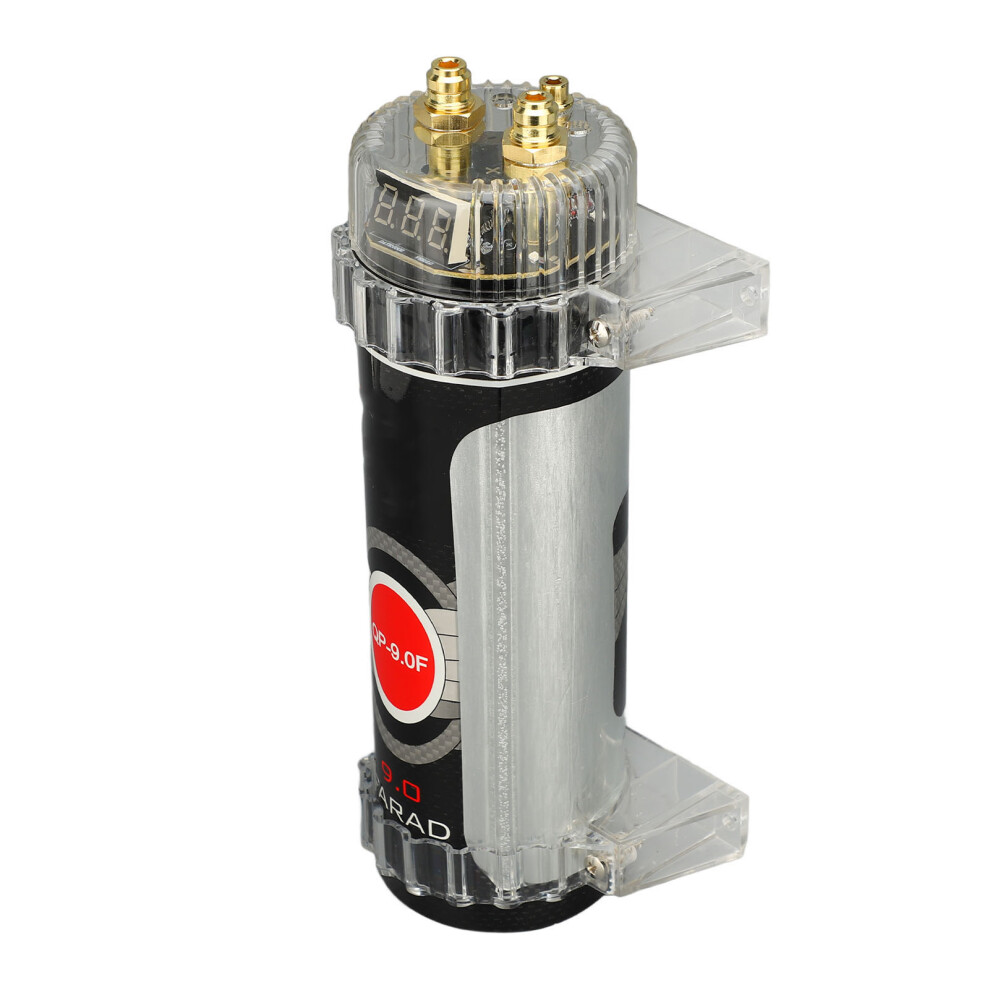

9.0 Farad Digital Power Capacitor High Performance Energy Storage Reinforcement Capacitor for Car Sound System DC12V
Item Type: Car Capacitor

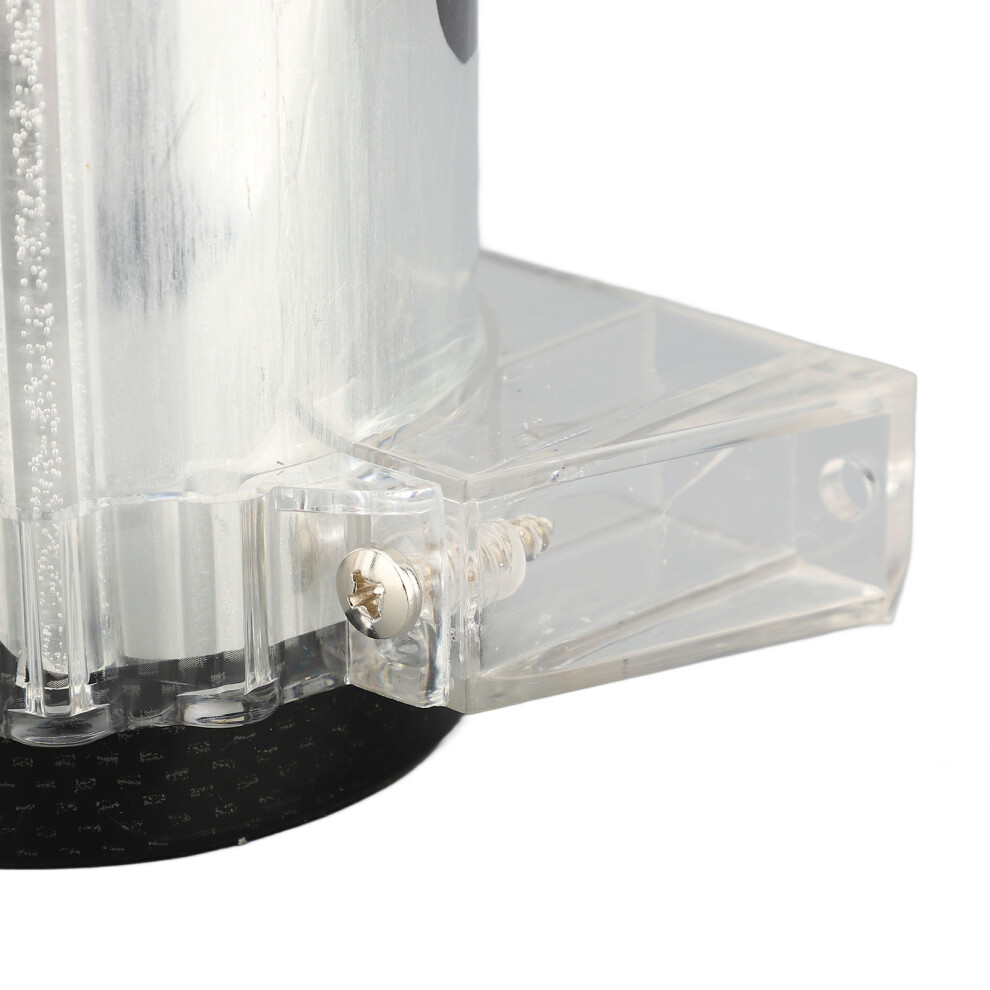

Material: Metal, Plastic
Operating Voltage: DC12V
Features: 9.0 Farad, Reverse Connection Guard

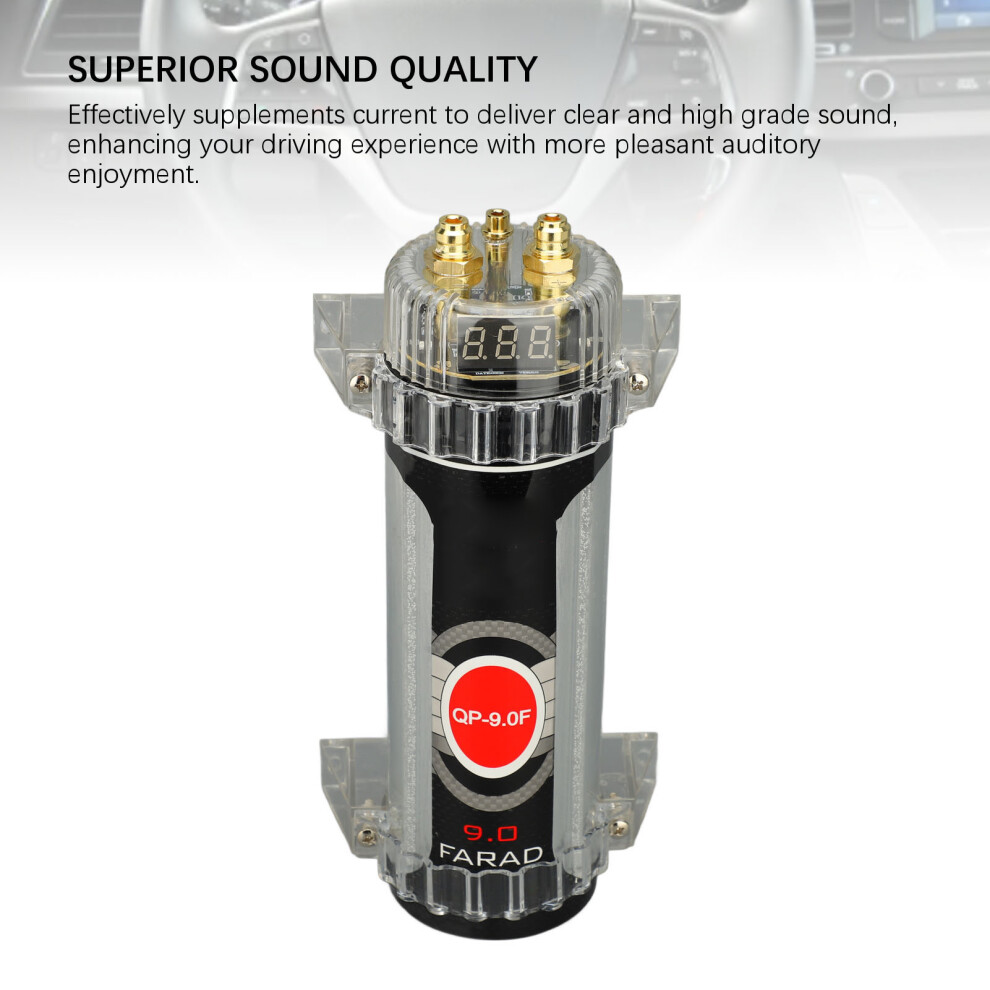

Application: Supplementing current in case of unstable vehicle voltage, ensuring stable output of amplifierInstallation Method:
1. For best results, the capacitor should be installed as close to the power amplifier as possible, using short power lines to connect. Install the capacitor in a place that is not easily accessible and to some extent isolates heat generated by the amplifier.
2. Keep the power lines as short as possible and use a dedicated wire distribution seat to connect the battery circuit. Do not install the fuse between the capacitor and power amplifier. Ensure appropriate fuses are used to protect the power supply line on the battery's main supply cable.

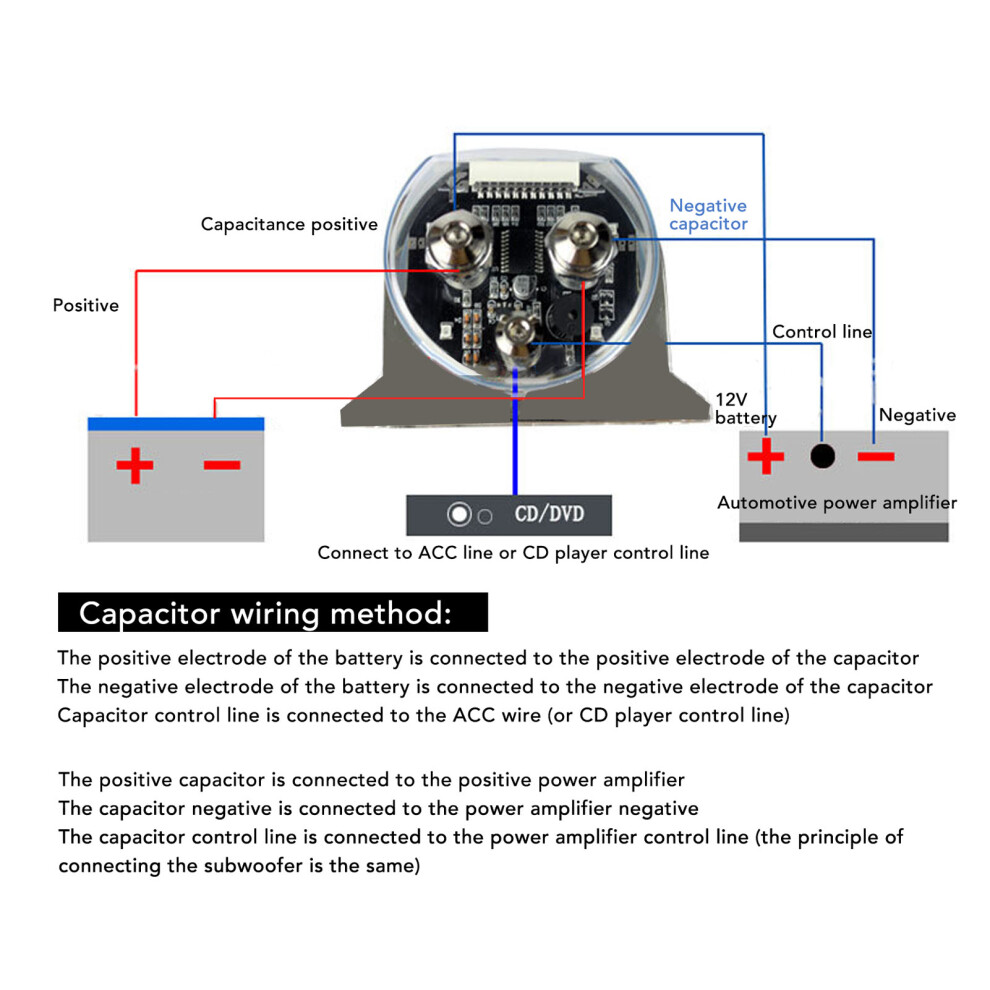

3. The negative connection of the capacitor should be as short as possible, directly connecting to the bare metal cable of the car chassis. Do not connect the negative terminal or negative wire of the power amplifier directly to the negative pole of the capacitor (see Fig.1).
4. The power line of the capacitor should have the same GA number as the power line of the power amplifier, using high-performance 8 or 10AWG OFC wire is recommended.
5. If the capacitor comes with a control line, use 18-20AWG main wire to connect the power amplifier's control line. Connect one end of the control line to the car sound's automatic antenna connector.
Charging Process and Display Function Instructions:
1. Connect the power line. First connect the negative, then connect the positive.

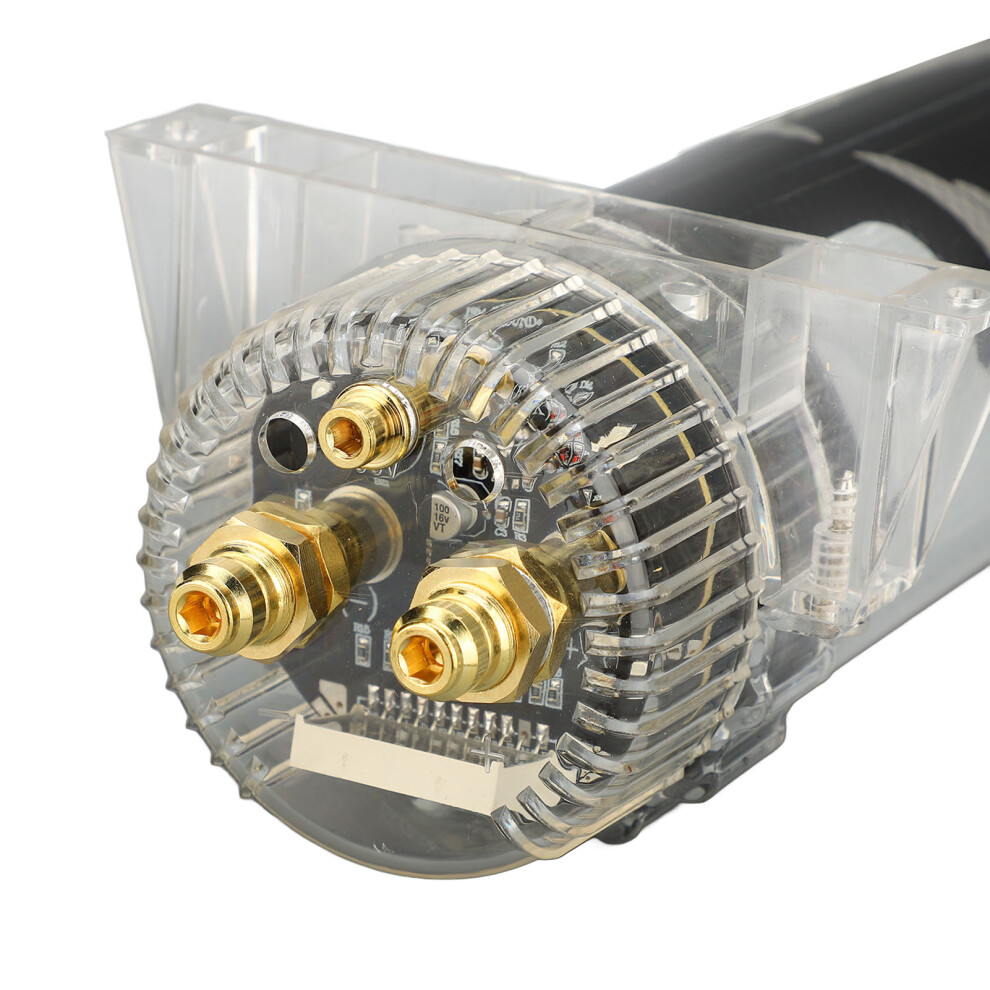

2. During the first charging process, the digital display circuit system will automatically turn on. The status light automatically lights up and the decimal point of the voltage flashes, which indicates that the system is charging the capacitor.
3. When the capacitor is fully charged, the decimal point display does not flash, and the digital tube displays the DC voltage of the car's charging system.
4. If the DC voltage change of the automotive electronic system exceeds +/-0.1A, the digital display circuit board will automatically start. (For example, the output voltage drops significantly due to the heavy bass playing by the car sound and video system or the use of some other high consumption electronic equipment).
5. If the DC voltage change of the automotive electronic system does not exceed +/-0.1A, the digital display board will remain in the original state for one minute to ensure that the automotive electronic system is stable, and then the digital display on the circuit board will automatically explode and the capacitor will enter the "standby" state.
6. When the DC voltage change of the automotive electronic system exceeds +/-0.1A, the capacitor will automatically work again, and the safety guard function is:
If the user is not careful to reverse the positive and negative terminals, it can damage the system, may also cause harm to the user, so we set up a relay in the circuit board, it can protect the capacitor in the case of incorrect wiring, so that the device can not start, and the buzzer to warn. The capacitor can only work properly if it is operated according to the instructions and all wires are connected correctly.
