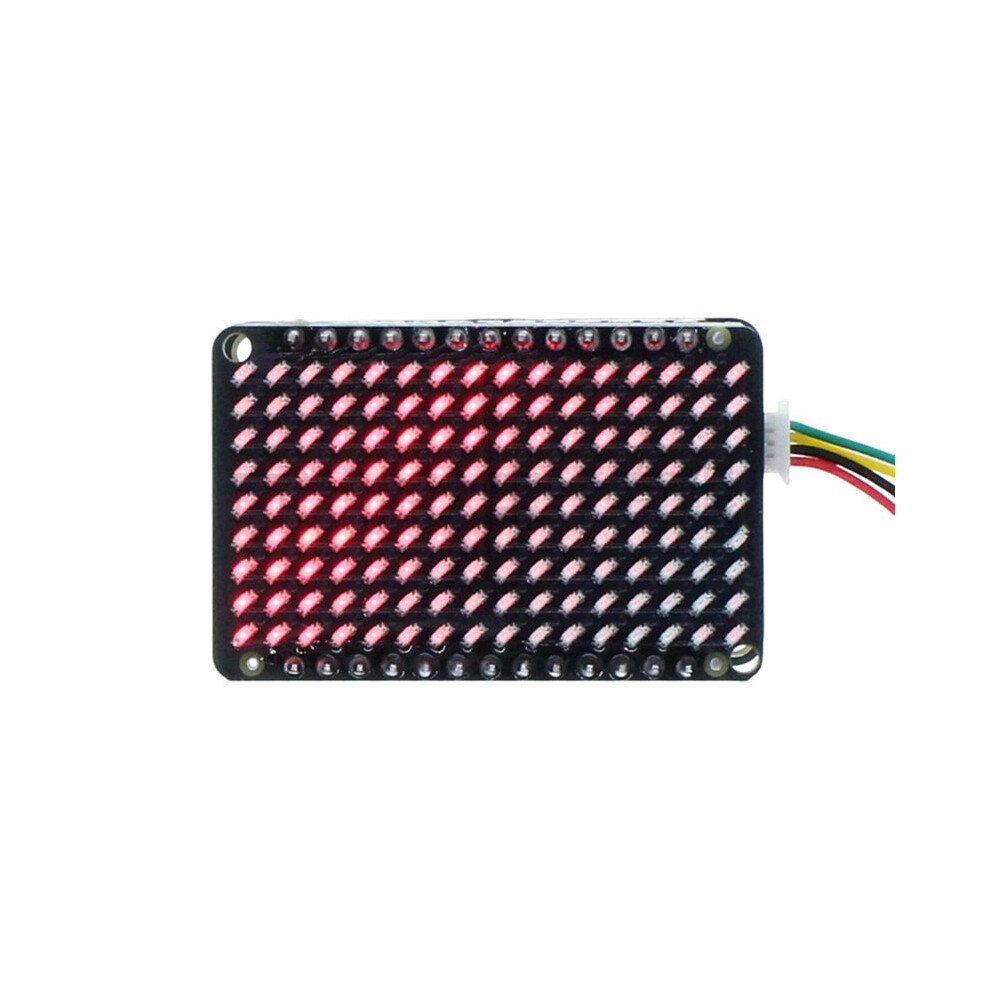

9x16 LED Matrix Display Module LED Charlieplexed Matrix 3.3V/5V B
Brand Melitt
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
£8.01
£9.06
12% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Fri 23rd - Mon 26th Oct
Sold by: WuLinshop
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary

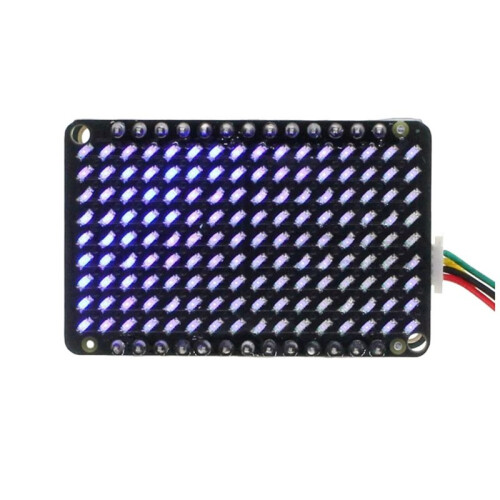

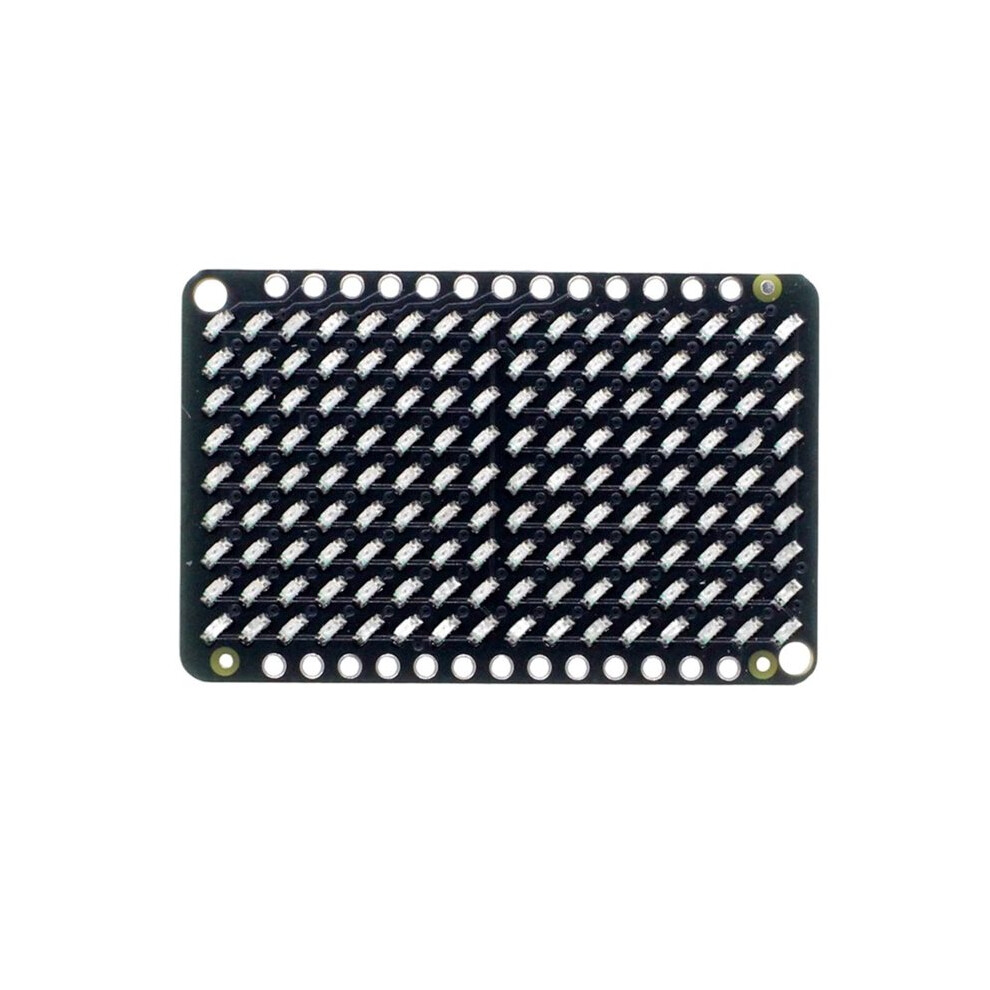

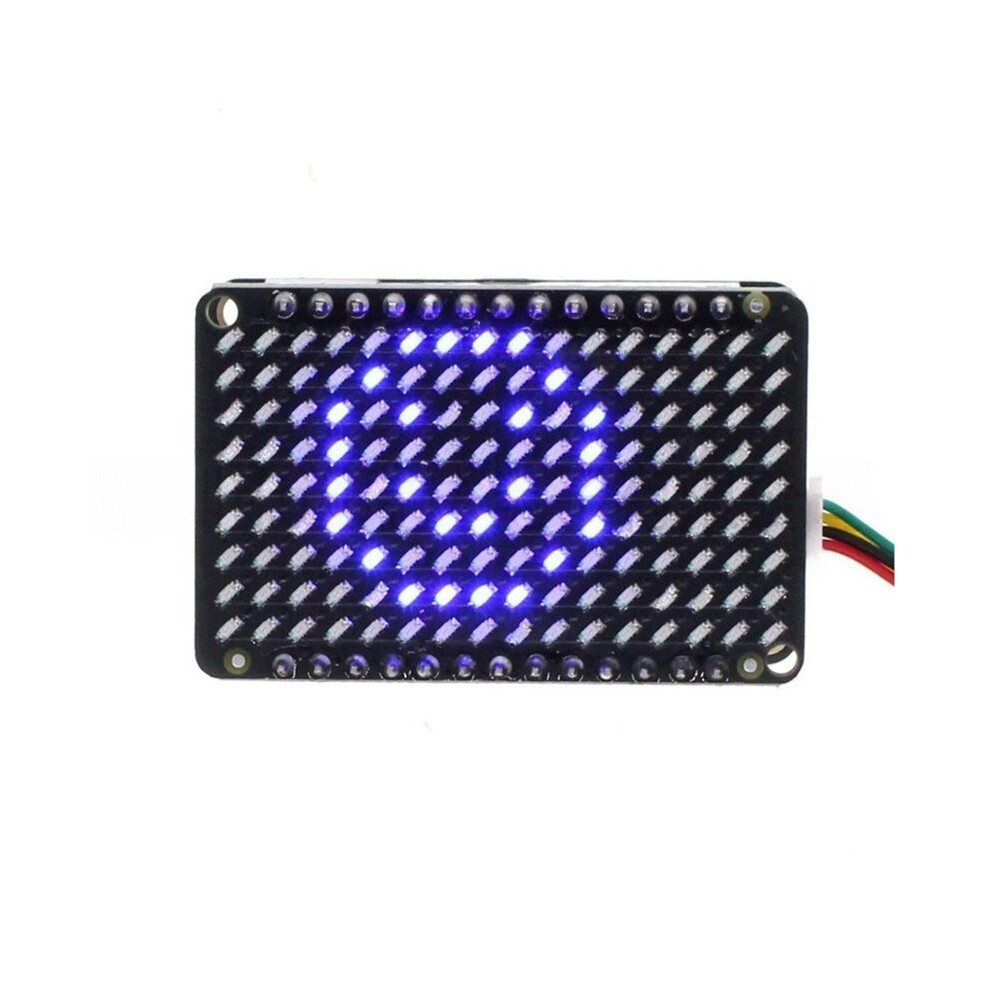

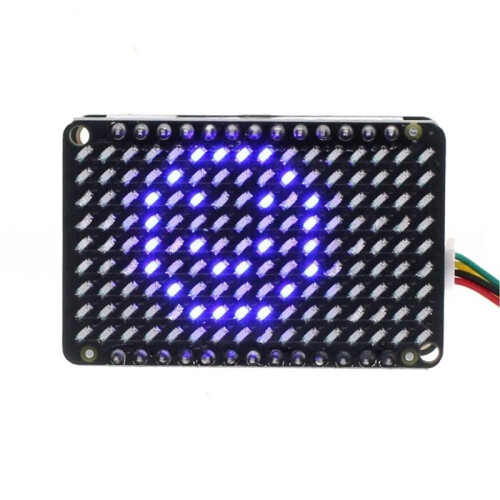

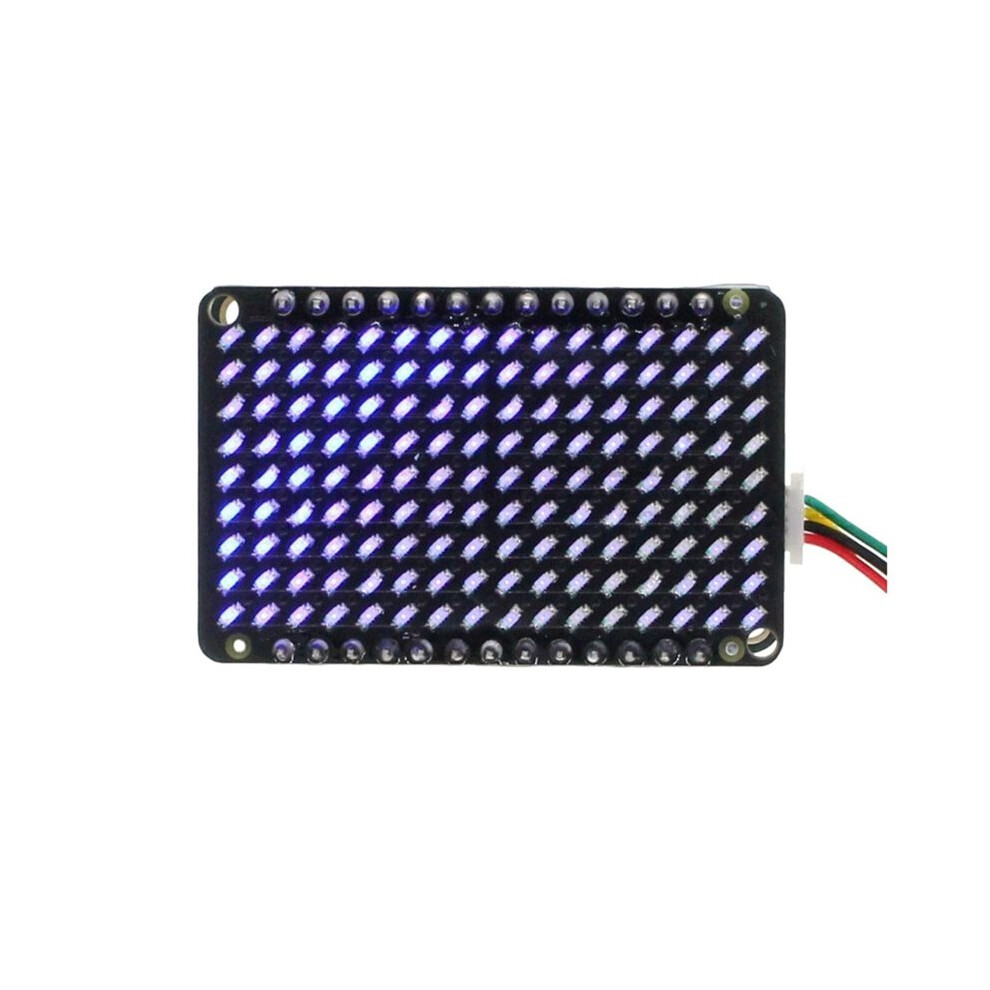

- High-Density LED Array: Integrates 144 individual LEDs (arranged in a 9x16 grid) onto a single PCB, making it ideal for displaying scrolling text and animations, as well as for creative visual projects.
- Charlieplexing Drive Technology: Leverages the tri-state capability of microcontroller I/O pins to efficiently control a large number of LEDs. This technique allows a limited number of pins to control significantly more LEDs than would otherwise be possible, greatly enhancing I/O efficiency.
- Plug-and-Play: Designed specifically to pair with the Adafruit IS31FL3731 16x9 Charlieplexed PWM LED Matrix Driver breakout board; this combination enables PWM dimming control for each individual LED via an I2C interface, allowing for smooth brightness transitions.
- Charlieplexed LED Matrix Display
- LED Matrix Display
9x16 LED Matrix Display Module LED Charlieplexed Matrix 3.3V/5V B Description
High-Density LED Array: Integrates 144 individual LEDs (arranged in a 9x16 grid) onto a single PCB, making it ideal for displaying scrolling text and animations, as well as for visual projects.
Charlieplexing Drive Technology: Leverages the tri-state capability of microcontroller I/O pins to efficiently control a large number of LEDs. This technique allows a limited number of pins to control significantly more LEDs than would otherwise be possible, greatly enhancing I/O efficiency.
Plug-and-: Designed specifically to pair with the Adafruit IS31FL3731 16x9 Charlieplexed PWM LED Matrix Driver breakout board; this combination enables PWM dimming control for each individual LED via an I2C interface, allowing for smooth brightness transitions.
LED Count: 144 (9x16 matrix)

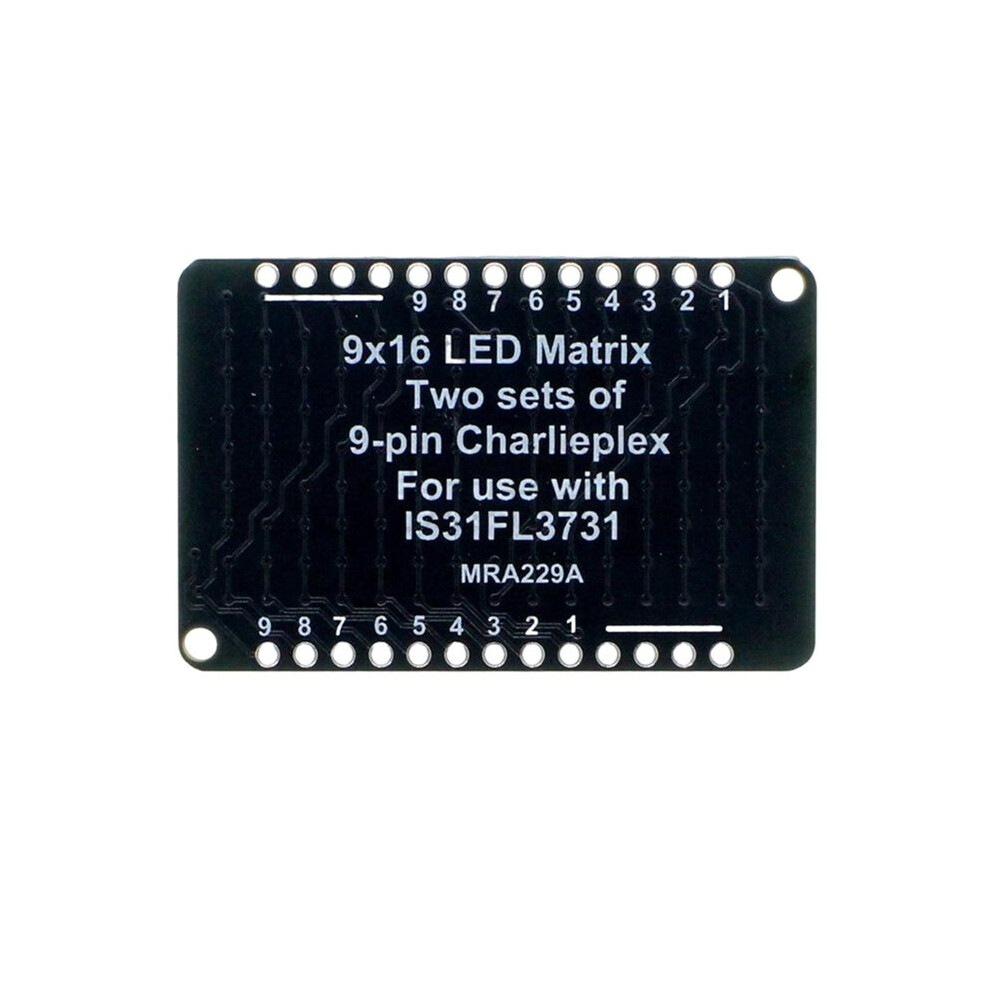

Drive and Control: Requires the IS31FL3731 driver board; communication and control are handled via the I2C interface.
Power and Logic: Compatible with 3.3V/5V logic levels when used with the IS31FL3731 driver board, offering flexible operation.
Module Dimensions: 43.18mm x 27.94mm x 2.29mm
Color: As Shown
Material: PCB
Specification: display

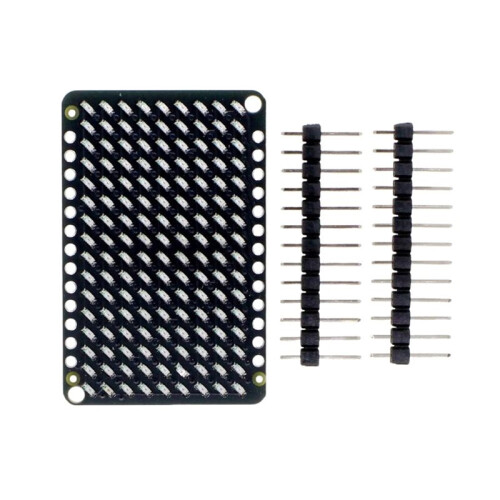

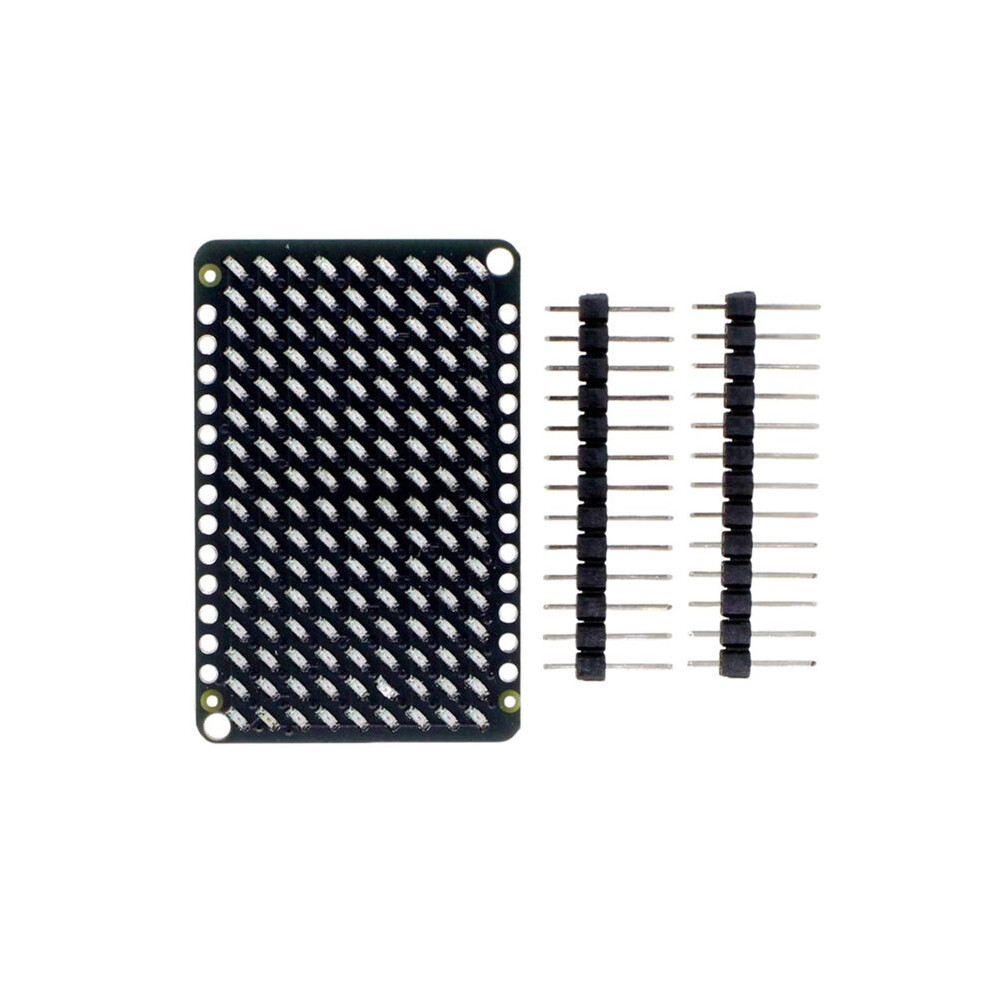

Package Contents:
1*9x16 Charlieplexed LED Matrix Display
1*Pin Header
Details
| OPC | PYMYRX6 |
|---|---|
| Brand | Melitt |
| Codes | 4714147853011 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 3cm |
| Length | 5cm |
| Weight | 0.01kg |
| Colour | As Shown |
| Size | Blue display |
| Material | PCB |
