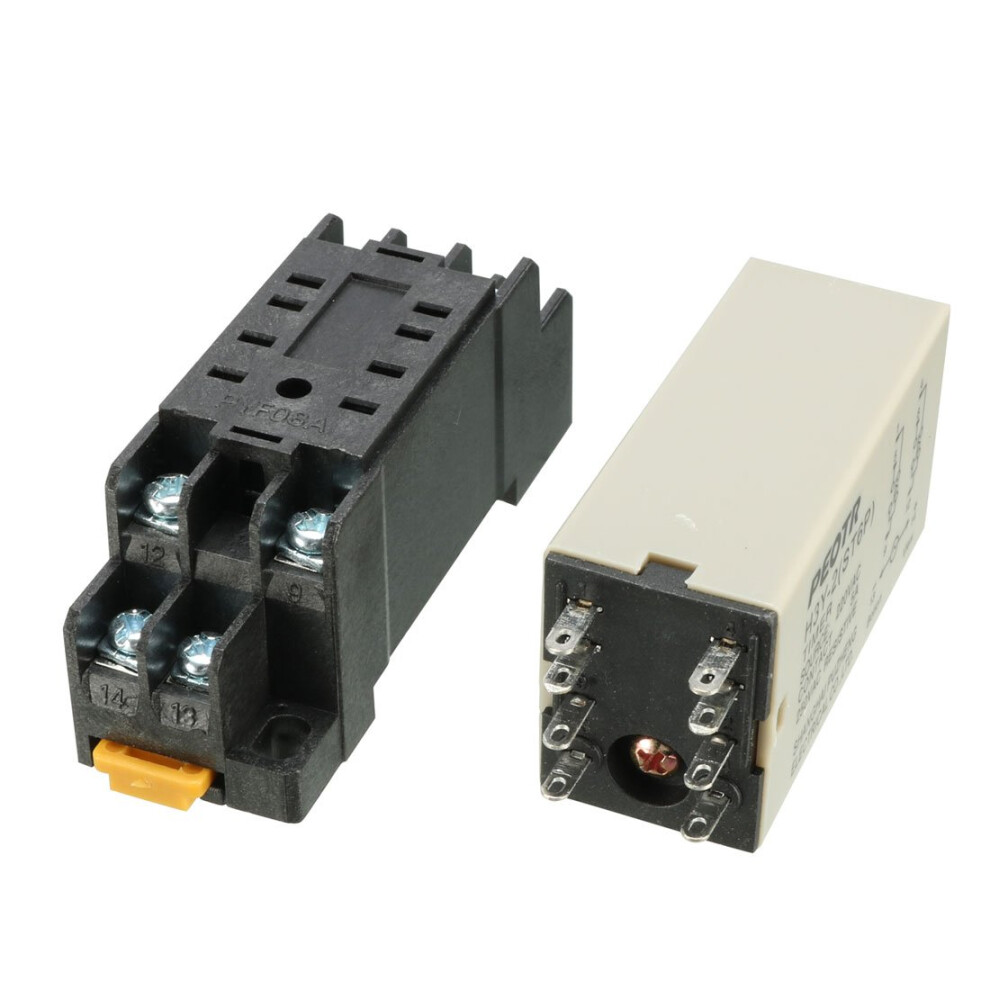

AC 220V 0-30 Minute 30m Timer Power On Delay Time Relay 8 Pin H3Y-2 w Socket

AC 220V 0-30 Minute 30m Timer Power On Delay Time Relay 8 Pin H3Y-2 w Socket Description

Key Features

• Product Name Time Relay + Socket;Type H3Y-2;Contact Type DPDT
• Source AC 220V;Contact 5A 250VAC Resistive Load;Time Range 0-30 Minutes
• Number of Terminals 8;Mount Rail Type 35mm DIN Rail;Fixing Mount Hole Size 6 x 4mm/ 2.4" x 0.15"(L*W)

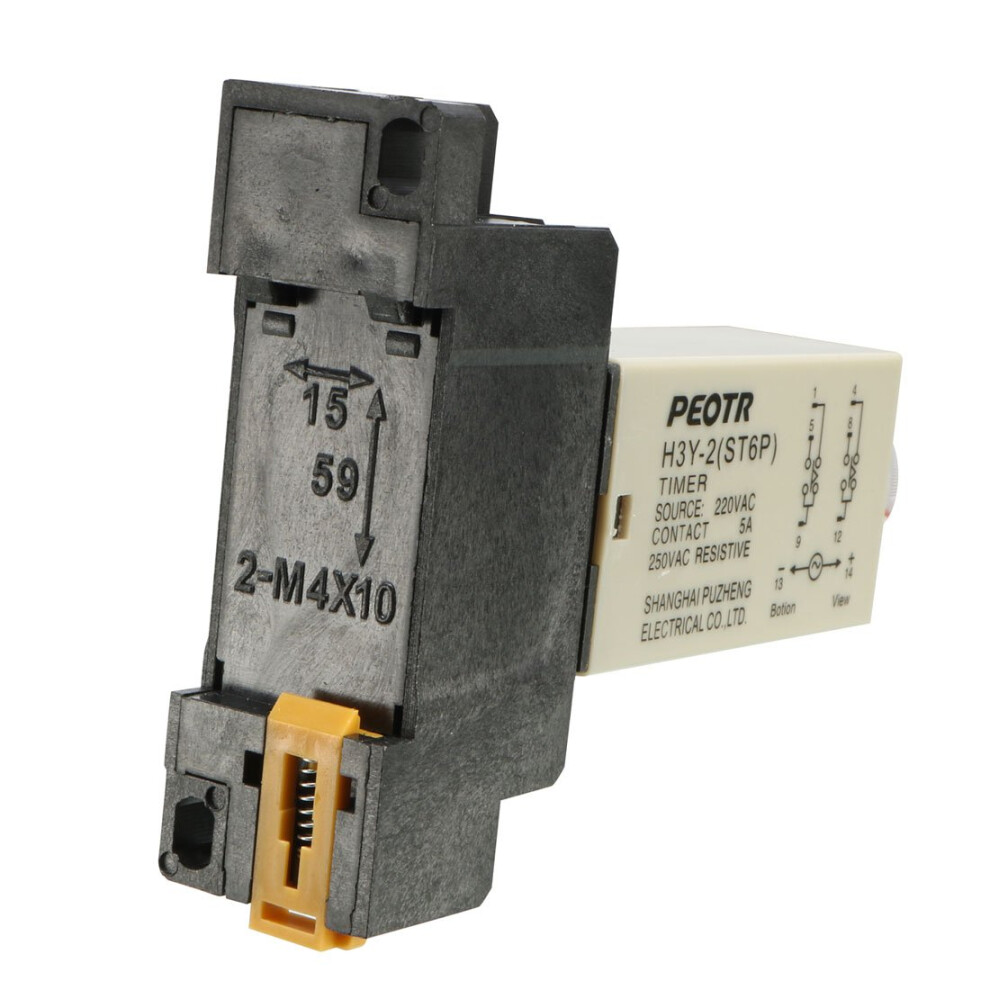

• Fixing Mount Center Hole Distance 59 x 15mm/2.3" x 0.6"(L*W);Total Size (Approx.) 70 x 23 x 88mm/ 2.7" x 0.9" x 3.5"(L*W*H);Color Black, Gray
• Net Weight 67g;Package Content 1 x Time Relay,1 x Socket

Product Description

Power on delay, plus timing. With large transparent time setting knob for setting time easily, 8 pin solder terminal for installation. Time Delay Relay used in industrial automation system and mechanical equipment to delay component. Relay is a kind of automatil electric switch, when supply with an input value, like electric, magnetic, light or thermal signal, it wall transfer the controlled circuit automatically and make an abrupt change, when the input value decreased to certain degtee, it will resume to former state and make the controlled circuit back to the former stare. Features LED indicator show power and output status.

Specifications Item Weight67 Grams
