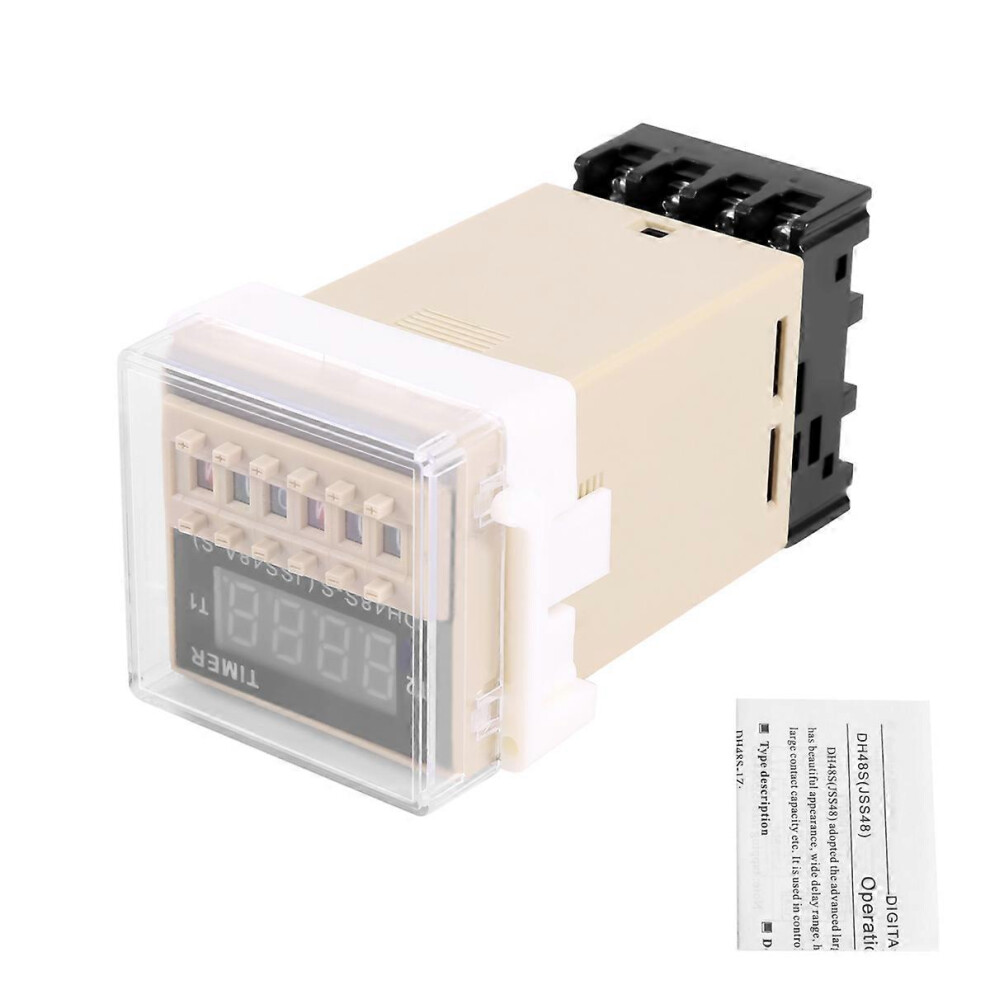

AC 220V 5A DH48S-S Programmable Double Delay Relay Device Tool

AC 220V 5A DH48S-S Programmable Double Delay Relay Device Tool Description

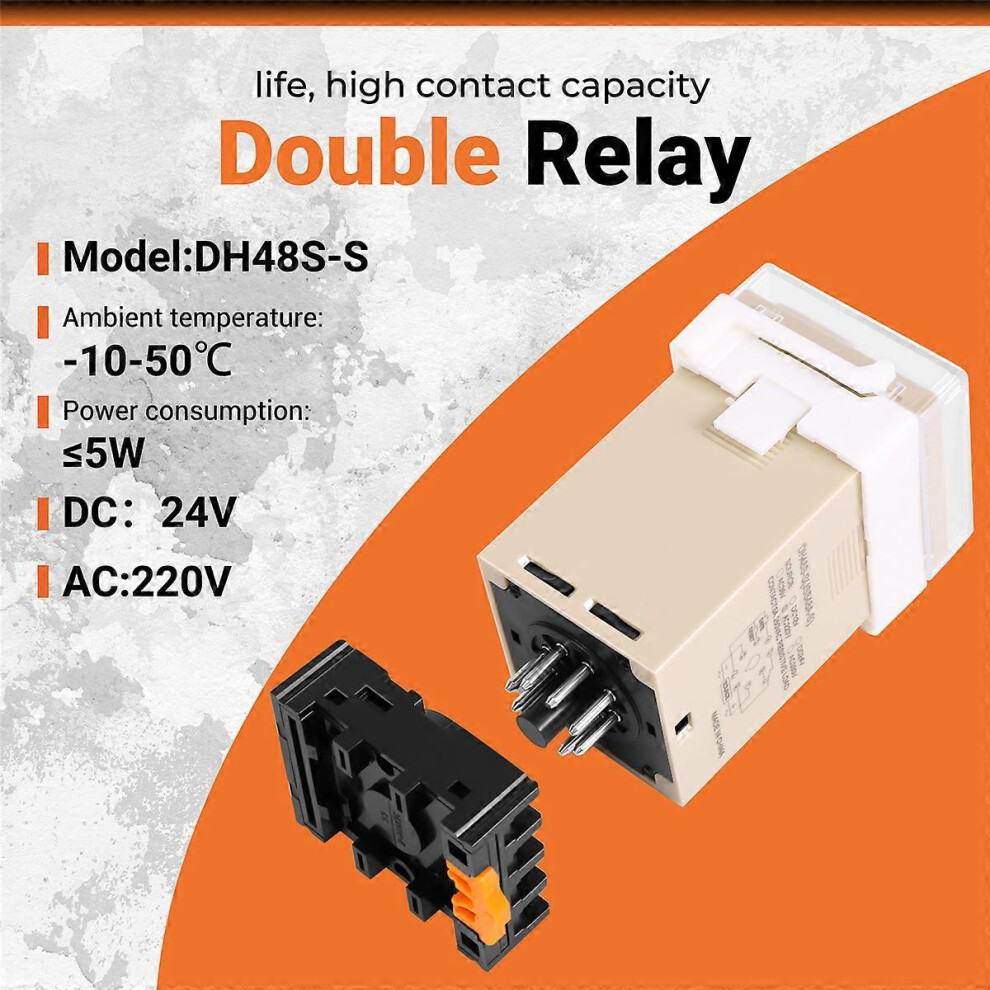

① Utilizing advanced large-scale integrated circuits and an LED digital tube display, attractive appearance, wide delay range, high precision, low power consumption, long service life, high contact capacity, etc., suitable for automatic control systems. ② Model: DH48S-S ③ Power supply: 85-110% of nominal voltage ④ AC: 220V ⑤ DC: 24V ⑥ Delay control accuracy: 0.3% 0.05s. ⑦ Ambient temperature: -10 to 50 degrees Celsius ⑧ Power consumption: 5W ⑨ Altitude: < 2000m ⑩ Contact capacity: 5A DC 30V / 5A AC 220V (resistive) ⑪ Size: 11 x 5.5 x 5cm ⑫ Material: Plastic / Metal ⑬ Instructions ⑭ Set the preset delay value and then connect the power supply. ⑮ Cover with a protective box after completing the preset. ⑯ Use an AC contactor to drive a higher current. ⑰ When the reset function is connected to terminals 1 and 3, the contacts return to their initial position and start again after disconnection from 0. ⑱ Use shielded cable for the reset and break wires. ⑲ Voltage of the pause and reset terminals ⑳ Package includes: 1 x Delay device ㉑ Note: Light shooting and different displays may cause the color of the item in the picture to be slightly different from the real product. The measurement allows an error of +/- 1-3cm.
