AC Adapter PS2 70000 AC Adapter Charger

AC Adapter PS2 70000 AC Adapter Charger Description

Product scope of application: Features: small size, streamlined, fully sealed, and portable

Input characteristics

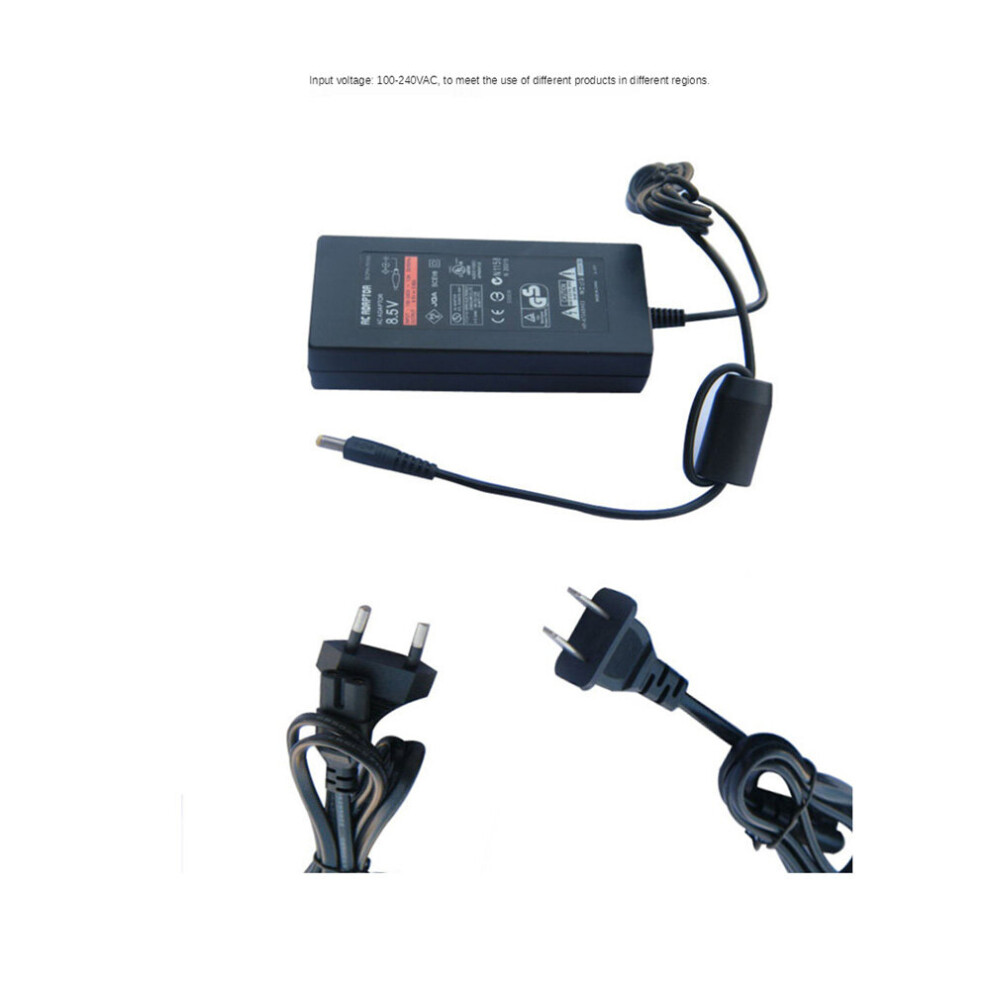

1. Input voltage: 100-240VAC;

2. Frequency: 50/60 (47~63) Hz;

3. Total input power: 44W;

4. Input voltage: ¡Ü0.5A;

5. No-load power consumption: ¡Ü5%;

6. Lightning strike: 3500V (20 times for each of four angles);

Output characteristics:

1. Output voltage: DC12V;

2. Output current: 3.7A;

3. Output mode: either constant voltage or constant current;

4. Output voltage accuracy: ¡À5%;

5. Linear adjustment rate: ¡À0.5~1%;

6. Load adjustment rate: ¡À0.5~2%;

7. Output ripple: ¡Ü1%;

8. Output overvoltage protection: when the output voltage exceeds 120%, the power supply will automatically shut off;

9. Output overcurrent protection: the power supply will automatically shut off when the load exceeds 130%;

10. Over-temperature protection: When the ambient temperature exceeds 75¡æ~85¡æ, the power supply will automatically enter the protection state.

Other data:

1. Product design margin: load +120%;

2. Efficiency: Meet the latest EU energy standards and obtain the ERP2.0 certificate;

3. Shell temperature resistance: 100¡æ;

4. Withstand voltage: 3000V/1 minute;

5. Operating environment: -10¡æ~+45¡æ;

6. Product design life: 30,000 hours (50,000 hours need to be customized);

7. ROHS: All environmental protection, EU standards

8. Certified: FCC, CE, ERP;

9. Pins in different countries: British regulations, American regulations, European regulations, Chinese regulations, Korean regulations, Brazilian regulations, and Australian regulations.
