AC DC Motor Remote Switch Controller 12V 24V 36V Motor Limit Switch

AC DC Motor Remote Switch Controller 12V 24V 36V Motor Limit Switch Description

Working Voltage: AC/DC 12V-36V (AC&DC both are ok. Wide working voltage from 12V to 36V(12V 24V 36V))
Working Current: 48ma
Quiescent current:16ma
Max Load: 10A Relay ( have better load less than 5A (60W)
Function: Receiver Manual Button Control & Wire External Button (without transmitter) ( Wire the Normally Open Limited to the External Button Pin ( U--S--D--GND) make your motor Forwards Reverse Cycle)

1. Original State OFF, (Suddenly, the electricity was cut off, then comes again, the State still is OFF, you need manual turn it ON)
2. Out State: Momentary Toggle Latched Adjusted by the Jumper on the Receiver, ( we ship default as Latched, if you need use Momentary to change the Jumper on the Receiver ,Notice, please don't use Toggle)
3. Momentary----------Jumper on "1&2"
4. Latched-----------Jumper on "3&4"
5. Momentary -------------
Press button"Up", the Motor Forward, Release is Stop.
Press Button "Down", the Motor Reverse, Release is Stop.
Latched------------------
Press button "Up", the Motor Forward, Press Button "Stop" is stop.
Press Button "Up", the Motor Reverse, Press Button"Stop" is stop
6. If you don't need wire the Limited Switch, you need connect the UP Down and COM with a Line, we have connect it before we ship out ,if you need use it take away the line that is ok.
7. When the receiver output state is "Latched", we have set it 0.5s time delay for forwards and reverse, it is the Protection function.
type: Wireless Remote Controller
color:White
Material:ABS

Package Contents:

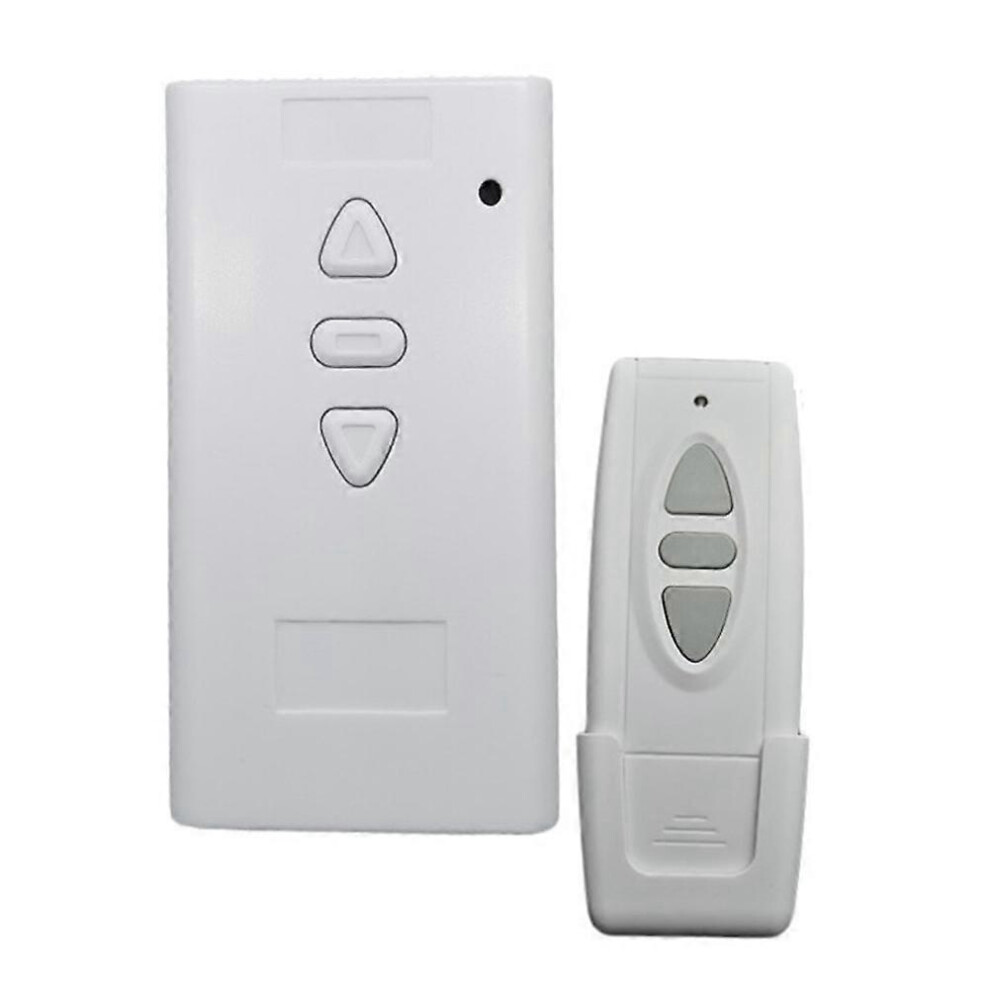

1 x Wireless Remote Controller(1pcs 12V 23A battery not included)
1 x Receiving Controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
