AC Generator, Electric Motor, Student Hand Generator Model, Power Experimental Model, DIY Generator Module AC
Brand ISTOVO
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
£33.64
£38.57
13% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 30th Jun - Thu 2nd Jul
Returns: 30 days
180-day payment protection
Most Popular in Engineering & Electronics Toys
Description & Details
Summary
- The power supply voltage is dc 9V/3A, which is positive inside and negative outside. It is better to use a switching power supply with small ripple first. If the voltage exceeds 9V, it may be due to heatingLarge and burnt high adjustment motor.
- The current of high-speed machine is 0.5~2.5A, and the speed can be adjusted according to the load of generator.The output voltage of the generator is 2.5~10V, and the maximum output current is 1A

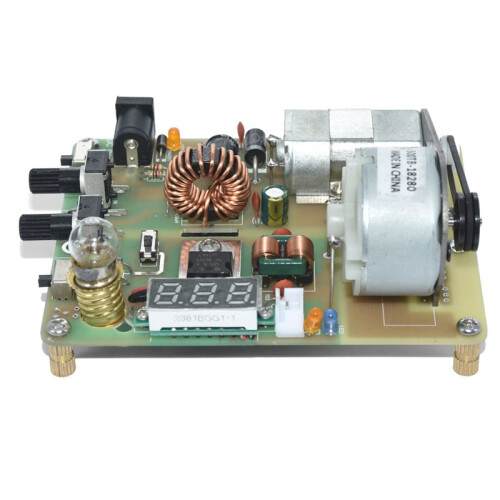

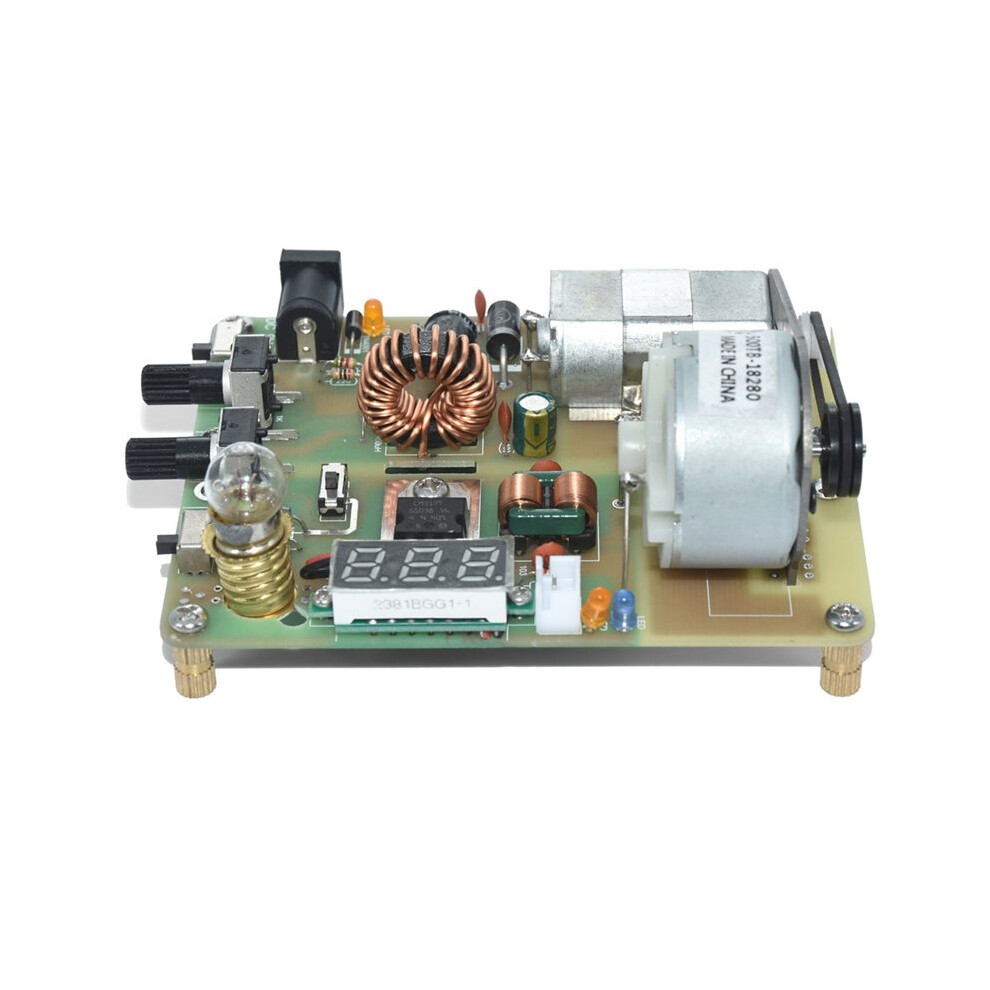

- The generator has 3 output terminals, which can be used as a voltmeter and load. The on-board lamp beads indicate the power generation status.

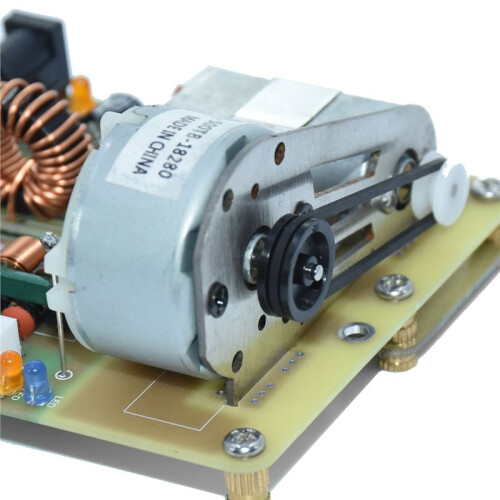

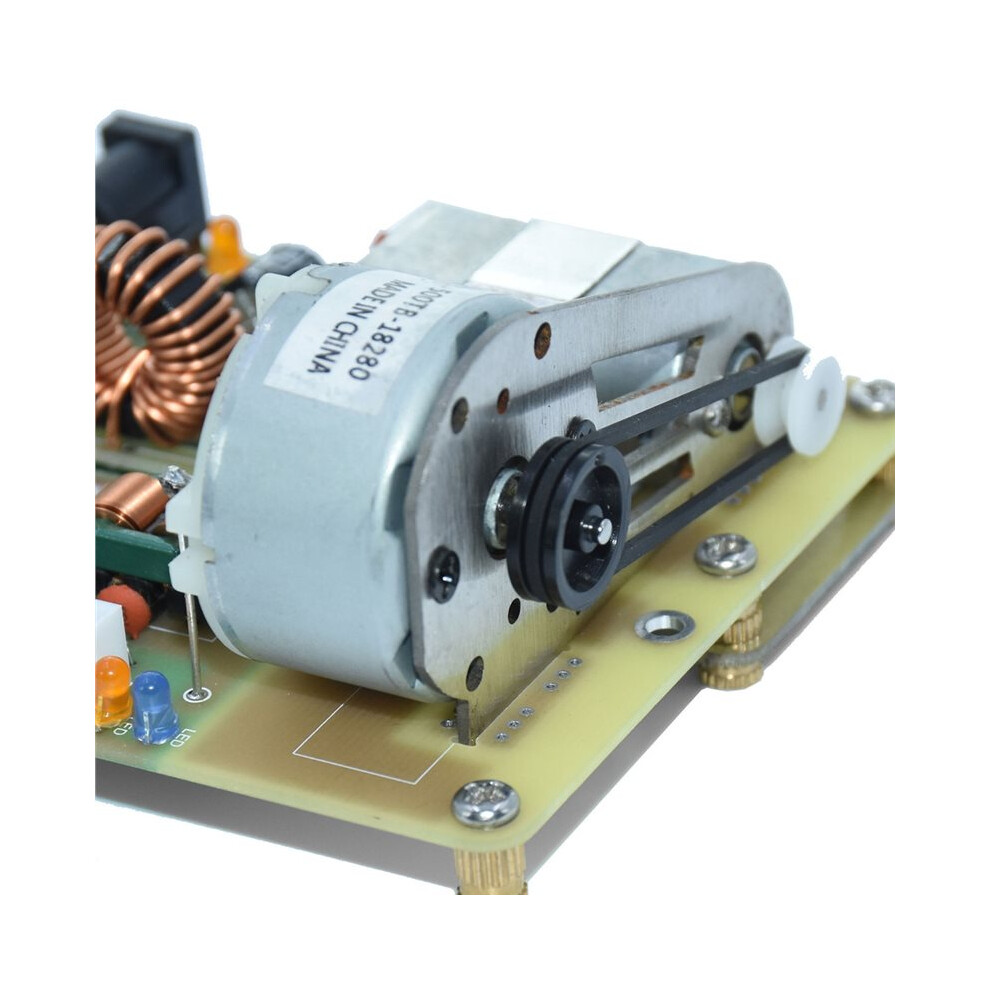

- The high-speed motor M1 drives M2 to rotate, the generator coil cuts the magnetic line of force, and the mechanical energy is converted into power supply. The maximum voltage is about 9V. C4~C6, T1 filter the power ripple generated by the generator; S2 starts positive and negative pole switching.
- When the upper positive pole is switched to the lower negative pole, the power supply generates a stable voltage of 2.5~6V through IC2 to provide a stable voltage for the load. The increase of M1 speed will not change the output voltage. The green indicator light is on, indicating the voltage stabilization state.
AC Generator, Electric Motor, Student Hand Generator Model, Power Experimental Model, DIY Generator Module AC Description
The power supply voltage is 9V/3A, which is positive inside and negative outside. It is better to use a switching power supply with small ripple first. If the voltage exceeds 9V, it may be due to heatingLarge and burnt high adjustment motor.
The current of high-speed machine is 0.5~2.5A, and the speed can be adjusted according to the load of generator.The output voltage of the generator is 2.5~10V, and the maximum output current is 1A
The generator has 3 output terminals, which can be used as a voltmeter and load. The -board lamp beads indicate the power generation status.
The high-speed motor M1 drives M2 to rotate, the generator coil cuts the magnetic of force, and the mechanical is converted into power supply. The maximum voltage is about 9V. C4~C6, T1 filter the power ripple generated by the generator; S2 starts positive and negative pole switching.
When the upper positive pole is switched to the lower negative pole, the power supply generates a stable voltage of 2.5~6V through IC2 to provide a stable voltage for the load. The increase of M1 speed will not change the output voltage. The green indicator light is , indicating the voltage stabilization state.
Color: Green
Material: plastic
Specification: AC
Package Contents:
1*/AC generator
Details
| OPC | PSPNPFZ |
|---|---|
| Brand | ISTOVO |
| Codes | 4711038046163 (EAN) |
Product Data
| Height | 4cm |
|---|---|
| Width | 15cm |
| Length | 18cm |
| Weight | 0.4kg |
| Colour | Green |
| Size | AC |
| Material | Plastic |
