AC Synchronous Motor 14W Permanent Magnet 2Way

AC Synchronous Motor 14W Permanent Magnet 2Way Description

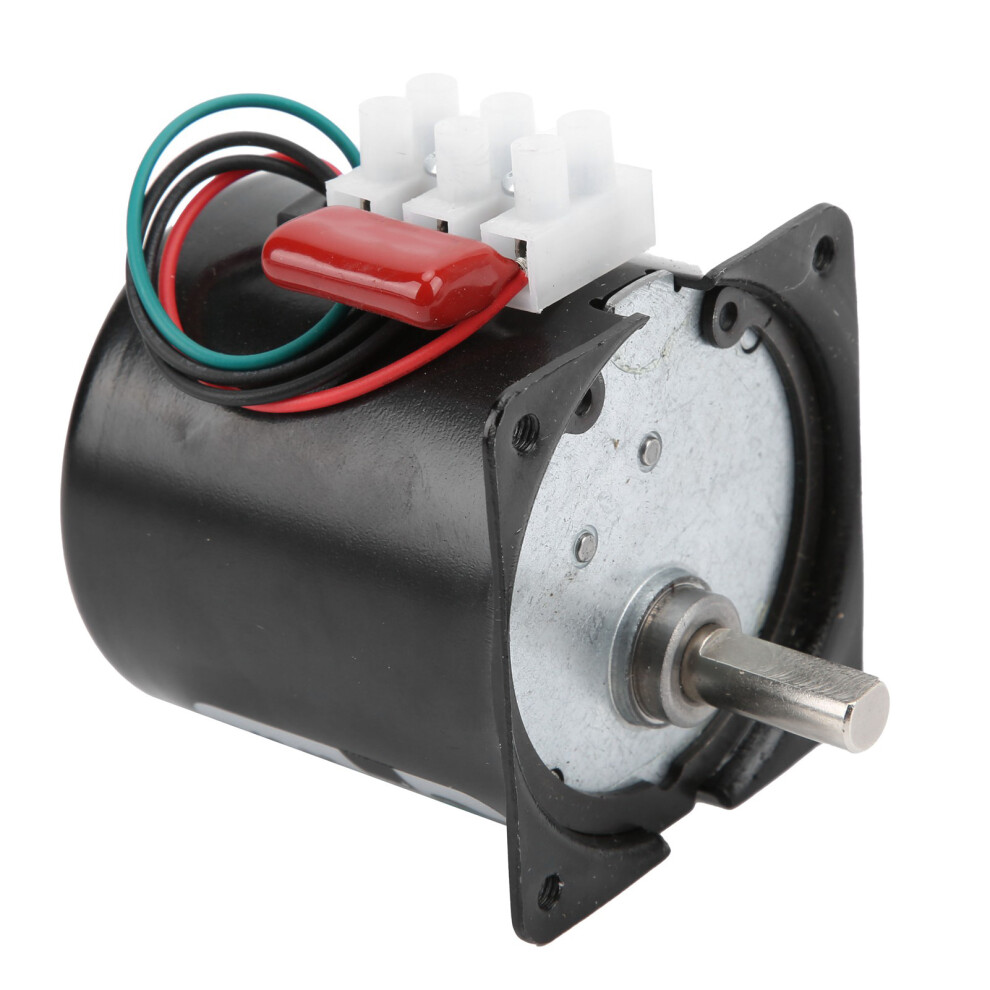

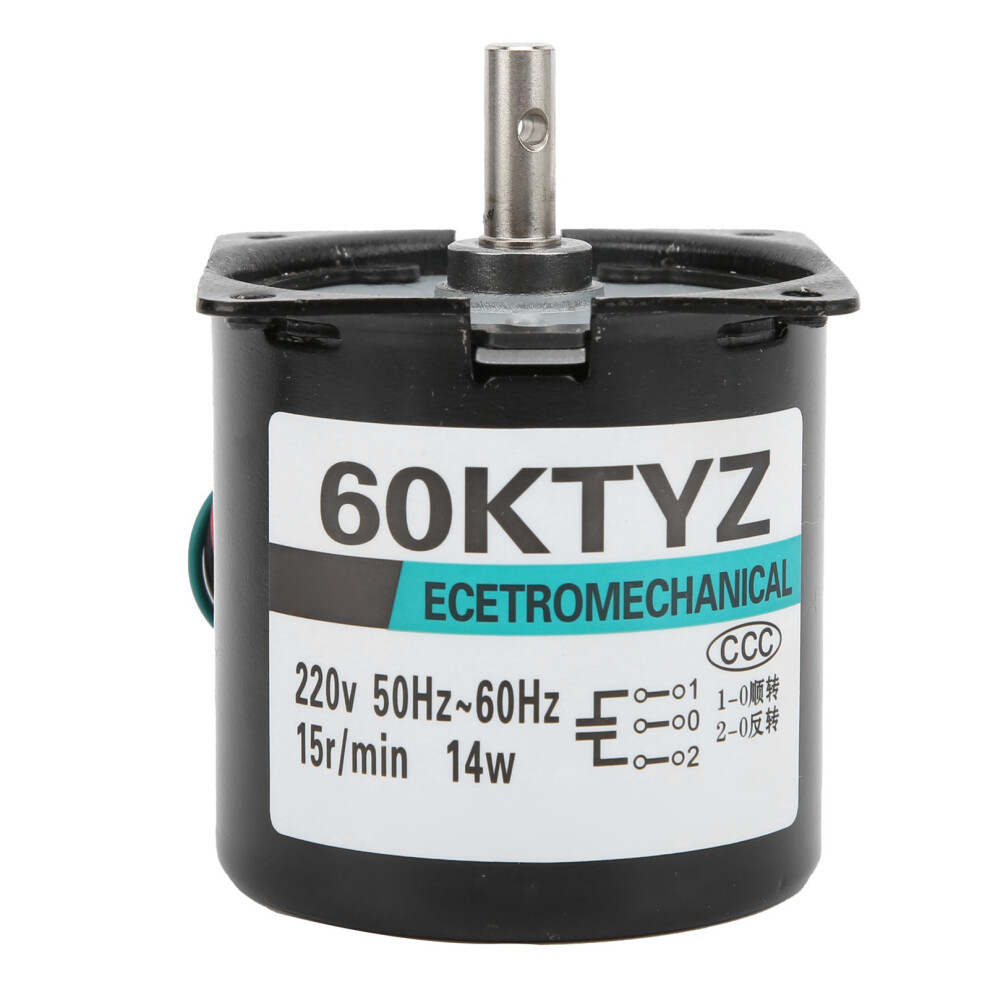

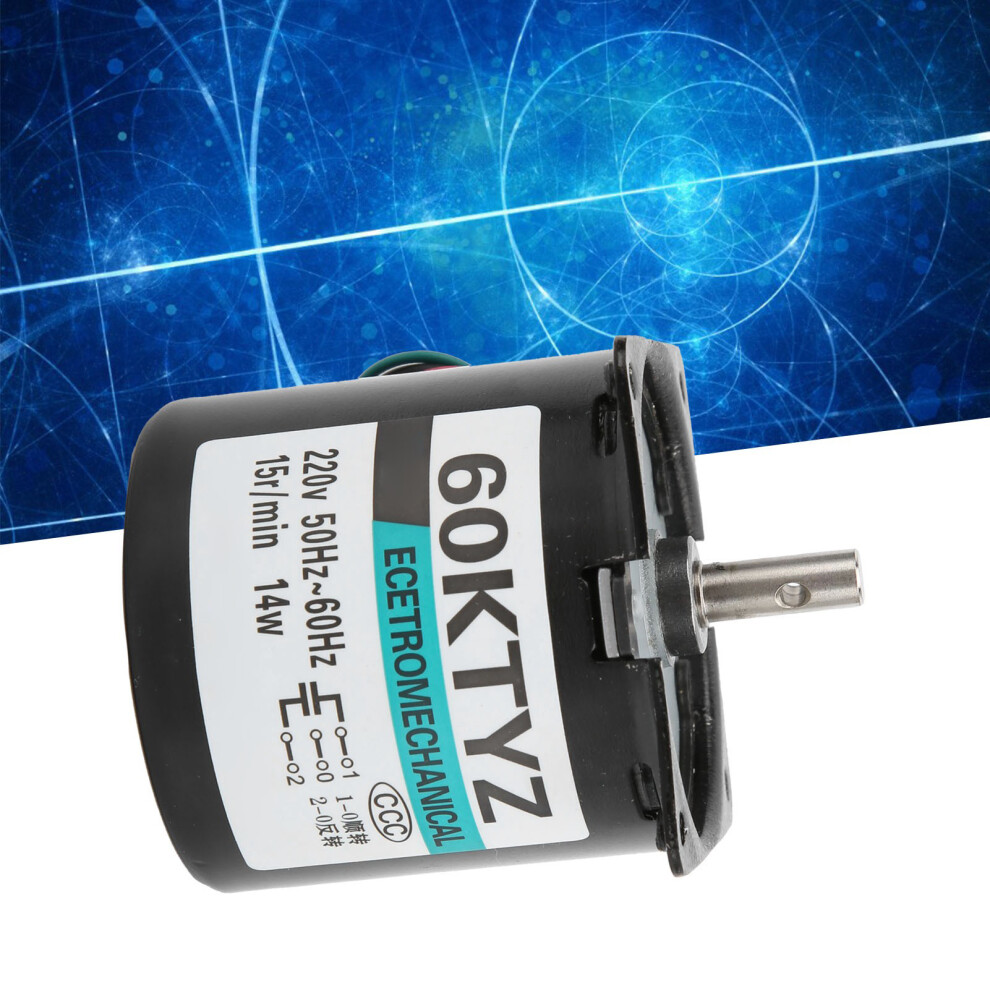

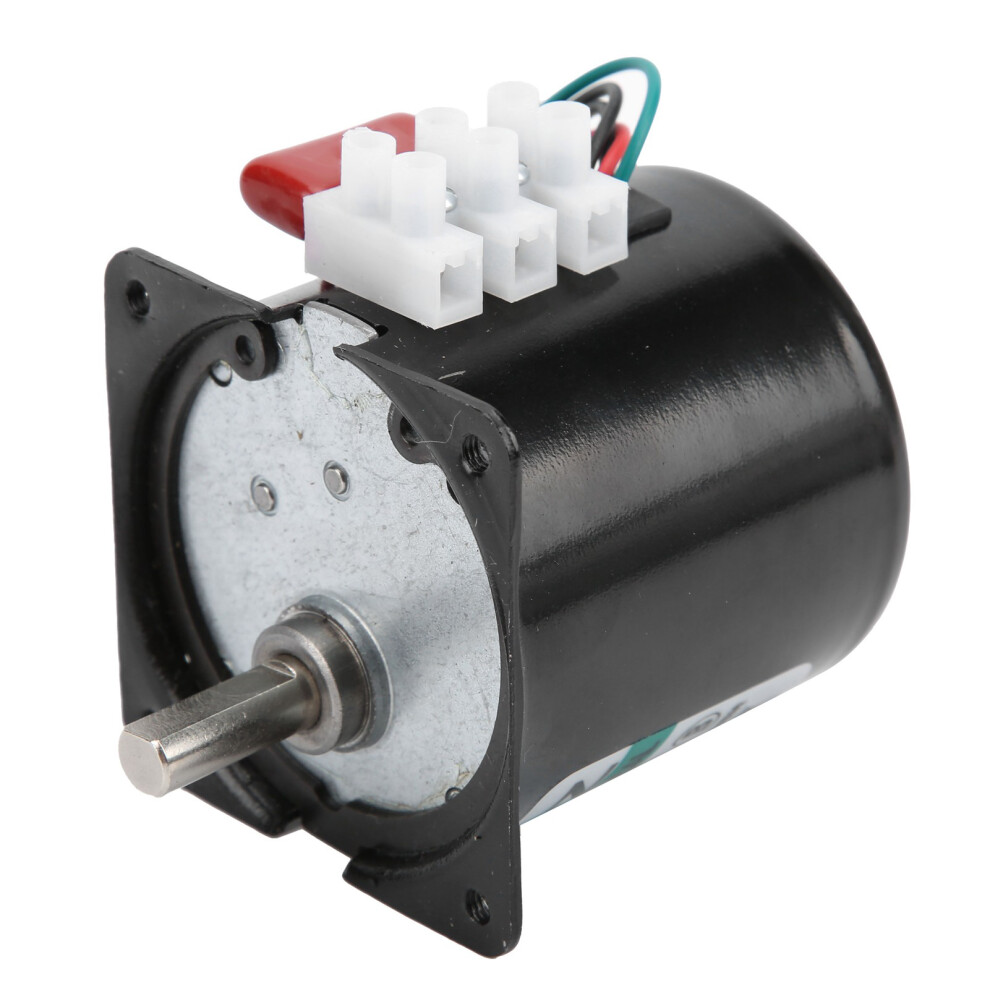

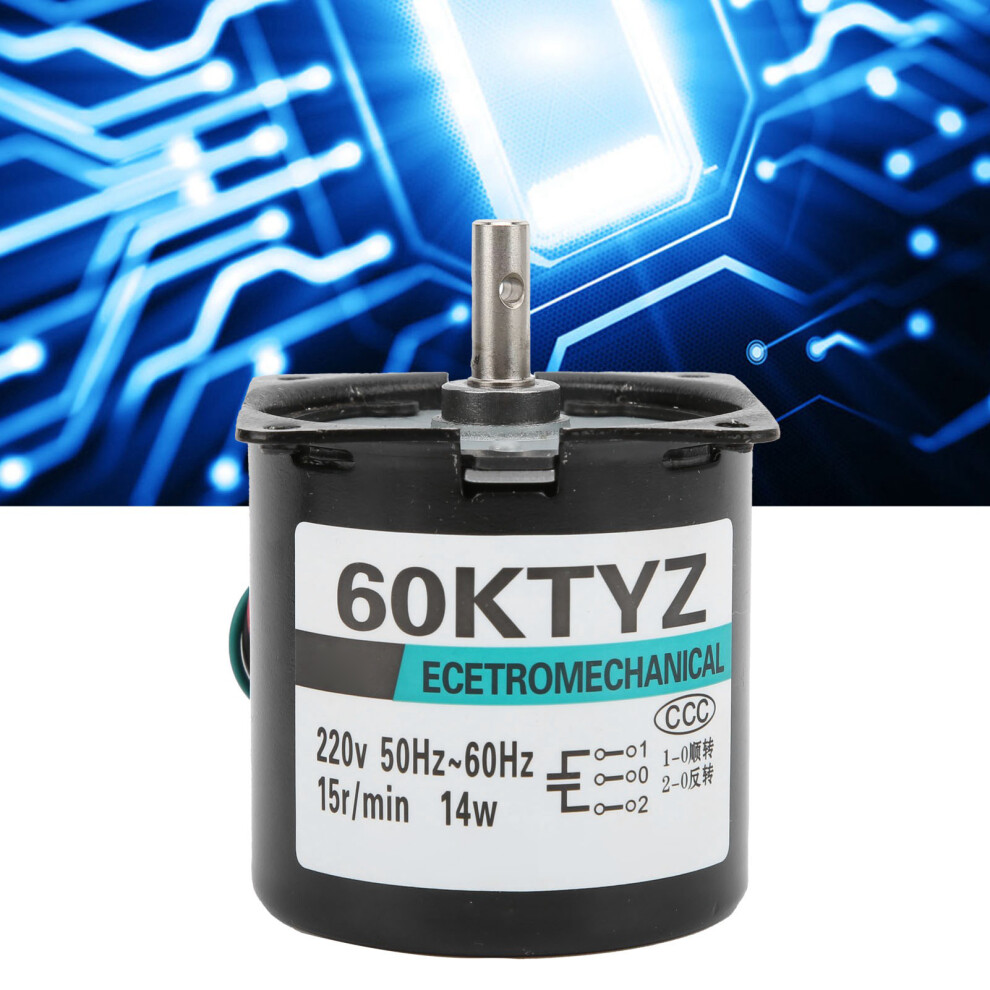

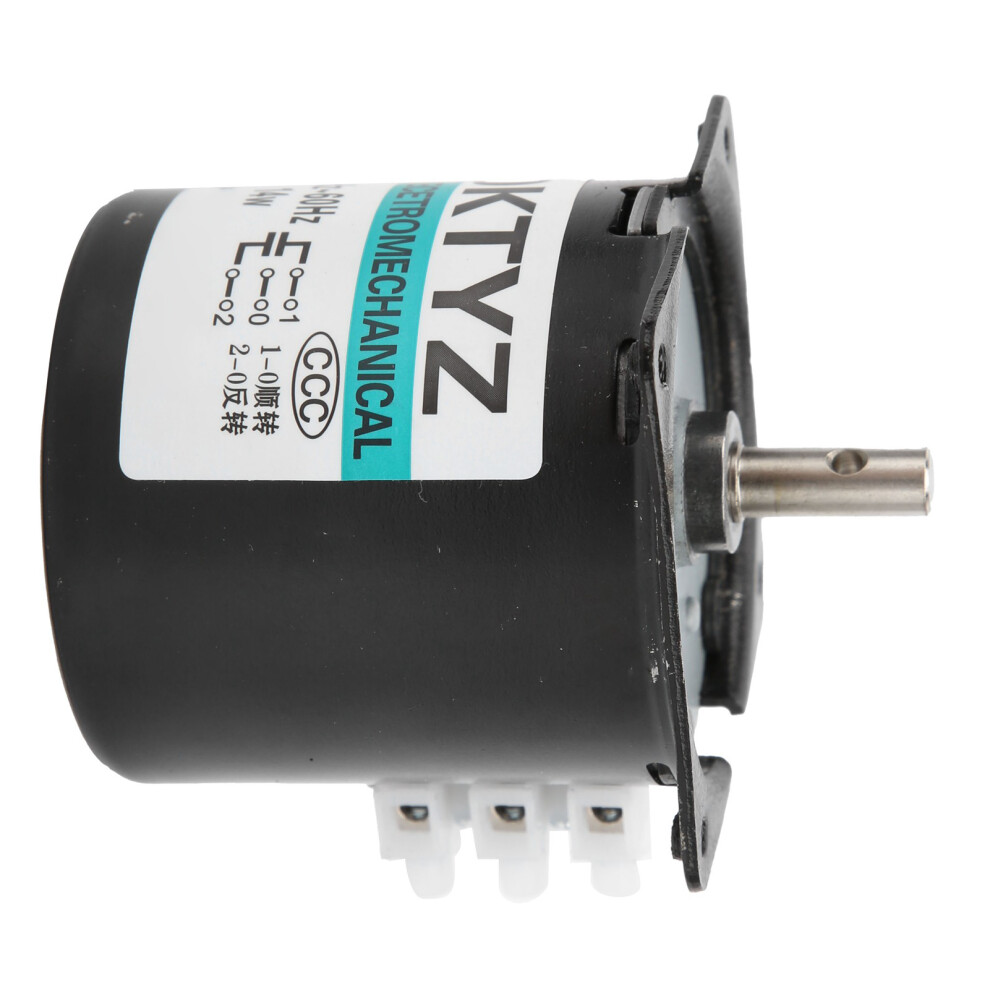

AC Synchronous Motor 14W Permanent Magnet 2Way High Torsion Central Shaft Bracket XD60KTYZ(15rpm/min AC220V)



1、Metal gears are wear‑resistant, quiet with long life, possess small size, large torsion, ultra quiet, and stable operation 2、Adopt pure copper coil stator and rotor, so that the motor torsion is increased, the deceleration resistance and conductivity are strengthened 3、Applied with high‑temperature grease, which has low friction and noise reduction and slow temperature rise, and improves the service life of the motor gear 4、Using good‑quality magnetic tiles, which are used for higher working efficiency and less dynamic loss 5、Suitable for various industries such as micro machinery, various robots, various CNC machine tools, high‑accuracy measuring instruments, electronic manufacturing equipment, pharmaceutical equipment, financial machinery, military industry and other industries

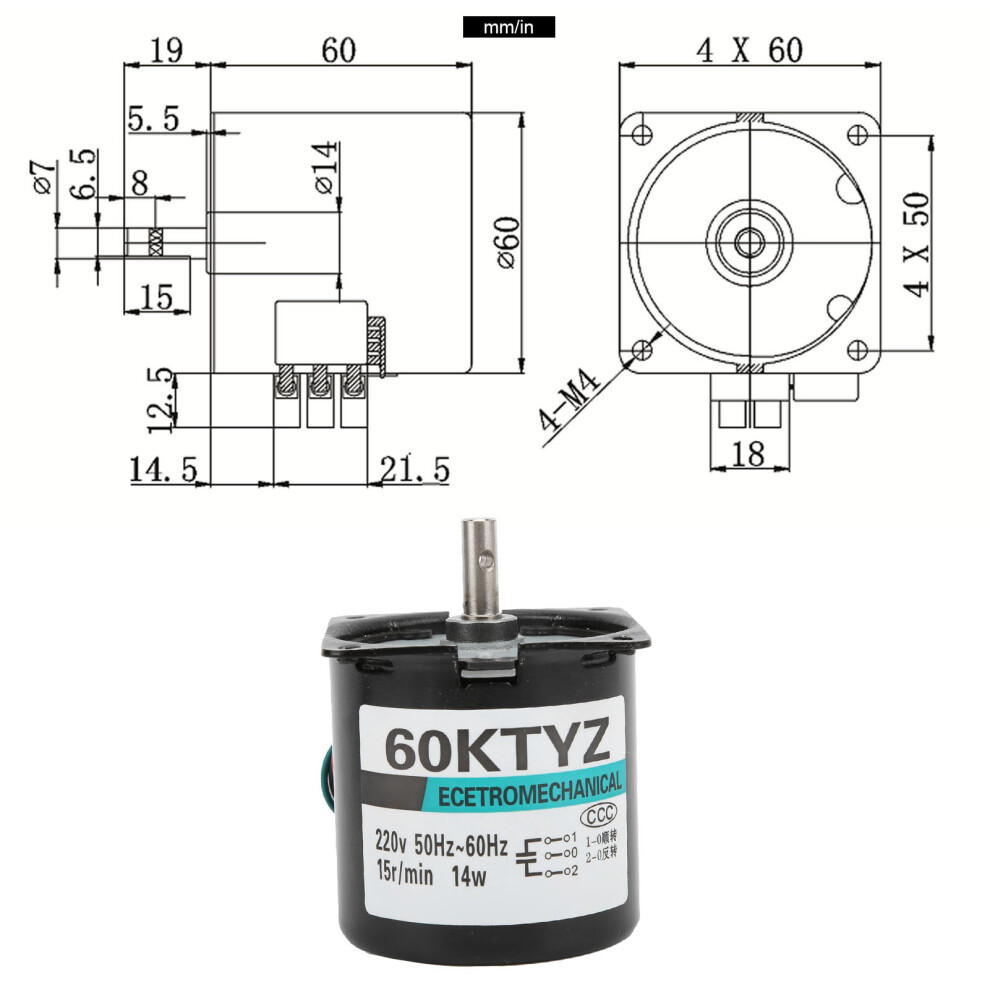

Item Type: AC Synchronous Motor Model: XD60KTYZ Material: Copper Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in Protection Level: IP20 Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20MΩ Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for a second, with a voltage of 1800V, there is no abnormality. Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance method to measure the temperature rise of the coil between 75-80 Insulation Class: Class E(130) Operating Environment Temperature: Motor: -10~+40 (no icing) Use Environment Humidity: 85% or less (no condensation) CW/CCW: Yes Speed Adjusted: No Model Voltage(V） Rotating speed（rpm/min） Normal torsion （kgf·cm）long-time working Larger torsion（kgf·cm）intermittent work Power（W） XD60KTYZ AC220V 2.5 38 50 14 10 20 26 14 15 15 20 14 20 12 17 14 AC110V 2.5 38 50 14 10 20 26 14 15 15 20 14 20 12 17 14

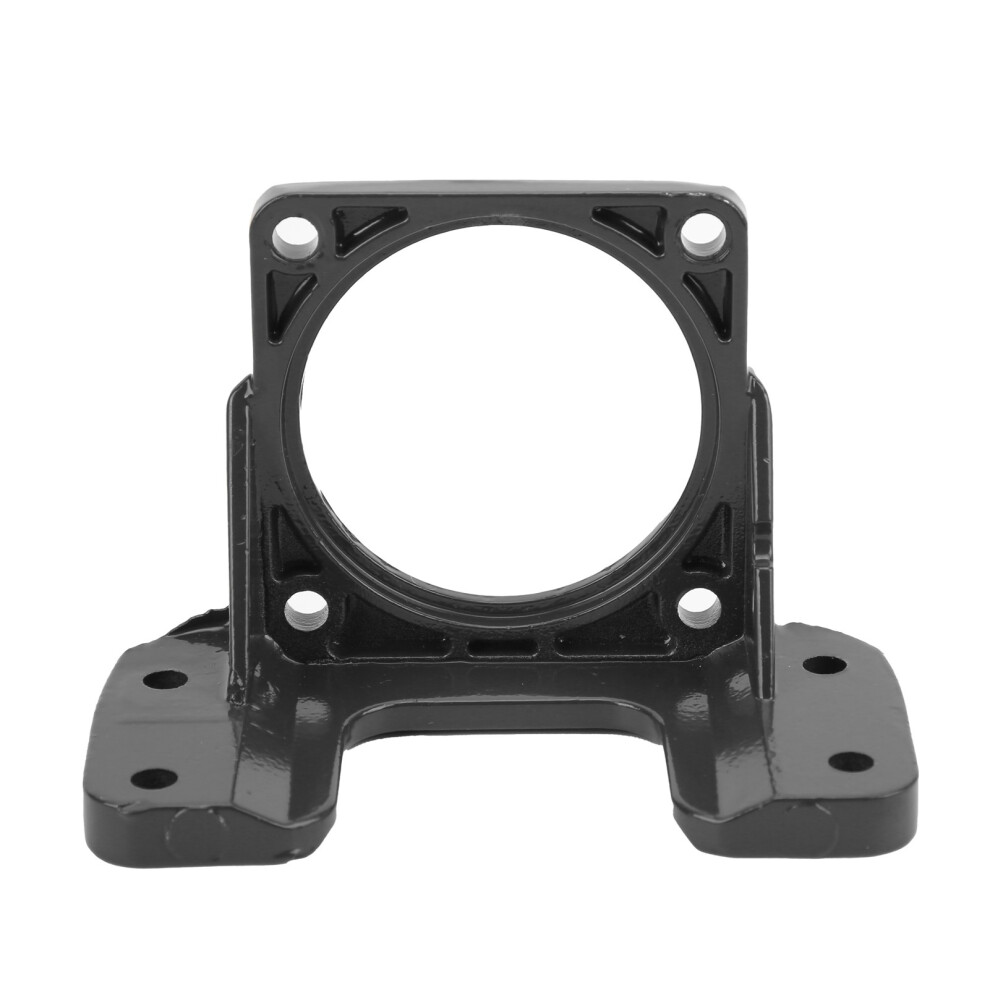

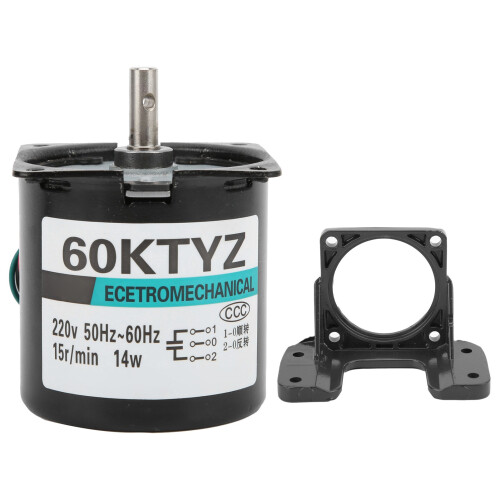

1 x AC Synchronous Motor 1 x Bracket
