Accurate Water Flows Measurement Sensors With Quick Connect-1.2

Accurate Water Flows Measurement Sensors With Quick Connect-1.2 Description

Features:

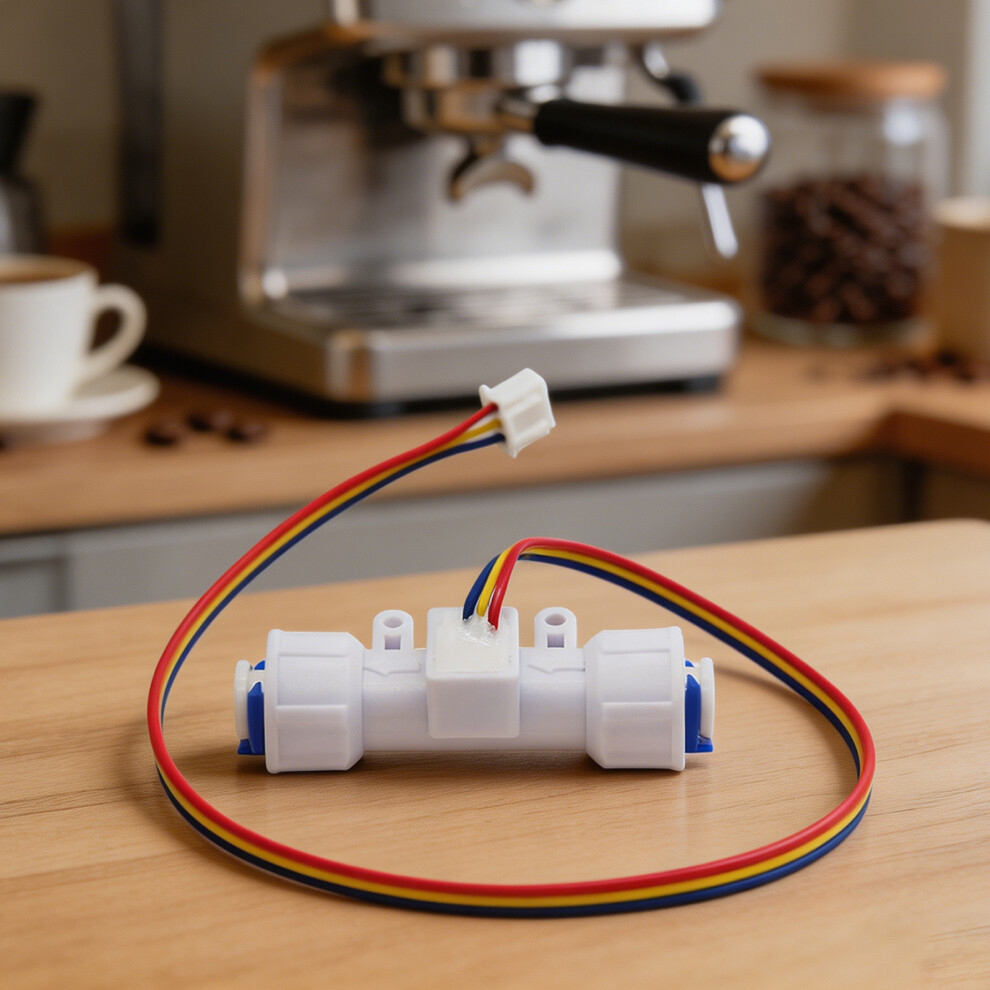

This hall water flows sensors delivers excellent accuracy with a flows rate of 30L/h and only 5% error, ensuring stable and accurate water flows for coffee machines and water purifiers to enhances brewing and drinking experience.
Features a 1/4in quick Connecting structure for easy installation without tools. Users can complete setup in just 15 seconds, ideal for frequent disassembly in offices use.
Suitable for various devices including coffee makers, water purifiers, and dispensers, offering strong compatibility to upgrade existing equipment across brands and models.
Make of ABS plastic, lasting 3x longer than metal alternatives in water exposing environments like kitchens and labs.
Operates at just 5V with 50% reduced energy usage compared to traditional flows meters, perfect for users to save power and protect the environment.

Specifications:
Component: ABS
Interfaces: 1/4inch
Voltages: 3.5-24V
Water Pressure Resistance: 1.5Mpa
Inner Diameter: 6.5mm
Insulation Resistance: 100MΩ
Flows Ranges: 0.4-4L/Min

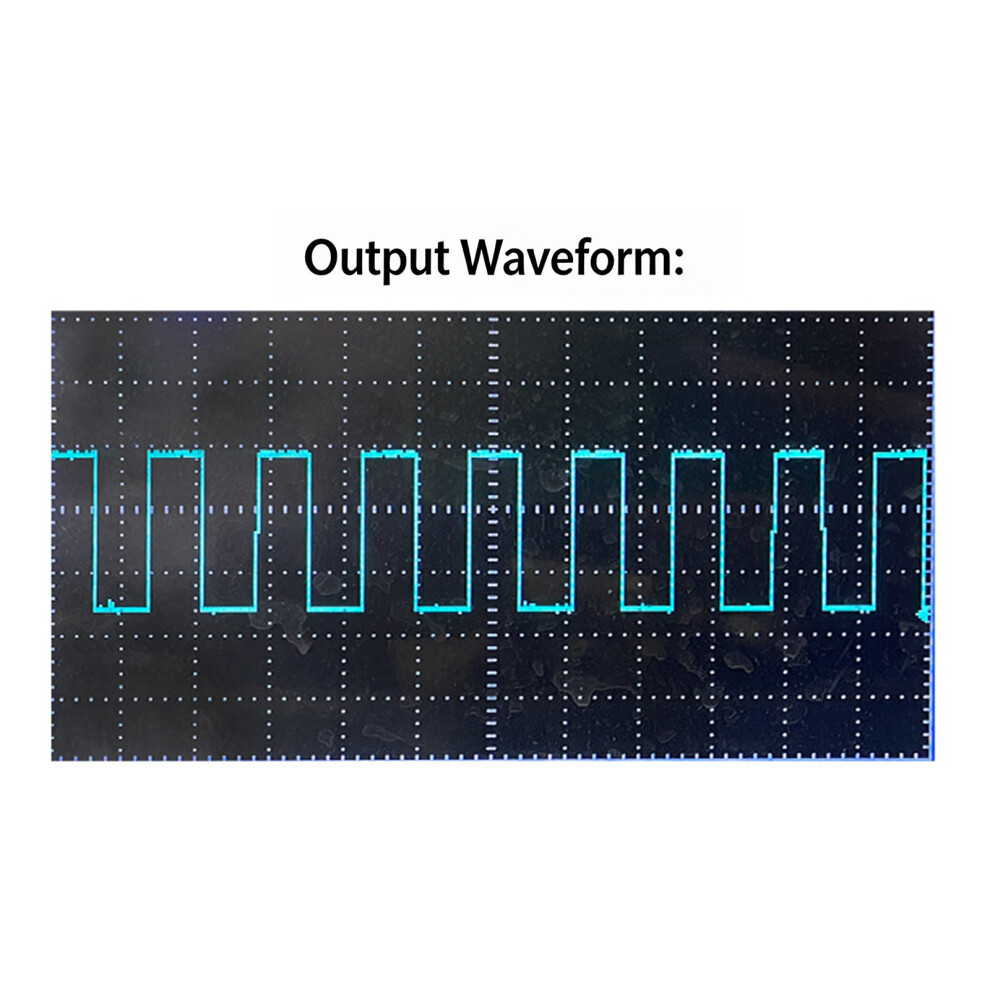

Pulses Ranges: F=(48.5xQ), Error3%
Output High Levels Pulses: 4.7V (Input 5V)
Output Low Levels Pulses: 0.5V (Input 5V)
Pattern: 2 pattern optional

Package Includes:
1pc Water Flows Meter

note:
Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
