Active Bluetooth 6x Ceiling Speaker Kit 50W Wireless HiFi Audio Streaming System

Active Bluetooth 6x Ceiling Speaker Kit 50W Wireless HiFi Audio Streaming System Description

3x - Active Bluetooth Low Profile Ceiling Speaker Kits & Link Cable

Kit Contents:

3x Active Bluetooth Speaker
3x Passive Speaker
3x 12V DC UK Mains Power Supply (1m Length)
3x 3m Speaker Cable (joins active and passive speakers together)
3x Ceiling Cut-Out Templates
2x 10m System Daisy Chain Connecting Cable

Overview:

Our Active Bluetooth ceiling speaker kit is incredibly simple to install and offers unrivalled sound quality & style for its price. This system boasts a genuinely impressive maximum volume of 50W (each kit) and delivers a high level of bass for a ceiling speaker, resulting in a crystal clear & complete audio experience.

Thanks to the system being Active, you do not need an amplifier to power them. One of the speakers in each kit has a built-in amplifier & Bluetooth receiver. Once powered up using the supplied power cable, you can stream music to the first pair of speakers wirelessly via Bluetooth from your Smartphone or Tablet for example. All features such as controlling volume or skipping tracks ETC are controlled from your device, it couldnât be simpler!

Thanks to the Bluetooth receiver being compatible with our SMART HOME range, you can connect this to the Amazon Echo / Google Home as our system is NOT password protected for pairing. Donât worry, once connected you cannot be thrown off by another user.

Installing the speakers:

This is as simple as installing any other ceiling speakers, simply cut-out 6 holes in your ceilings for the speakers, a guide template is supplied to make marking the holes as easy as possible.

The next thing you need to do is ensure that you have a mains power source in the ceiling so that you can plug our power supply into it. You will need 1 mains feed for each kit (per 2 speakers). After that, feed the supplied 3m speaker cable from the first hole you have cut out to the second hole you have cut out (for each kit). If you need a longer length of cable, please get in touch as we can supply you with this but as a general rule, you donât want the Active & Passive speakers to be too far apart.

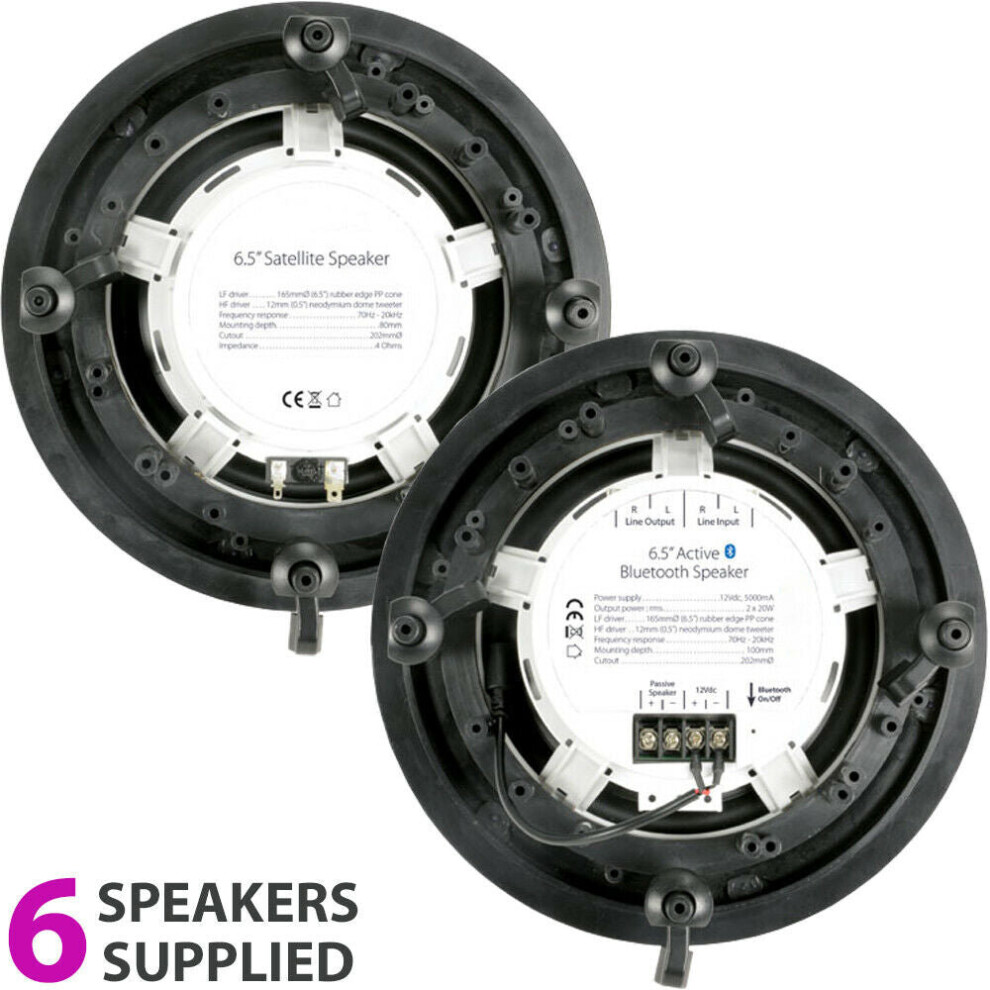

Now you need to run the supplied RCA cable to the next kitâs cut out location. Simply plug one end of this cable into the connection labelled âœLINE OUTâ on your main active speaker. The other end of this cable will plug into the next active speaker from the second kit into the connection labelled âœLINE INâ. Connecting these two together integrates both sets into 1 system allowing you to play through all speakers at the same time. Repeat this for the next set(s) of speakers.

PLEASE NOTE â" only connect to the 1st main speaker via Bluetooth, if you connect to any others down the line, it will only feed the other speakers that come after it. If this is a little too technical for you. Please get in touch and we would be more than happy to explain it to you.

The final step is to fit the speakers to the ceiling and connect the active and passive speakers from each kit together via the pre-installed speaker cable. No soldering or crimping is required, just a screwdriver. When you have inserted the speakers into the ceiling, simply tighten the screws underneath the grille that are connected to the dog-ear mounts, as you tighten, they will grip to the ceiling guaranteeing a sturdy installation. Donât worry if that didnât make sense, an illustrated instruction manual is supplied to help you.

A lot of speakers on the market can look bulky & cumbersome but once installed, our speakers sit almost flush to the ceiling and the magnetic frameless grille has an extremely low profile. The fine mesh grilles can be removed easily for cleaning & repainting, should you need them to match your dÃcor.

Technical Specification:

Power supply - In-line 100-240VAC/12VDC PSU (included)

Output power: max. - 2 x 25W

Output power: RMS - 2 x 20W

LF driver - 165mmà (6.5") rubber edge PP cone

HF driver - 12mm (0.5") neodymium dome tweeter

Frequency response - 70Hz - 20kHz

Sensitivity - 89dB

Dispersion angle - 160ÂÂ

Housing material - ABS plastic

Mounting depth - 100mm (active), 80mm (passive)

Cutout - 202mmà (each speaker)

Impedance - 4 Ohms (each speaker)

Dimensions - 98 x 234mmà (active), 77 x 234mmà (passive)

Weight (per set) - 1.91kg

If you require any technical advice or would just like a chat with our technical department to see if this would be the right kit for you, please feel free to get in touch.
