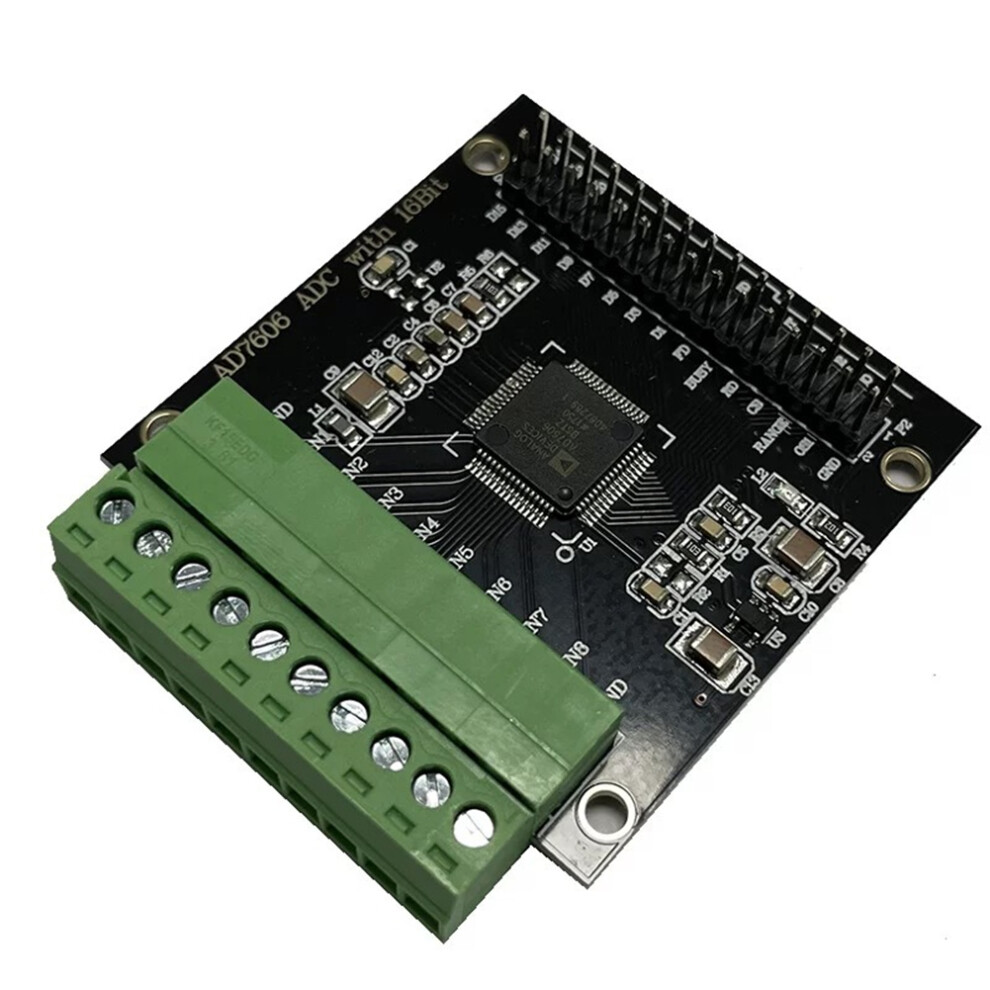

AD7606 Multi-Channel AD Data Acquisition Module 16-Bit ADC 8-Channel Synchronization Voltage Sampling Frequency 200KHz

AD7606 Multi-Channel AD Data Acquisition Module 16-Bit ADC 8-Channel Synchronization Voltage Sampling Frequency 200KHz Description

The AD7606 is a 16-bit, 8-channel synchronous sampling analog-to-digital data acquisition chip with a sampling rate of up to 200kSPS per channel. Built-in analog input box bit protection, second-order anti-aliasing filter, tracking hold amplifier, 16-bit charge redistribution successive approximation ADC, digital filter, 2.5V reference voltage source, reference voltage buffer, and high-speed serial and parallel interfaces.
It is powered by a 5V single power supply, featuring on-chip filtering and high input impedance, thus eliminating the need to drive operational amplifiers and external bipolar power supplies. The 3dB cut-off frequency of the anti-aliasing filter is 22kHz. When the sampling rate is 200kSPS, it has an anti-aliasing suppression characteristic of 40dB.
The input clamping protection circuit ensures that the input can withstand a voltage of 16.5V. It can be applied in systems such as power line monitoring and protection, multi-phase motor control instruments and control, and multi- positioning data acquisition.

Color:As Shown
Material:PCB

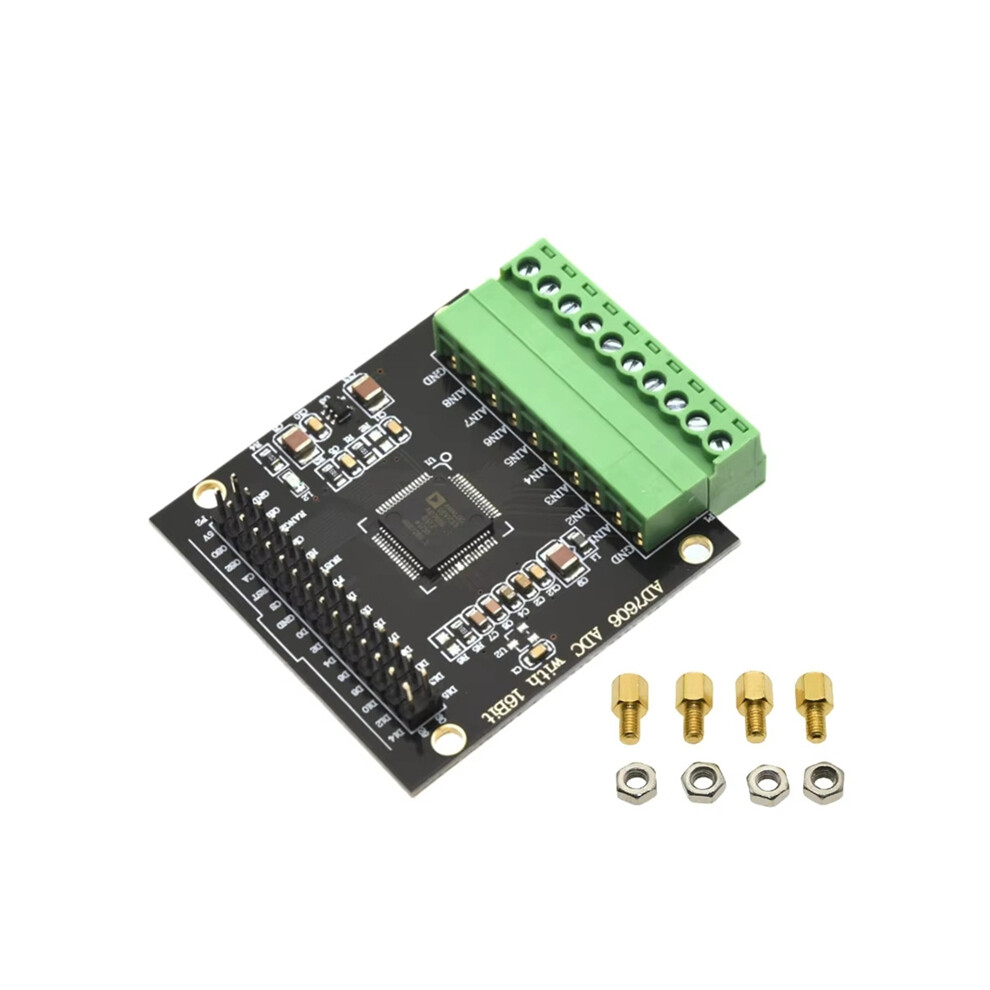

Package Contents:
1 * module set

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
