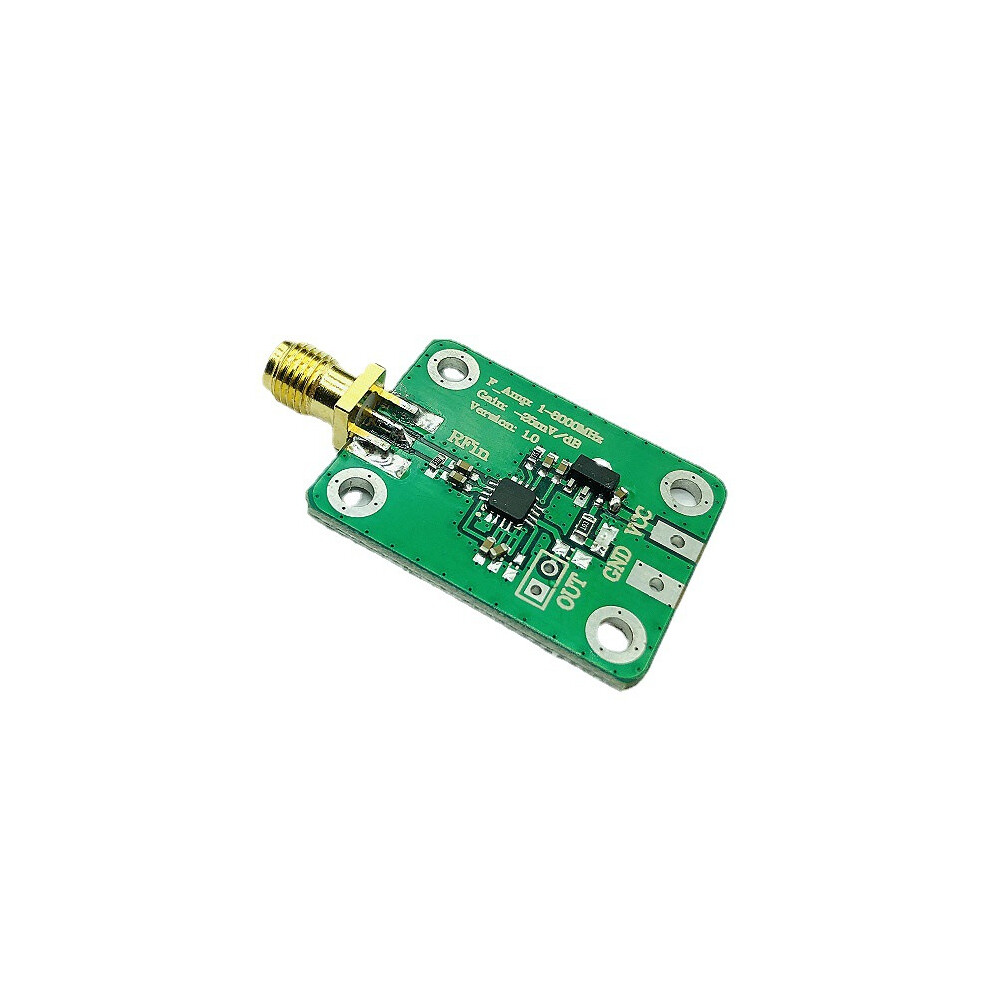

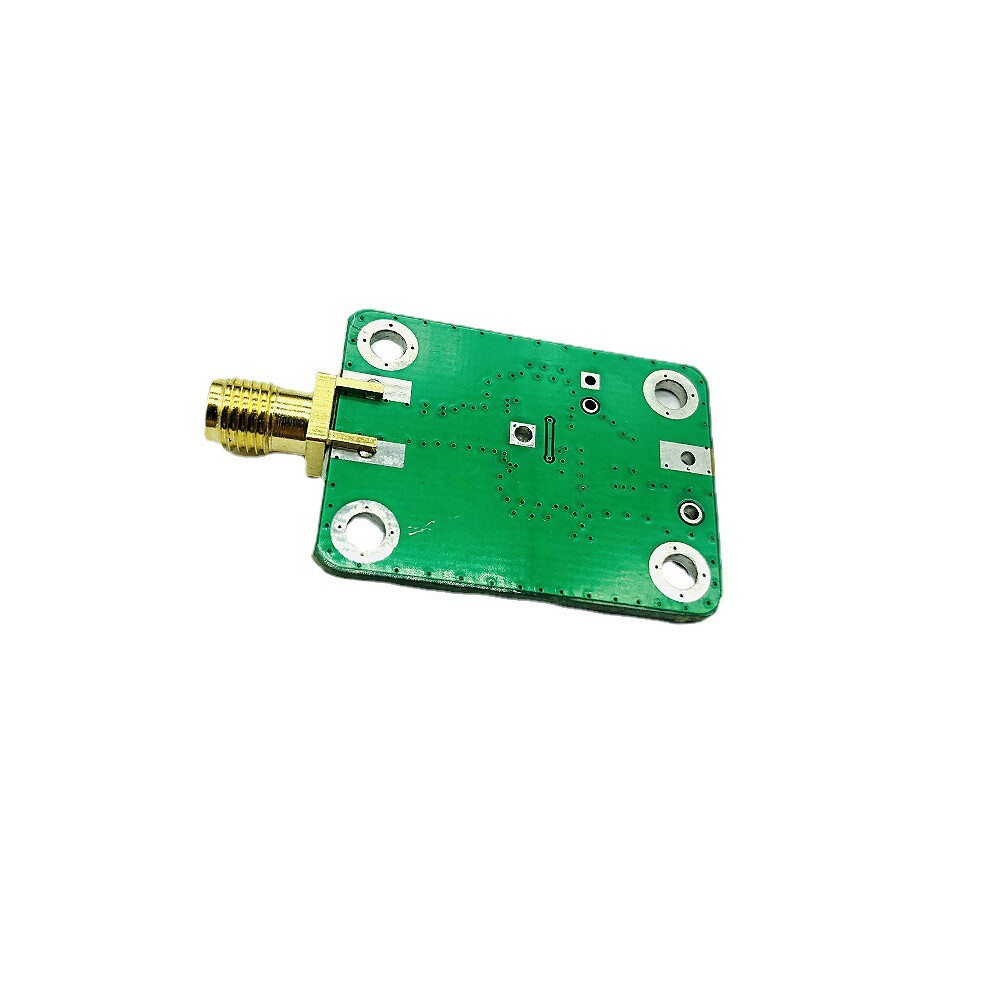

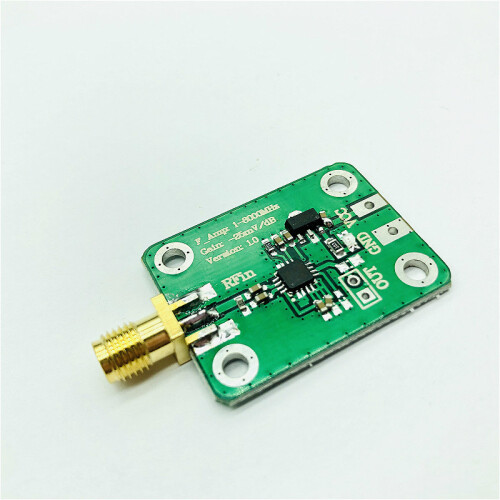

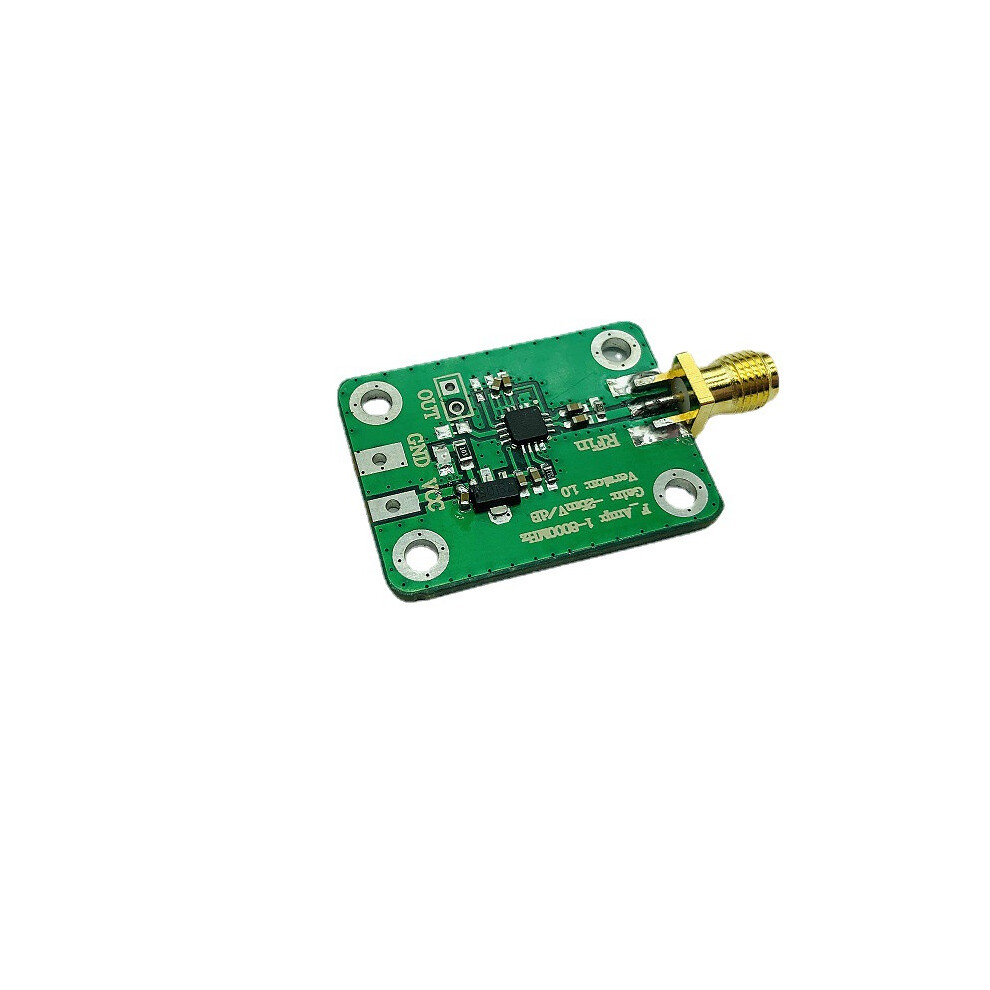

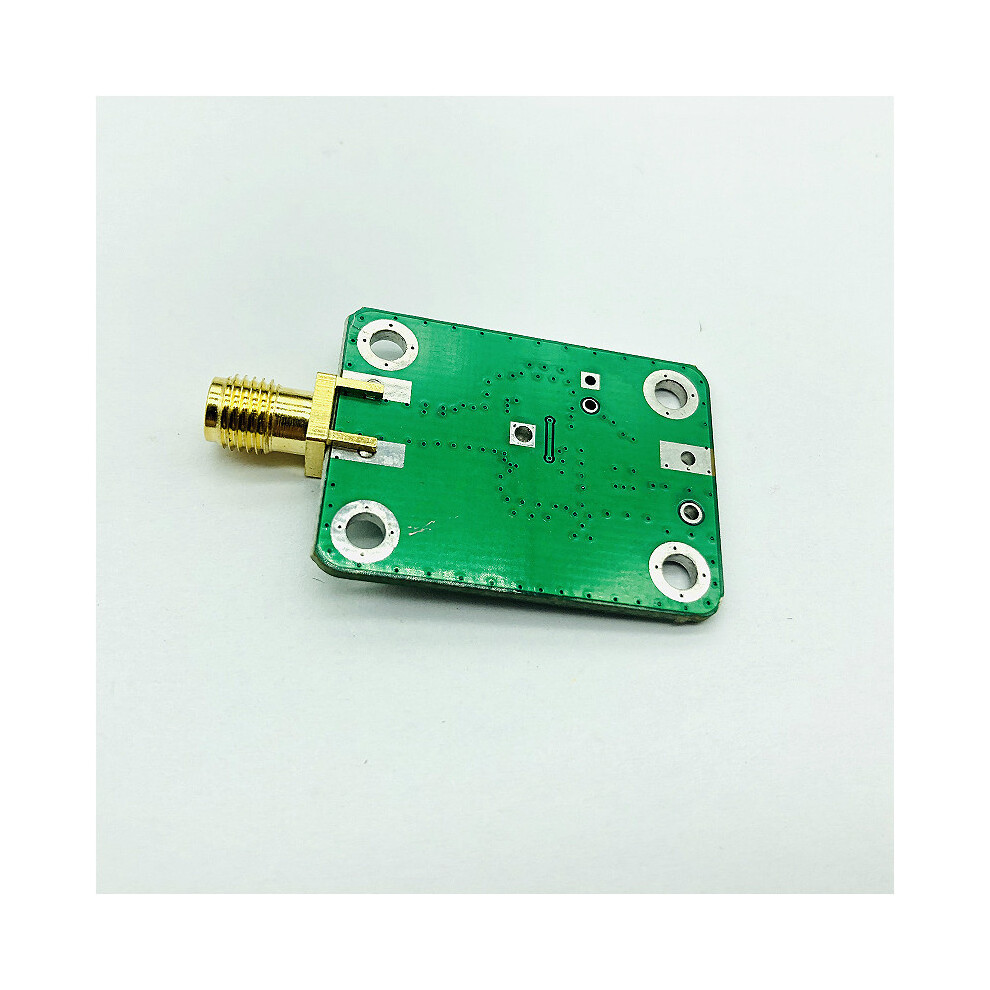

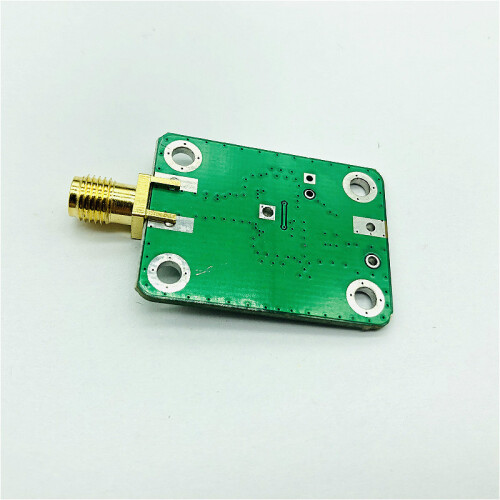

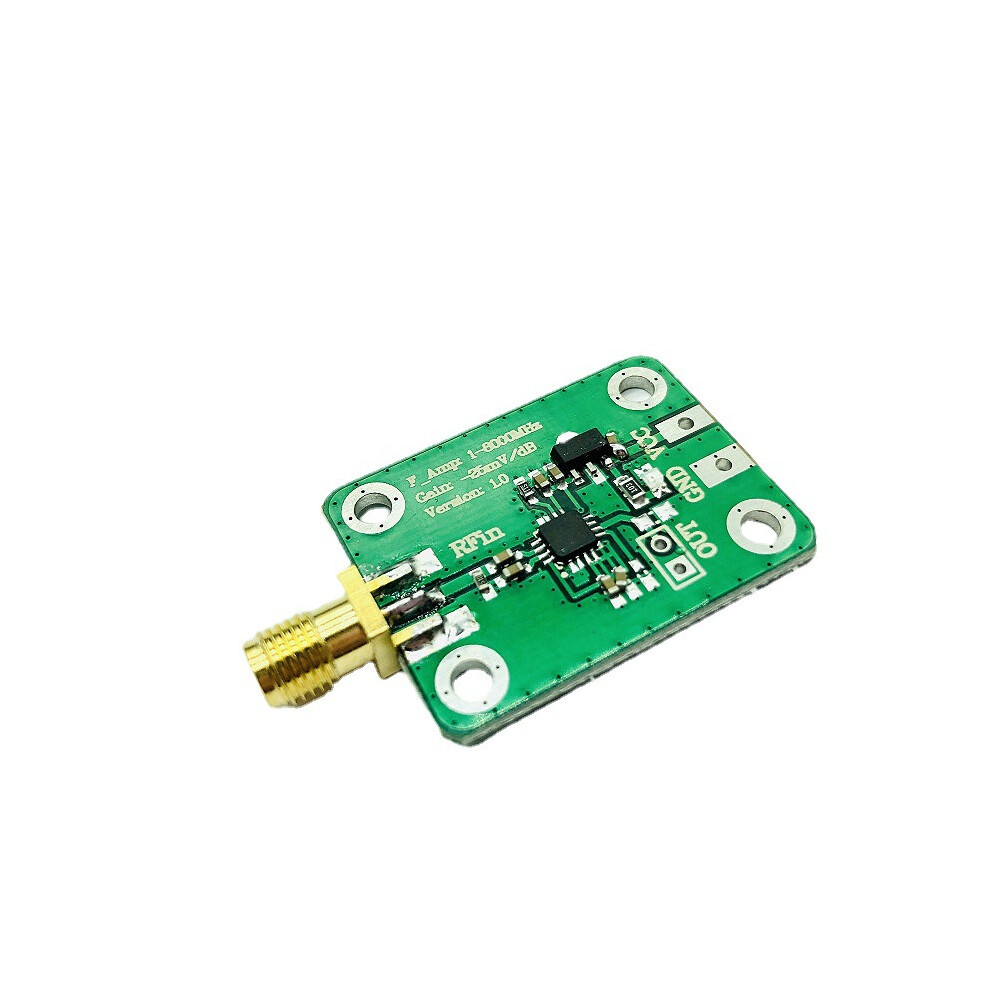

AD8318 1-8000MHz RF Power Meter Logarithmic Detector Controller

AD8318 1-8000MHz RF Power Meter Logarithmic Detector Controller Description

Features:

The RF detector is designed using ADI's AD8318 chip

Designed with power supply voltage regulator circuit

Making the detection accuracy tends to the official data

Operating frequency range 1-8000MHz,can detect -65-5dBm RF signal

DC voltage output in the form of the detected signal strength

(Unit dBm,logarithmic way to detect)

Transform such RF signal into DC voltage output

RF signal amplitude or power corresponding to the output voltage

Can do signal strength indication RSSI,spectrum meter,gain control,etc

Specification:

Operating frequency:1-8000MHz

Dynamic range:-65dBm to+5dBm

Detection slope:-25 mV/dB(typical value)

Detection output voltage range:0.5-2.1V

Supply voltage:7-15VDC(with power supply voltage regulator circuit)

Input impedance:50 ohms

RF interface:standard SMA female connector

Package includes:

1*1-8000MHz detector

Note:

Only includes the above package products

Specifications are manually tested,for reference only

Please refer to the actual,thank you
