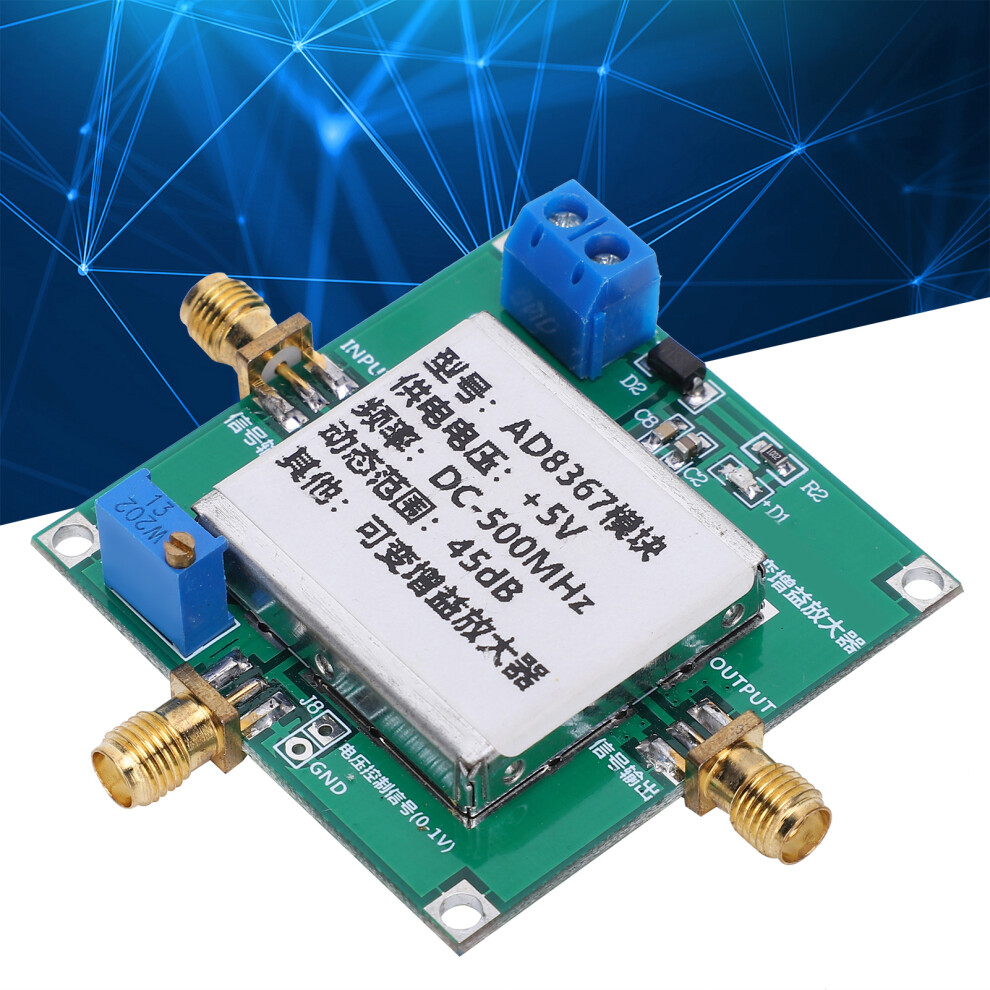

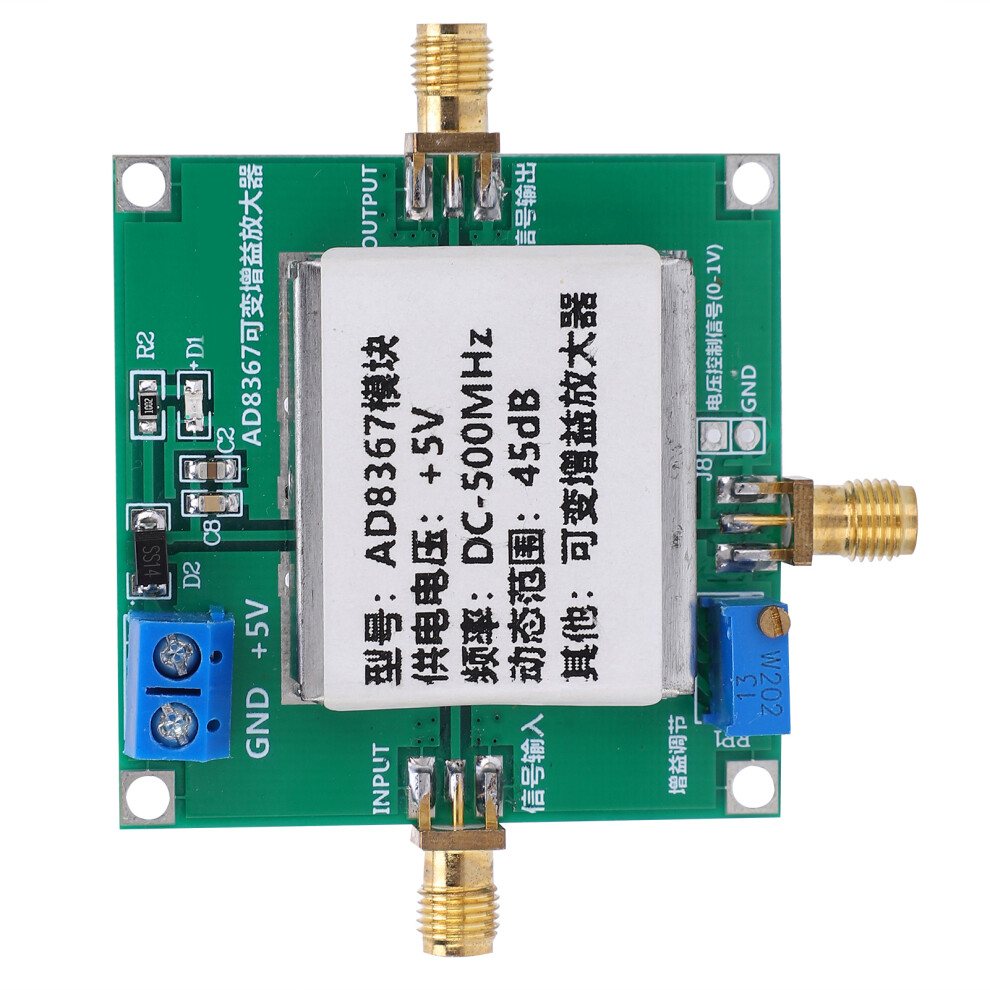

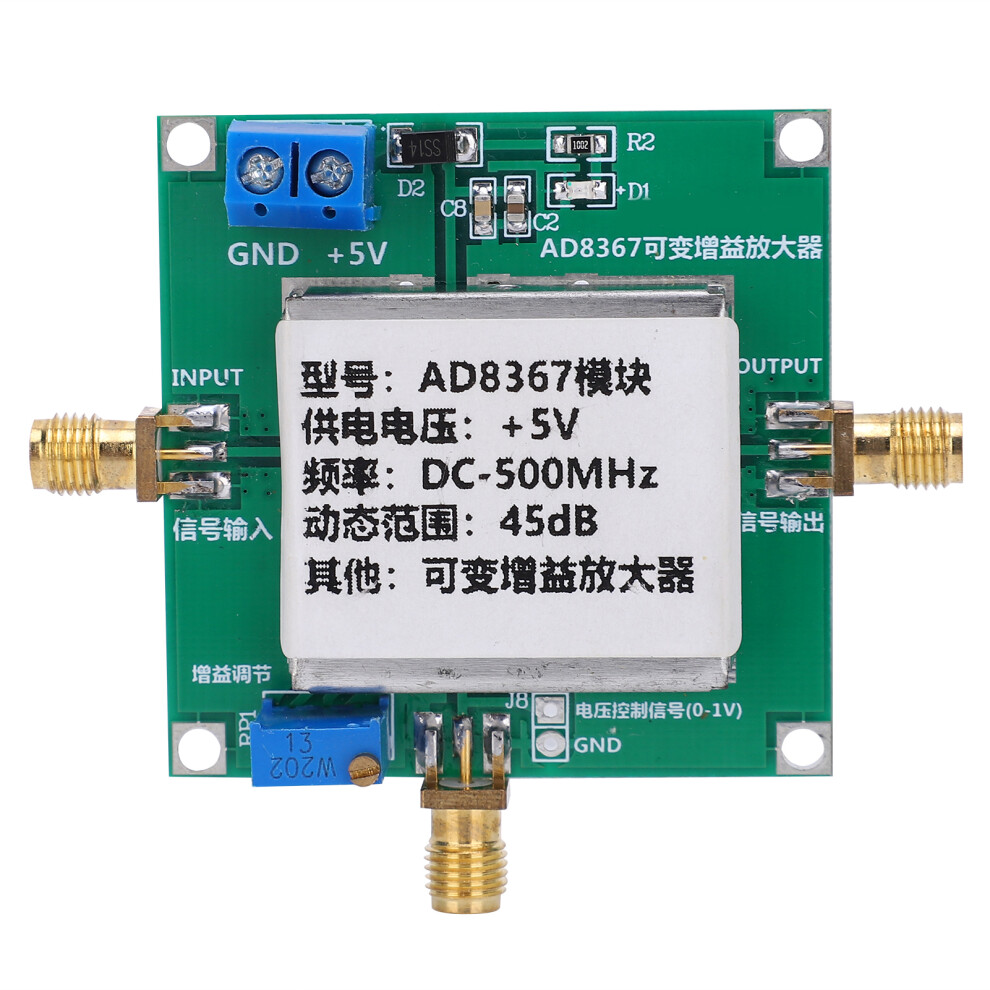

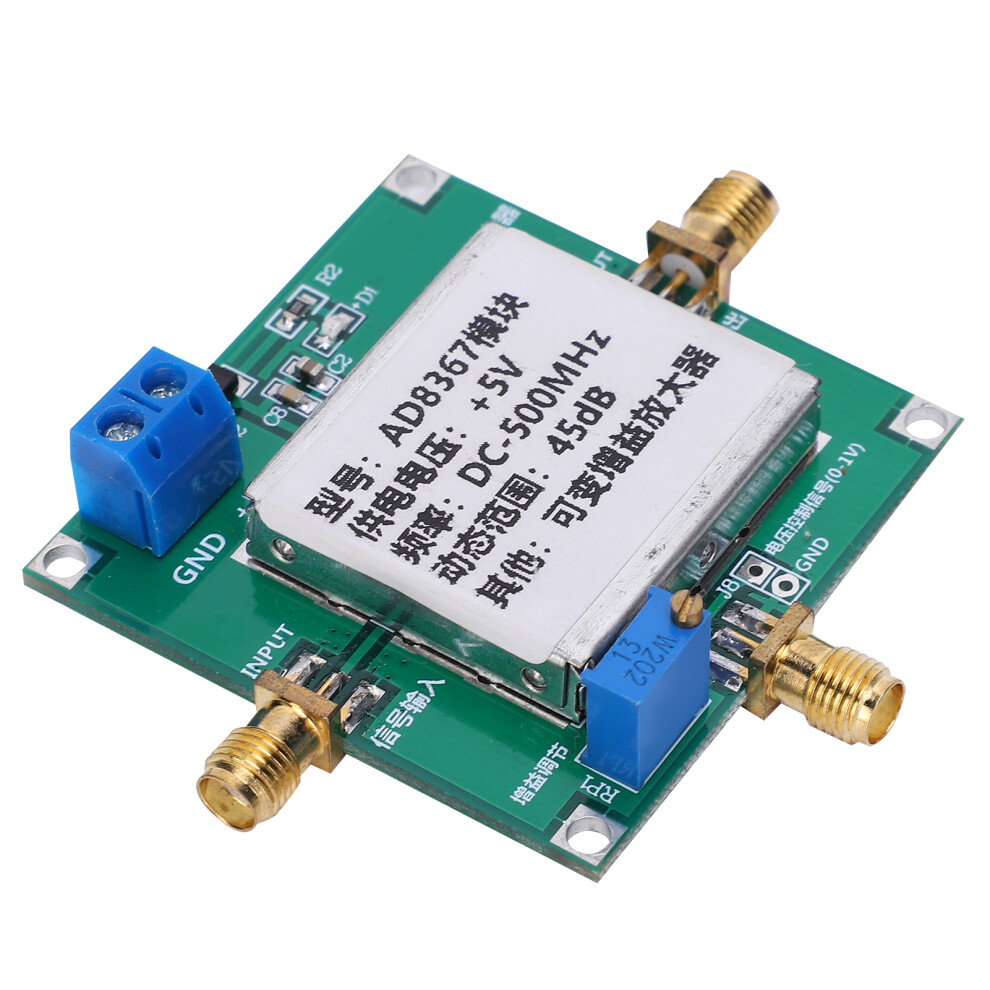

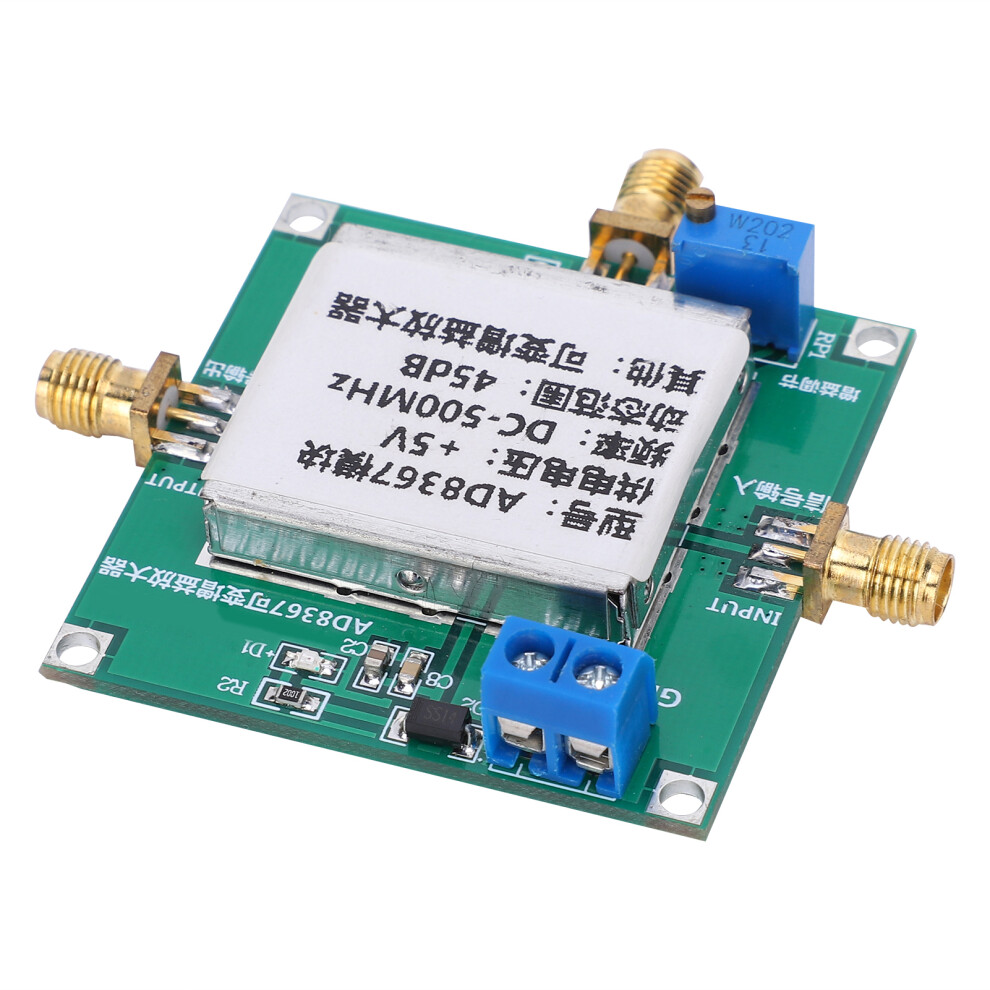

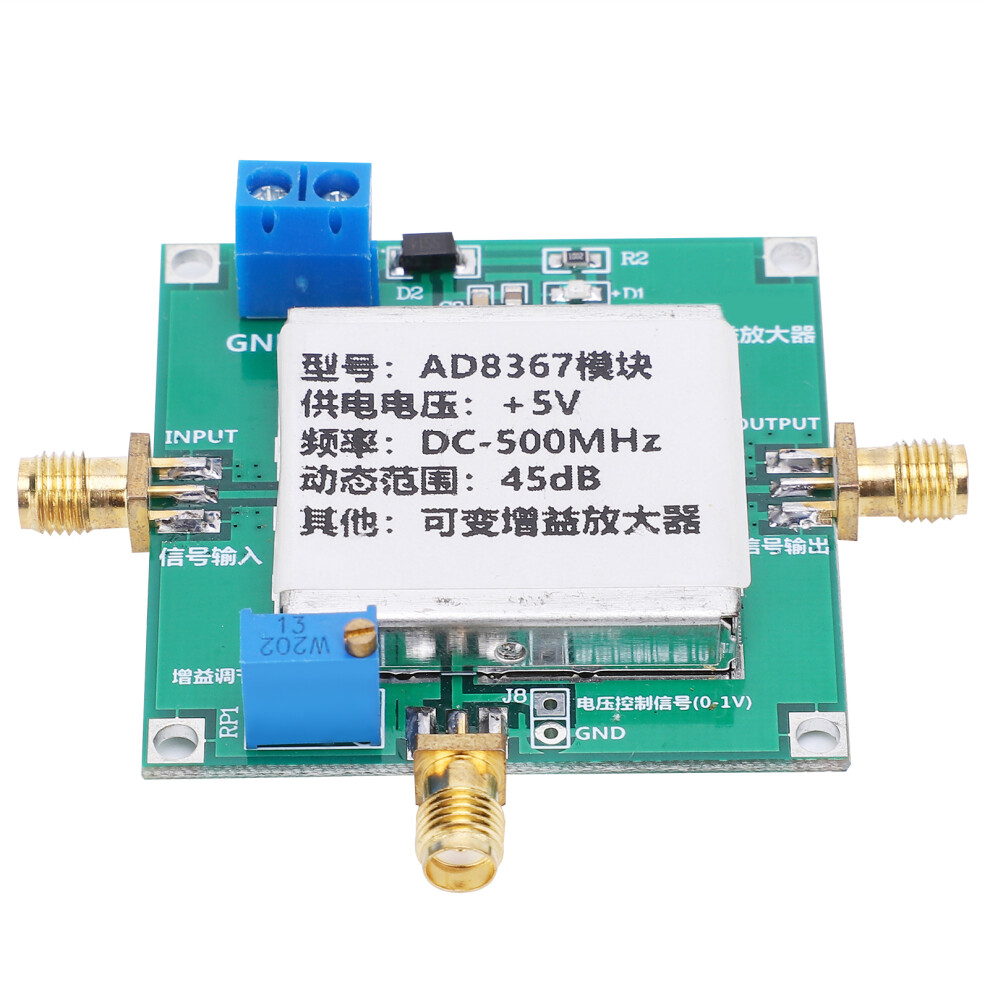

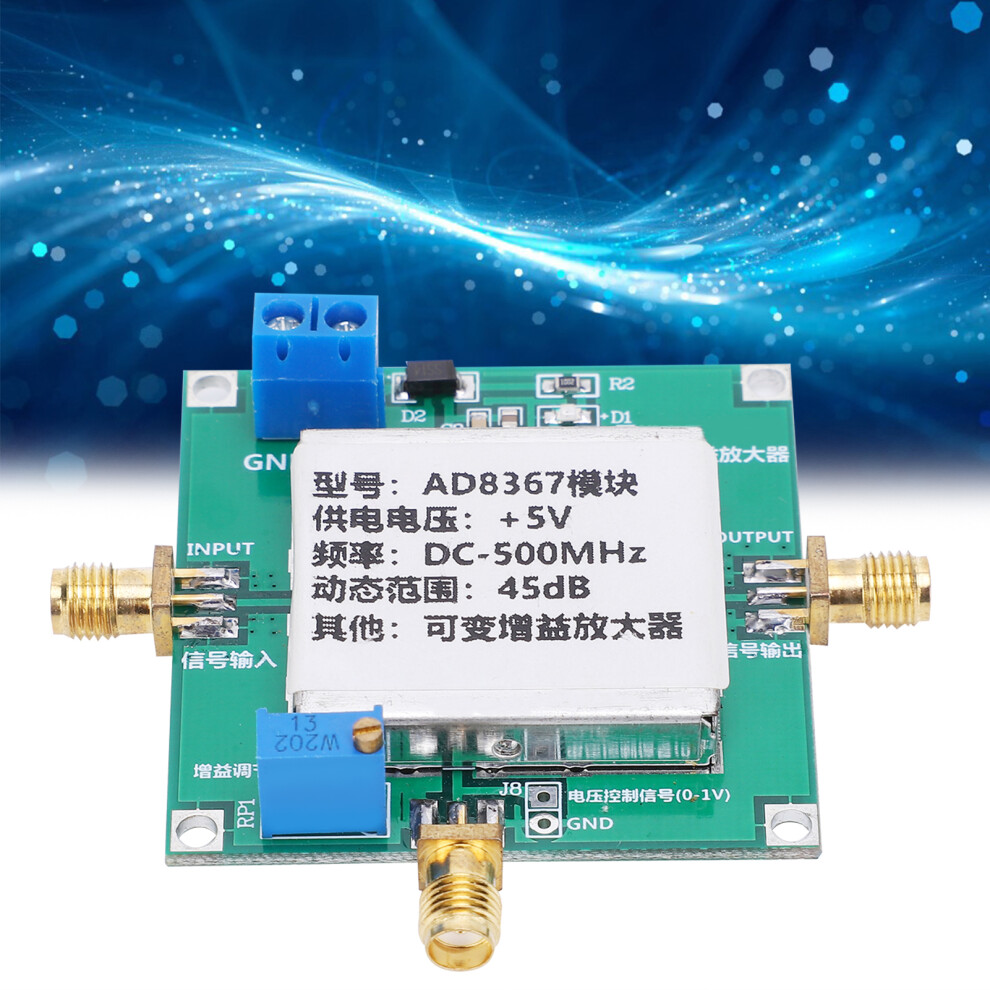

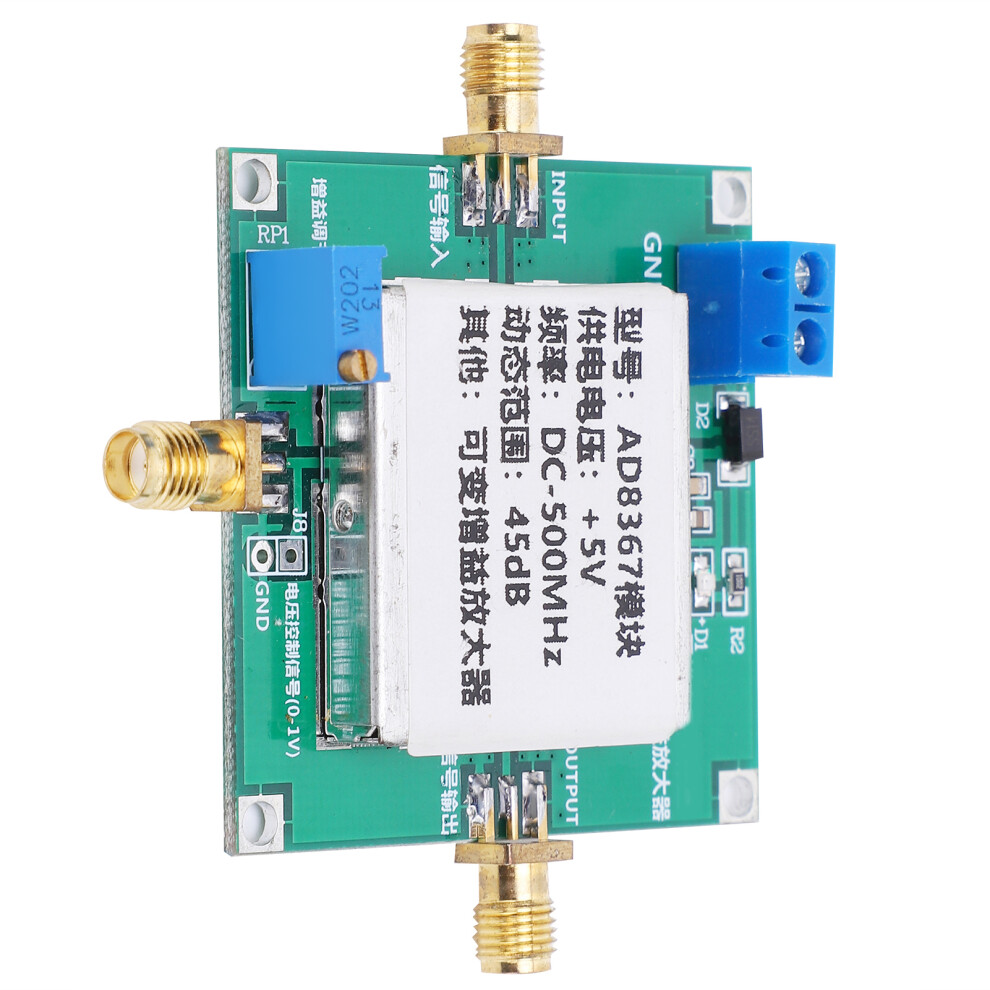

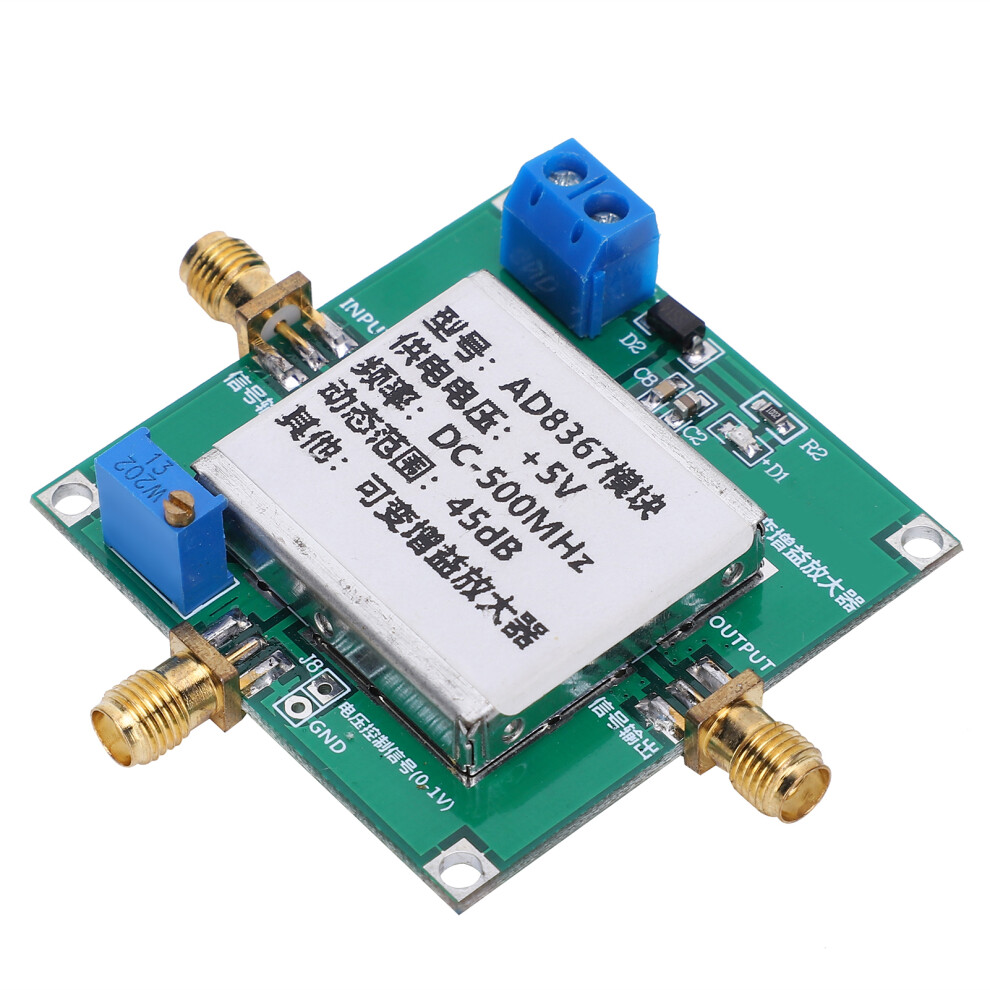

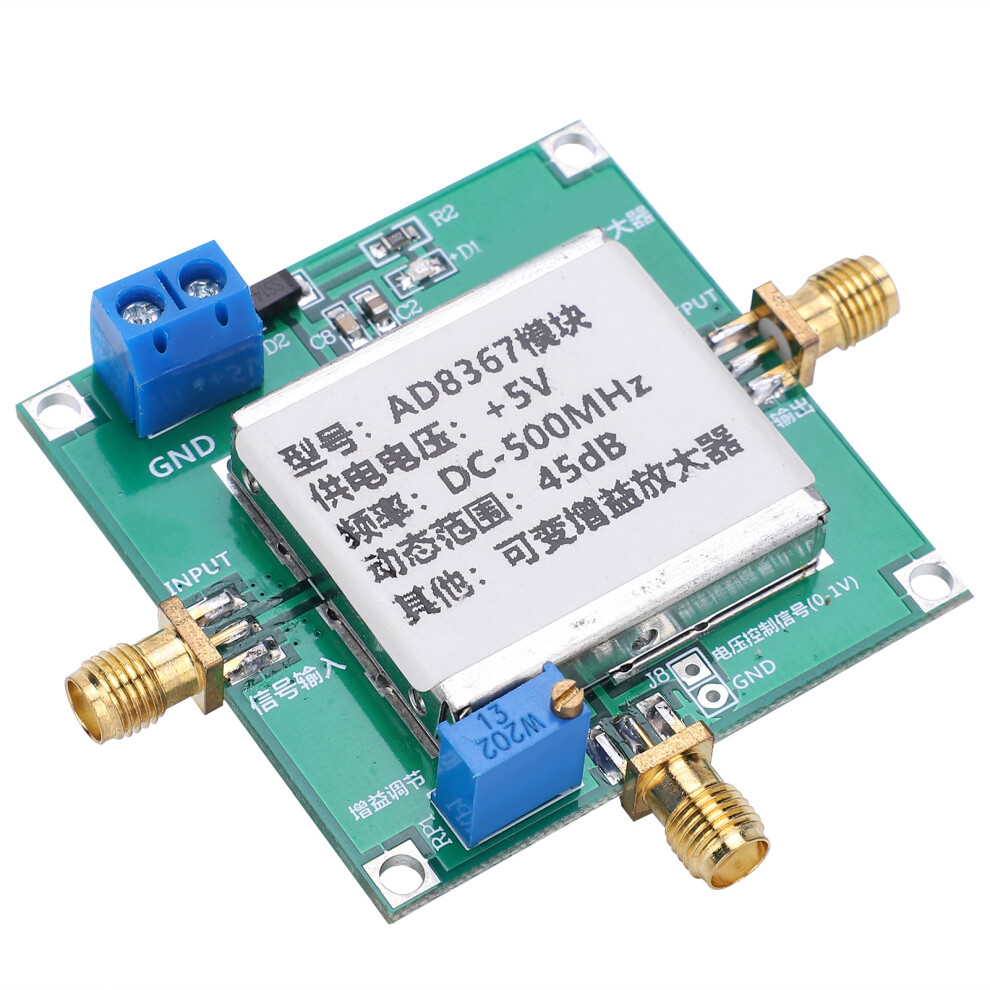

AD8367 45dB Gain Amp Module DC-500MHz Color:Shown
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£25.66
£32.90
22% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 23rd - Sat 25th Jul
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Hardware
Description & Details
Summary
- The amplifier can be configured with traditional VGA mode applied to external voltage control, and a square law detector is integrated inside, so it can also work in automatic gain control mode.

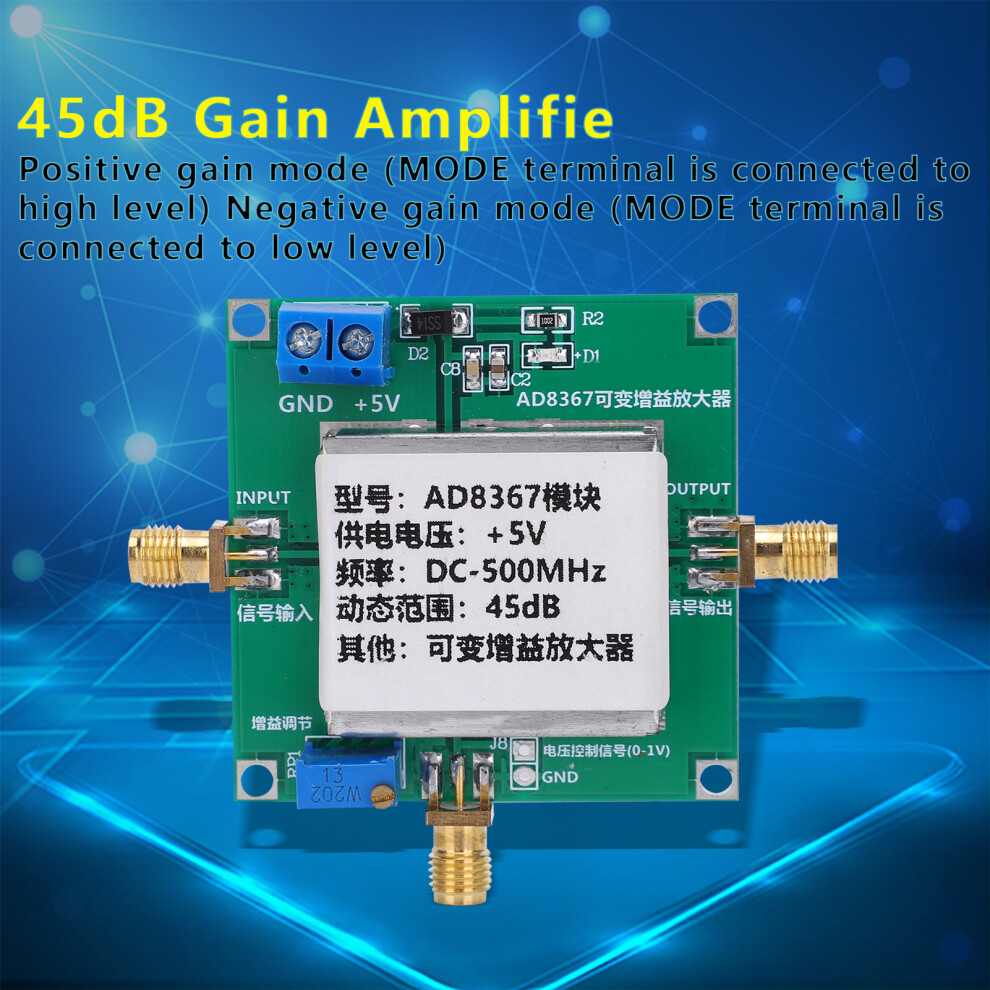

- There are two working modes for the amplifier, that is positive gain mode (MODE terminal connected to high level) and negative gain mode (MODE terminal connected to low level).
- Able to achieve precise log‑linear gain control with a gain control range of 45 dB.
- Shielding shell and anti‑reverse connection protection diode, it is more at ease when working.
- Professional manufacture ensures you higher quality products, you can buy it with ease.
AD8367 45dB Gain Amp Module DC-500MHz Color:Shown Description
Variable Gain Signal Amplifie Module 1‑500MHz Radio Frequency Broadband Signal Module 45dB AD8367
Condition:
Item Type: Signal Amplifie Module
Material: PCB
Color: As Pictures Shown Working Frequency: DC-500MHZ
Supply Voltage:+5V DC (Typical Current Value 200mA/at Maximum Gain Output)
Input and Output Impedance: 50Ω
Maximum Output Amplitude: 27dbm (200Ω)
Variable Gain Range: 45dB
Control Voltage Range: DC0-1V
Analog Gain Control Voltage Range: 50mV -950mV
Control Sensitivity: 20mV/dB
Details
| OPC | PTFV9JC |
|---|---|
| Codes | 6951393820482 (EAN) |
