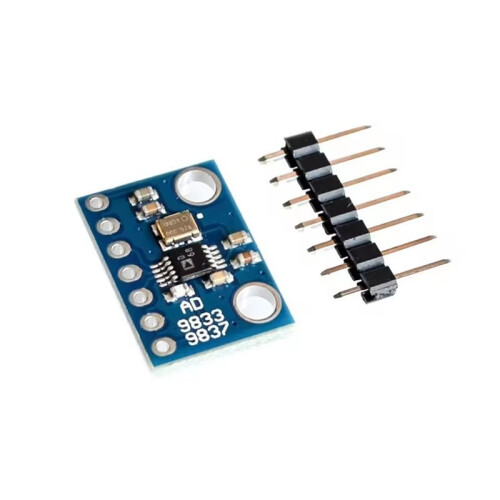

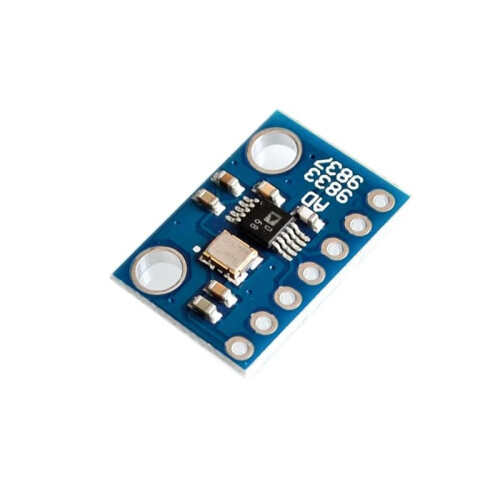

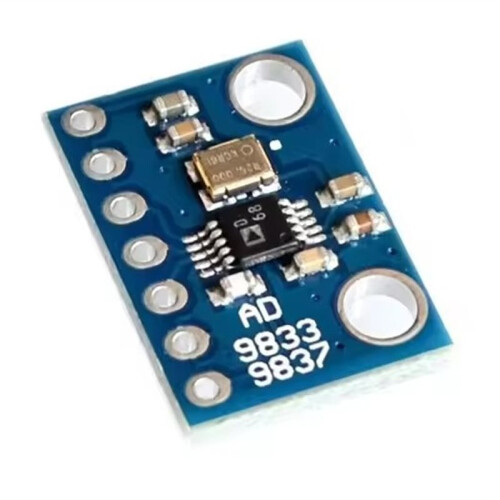

AD9833 Signal Generator Module Triangle Sine Square Wave Signal Source Programmable DDS Function Generator Board for DIY

AD9833 Signal Generator Module Triangle Sine Square Wave Signal Source Programmable DDS Function Generator Board for DIY Description

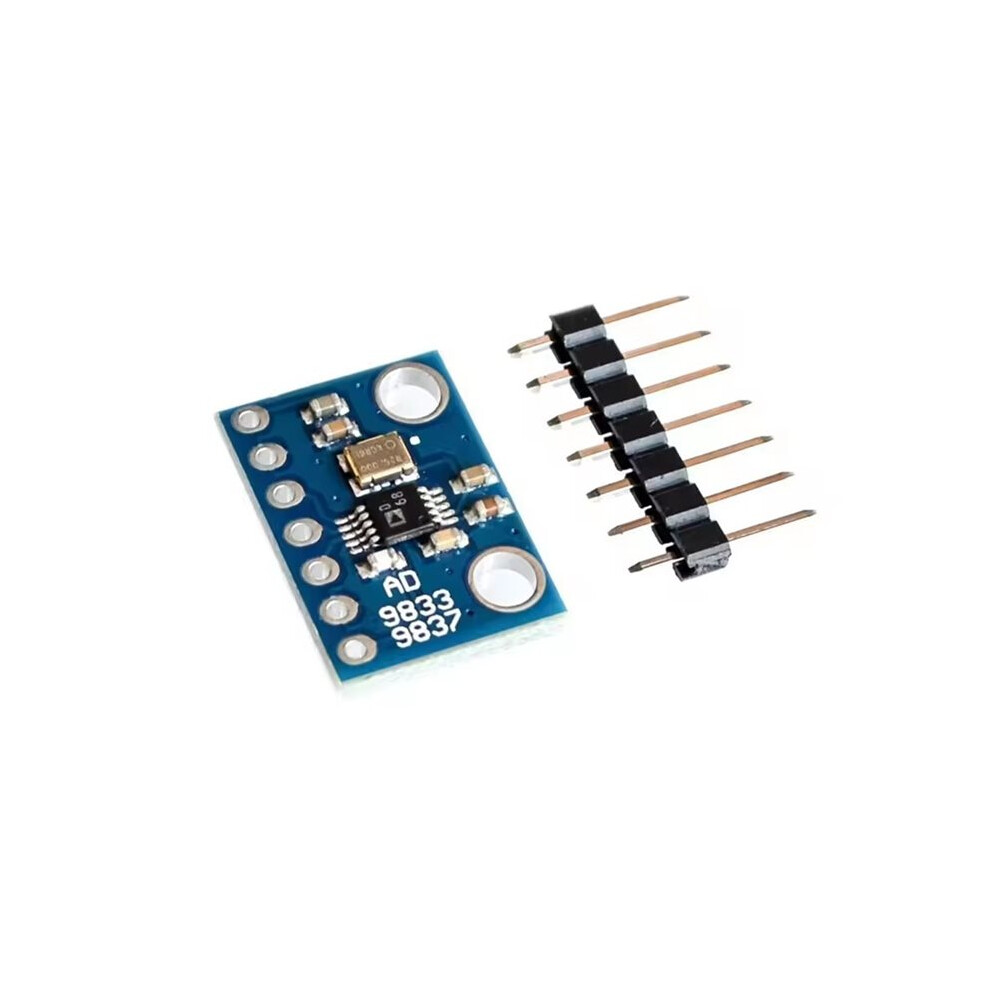

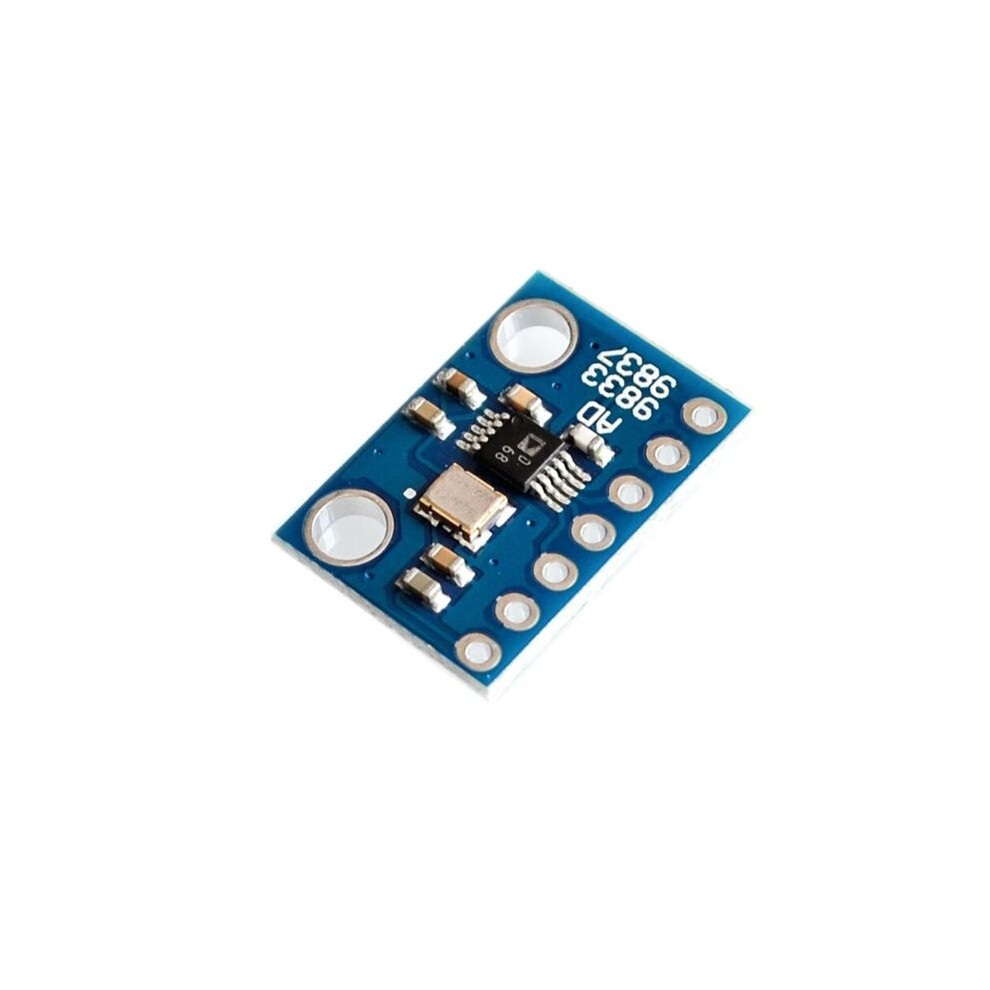

This AD9833 signal generator module is a compact, programmable DDS (Direct Digital Synthesis) waveform generator designed to output sine, triangle, and square waves. It is ideal for waveform generation, function generator projects, and signal testing.

1. Multiple Waveform Outputs: Supports sine, triangle, and square wave outputs, suitable for a wide range of signal simulation and testing applications.
2. AD9833 DDS Chip: Utilizes the AD9833 integrated circuit for stable, low-distortion waveform generation and precise frequency control.
3. Wide Frequency Range: Typical output frequency range to approximately 0-12MHz (depending configuration), meeting the needs of most laboratory and DIY applications.
4. Digital Frequency Control: Programmable via SPI interface, allowing fine-tuning of frequency and phase via an external microcontroller or development board.
Color: As Shown
Material: PCB

Package Contents:
1 * Module
7 * pins
