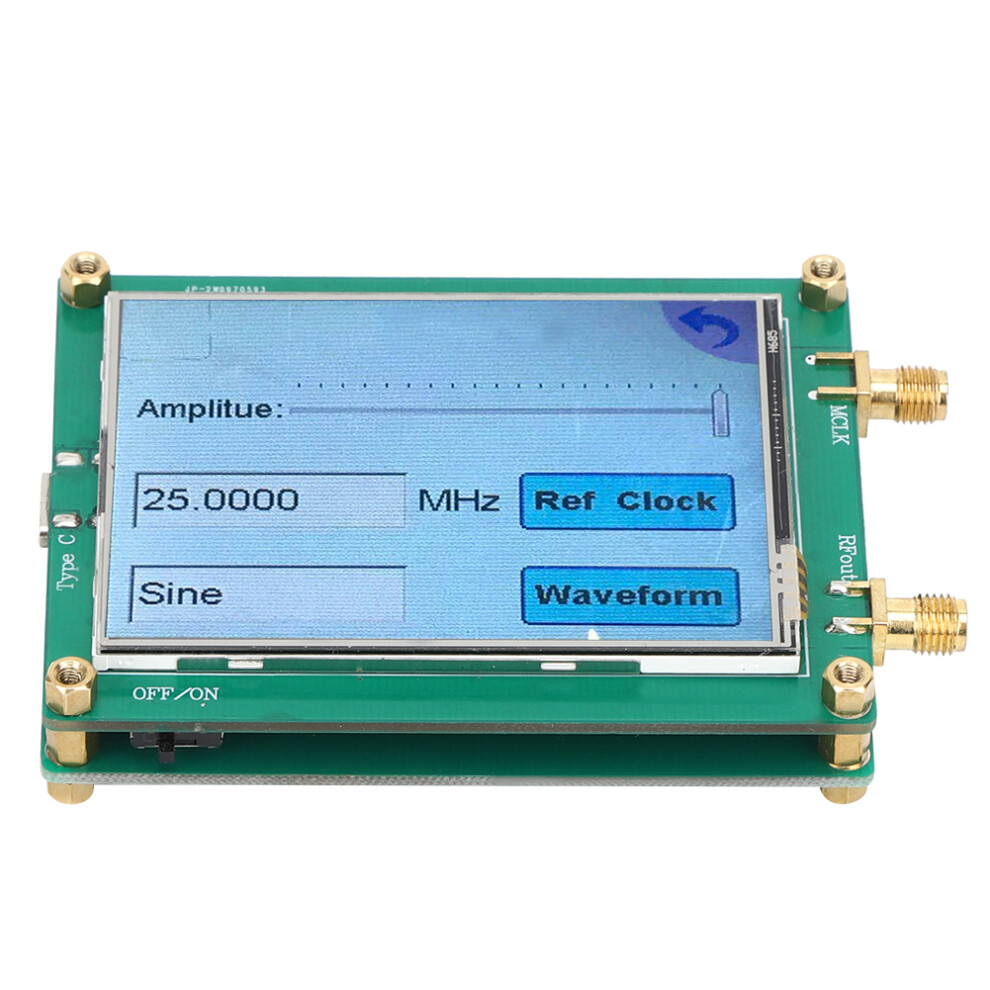

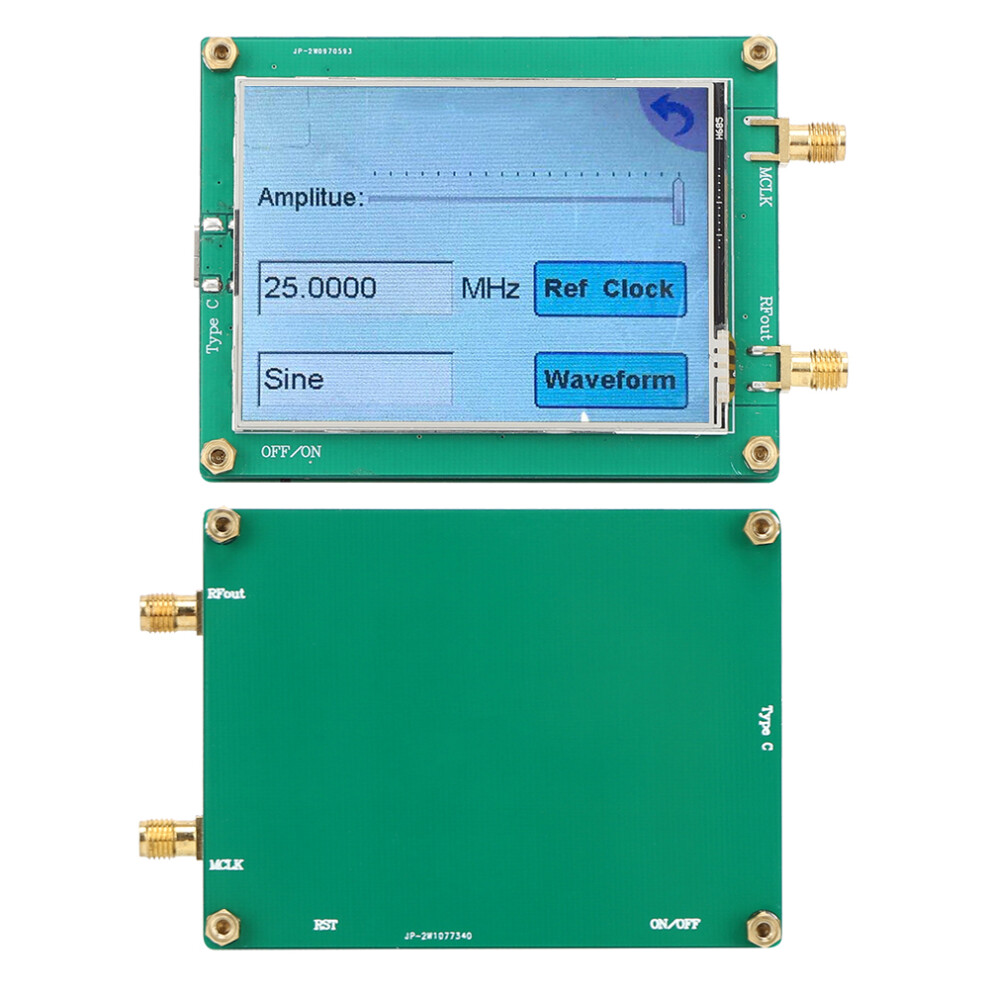

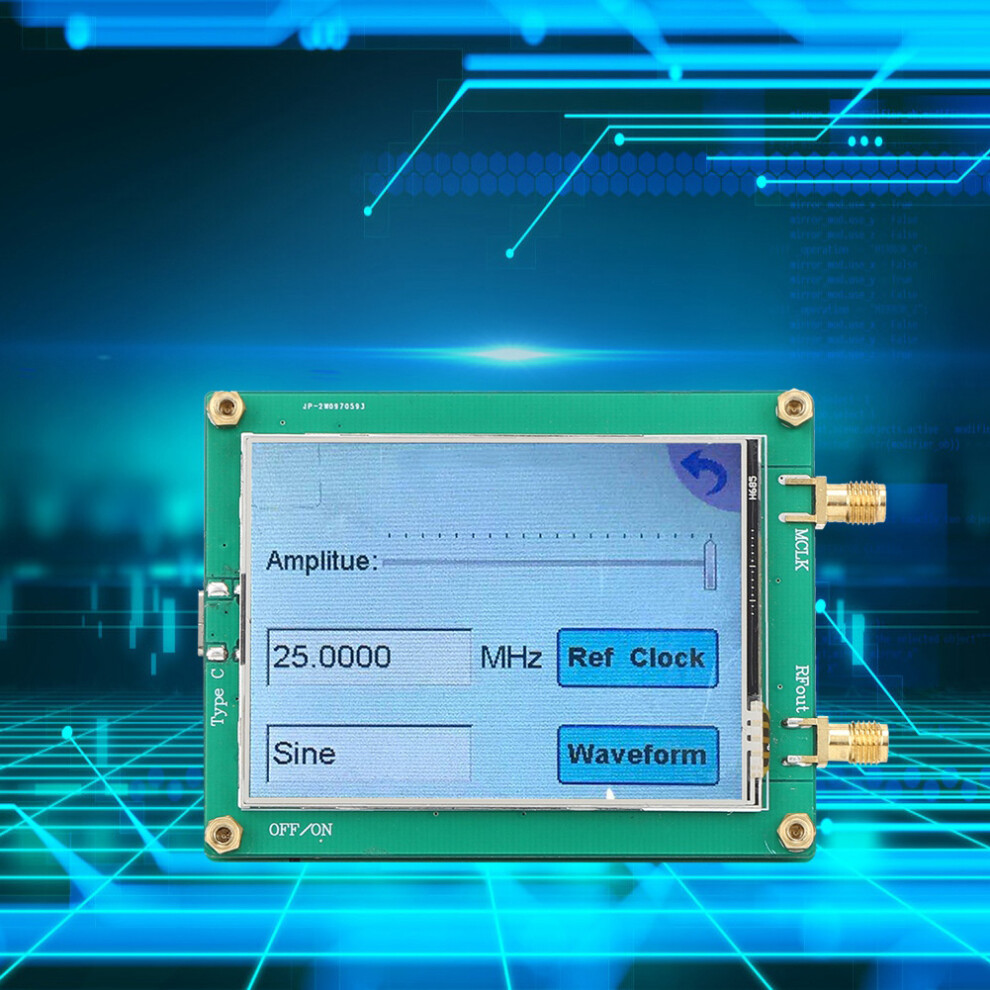

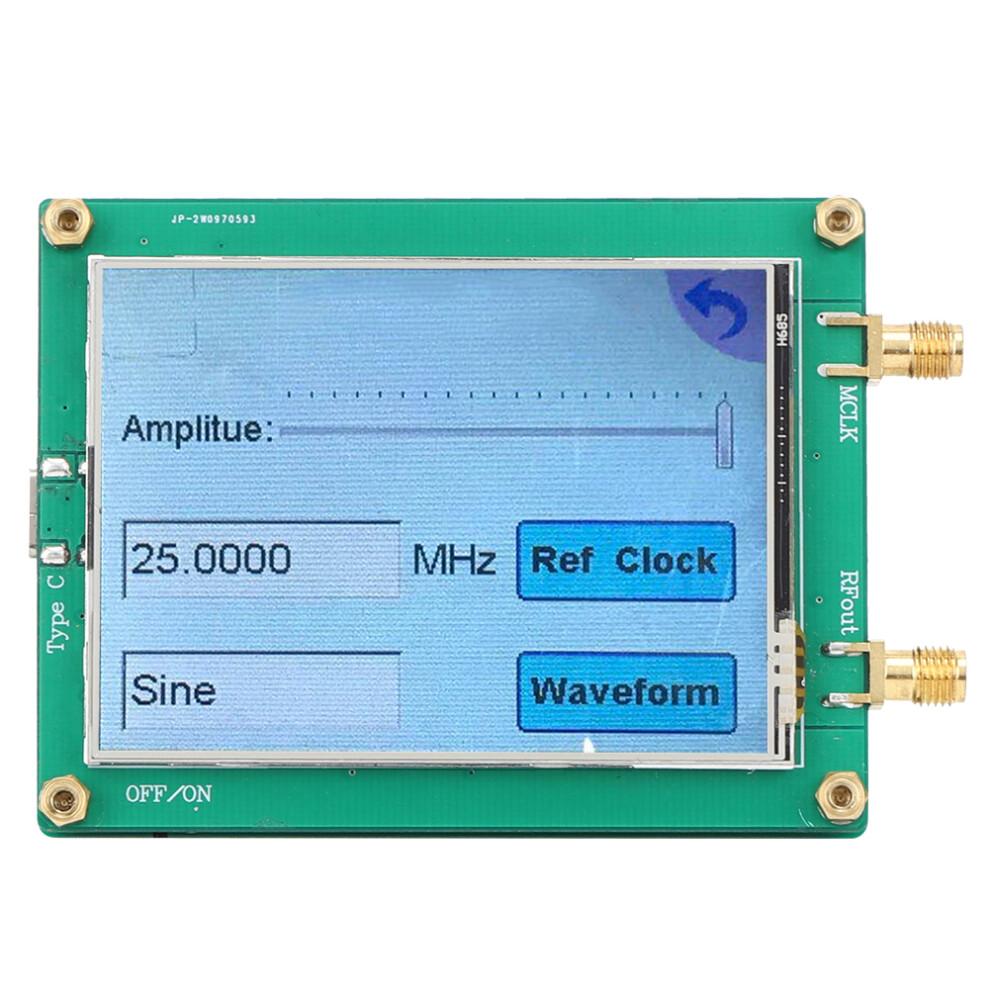

AD9833 TFT Touch Screen Signal Generator DDS Source 0.1Hz-3MHz
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
£41.34
£52.99
22% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 6th - Sat 8th Aug
Returns: 30 days
180-day payment protection
Most Popular in Studio Power Conditioners
Description & Details
Summary
- Adjustable signal generator can make frequency stimulation or waveform generation, which is practical.
- Also, this DDS generator can measure liquid and air flow, and it is easy to use in life.
- As for sensor applications, the generator can be suitable for proximity, motion and defect detection,Line loss / attenuation, testing and equipment, scan / clock generator, time domain reflectometry (TDR) applications.
- Function signal generator enables to communicate with PC through TYPE C interface to provide host computer software.
- When it comes to the output waveform, this generator can set for sine wave, triangle wave and square wave.
AD9833 TFT Touch Screen Signal Generator DDS Source 0.1Hz-3MHz Description
AD9833 TFT Full Touch Screen Signal Generator DDS Source Dot Frequency for Sine / Triangle / Square Wave
Item Type: DDS Generator
Module Features:
2. Onboard 25MHZ Active Crystal Oscillator: Stepping accuracy is 0.1HZ, external input clock can be connected through three-way-equipment.

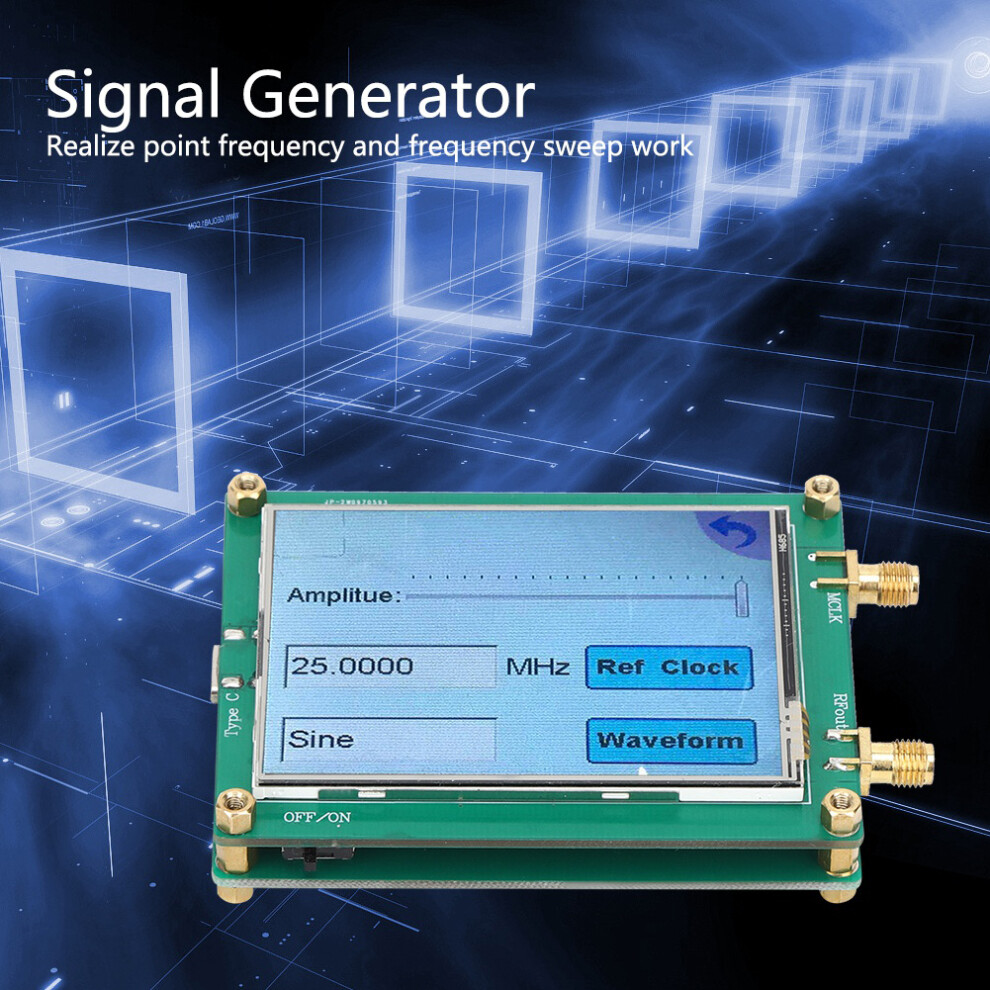

3. Point Frequency and Frequency Sweep Work: Achieved for full touch screen operation
4. Output Waveform: Sine wave, triangle wave and square wave can be set.
5. Output Amplitude: Sine wave and triangle wave are about 0.6Vpp (can be amplified by external amplifier), the high end of the frequency drops slightly; square wave is about 3Vpp
6. Output Impedance: 200R. It is recommended to add a buffer amplifier when loading
7. Output Frequency: Sine wave about DC-3MHz; square wave and triangle wave about DC-1MHz

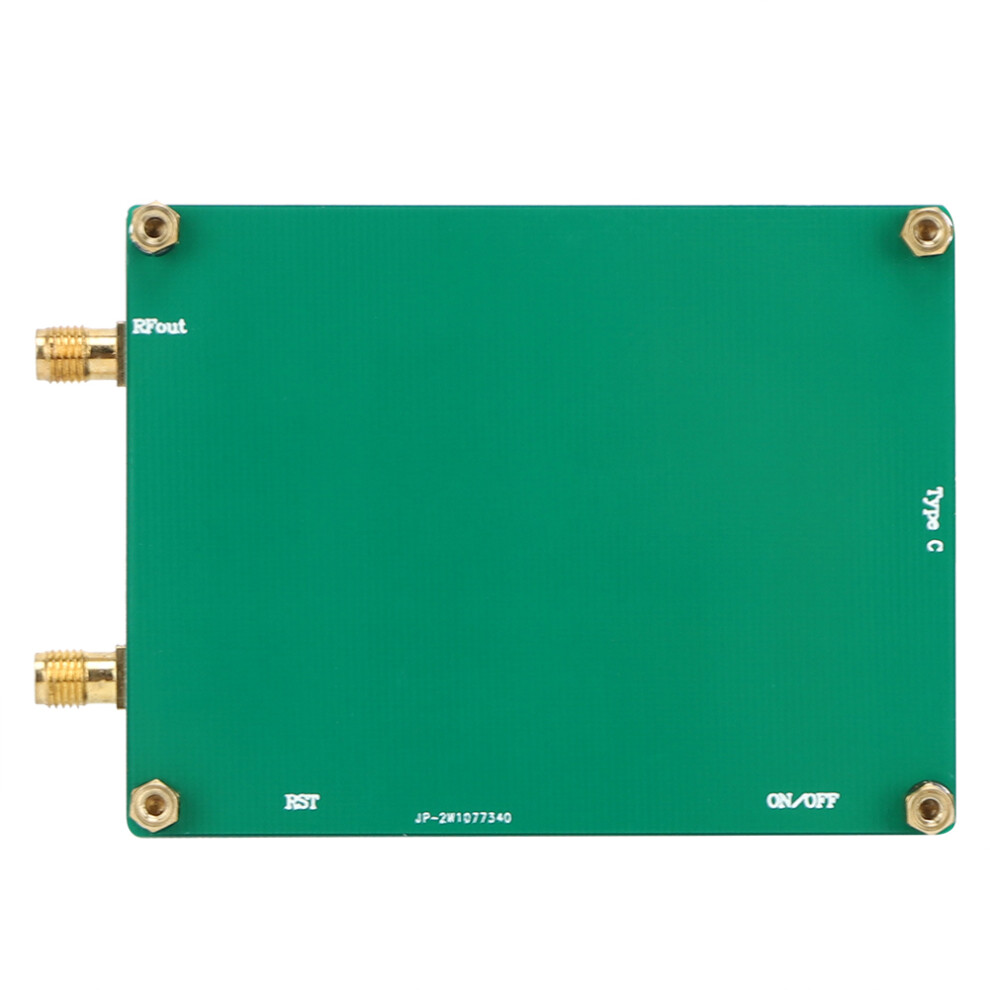

8. Output and External Clock Interface: SMA female seat (outer screw inner hole)
9. The Man-Machine Interface with Three Interfaces: Main display, setting interface, and keyboard interface. Full touch control

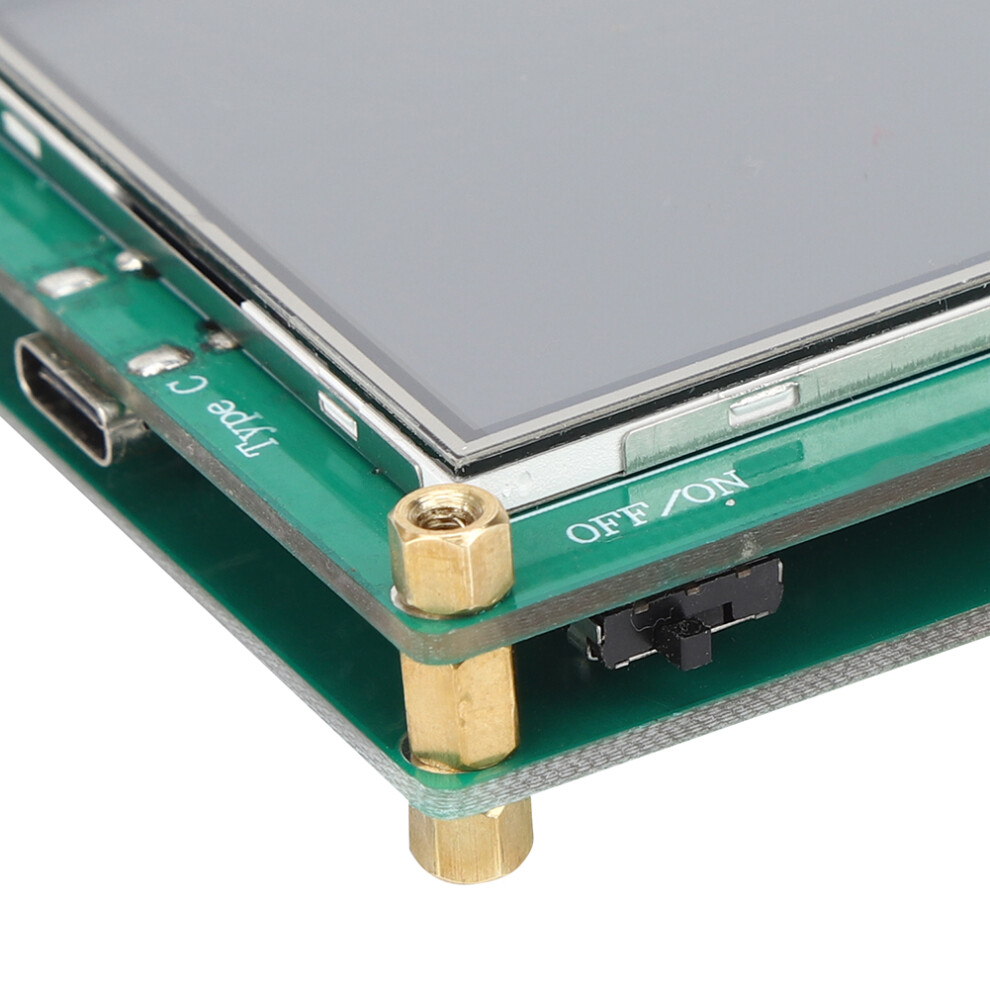

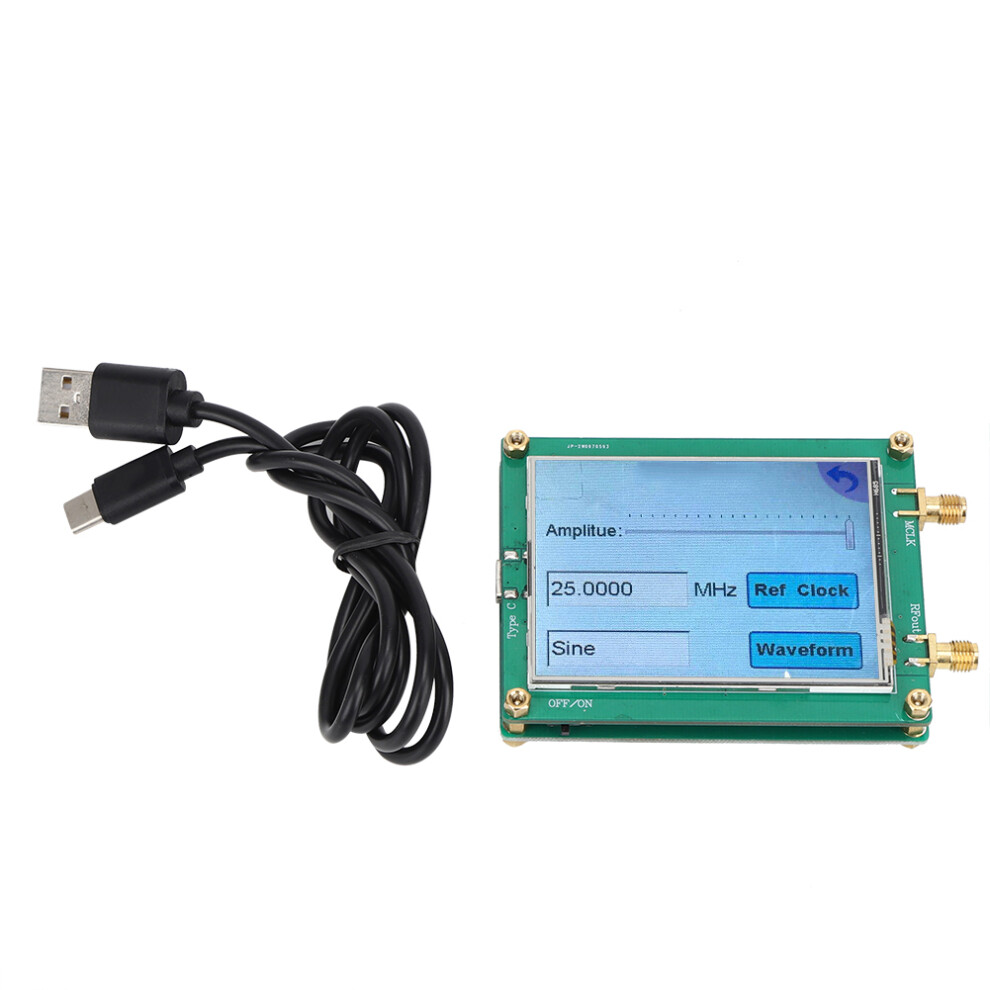

10. Can communicate with PC through TYPE C interface to provide host computer software
Details
| OPC | PMZYJVH |
|---|---|
| Codes | 3541362255778 (EAN) |
