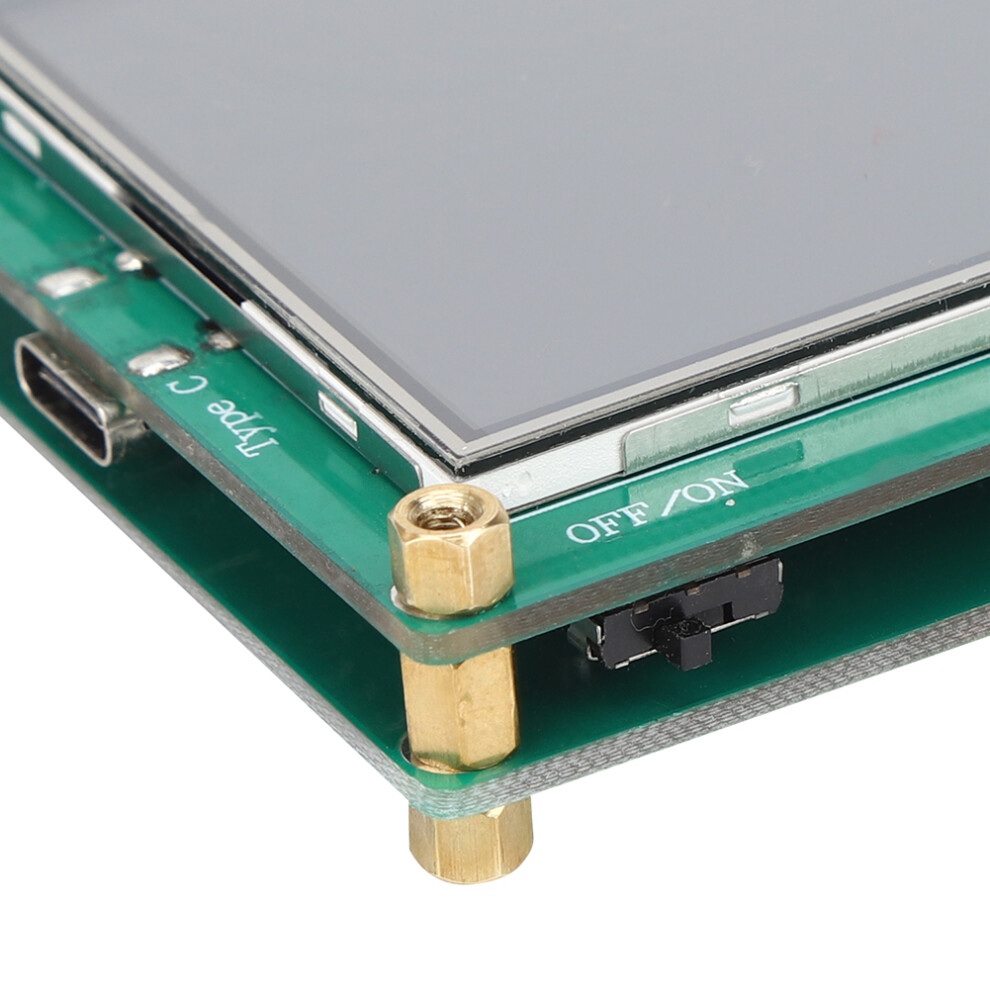

AD9833 Touch Screen DDS Signal Generator 3MHz, Full Color Display
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£46.60
£70.61
34% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 17th - Mon 20th Jul
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Crystals & Resonators
Description & Details
Summary
- Adjustable signal generator can make frequency stimulation or waveform generation, which is practical.
- Also, this DDS generator can measure liquid and air flow, and it is easy to use in life.
- As for sensor applications, the generator can be suitable for proximity, motion and defect detection,Line loss / attenuation, testing and equipment, scan / clock generator, time domain reflectometry (TDR) applications.
- Function signal generator enables to communicate with PC through TYPE C interface to provide host computer software.
- When it comes to the output waveform, this generator can set for sine wave, triangle wave and square wave.

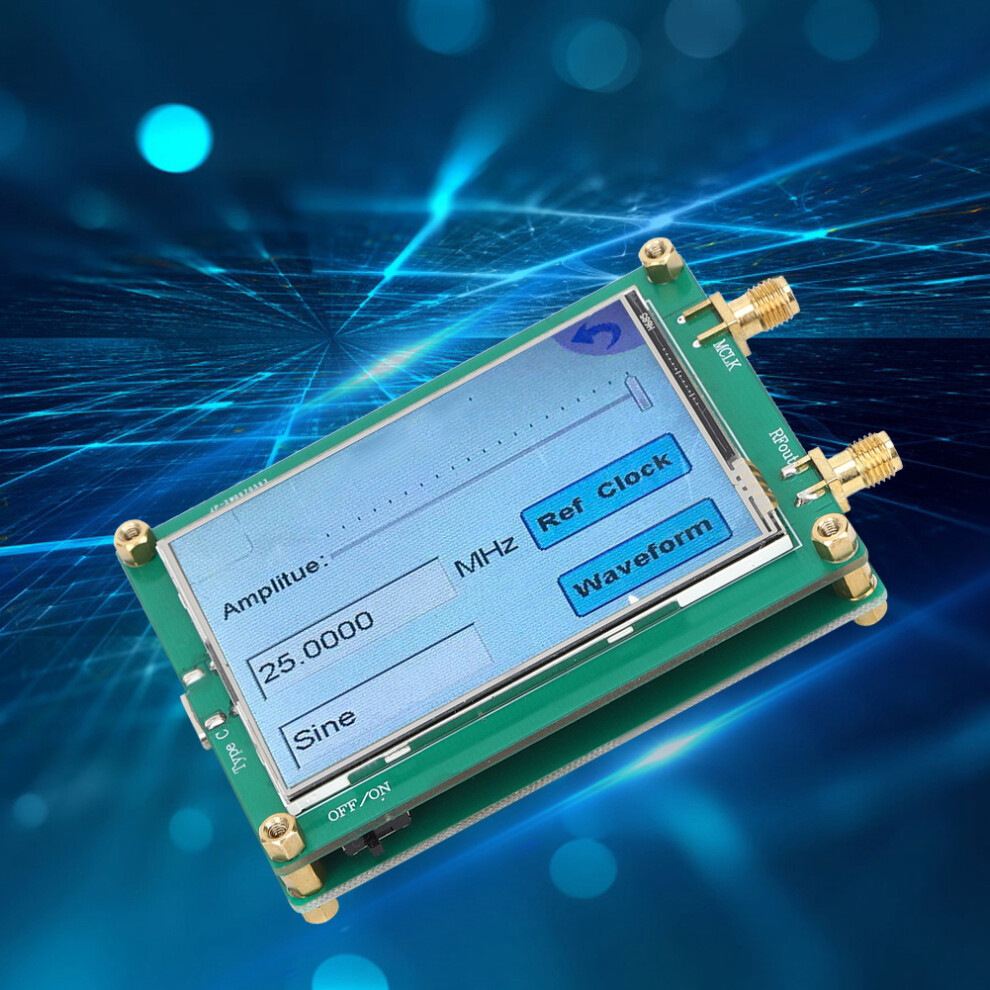

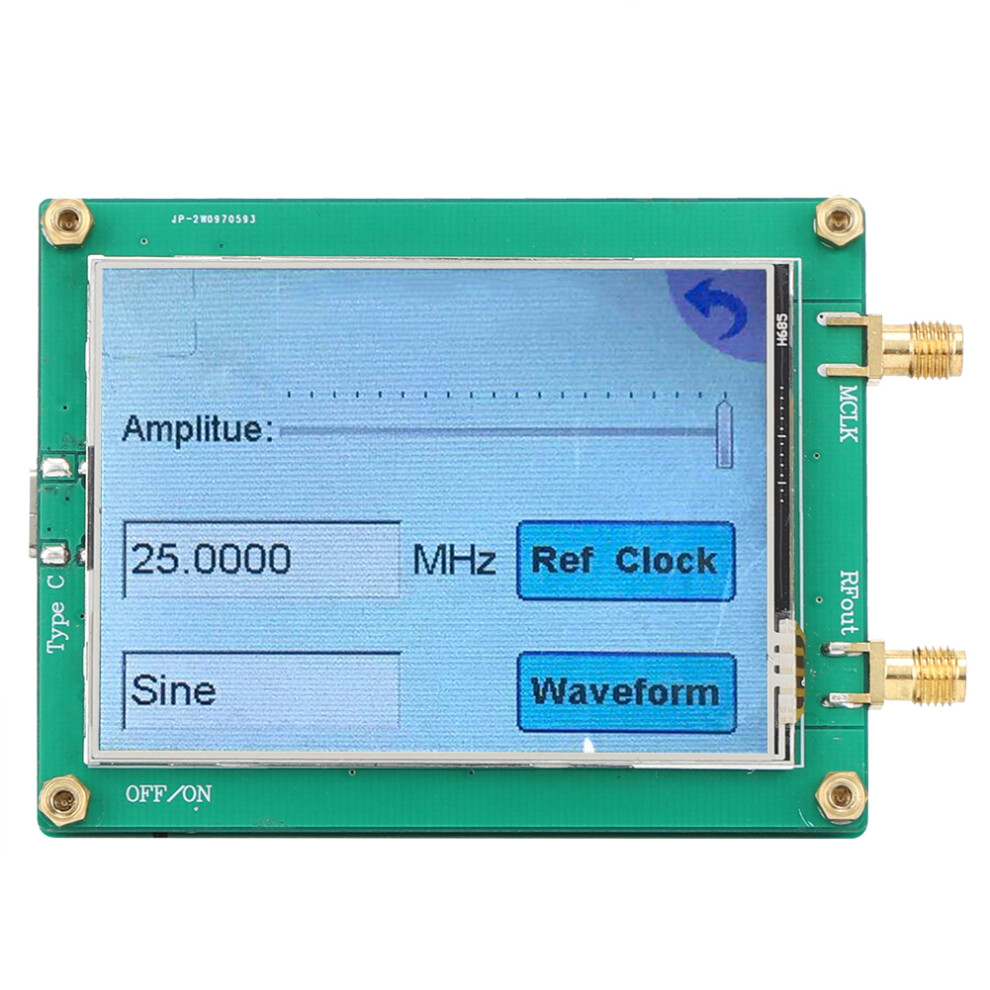

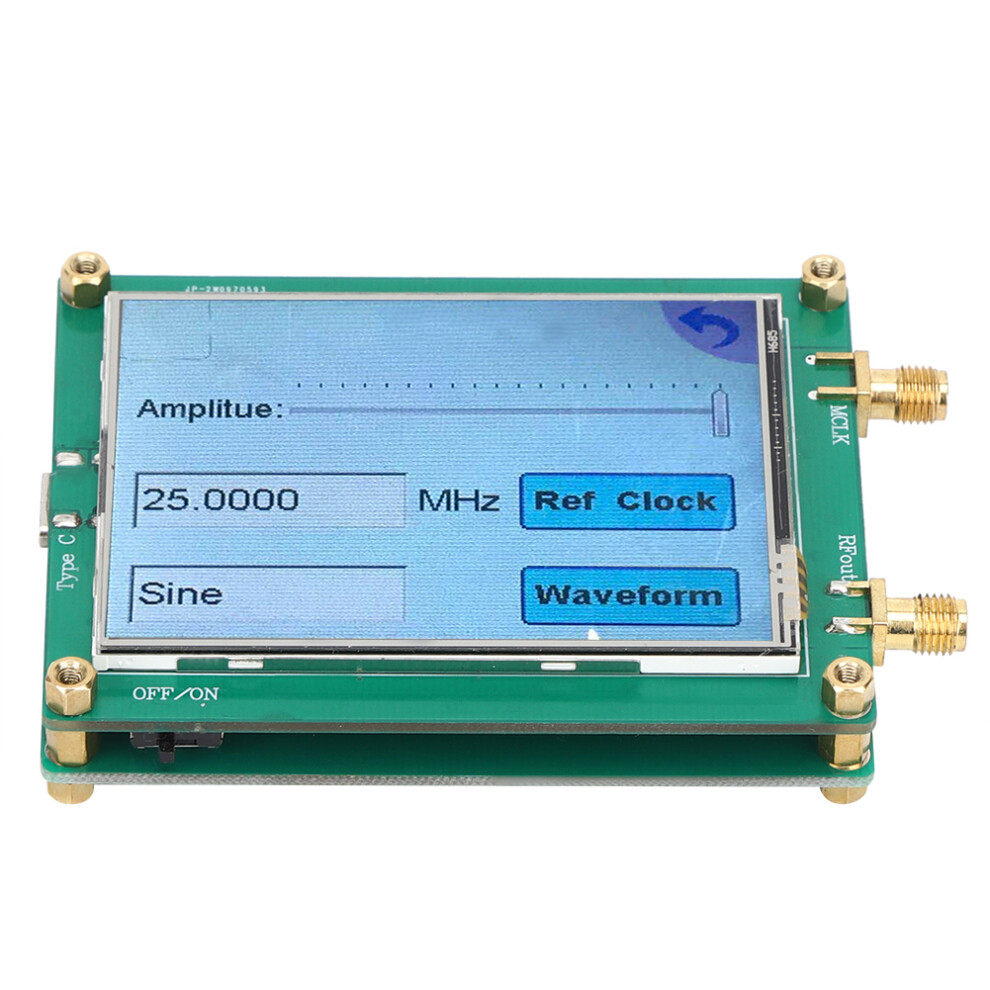

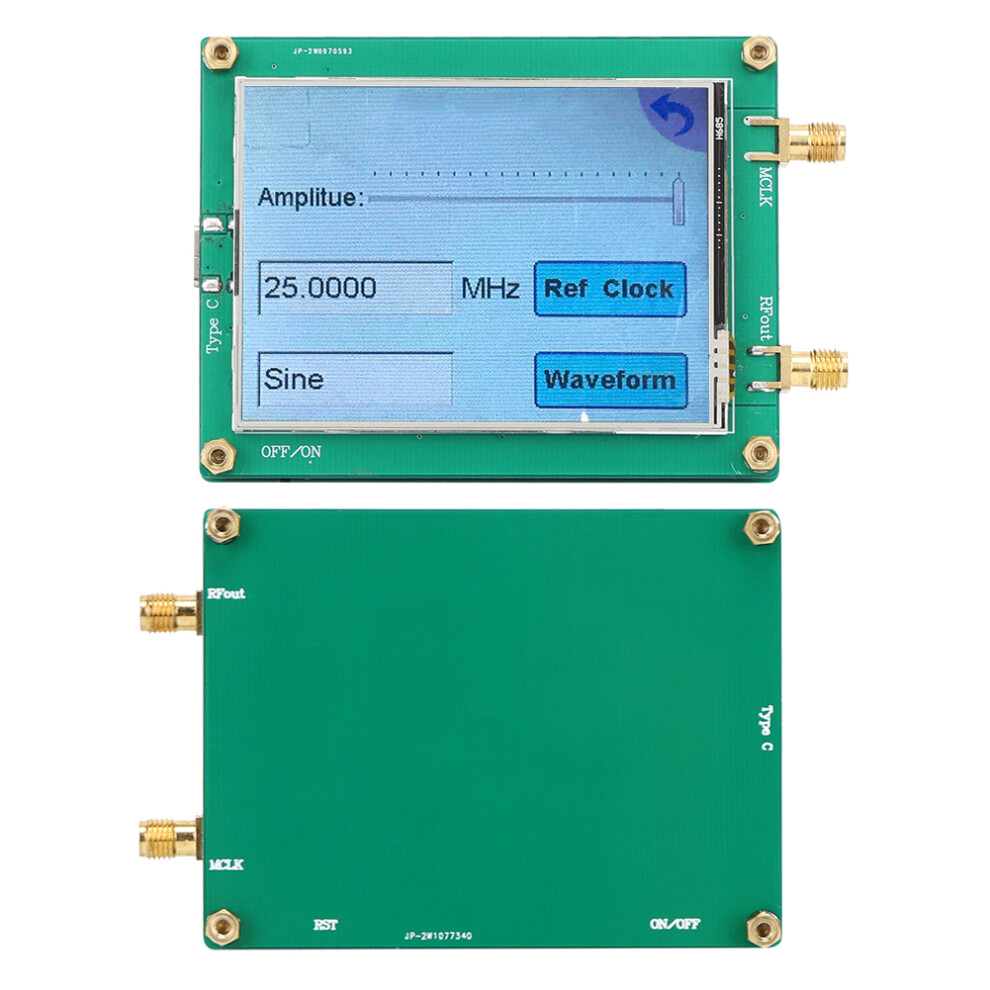

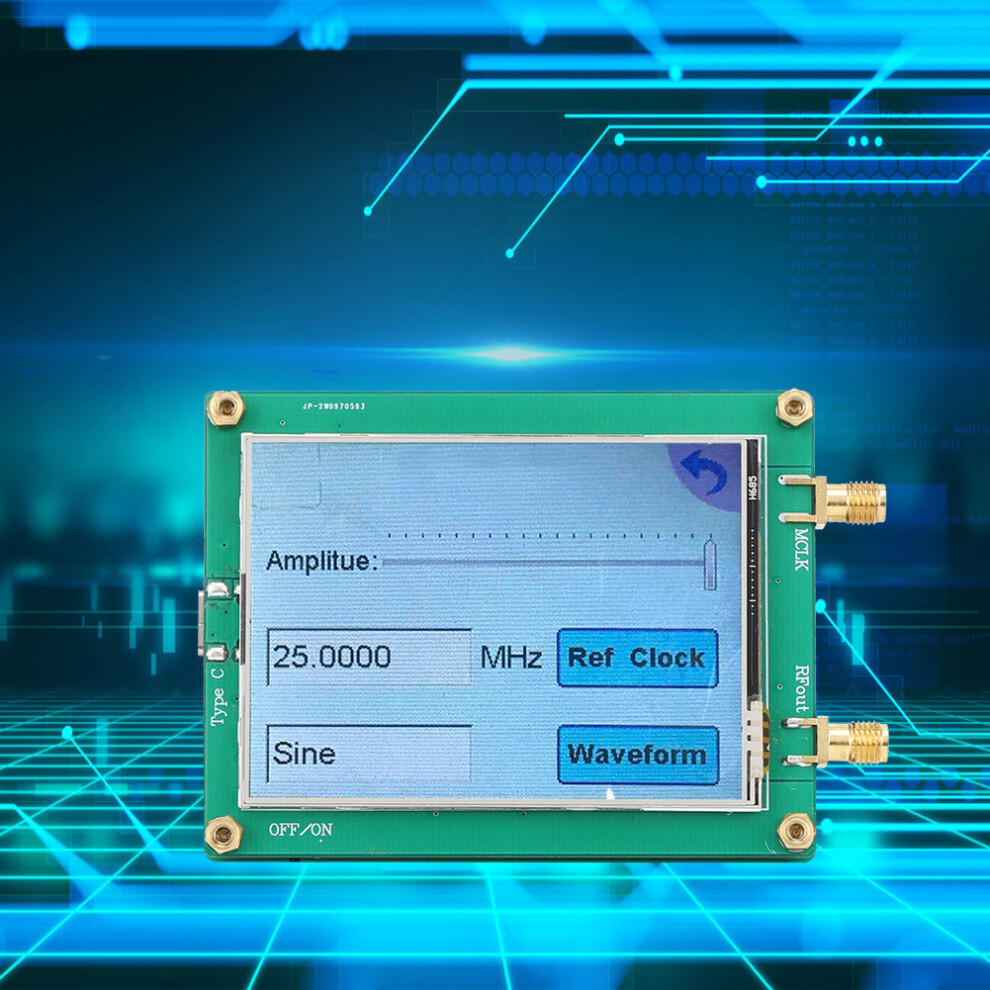

AD9833 Touch Screen DDS Signal Generator 3MHz, Full Color Display Description
AD9833 TFT Full Touch Screen Signal Generator DDS Source Dot Frequency for Sine / Triangle / Square Wave
Item Type: DDS Generator
Module Features:
2. Onboard 25MHZ Active Crystal Oscillator: Stepping accuracy is 0.1HZ, external input clock can be connected through three-way-equipment.

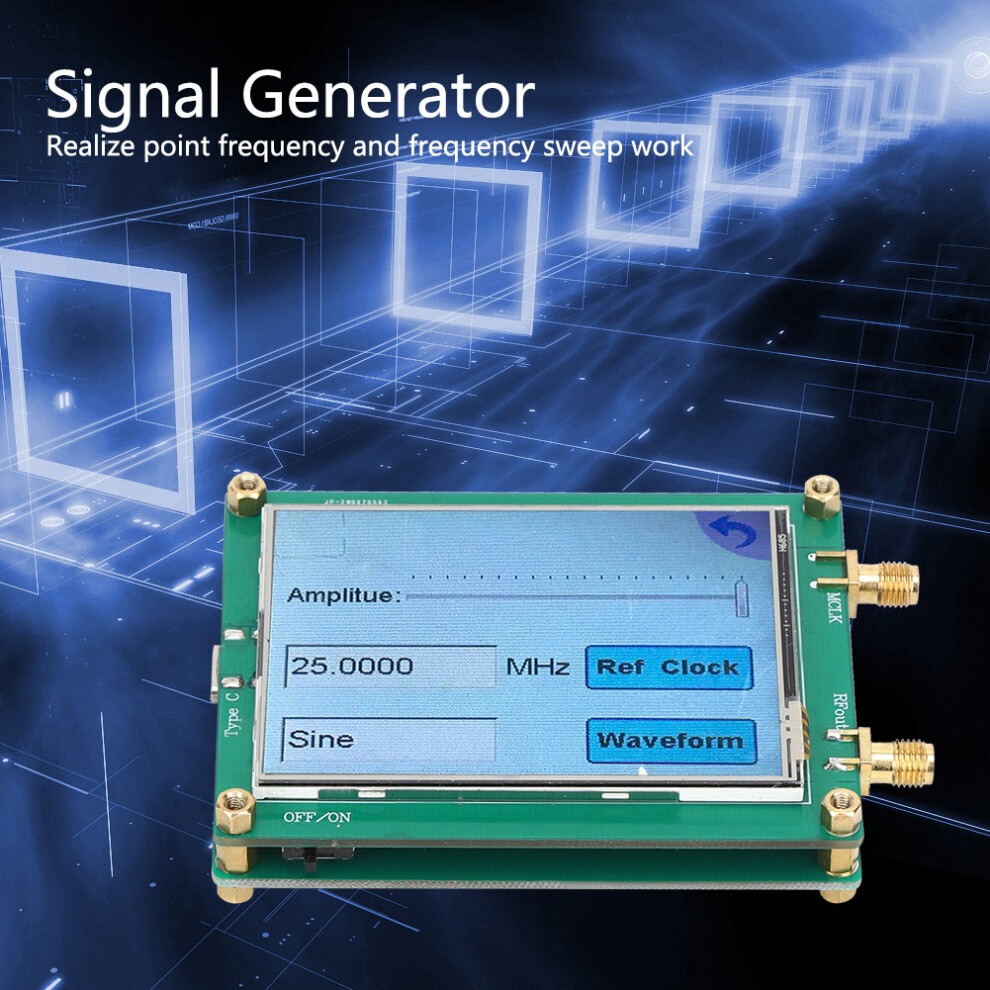

3. Point Frequency and Frequency Sweep Work: Achieved for full touch screen operation
4. Output Waveform: Sine wave, triangle wave and square wave can be set.
5. Output Amplitude: Sine wave and triangle wave are about 0.6Vpp (can be amplified by external amplifier), the high end of the frequency drops slightly; square wave is about 3Vpp
6. Output Impedance: 200R. It is recommended to add a buffer amplifier when loading
7. Output Frequency: Sine wave about DC-3MHz; square wave and triangle wave about DC-1MHz

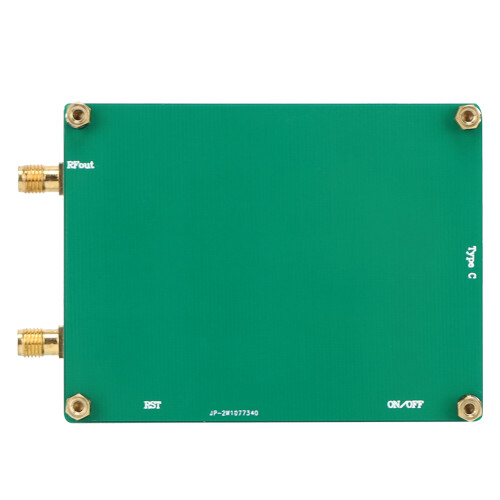

8. Output and External Clock Interface: SMA female seat (outer screw inner hole)
9. The Man-Machine Interface with Three Interfaces: Main display, setting interface, and keyboard interface. Full touch control

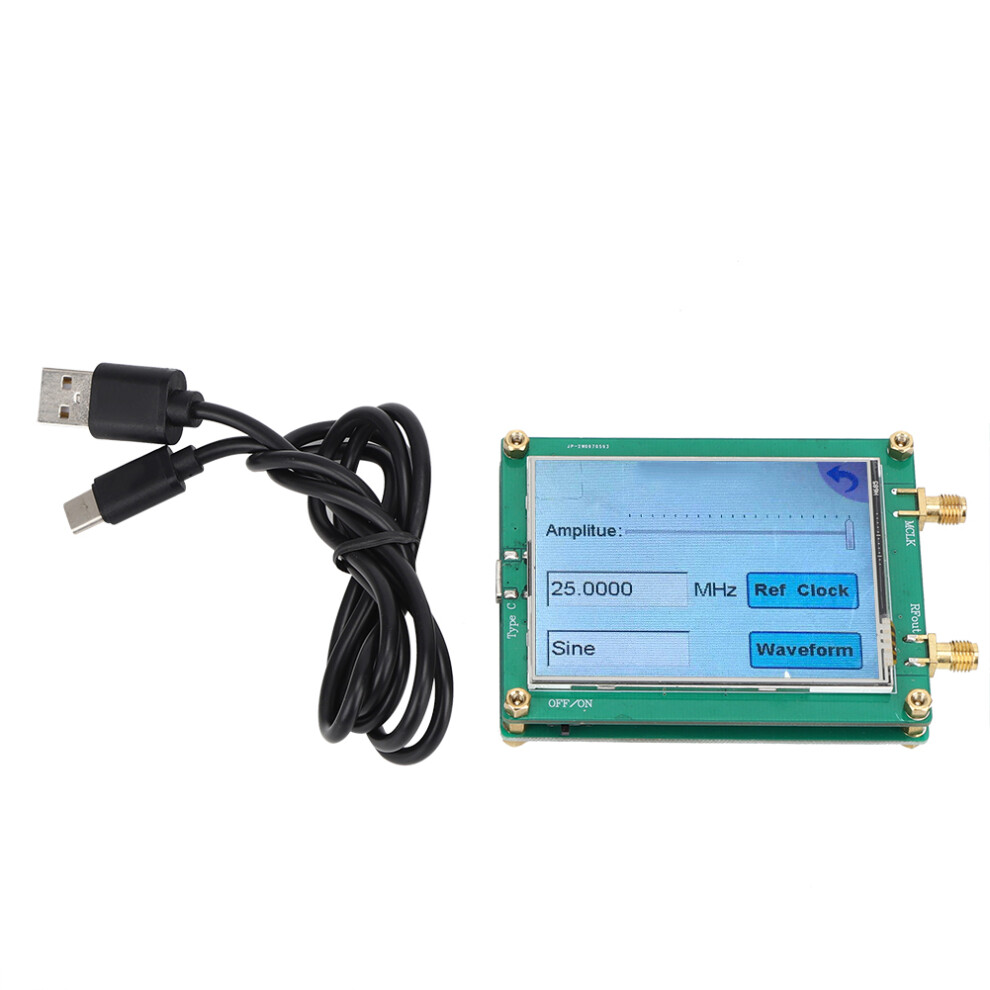

10. Can communicate with PC through TYPE C interface to provide host computer software
Details
| OPC | PJCPFG5 |
|---|---|
| Codes | 3451333992918 (EAN) |
