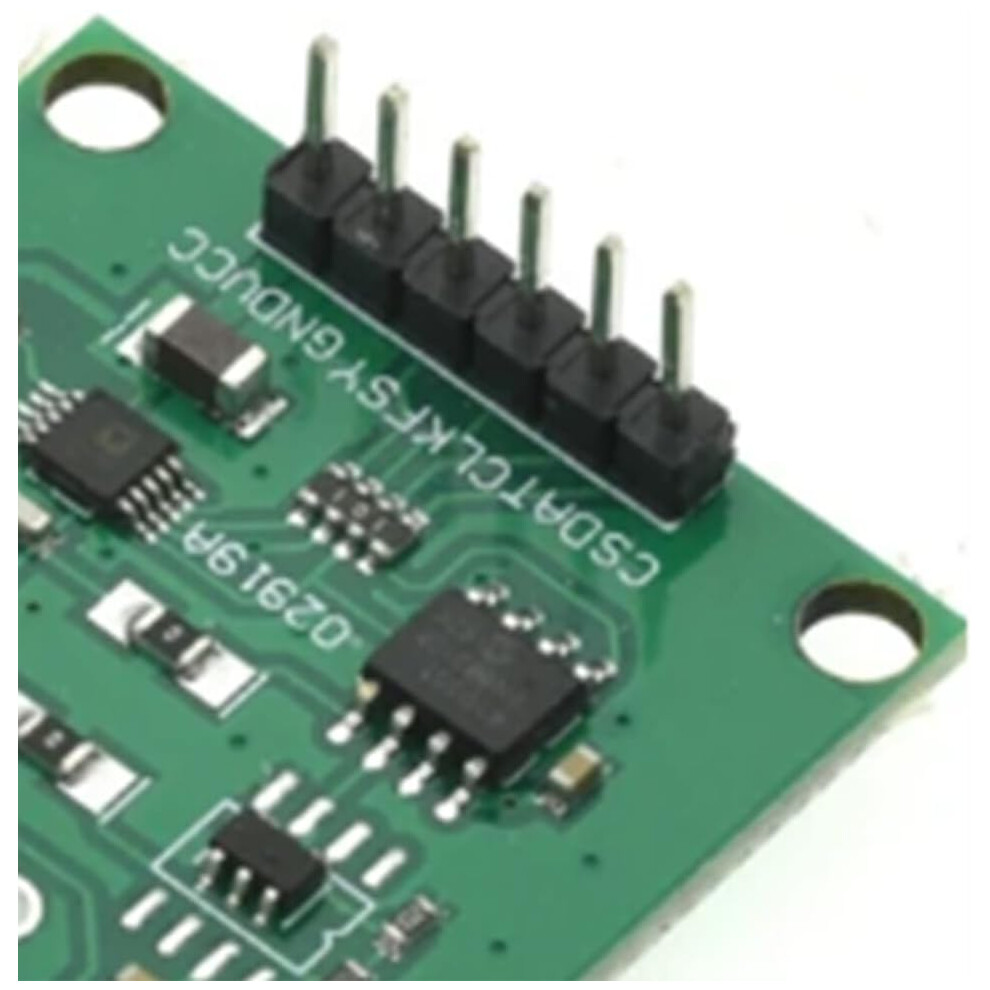

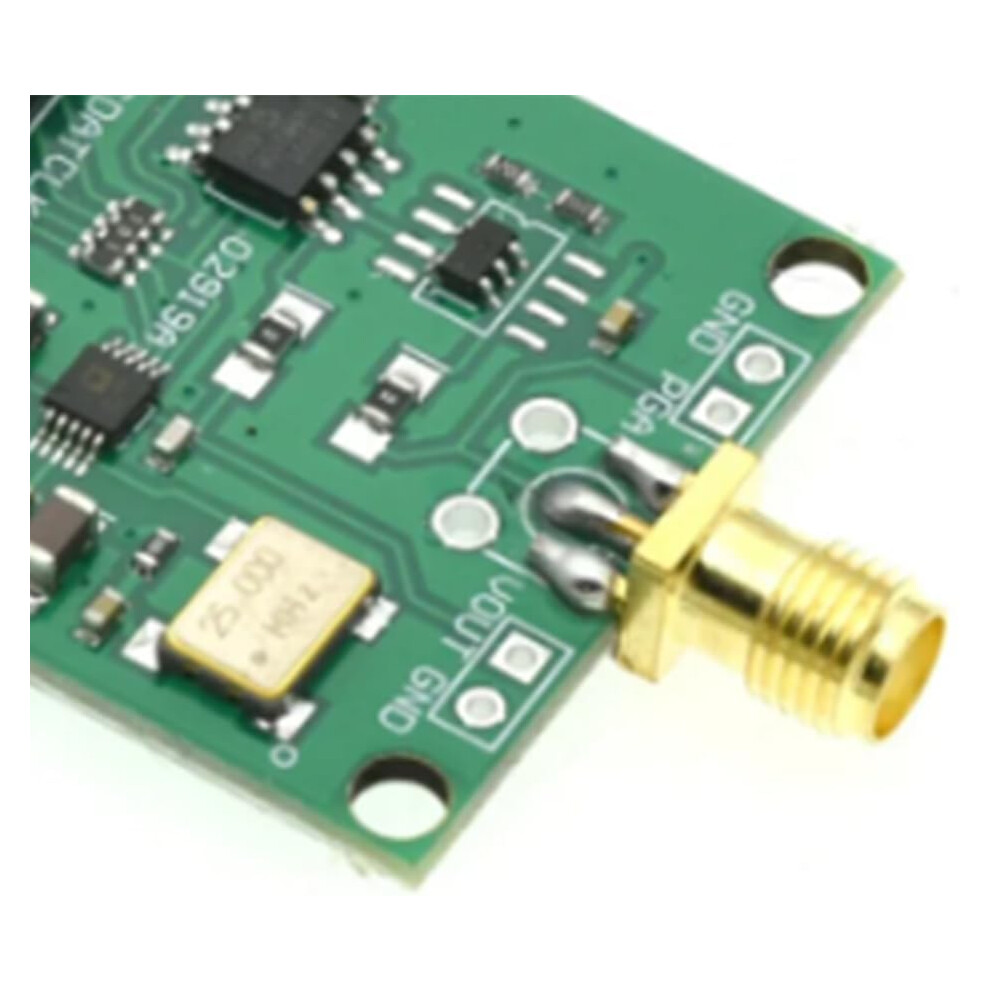

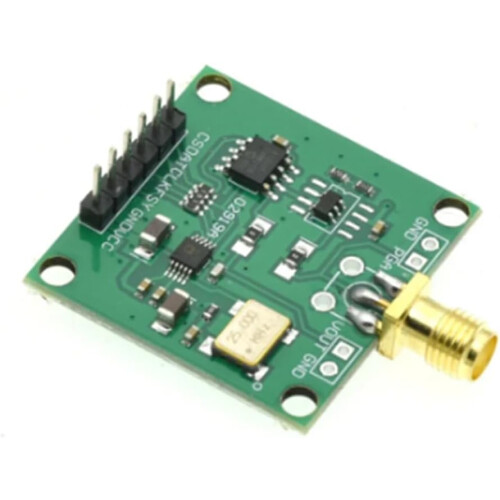

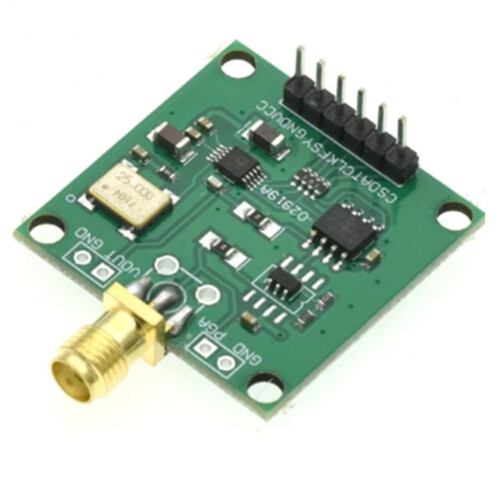

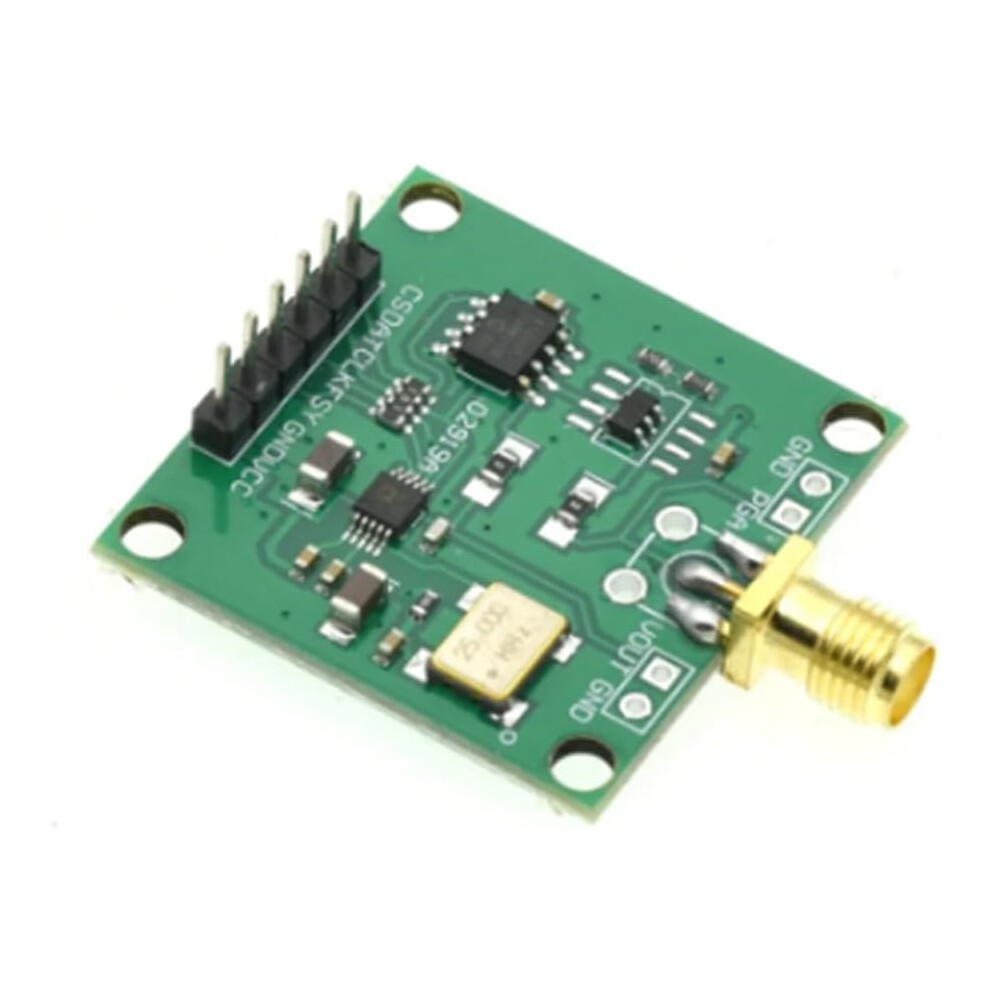

AD9833 Triangular Sine Wave Signal Source IC, SPI Programmable Low Power Waveform Generator Module, Square Wave Output

AD9833 Triangular Sine Wave Signal Source IC, SPI Programmable Low Power Waveform Generator Module, Square Wave Output Description

Benefits Provides a precise 25MHZ clock reference with stability across wide temperatures, featuring accuracy of 50 ppm and frequency stepping resolution of 0.1 Hz. Wide operating temperature range (40 C to 105 C) supports reliable use in harsh or demanding environments. Flexible power options: operates from 2.3V to 5.5V, enabling compatibility with a variety of boards and systems. Integrated signal path with onboard speed amplifiers (300M) and a lowpass filter, reducing external components and improving signal quality. Compact onboard solution that simplifies design, lowers part count, and enhances overall system reliability. Applications and use scenarios Clock source for microcontrollers, FPGAs, and other timingcritical digital devices that require a stable 25MHZ reference. Reference oscillator for RF frontends, transceivers, and measurement equipment needing precise frequency control. Calibration and testing setups where fine frequency steps (0.1 Hz) and stable performance across temperature ranges are important. Specifications Working temperature range: 40 C to 105 C Onboard 25MHZ active crystal, accuracy of 50ppm, stepping accuracy 0.1HZ Working voltage: 2.3V5.5V Onboard speed amplifiers 300M and lowpass filtering
