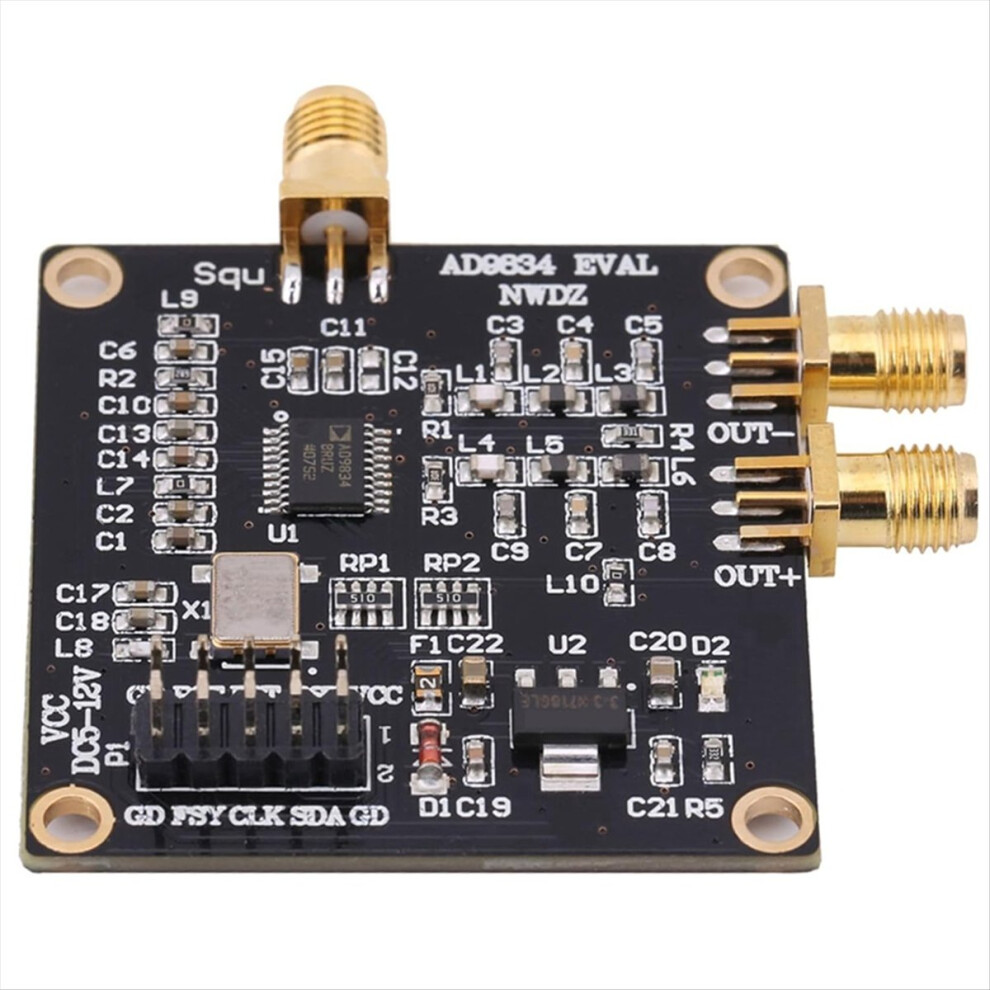

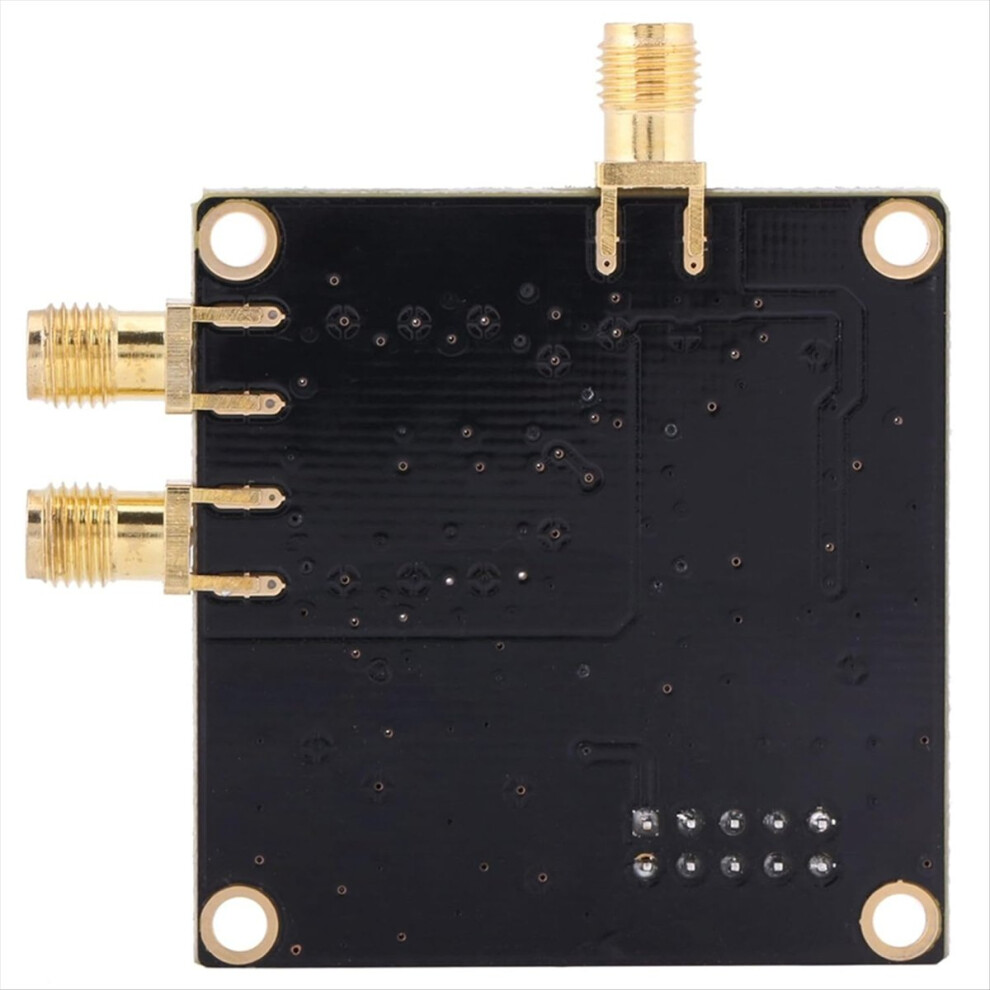

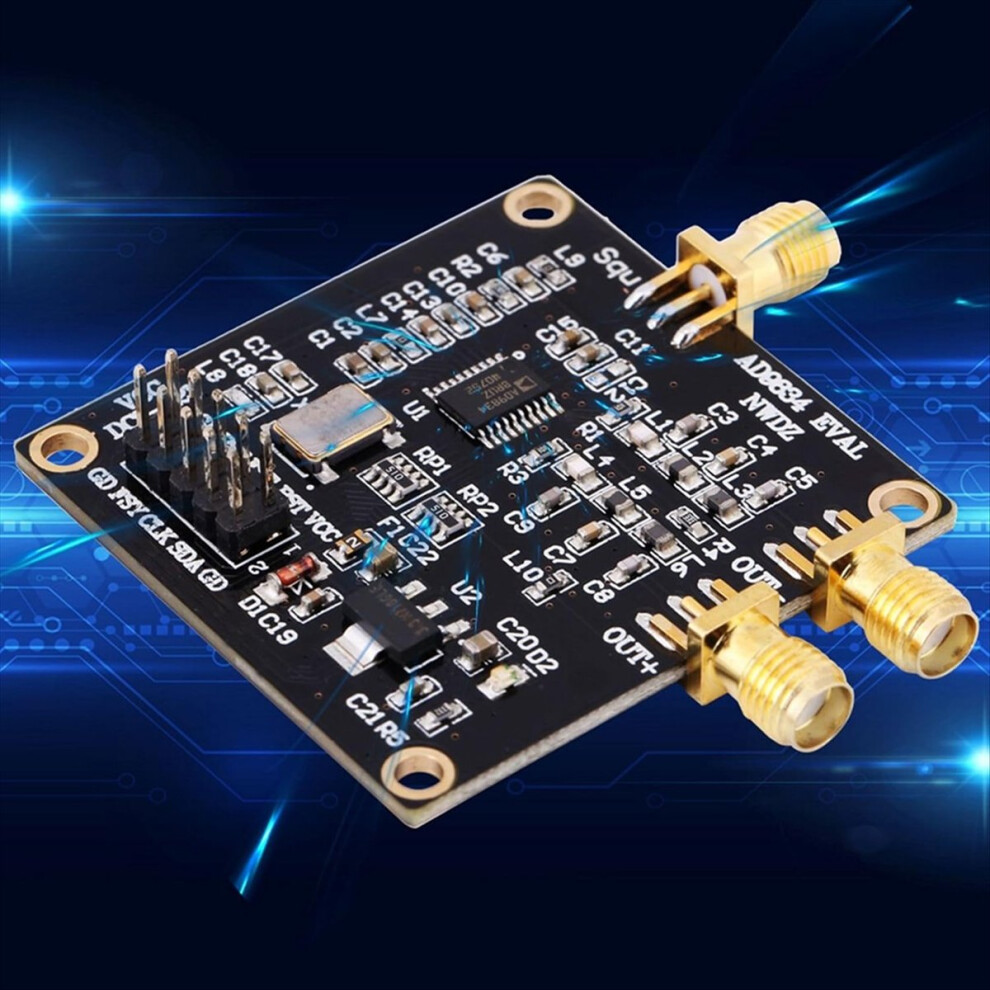

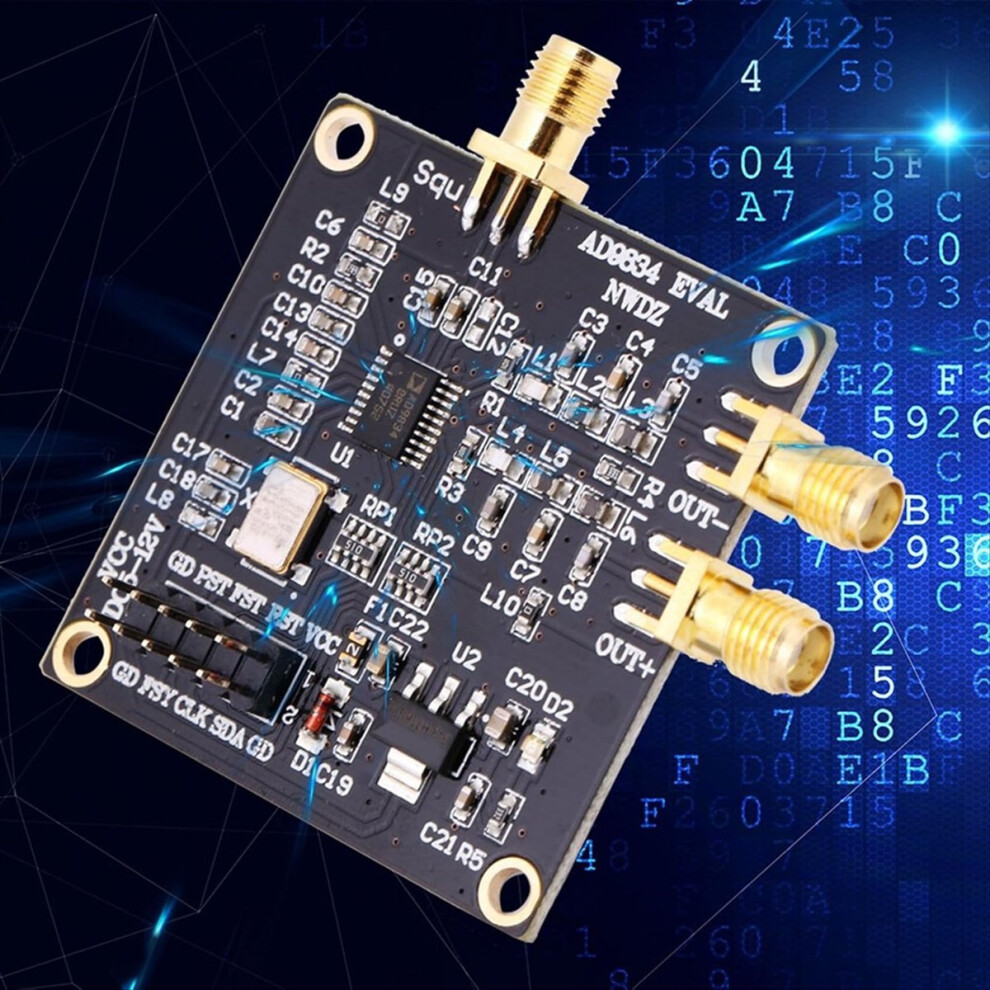

AD9834 DDS Generator Module Sine Triangle Generator

AD9834 DDS Generator Module Sine Triangle Generator Description

Three waveform types: This DDS generator module is a 75MHz low-power DDS device capable of producing high-performance sine and triangle wave outputs, whilst also supporting clock signal generation functionality.
Phase modulation and frequency modulation capabilities: The AD9834 generator module provides phase modulation and frequency modulation functionality. With a 28-bit frequency register and a 75MHz clock frequency, it achieves a resolution of 0.28Hz. Similarly, at a 1MHz clock frequency, the AD9834 achieves a resolution of 0.004Hz.
Sleep Function: This generator module incorporates a sleep function via control pins, supporting external power-down mode control. All device sections can be deactivated to minimise power consumption, thereby reducing costs.
Multifunctional Applications: This DDS source module finds extensive utility in , serving applications such as frequency excitation/waveform generation, frequency and phase tuning/modulation, low-power /communication systems, liquid and gas measurement, sensor applications, proximity detection, motion and defect detection, test equipment, and medical devices.

Color: As Shown
Material: PCB

Package Contents:
1 * Generator Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
