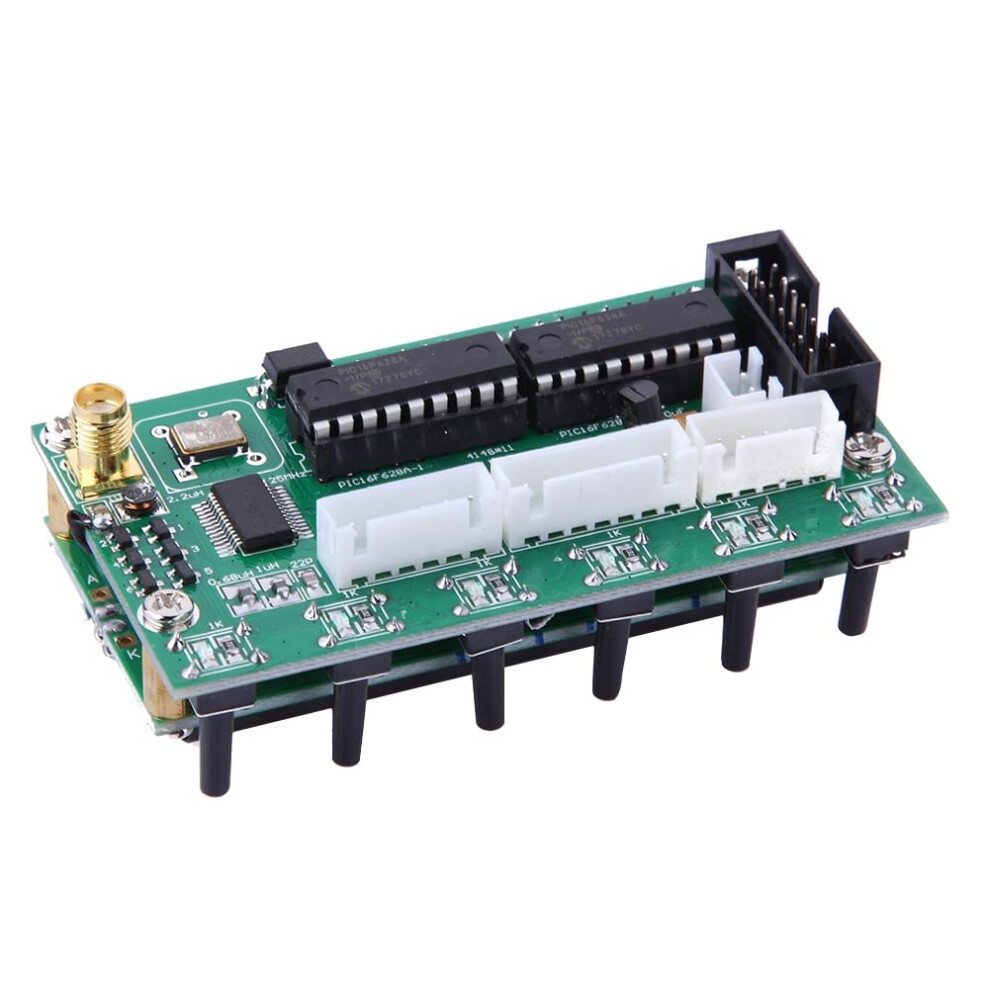

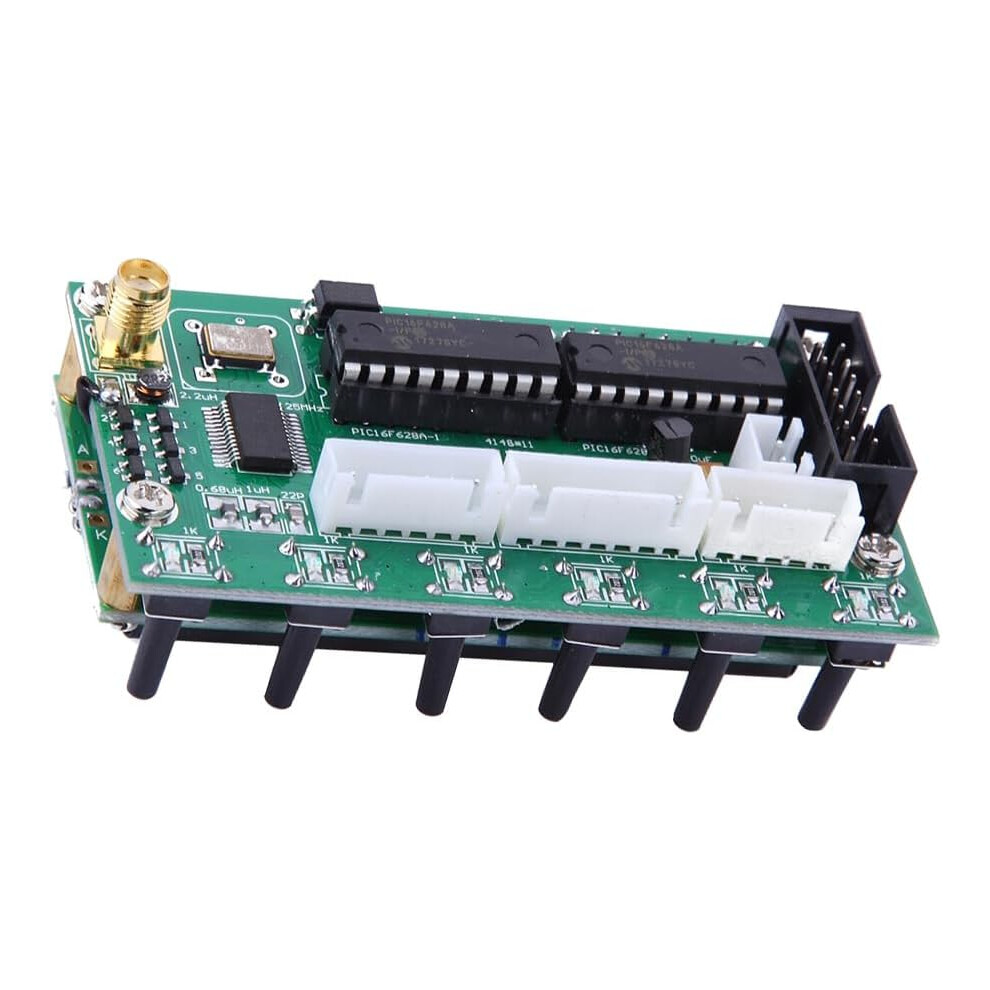

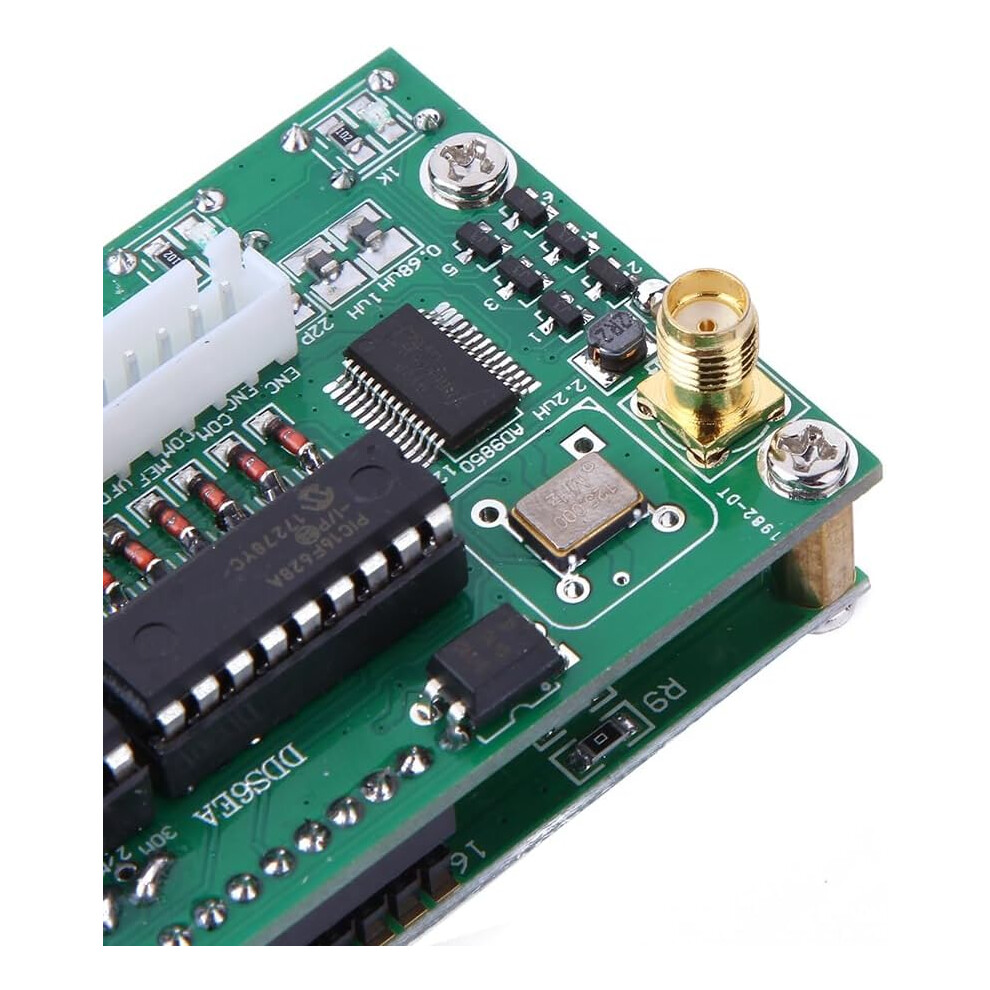

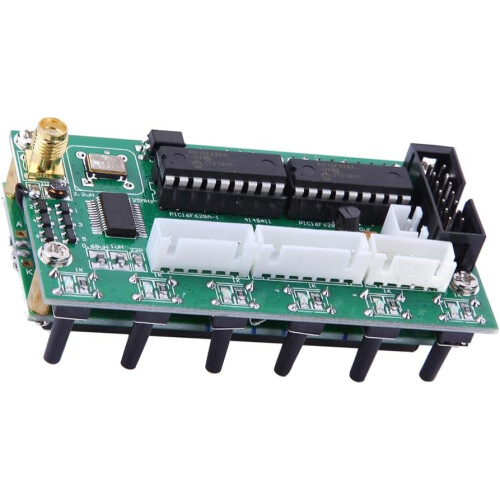

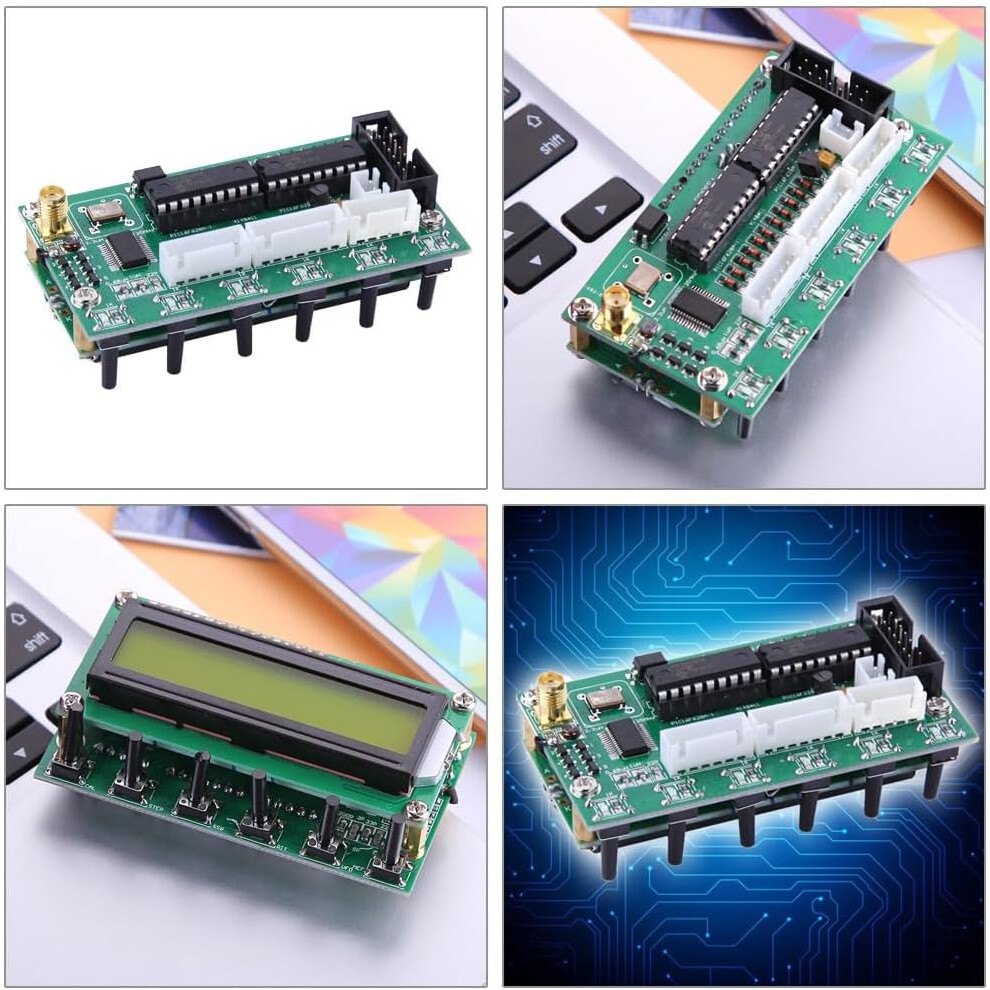

AD9850 DDS Signal Generator Module 6 Bands 0-55 MHz Frequency Output LCD Display Digital Module

AD9850 DDS Signal Generator Module 6 Bands 0-55 MHz Frequency Output LCD Display Digital Module Description

1. Supports continuous frequency adjustment from 0 to 55 MHz in precise 1 Hz increments.
2. Equipped with a 78L05 voltage regulator, this generator operates ideally at an input voltage of 8-9 V and an input current of 200 mA.

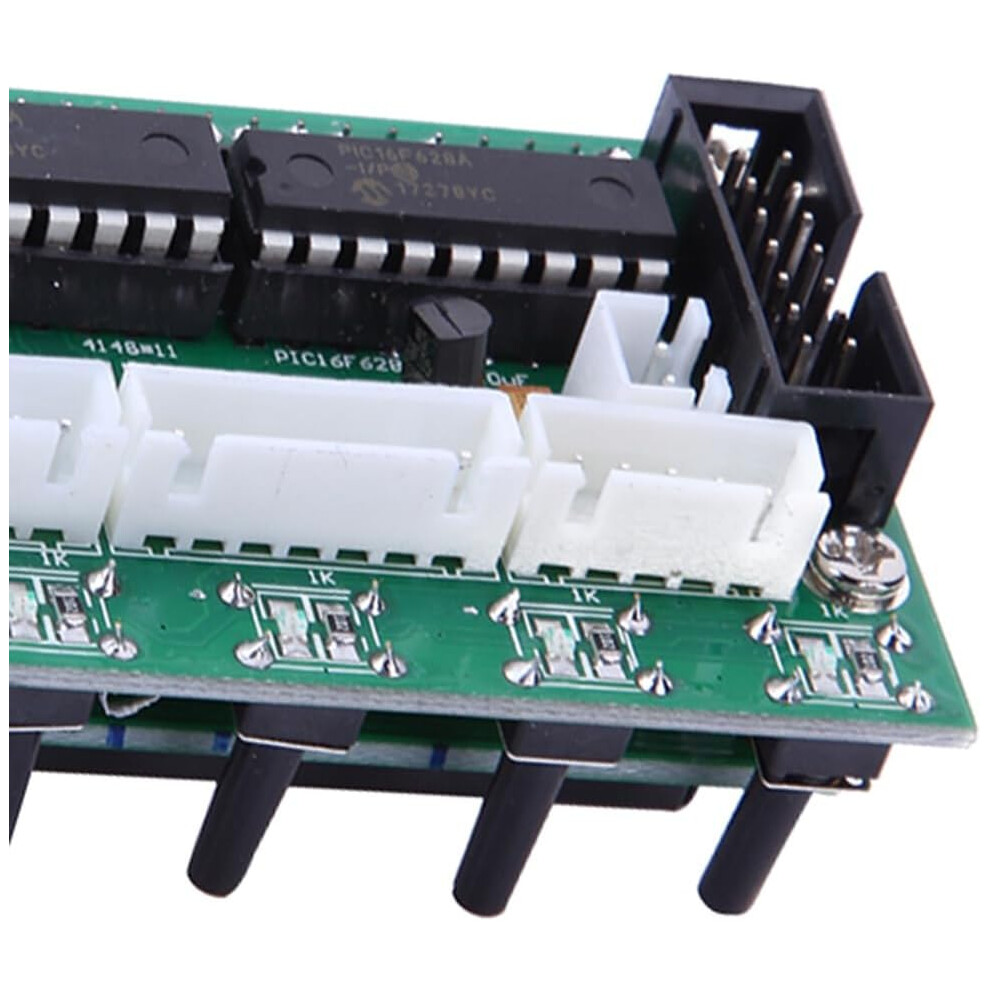

3. Connect the 5p/6p pins as shown in the photo using the encoder. The 7p pin in the center connects to the digital matrix input, while the 14p pin (8 V GND) provides the 8 V power supply from the main board.
4. A 12 V input voltage may be used for short-term testing only, as prolonged use can lead to overheating of the board.
Key Benefits:
- Precision: Fine-tune your frequency settings with 1 Hz accuracy for various applications.
- Compatibility: Easily integrates with existing systems via standard pin connections.
- Reliable Power Supply: Designed to function optimally within specified voltage ranges, ensuring stable performance.
Use Scenarios:
- Ideal for signal generation in research and development environments.
- Perfect for testing and calibrating electronic devices that operate within the 0-55 MHz range.
- Useful in educational settings for hands-on learning about frequency modulation and electronic circuits.
This generator stands out due to its precise frequency control and robust design, making it a valuable tool for professionals and hobbyists alike.
